System Diagrams

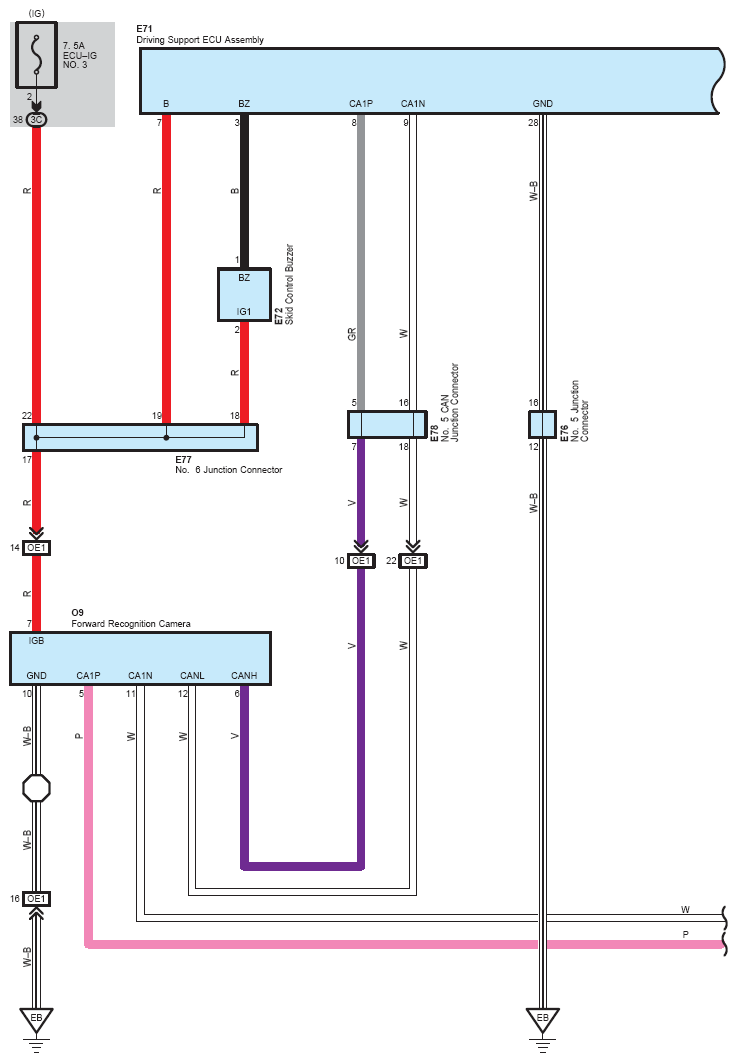

Fig 1: Lane Departure Alert (1 Of 6)
G12199605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

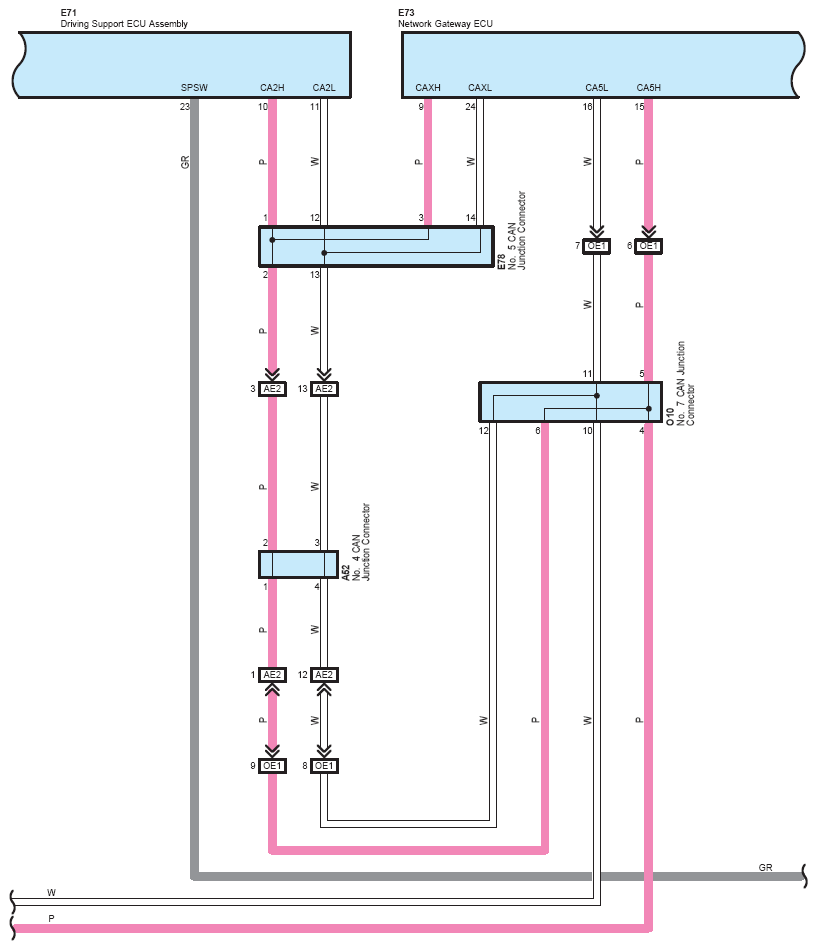

Fig 2: Lane Departure Alert (2 Of 6)
G12199606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

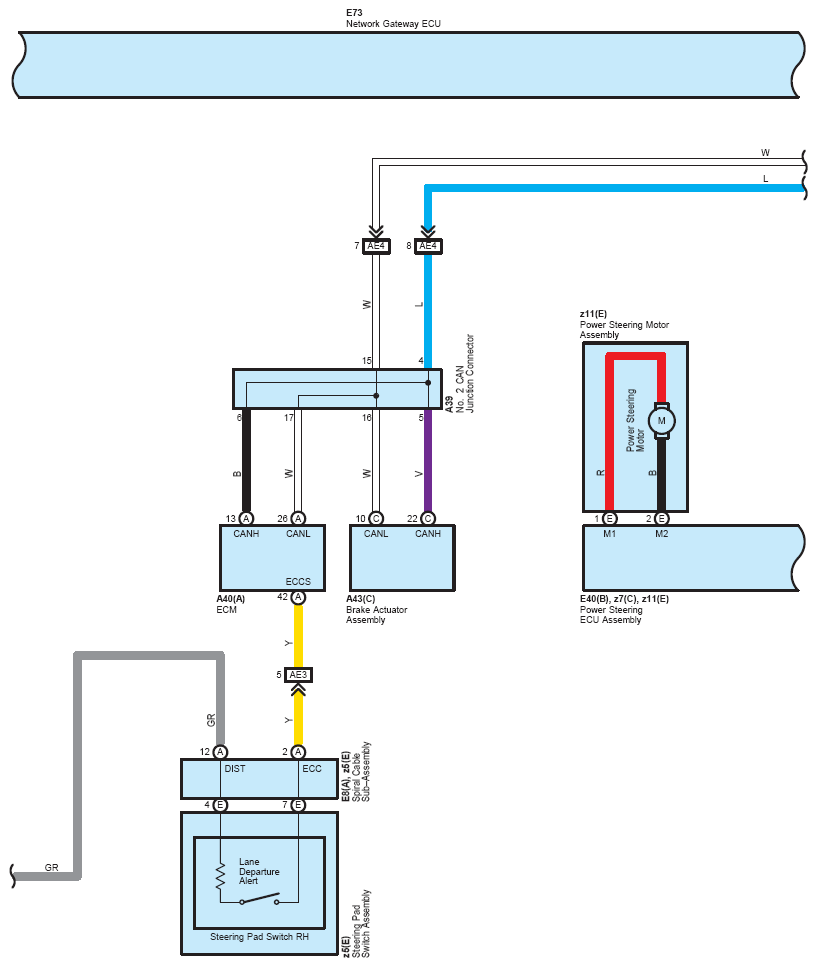

Fig 3: Lane Departure Alert (3 Of 6)
G12199607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

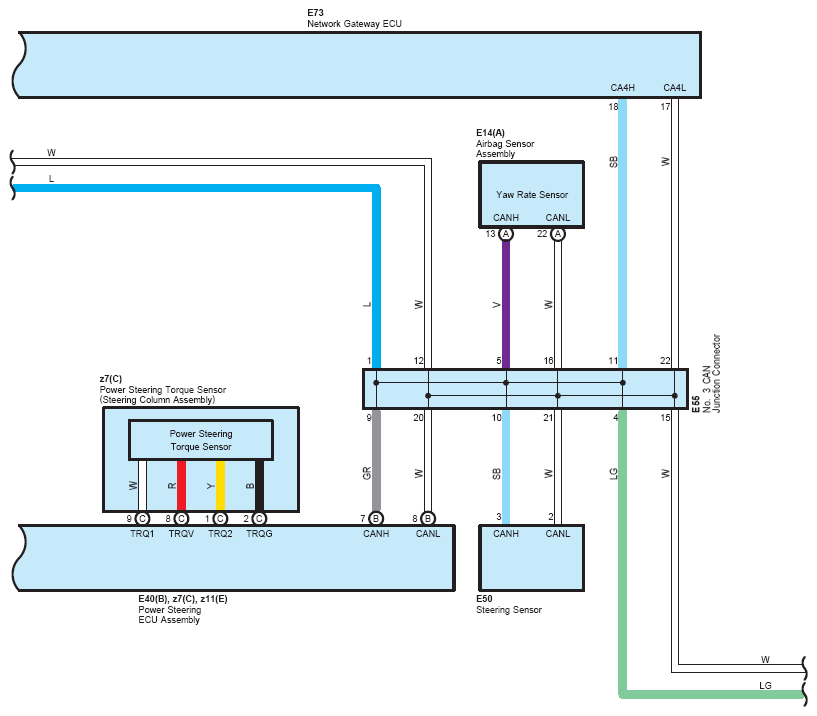

Fig 4: Lane Departure Alert (4 Of 6)
G12199608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

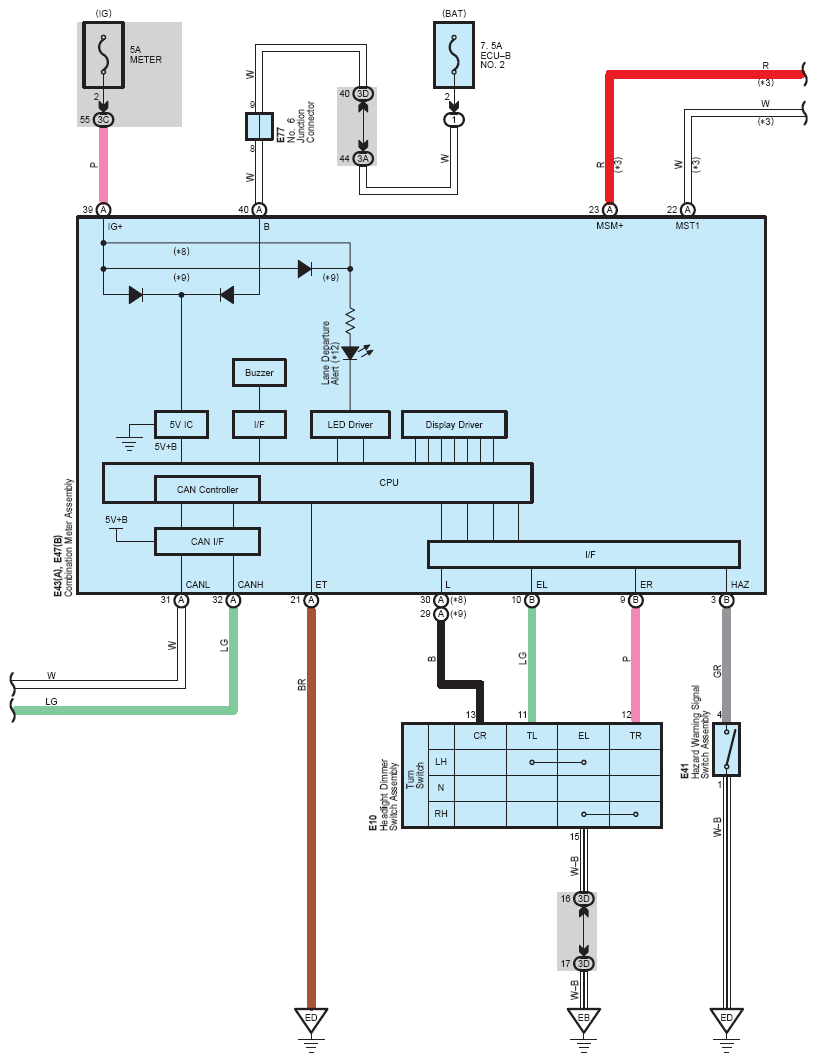

Fig 5: Lane Departure Alert (5 Of 6)
G12199609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

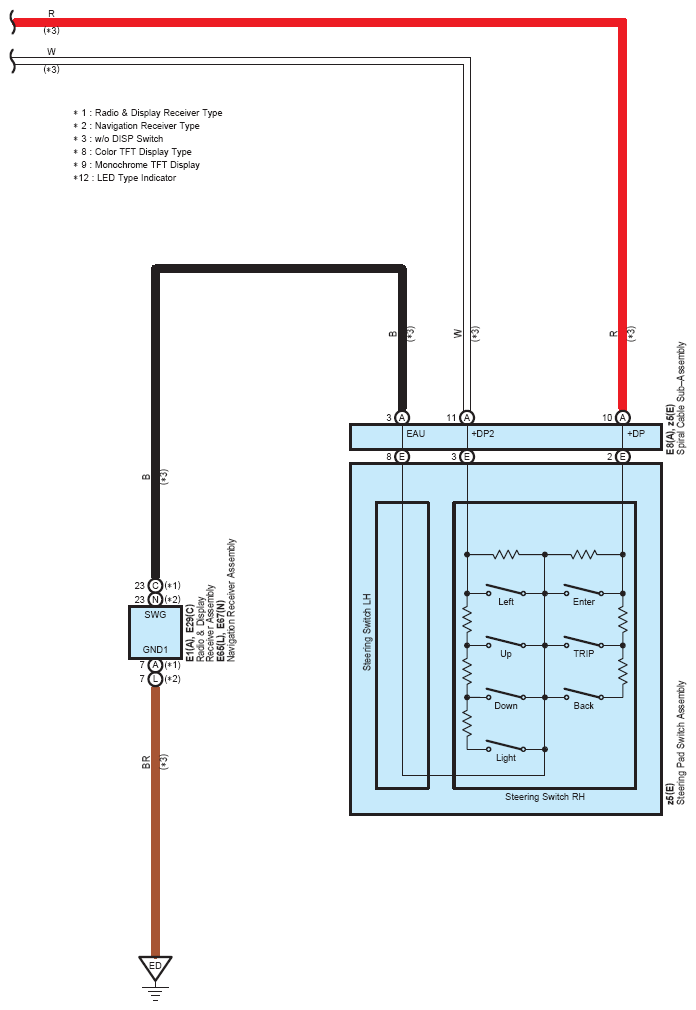

Fig 6: Lane Departure Alert (6 Of 6)
G12199610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
