System Diagrams

Fig 1: Immobilizer System (W/O Smart Key System) (1 Of 3)
G12199512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

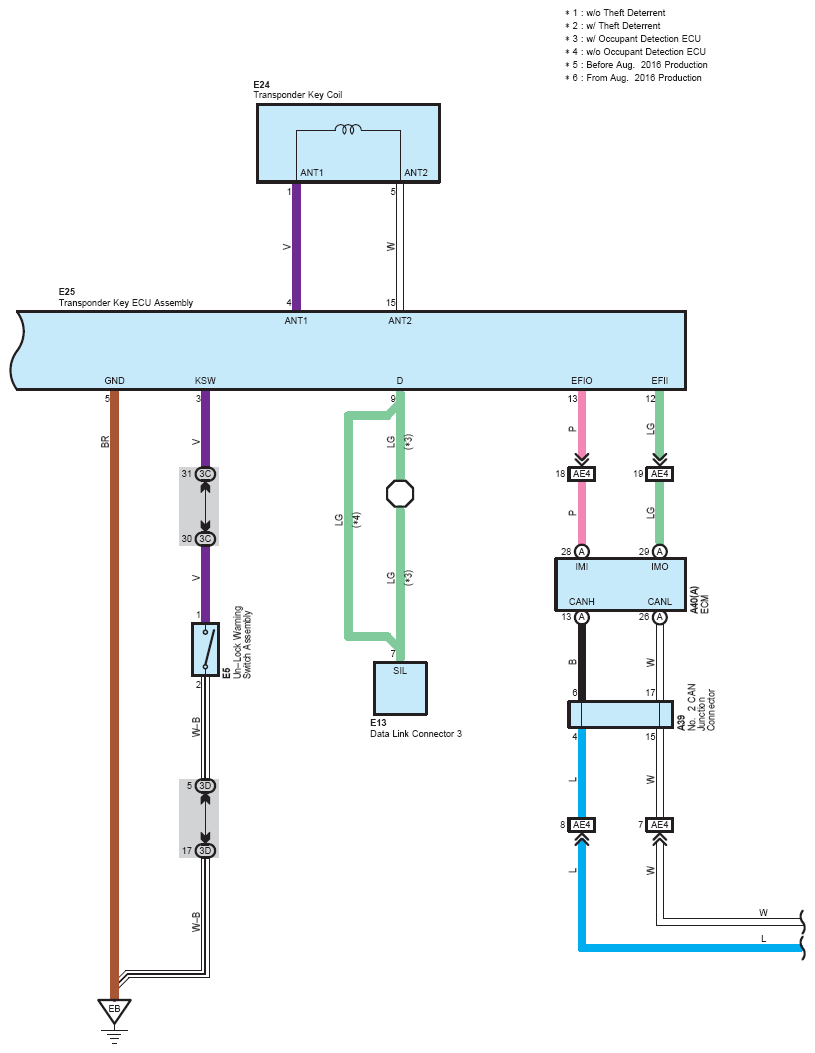

Fig 2: Immobilizer System (W/O Smart Key System) (2 Of 3)
G12199513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

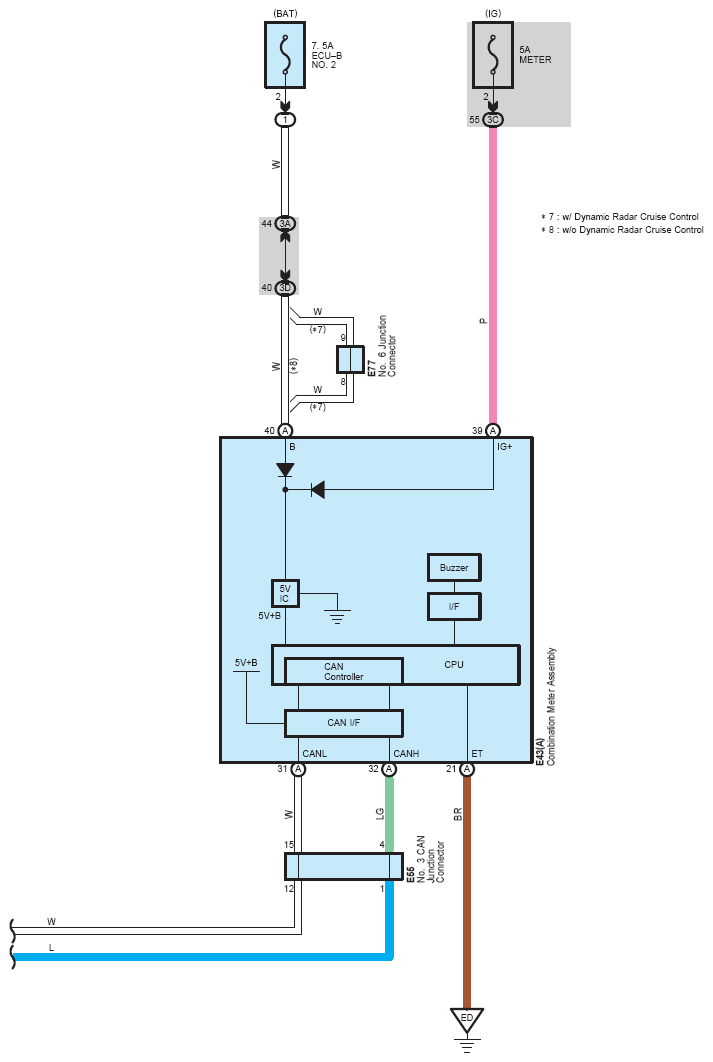

Fig 3: Immobilizer System (W/O Smart Key System) (3 Of 3)
G12199514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
