System Diagrams

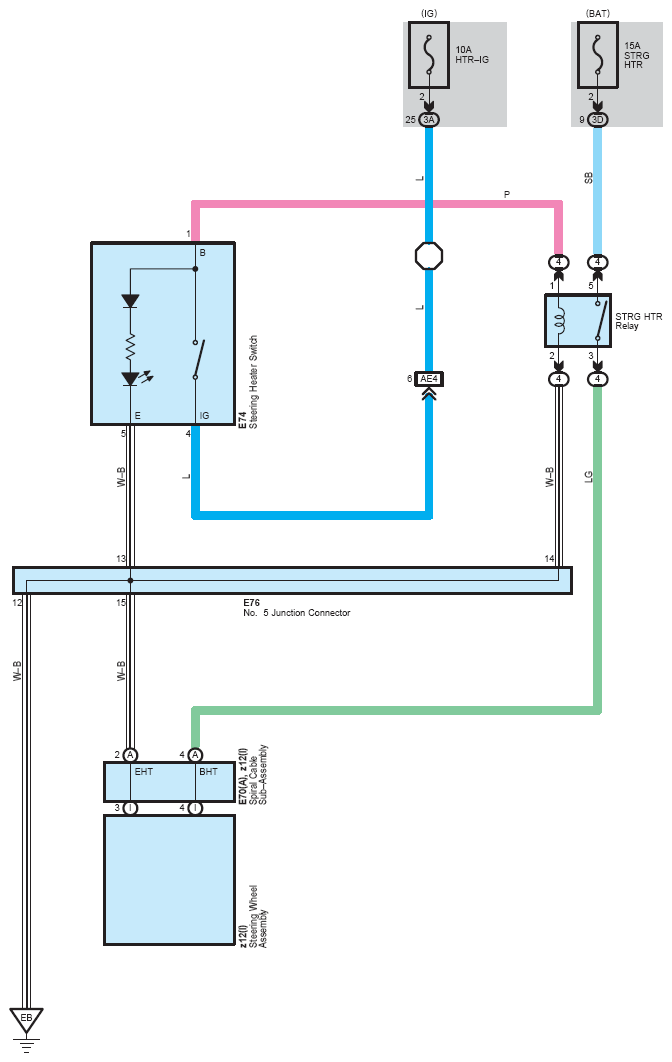

Fig 1: Heated Steering Wheel System (1 Of 8)
G12199585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

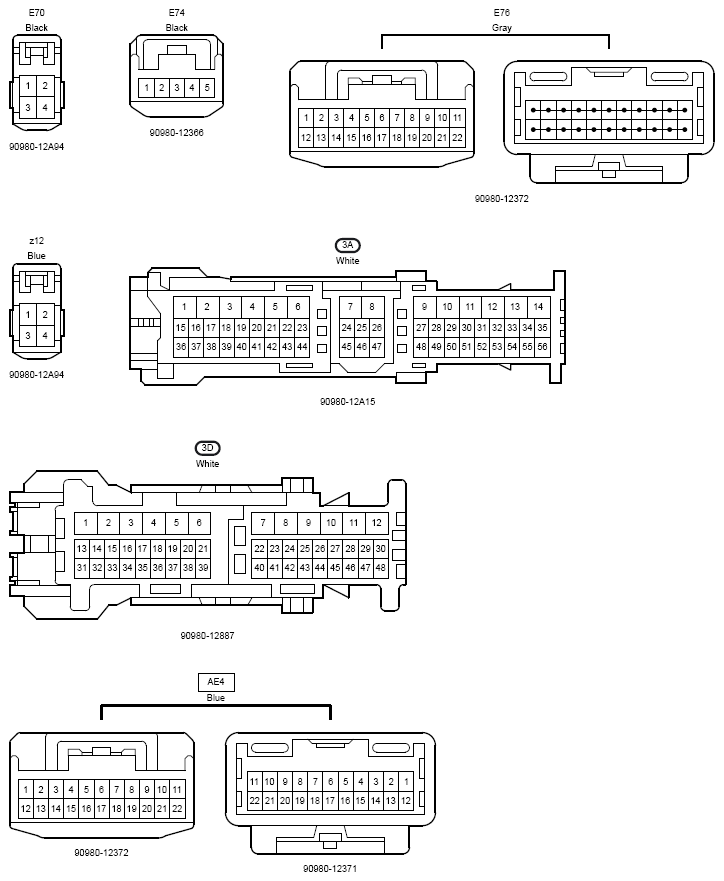

Fig 2: Heated Steering Wheel System (2 Of 8)
G12199586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Heated Steering Wheel System (3 Of 8)
G12199587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Heated Steering Wheel System (4 Of 8)
G12199588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Heated Steering Wheel System (5 Of 8)
G12199589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Heated Steering Wheel System (6 Of 8)
G12199590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Heated Steering Wheel System (7 Of 8)
G12199591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 8: Heated Steering Wheel System (8 Of 8)
G12199592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
