System Diagrams

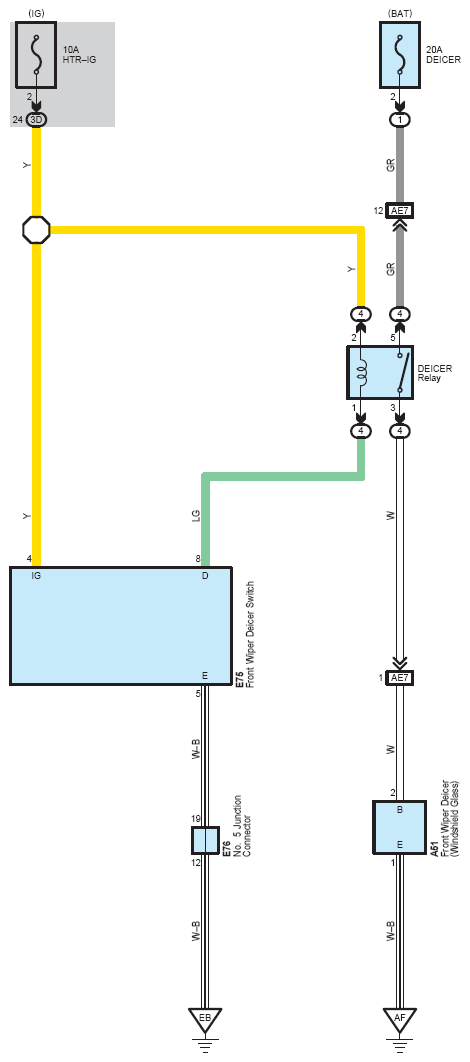

Fig 1: Front Window Deicer

G12199559

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
