System Diagrams

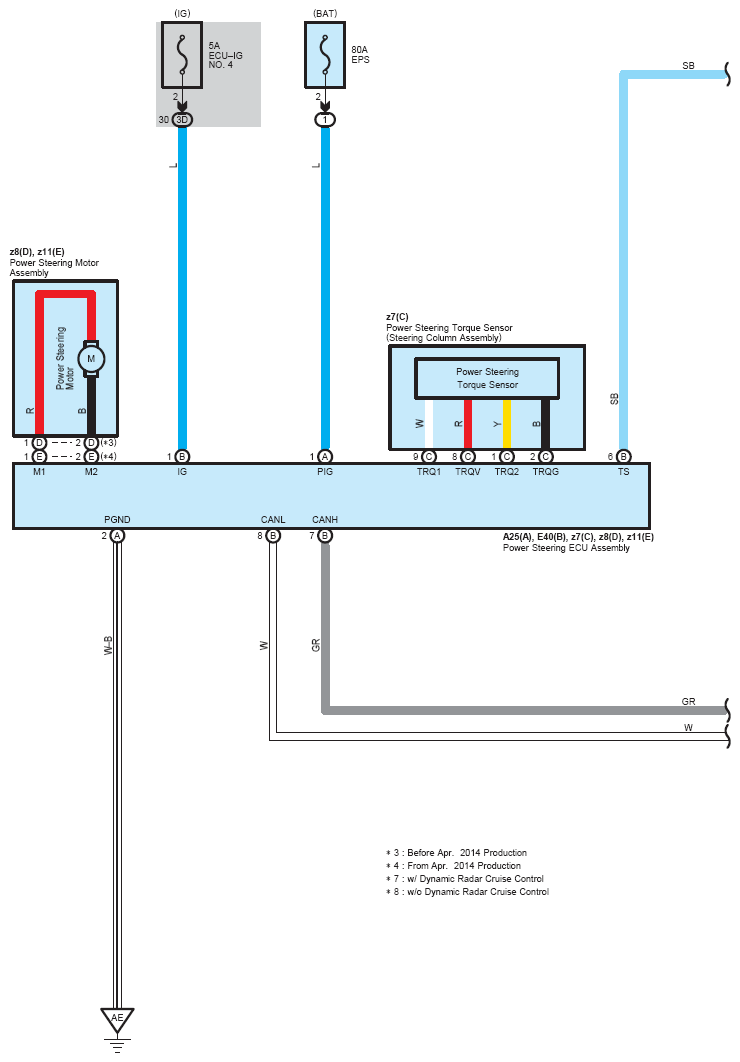

Fig 1: EPS (1 Of 4)
G12199518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: EPS (2 Of 4)
G12199519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

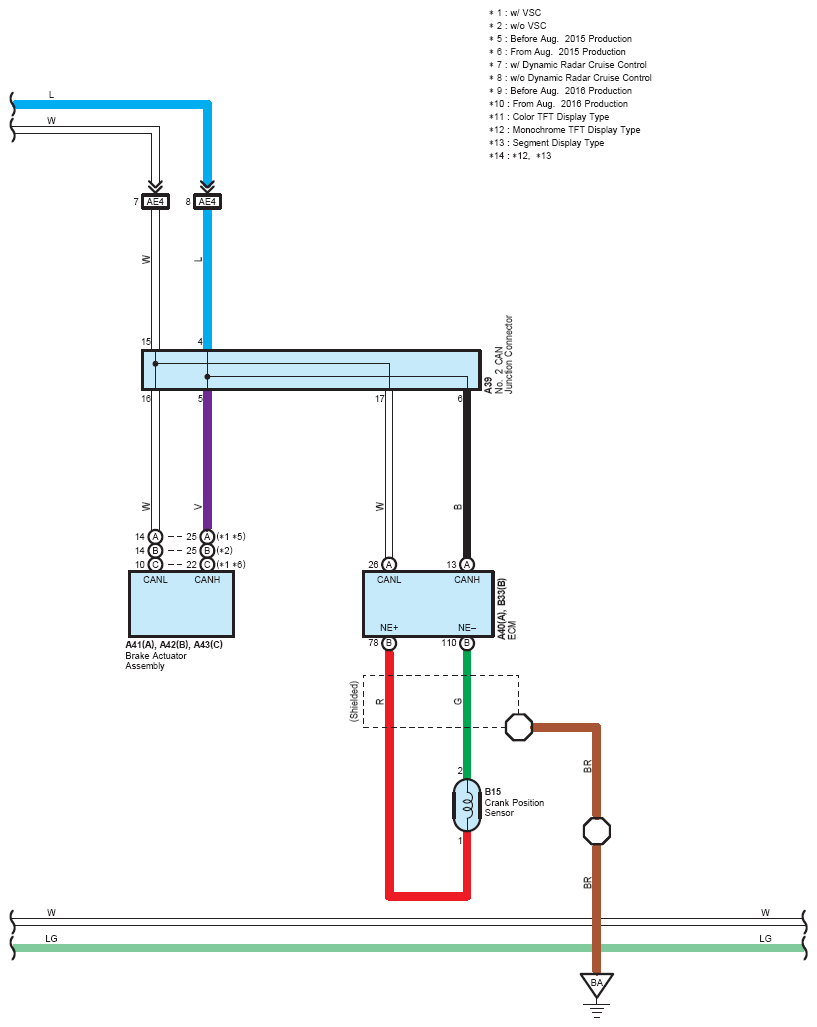

Fig 3: EPS (3 Of 4)
G12199520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

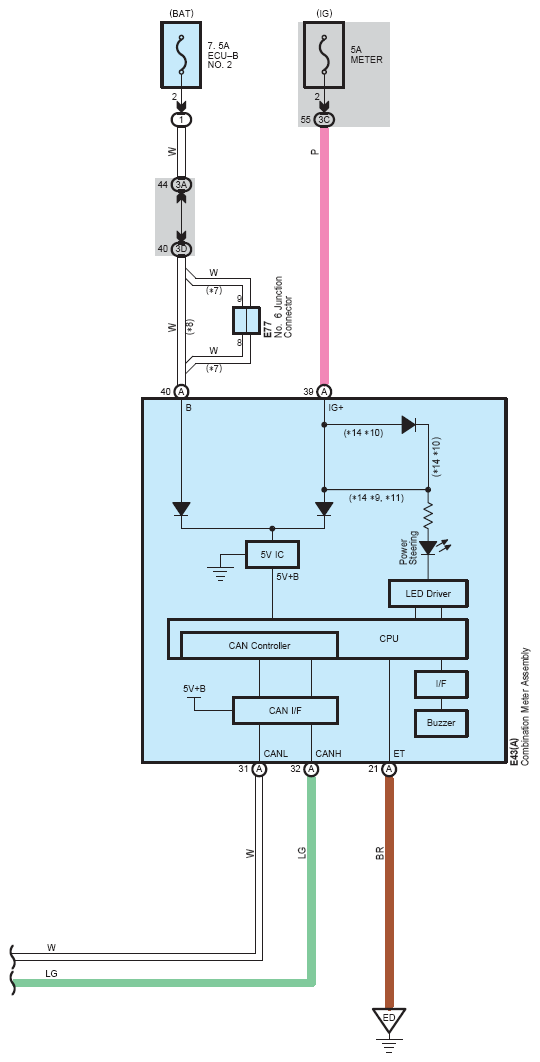

Fig 4: EPS (4 Of 4)
G12199521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
