System Diagrams

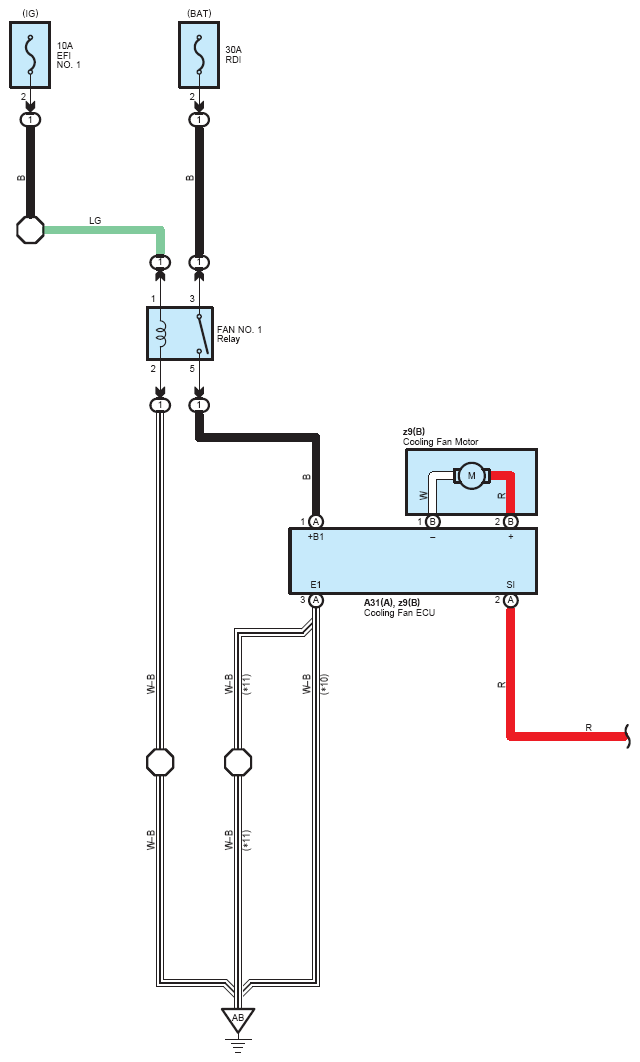

Fig 1: Cooling Fan (1 Of 4)
G12199387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

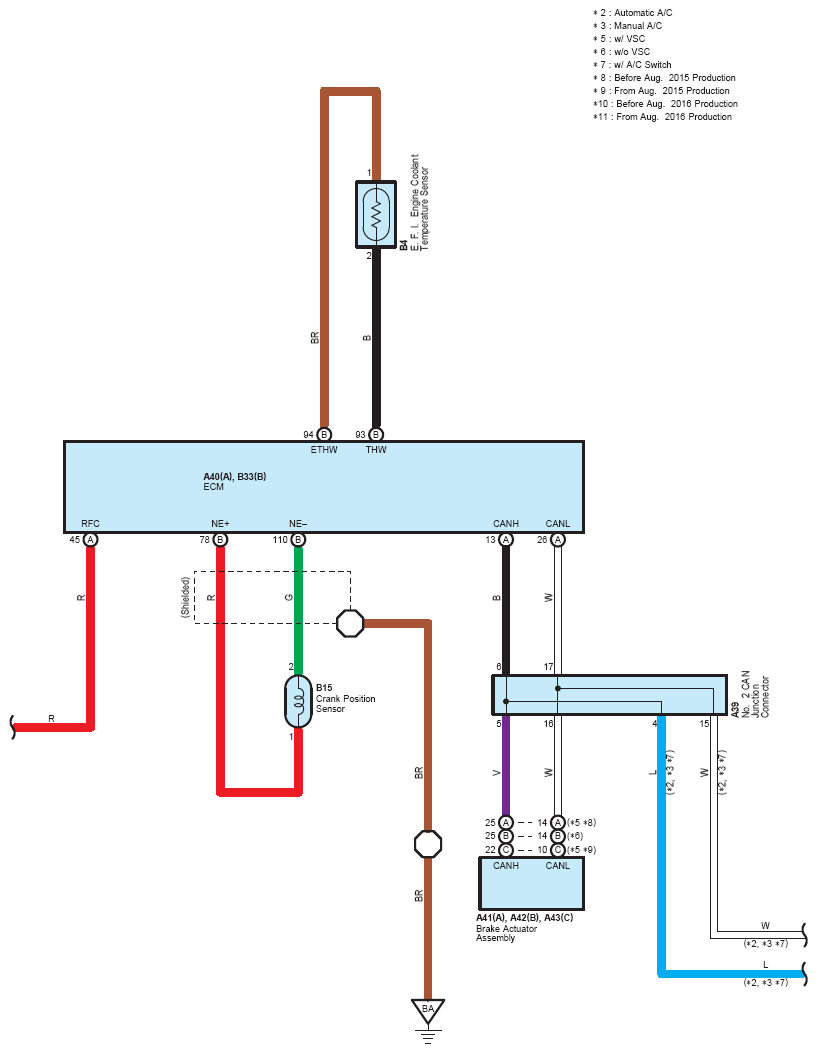

Fig 2: Cooling Fan (2 Of 4)
G12199388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Cooling Fan (3 Of 4)
G12199389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Cooling Fan (4 Of 4)
G12199390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
