System Diagrams

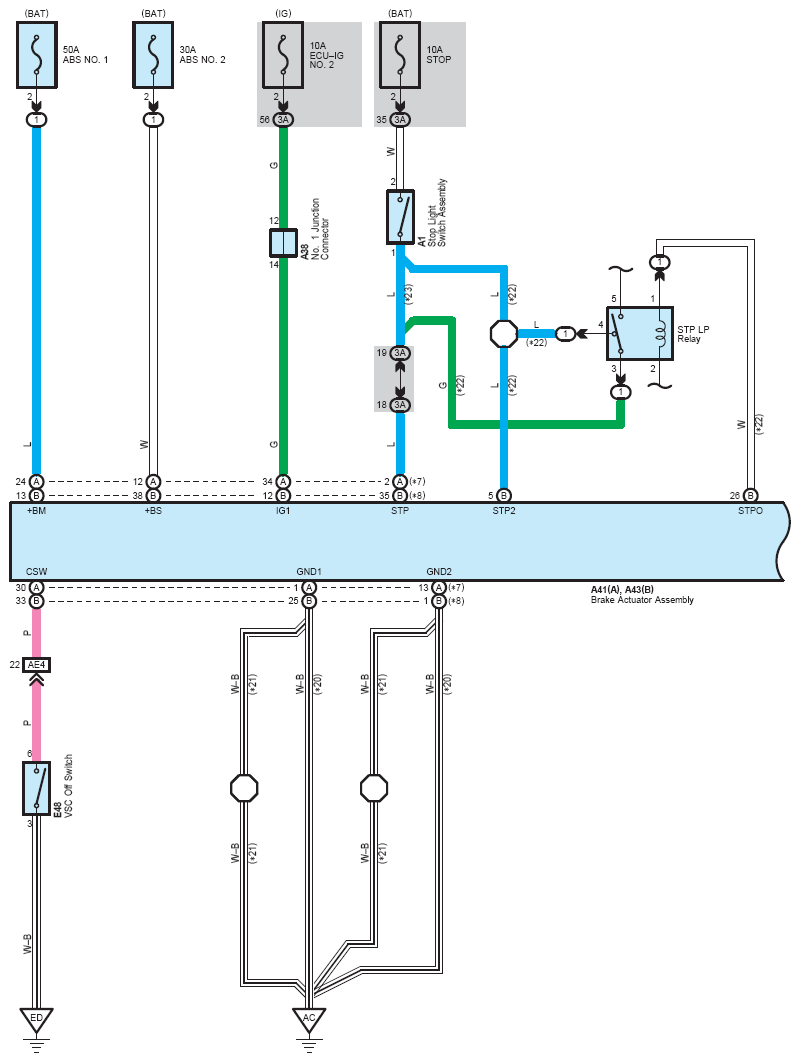

Fig 1: ABS (W/VSC), TRAC, VSC (1 Of 8)
G12199344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: ABS (W/VSC), TRAC, VSC (2 Of 8)
G12199345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

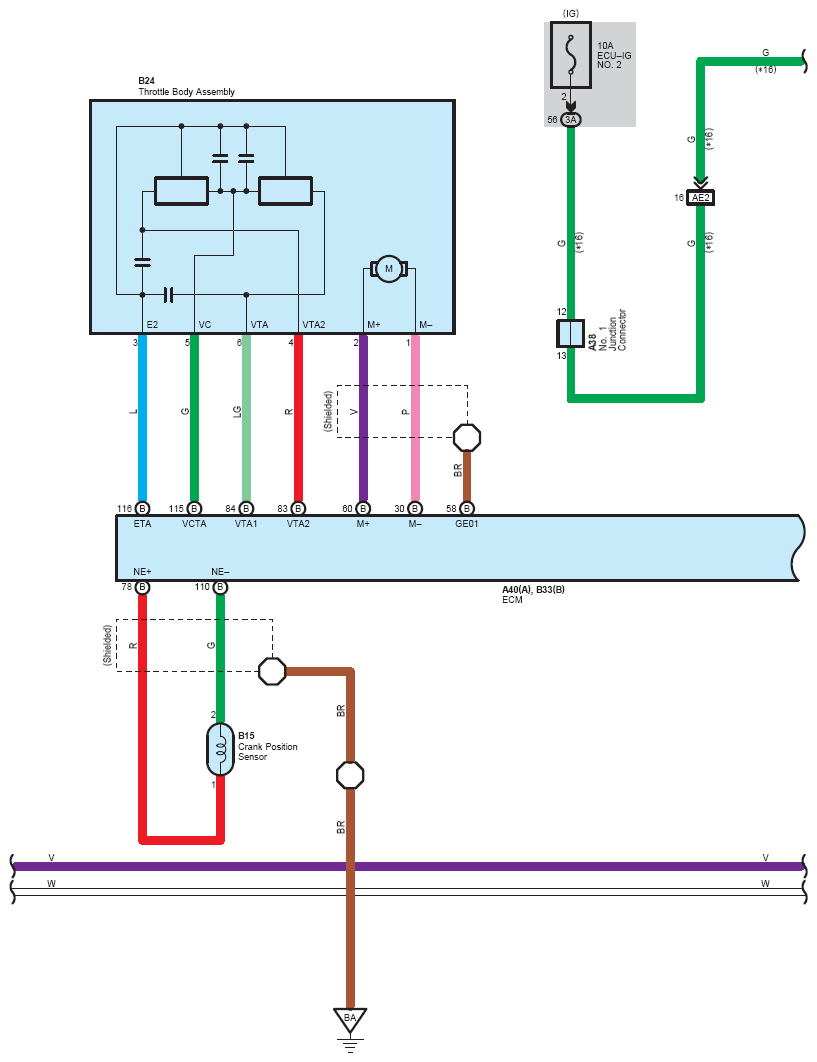

Fig 3: ABS (W/VSC), TRAC, VSC (3 Of 8)
G12199346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

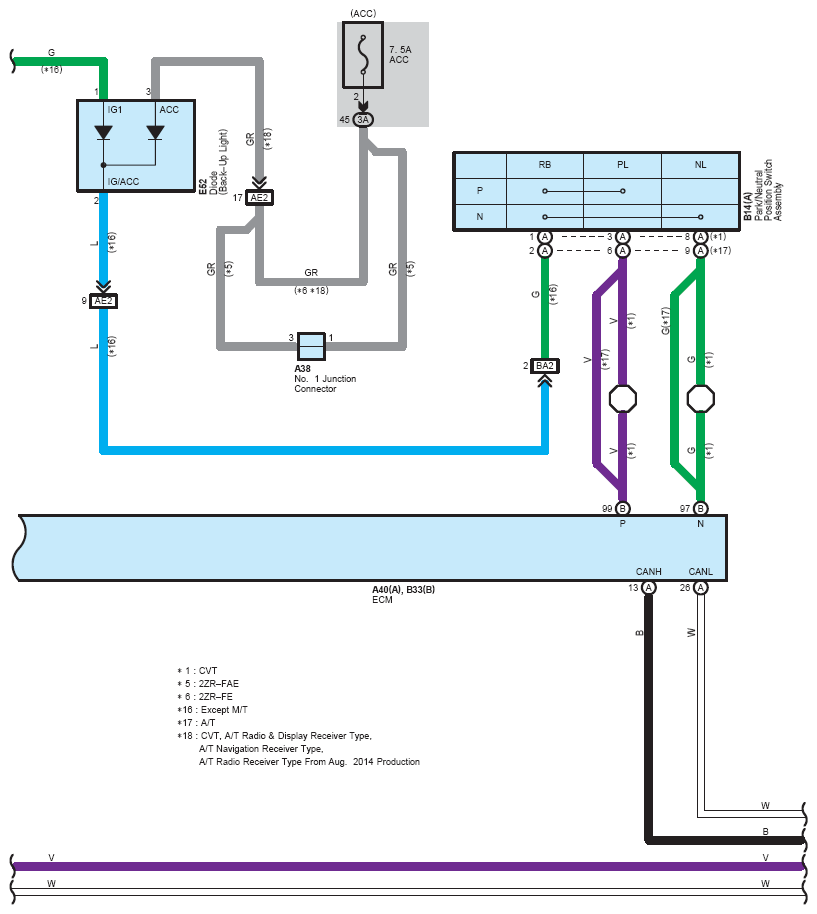

Fig 4: ABS (W/VSC), TRAC, VSC (4 Of 8)
G12199347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

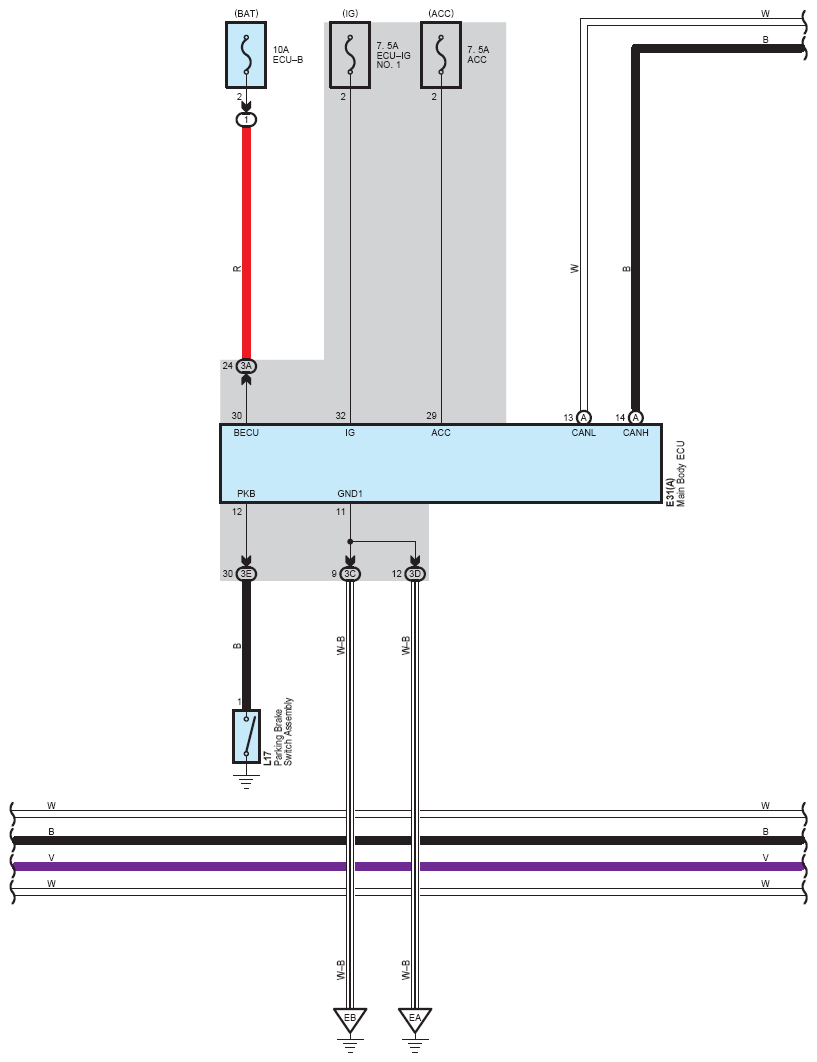

Fig 5: ABS (W/VSC), TRAC, VSC (5 Of 8)
G12199348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

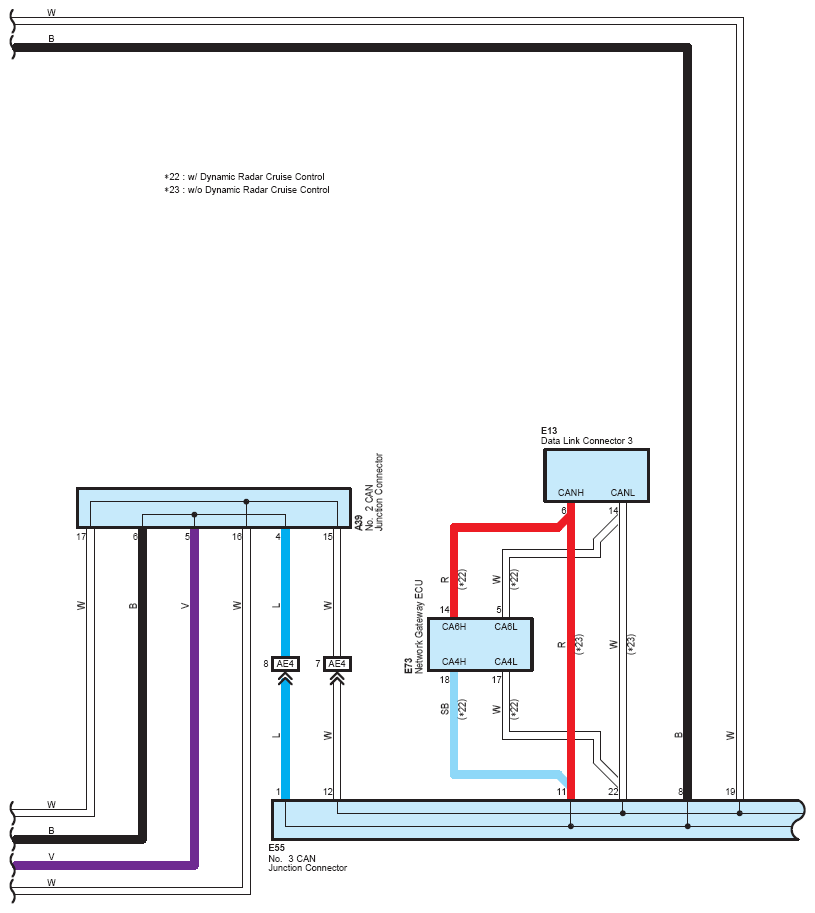

Fig 6: ABS (W/VSC), TRAC, VSC (6 Of 8)
G12199349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

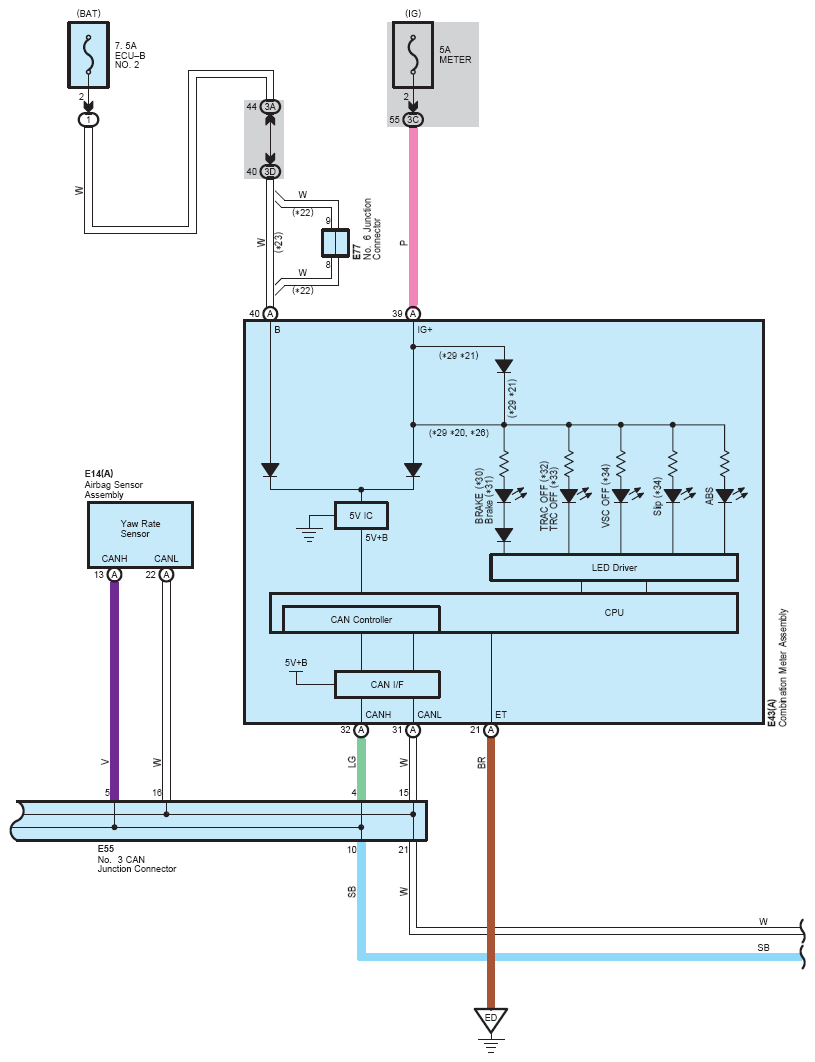

Fig 7: ABS (W/VSC), TRAC, VSC (7 Of 8)
G12199350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

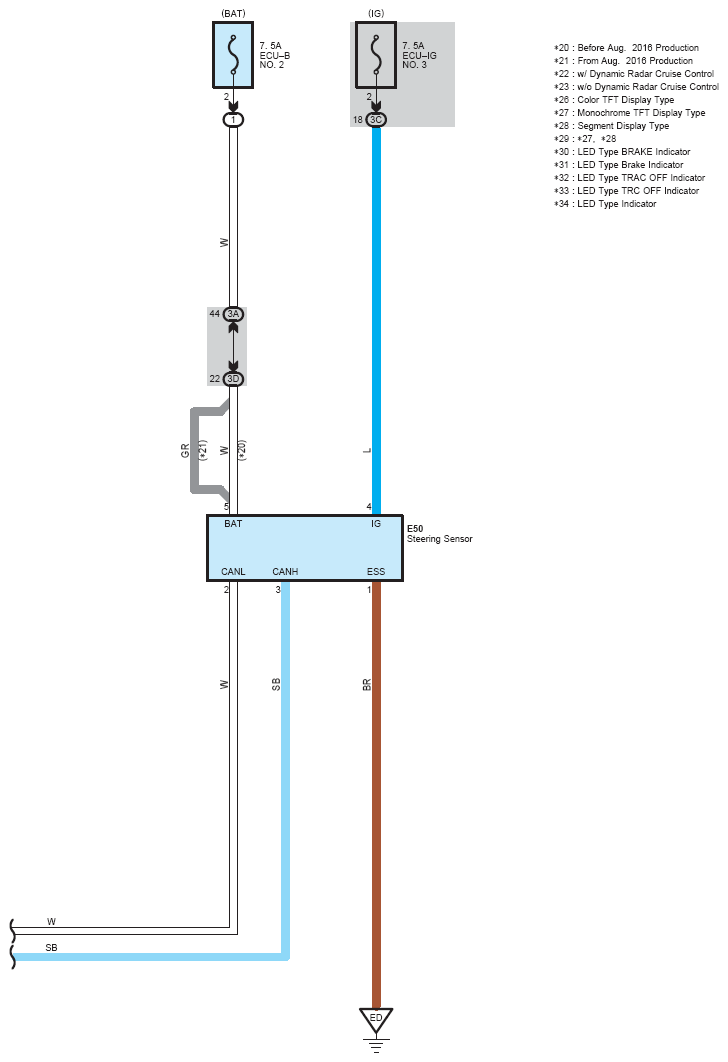

Fig 8: ABS (W/VSC), TRAC, VSC (8 Of 8)
G12199351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
