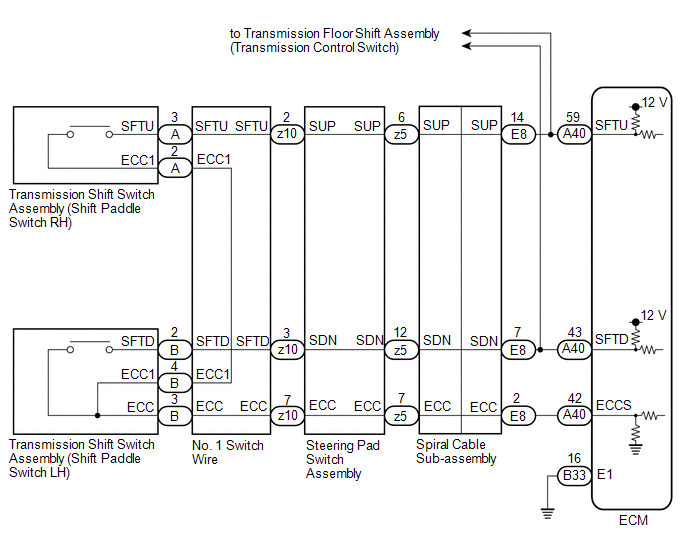

Shift Paddle Switch Circuit [08/2016 - ]: Wiring Diagram

GTY692829

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
