Home >> Toyota >> 2017 >> Corolla LE >> Repair and Diagnosis (Single Page) >> Transmission >> Automatic Trans >> Continuously Variable Transaxle - Diagnostic Codes (3 Of 3) & Circuit Tests (Model Code: ZRE172) >> Continuously Variable Transaxle System >> Circuit Tests >> Shift Paddle Switch Circuit [08/2013 - 08/2016] >> Wiring Diagram

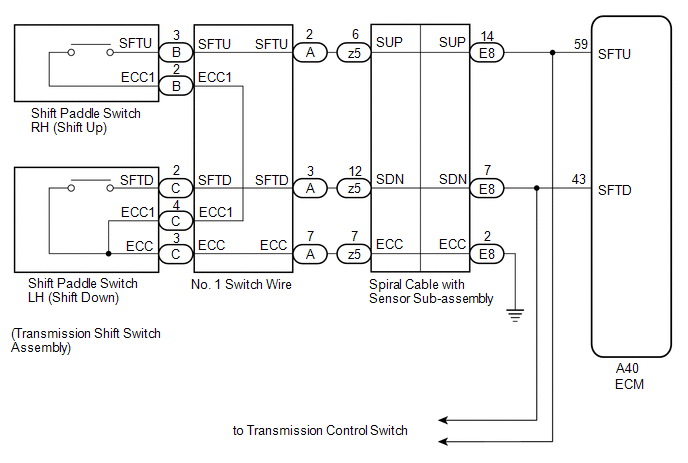

Shift Paddle Switch Circuit [08/2013 - 08/2016]: Wiring Diagram

GTY428243

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
