Components [06/2016 - ]

Fig 1: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (1 Of 2)
GTY733424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

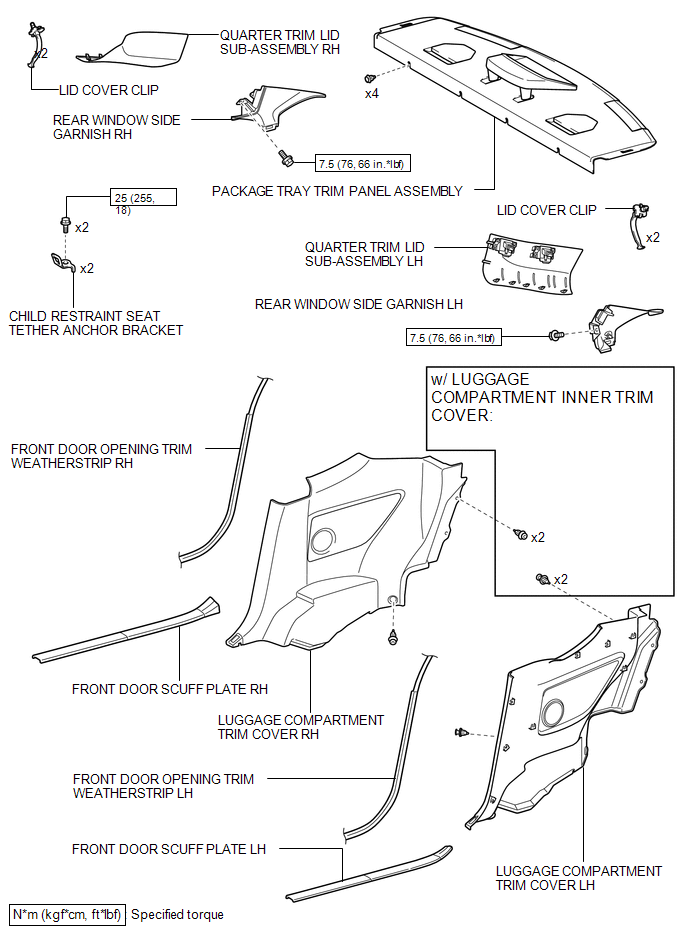

Fig 2: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (2 Of 2)
GTY701928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
