Disassembly [06/2016 - ]: Procedure

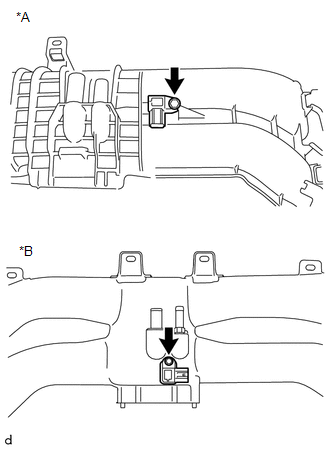

1. Remove the bolt and manifold absolute pressure sensor from the intake manifold.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *A	for Automatic Transmission
   *B	for Manual Transmission

2. Remove the O-ring from the manifold absolute pressure sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

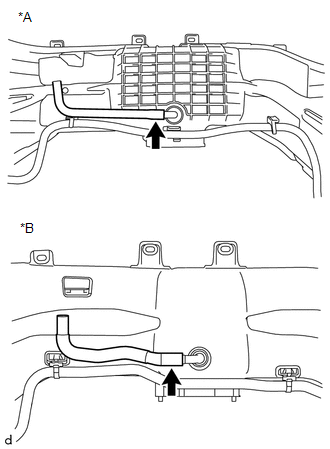

1. Disconnect the No. 1 fuel vapor feed hose from the intake manifold.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *A	for Automatic Transmission
   *B	for Manual Transmission

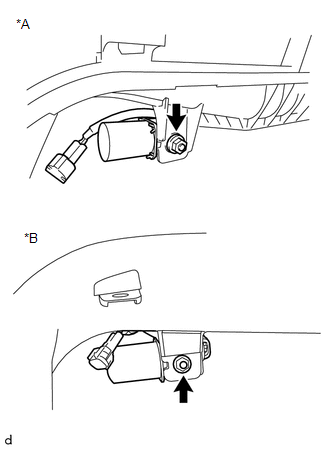

2. Remove the nut and purge valve.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *A	for Automatic Transmission
   *B	for Manual Transmission

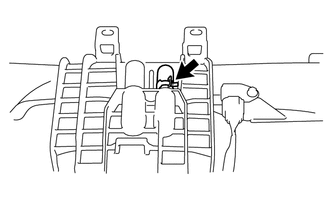

1. Remove the cap from the intake manifold.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

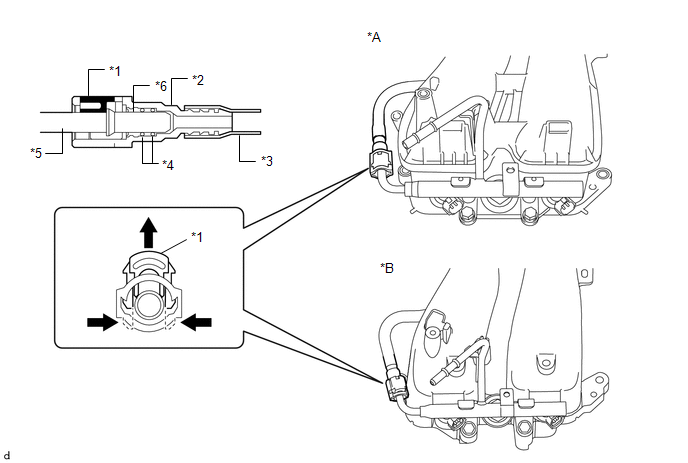

1. Disconnect the No. 2 fuel delivery pipe sub-assembly from the fuel delivery pipe.
   NOTE:

   • If the connector and pipe are stuck, pinch the fuel delivery pipe by hand and push and pull the connector to disconnect it
   • Do not allow any scratches or foreign matter on the parts when disconnecting them, as the No. 2 fuel delivery pipe sub-assembly joint contains the O-rings that seal the plug.
   • Do not use any tools to separate the pipe and connector.
   • Do not forcibly bend, twist or turn the nylon tube.
   • If the pipe and connector are stuck together, pinch the tube between your fingers and turn it carefully to free it. Then, disconnect the main tube.
   • Protect the disconnected part by covering it with a plastic bag and tape after disconnecting the main tube.
   • Check that the top hat cannot be pulled out.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *A	for Automatic Transmission	*B	for Manual Transmission
   *1	Retainer	*2	No. 2 Fuel Delivery Pipe Sub-assembly Connector
   *3	Nylon Tube	*4	O-ring
   *5	fuel delivery pipe	*6	Top Hat

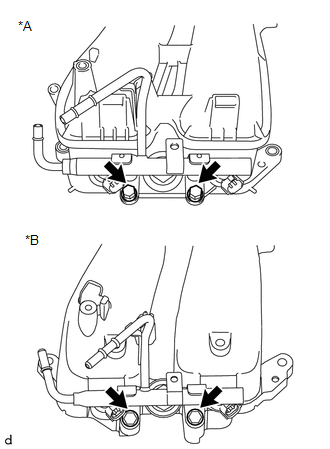

2. Remove the 2 bolts and the fuel delivery pipe from the intake manifold.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *A	for Automatic Transmission
   *B	for Manual Transmission

3. Remove the 2 O-rings.

HINT:

Use the same procedure described for the fuel delivery pipe (for bank 2).

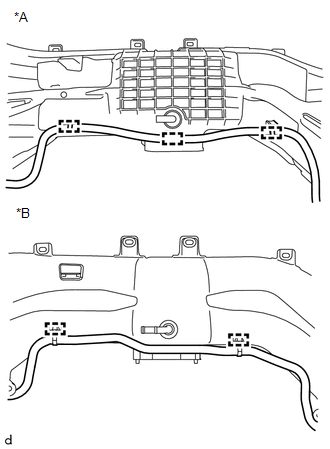

1. Disengage the 3 clamps and remove the No. 2 fuel delivery pipe sub-assembly from the intake manifold. (for Automatic Transmission)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the 2 clamps and remove the No. 2 fuel delivery pipe sub-assembly from the intake manifold. (for Manual Transmission)
   TEXT IN ILLUSTRATION



   *A	for Automatic Transmission
   *B	for Manual Transmission
