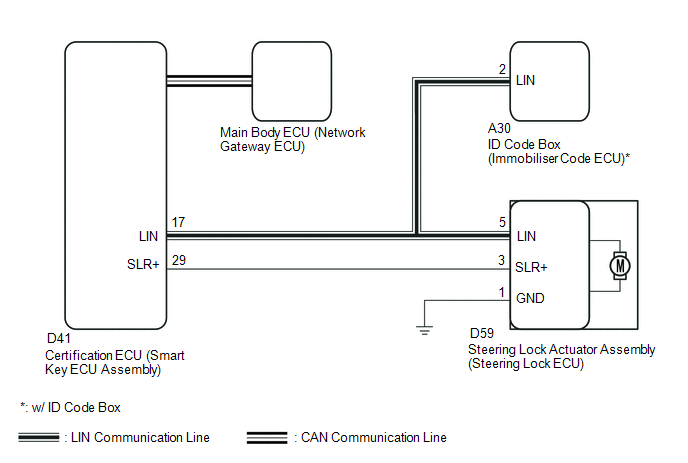

Unable to Lock Steering Wheel [03/2017 - ]: Wiring Diagram

GTY738427

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
