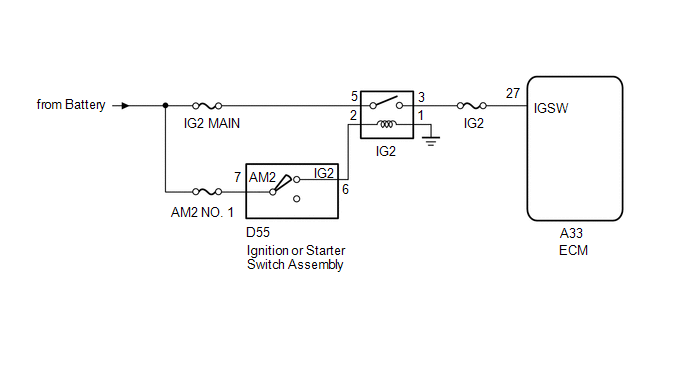

DTC P2530: Ignition Switch Run Position Circuit [06/2016 - 03/2017]: Wiring Diagram

GTY690484

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
