Engine Control System - Diagnostic Codes (6 Of 6)
>>
SFI System
>>
DTC P2530: Ignition Switch Run Position Circuit [03/2017 - ]
>>

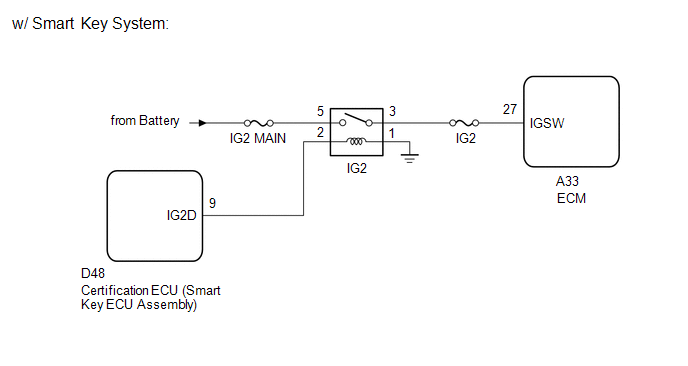

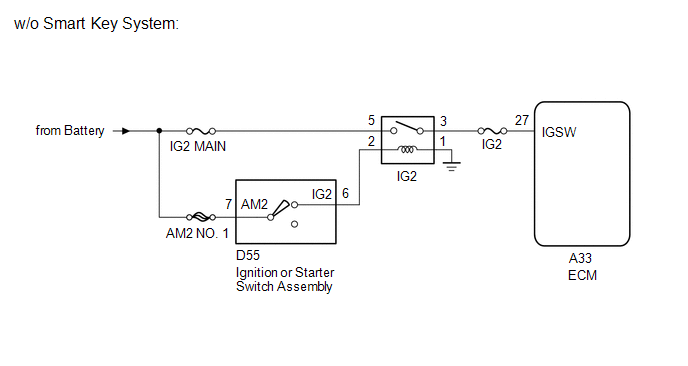

Wiring Diagram
DTC P2530: Ignition Switch Run Position Circuit [03/2017 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
