Home >> Toyota >> 2017 >> 86 Base, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Diagnostic Codes (4 Of 6) >> SFI System >> DTC P0851: Park / Neutral Switch Input Circuit Low; DTC P0852: Park / Neutral Switch Input Circuit High [06/2016 - 12/2017] >> Wiring Diagram

DTC P0851: Park / Neutral Switch Input Circuit Low; DTC P0852: Park / Neutral Switch Input Circuit High [06/2016 - 12/2017]: Wiring Diagram

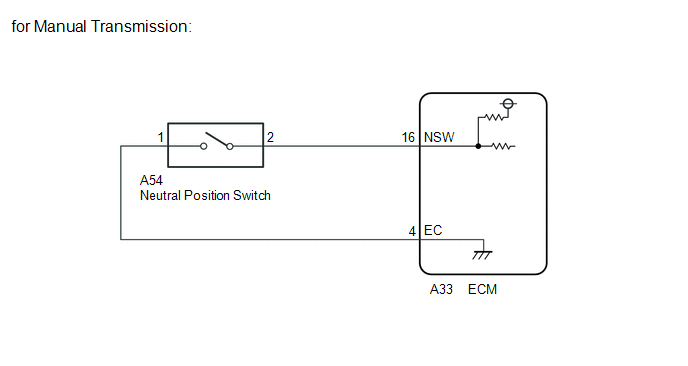

GTY713108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

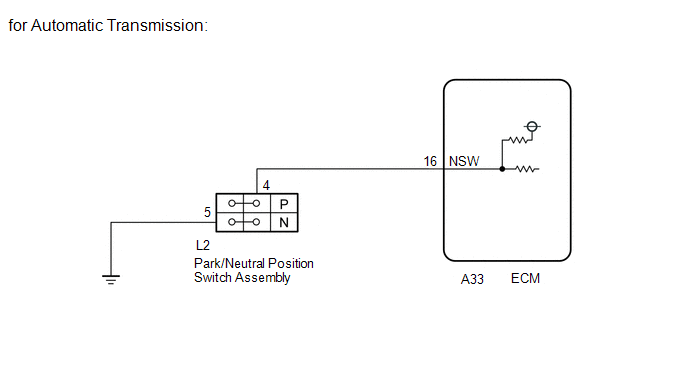

GTY715009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
