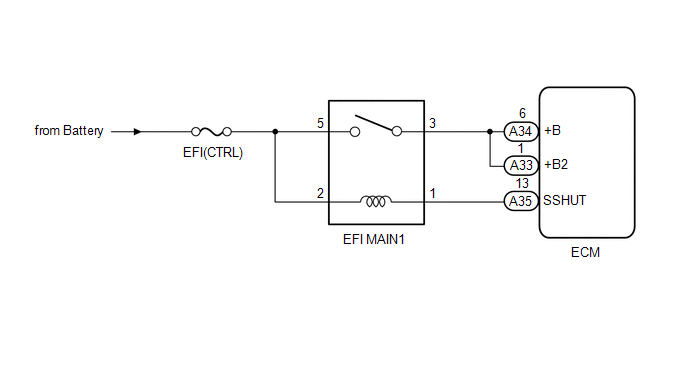

DTC P0685: ECM / PCM Power Relay Control Circuit / Open [06/2016 - ]: Wiring Diagram

GTY697194

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
