Home >> Toyota >> 2017 >> 86 Base, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Circuit Tests >> SFI System >> ECM Power Source Circuit [06/2016 - 03/2017] >> Wiring Diagram

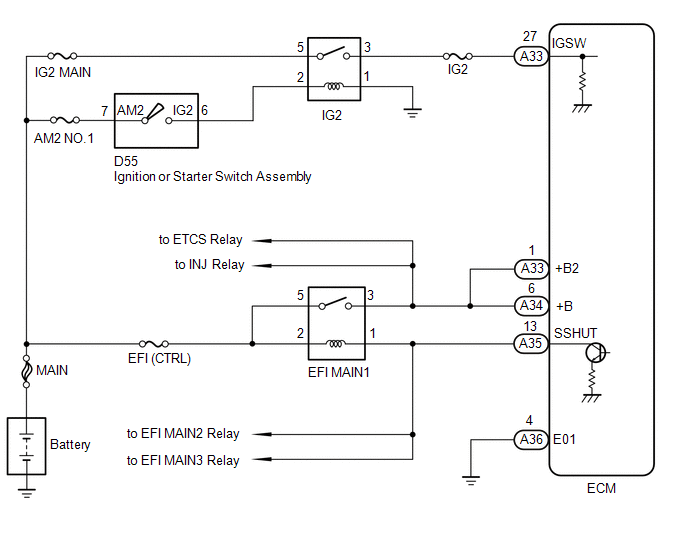

ECM Power Source Circuit [06/2016 - 03/2017]: Wiring Diagram

GTY738286

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
