Reassembly [06/2016 - ]: Procedure

  1. INSTALL OIL SPACER LH

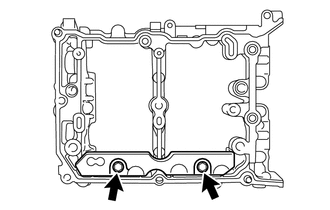

    1. Install the oil spacer LH with the 2 bolts.
      GTY707346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

  2. INSTALL OIL CONTROL VALVE FILTER (for Bank 2)

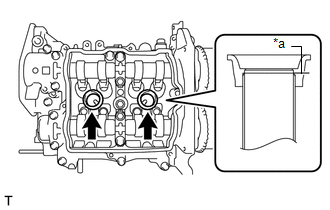

    1. Install 2 new oil control valve filters to the camshaft housing sub-assembly LH as shown in the illustration.
      GTY735765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a 0 to 0.5 mm (0 to 0.0197 in.) from the face of the camshaft housing sub-assembly LH
  3. INSTALL CAMSHAFT (for Bank 2)

    See step  1

  4. INSTALL CAMSHAFT CAP (for Bank 2)

    See step  2

  5. INSTALL HOLE PLUG (for Manual Transmission)

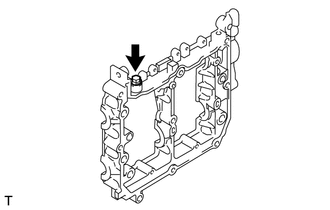

    1. Install a new gasket and the hole plug to the camshaft housing sub-assembly RH.
      GTY732026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

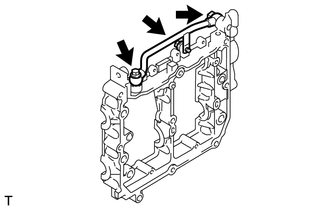

  6. INSTALL CAMSHAFT OIL FEED PIPE SUB-ASSEMBLY (for Automatic Transmission)
    1. Temporarily install 2 new gaskets and the camshaft oil feed pipe sub-assembly with the bolt and 2 union bolts.
    2. Tighten the 2 union bolts to the specified torque.
      GTY691612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 31 N*m (316 kgf*cm, 23 ft.*lbf)

    3. Tighten the bolt to the specified torque.

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

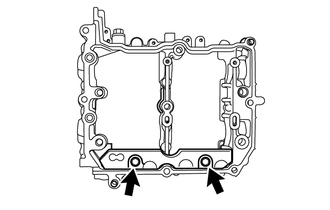

  7. INSTALL OIL SPACER RH
    1. Install the oil spacer RH with the 2 bolts.
      GTY707344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

  8. INSTALL OIL CONTROL VALVE FILTER (for Bank 1)

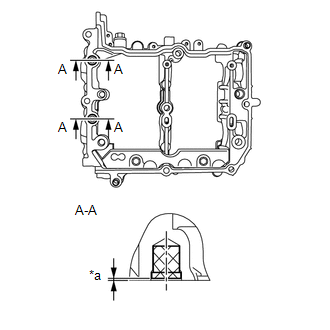

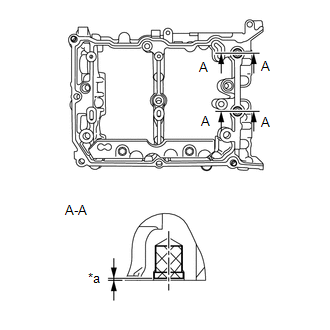

    1. Install 2 new oil control valve filters to the camshaft housing sub-assembly RH as shown in the illustration.
      GTY386018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a 0 to 0.5 mm (0 to 0.0197 in.) from the face of the camshaft housing sub-assembly RH
  9. INSTALL CAMSHAFT (for Bank 1)

    See step  3

  10. INSTALL CAMSHAFT CAP (for Bank 1)

    See step  4

  11. INSTALL OIL PAN SUB-ASSEMBLY

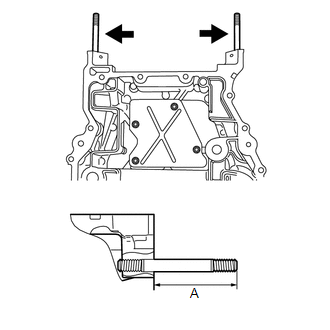

    1. Install the 2 stud bolts to the oil pan sub-assembly.
      GTY392382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      Standard height (A)

      70.0 mm (2.756 in.)

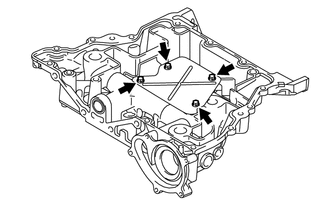

    2. Install the baffle plate to the oil pan sub-assembly with the 4 bolts.
      GTY707339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

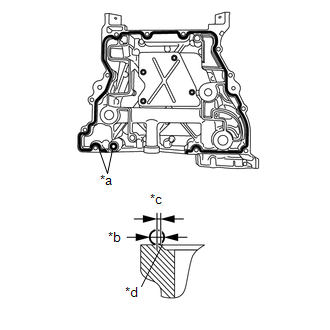

    3. Apply seal packing in a continuous line as shown in the illustration.
      GTY686250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Seal packing

      Three Bond 1217G, 1217H or equivalent

      TEXT IN ILLUSTRATION

      *a Seal Packing
      *b 4.0 to 6.0 mm (0.158 to 0.236 in.)
      *c 1.5 mm (0.059 in.)
      *d Chamfer edge
      NOTE:
      • Clean and degrease the contact surface.
      • Install the oil pan sub-assembly within 5 minutes of applying seal packing.
      • Apply seal packing 1.5 mm (0.0591 in.) away from the outer side of the chamfer edge. However, it is allowed to apply the seal packing on the chamfer around the bolt hole.
    4. Install 3 new O-rings to the cylinder block.

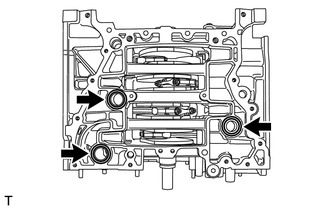

      GTY732041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

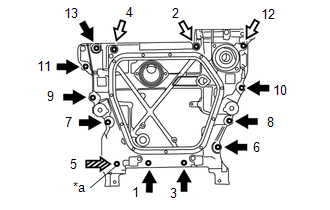

    5. Tighten the 13 bolts in the order shown in the illustration to install the oil pan sub-assembly to the cylinder block.

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

      GTY687896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Use a TORX Socket Wrench T45
      Bolt A
      Bolt B
      Bolt C

      Length of bolt A

      25.0 mm (0.984 in.)

      Length of bolt B

      75.0 mm (2.953 in.)

      Length of bolt C

      30.0 mm (1.181 in.)

      HINT:

      After tightening the bolts, if the seal packing is squeezed out onto the seal surface of the chain cover, completely remove it.

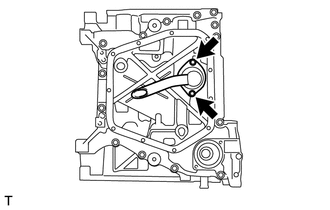

  12. INSTALL OIL STRAINER SUB-ASSEMBLY
    GTY691603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install a new O-ring.
    2. Install the oil strainer sub-assembly to the oil pan sub-assembly with the 2 bolts.

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

  13. INSTALL NO. 2 OIL PAN SUB-ASSEMBLY

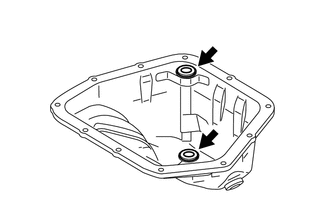

    1. Install 2 new oil pan seal rings to the No. 2 oil pan sub-assembly.
      GTY707348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

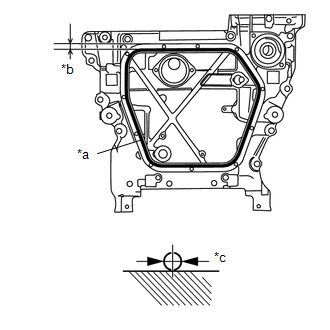

    2. Apply seal packing in a continuous line as shown in the illustration.
      GTY739612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Seal packing

      Three Bond 1217G, 1217H or equivalent

      NOTE:
      • Clean and degrease the contact surface.
      • Install the No. 2 oil pan sub-assembly within 5 minutes of applying seal packing.
      TEXT IN ILLUSTRATION

      *a Seal Packing
      *b 9.5 mm (0.374 in.)
      *c 4.0 to 6.0 mm (0.158 to 0.236 in.)

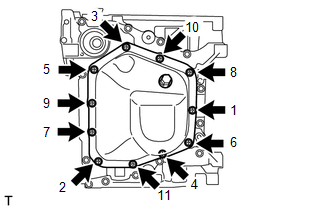

    3. Tighten the 11 bolts in the order shown in the illustration to install the No. 2 oil pan sub-assembly.
      GTY707158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

    4. Install a new gasket and the drain plug.

      Torque: 42 N*m (425 kgf*cm, 31 ft.*lbf)

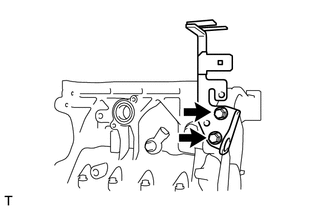

  14. INSTALL NO. 2 ENGINE HANGER
    1. Install the No. 2 engine hanger to the cylinder block (for bank 1) with the 2 bolts.
      GTY735491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)

  15. INSTALL NO. 2 CYLINDER HEAD GASKET

    See step  1

  16. INSTALL CYLINDER HEAD SUB-ASSEMBLY LH

    See step  2

  17. INSTALL CAMSHAFT HOUSING SUB-ASSEMBLY LH

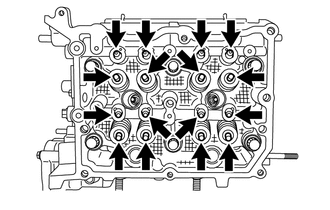

    1. Apply engine oil to the 8 valve adjusting shims and 8 roller rocker arm pivots, and then install them to the cylinder head sub-assembly LH.
      GTY732006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Be sure to install the removed parts in their original locations.

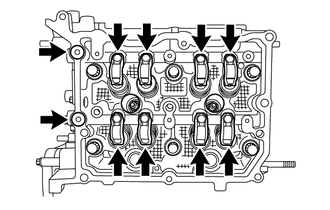

    2. Apply engine oil to 2 new O-rings and the 8 No. 1 valve rocker arm sub-assemblies, and then install them to the cylinder head sub-assembly LH.
      GTY691524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

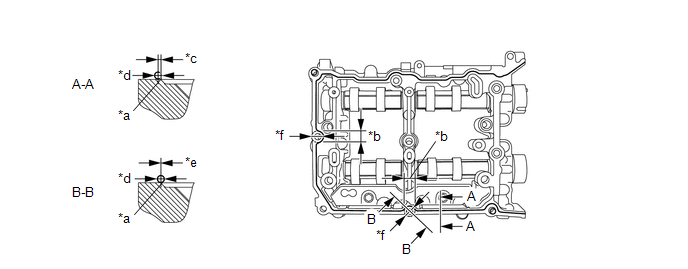

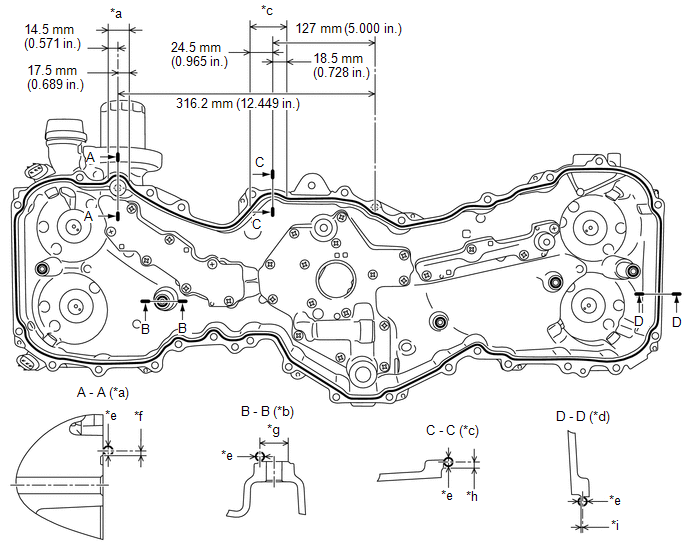

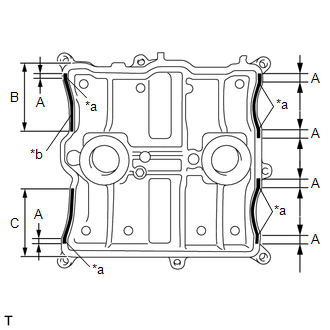

    3. Apply seal packing in a continuous line as shown in the illustration.

      Seal packing

      Three Bond 1217G, 1217H or equivalent

      GTY713204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Chamfer edge *b Range of B-B
      *c within 1.0 mm (0.0394 in.) *d 2.5 to 3.5 mm (0.098 to 0.138 in.)
      *e -0.5 to 0.5 mm (-0.0197 to 0.0197 in.) *f 18.0 mm (0.709 in.)
      NOTE:
      • Clean and degrease the contact surface.
      • Do not apply excessive seal packing.
      • Install the camshaft housing sub-assembly LH within 5 minutes of applying seal packing.
      • After tightening the bolts, if the seal packing is squeezed out onto the seal surface of the chain cover, completely remove it.

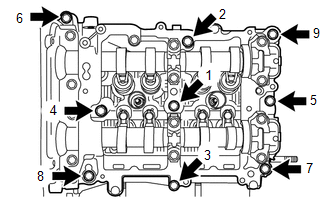

    4. Tighten the 9 bolts in the order shown in the illustration to install the camshaft housing sub-assembly LH.
      GTY708086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

      HINT:

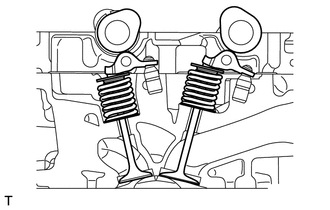

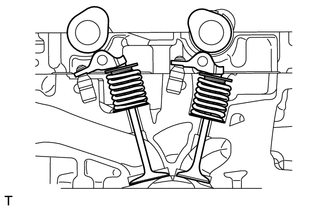

      Set the intake camshaft LH and the exhaust camshaft LH to the zero-lift position.

      GTY389334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Loosen the 3 bolts by 180° in the order shown in the illustration.
      GTY731765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

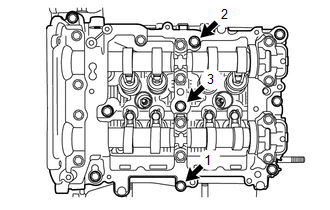

    6. Tighten the 3 bolts in the order shown in the illustration.
      GTY732402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

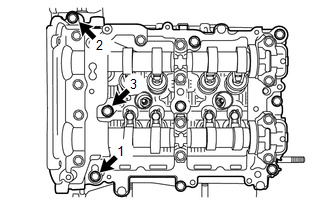

    7. Loosen the 3 bolts by 180° in the order shown in the illustration.
      GTY698179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

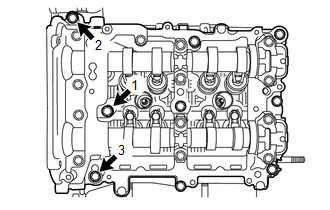

    8. Tighten the 3 bolts in the order shown in the illustration.

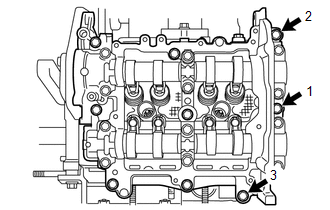

      GTY706407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

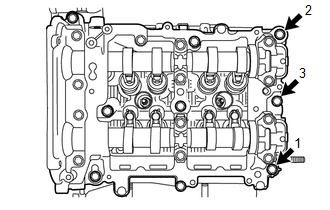

    9. Loosen the 3 bolts by 180° in the order shown in the illustration.
      GTY711027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

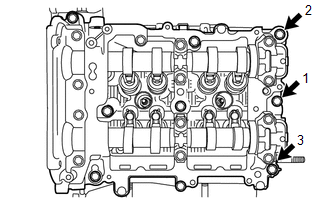

    10. Tighten the 3 bolts in the order shown in the illustration.
      GTY716486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

      HINT:

      After tightening the bolts, if the seal packing is squeezed out onto the seal surface of the chain cover, completely remove it.

  18. INSPECT VALVE CLEARANCE (for Bank 2)
    NOTE:

    With the chain sub-assembly (for bank 2) removed, valve heads may contact each other if the camshafts are turned, causing the valve stems to bend. To avoid this, do not turn the intake camshaft LH and exhaust camshaft LH more than the zero-lift rang (The range where the camshafts can be turned lightly by hand).

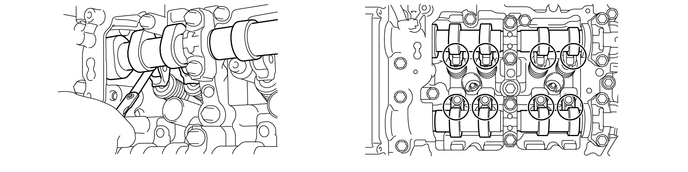

    1. Using a feeler gauge, check the valve clearance between the cam base circle and the roller surface of the No. 1 valve rocker arm sub-assembly.
      GTY392907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard valve clearance (cold)

      0.10 to 0.15 mm (0.00394 to 0.00591 in.) for intake

      0.20 to 0.24 mm (0.00787 to 0.00945 in.) for exhaust

      HINT:

      • Set the intake camshaft LH and the exhaust camshaft LH to the zero-lift position.
      • If the clearance is not as specified, take notes of the value in order to adjust the valve clearance later on.
  19. ADJUST VALVE CLEARANCE (for Bank 2)
    1. Remove the camshaft housing sub-assembly LH.
    2. Remove the No. 1 valve rocker arm sub-assemblies.
    3. Remove the valve adjusting shims.

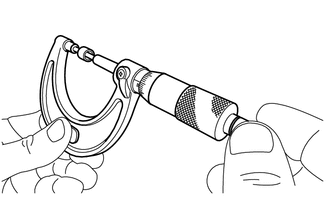

    4. Using a micrometer, measure the thickness of the valve adjusting shims.
      GTY724190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Calculate the thickness of the valve adjusting shim so that the valve clearance comes within the specified values.

      Intake side

      A = B + (C - 0.13 mm (0.00512 in.) x 1.69

      Exhaust side

      A = B + (C - 0.22 mm (0.00866 in.) x 1.87

      A

      Required valve adjusting shim thickness

      B

      Removed valve adjusting shim thickness

      C

      Measured valve clearance

    6. Apply engine oil to the inner face of the valve adjusting shims and install them to the valves.
      NOTE:

      Check if the shims can be rotated smoothly on the valves.

    7. Install the No. 1 valve rocker arm sub-assemblies.
    8. Install the camshaft housing sub-assembly LH.
    9. Check that the No. 1 valve rocker arm sub-assemblies are correctly installed.
  20. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY LH

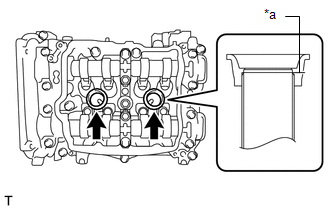

    1. Apply a light layer of engine oil to 2 new spark plug tube gaskets and install them to the spark plug tubes as shown in the illustration.
      GTY386702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Spark plug tube edge
    2. Install a new cylinder head cover gasket to the cylinder head cover sub-assembly LH.
    3. Apply seal packing to the mating surface of cylinder head cover sub-assembly LH as shown in the illustration.

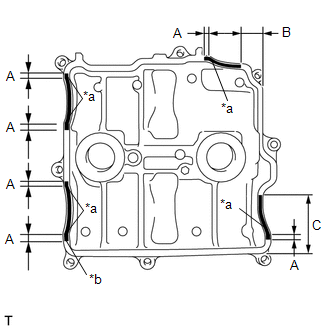

      GTY715827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Seal packing

      Three Bond 1217G, 1217H or equivalent

      Area Application Length
      A 10.0 mm (0.394 in.) or more
      B 18.8 mm (0.740 in.) or more
      C 63.0 mm (2.480 in.) or more
      TEXT IN ILLUSTRATION

      *a Arch starting point
      *b 2, 0 to 4.0 mm (0.079 to 0.158 in.)

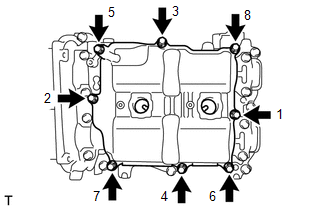

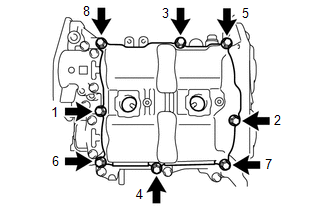

    4. Tighten the 8 bolts in the order shown in the illustration and install the cylinder head cover sub-assembly LH.
      GTY697738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

  21. INSTALL CYLINDER HEAD GASKET

    See step  4

  22. INSTALL CYLINDER HEAD SUB-ASSEMBLY RH

    See step  5

  23. INSTALL CAMSHAFT HOUSING SUB-ASSEMBLY RH

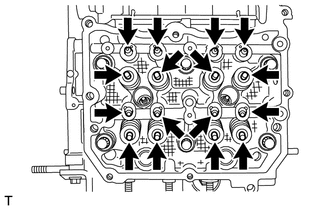

    1. Apply engine oil to the 8 valve adjusting shims and 8 roller rocker arm pivots, and then install them to the cylinder head sub-assembly.
      GTY691536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Be sure to install the removed parts in their original locations.

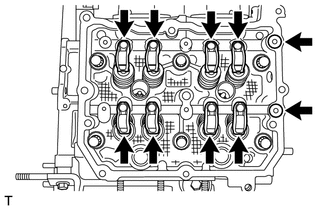

    2. Apply engine oil to 2 new O-rings and the 8 No. 1 valve rocker arm sub-assemblies, and then install them to the cylinder head sub-assembly.
      GTY691534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Apply seal packing in a continuous line as shown in the illustration.

      Seal packing

      Three Bond 1217G, 1217H or equivalent

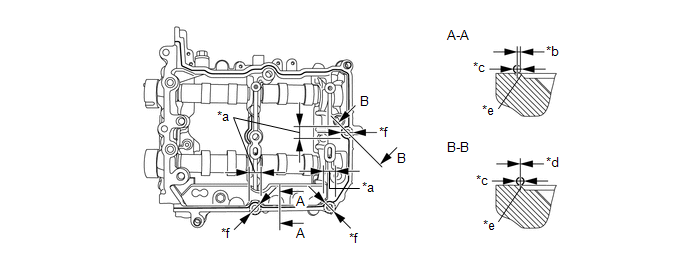

      GTY738100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Range of B-B *b 0 to 1.0 mm (0 to 0.0394 in.)
      *c 2.5 to 3.5 mm (0.098 to 0.138 in.) *d -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)
      *e Chamfer edge *f 18.0 mm (0.709 in.)
      NOTE:
      • Clean and degrease the contact surface.
      • Do not apply excessive seal packing.
      • Install the camshaft housing sub-assembly RH within 5 minutes of applying seal packing.
      • After tightening the bolts, if the seal packing is squeezed out onto the seal surface of the chain cover, completely remove it.
    4. Tighten the 9 bolts in the order shown in the illustration to install the camshaft housing sub-assembly RH.

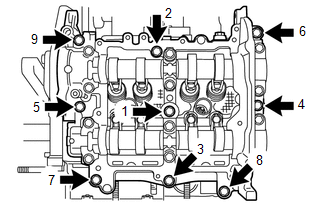

      GTY695036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

      HINT:

      Set the intake camshaft RH and the exhaust camshaft RH to the zero-lift position.

      GTY389335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Loosen the 3 bolts by 180° in the order shown in the illustration.
      GTY723512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

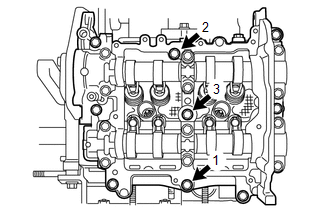

    6. Tighten the 3 bolts in the order shown in the illustration.
      GTY728023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

    7. Loosen the 3 bolts by 180° in the order shown in the illustration.
      GTY691488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Tighten the 3 bolts in the order shown in the illustration.
      GTY714139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

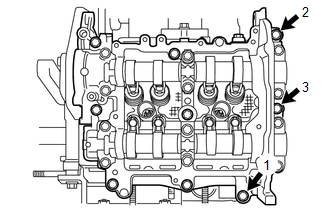

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

    9. Loosen the 3 bolts by 180° in the order shown in the illustration.

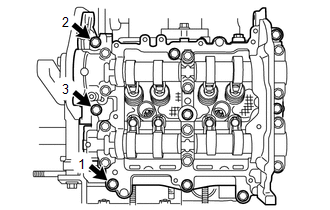

      GTY720009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Tighten the 3 bolts in the order shown in the illustration.

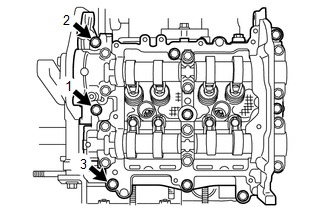

      GTY724312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

      HINT:

      After tightening the bolts, if the seal packing is squeezed out onto the seal surface of the chain cover, completely remove it.

  24. INSPECT VALVE CLEARANCE (for Bank 1)
    NOTE:

    With the chain sub-assembly (for bank 1) removed, valve heads may contact each other if the camshafts are turned, causing the valve stems to bend. To avoid this, do not turn the intake camshaft RH and exhaust camshaft RH more than the zero-lift rang (The range where the camshafts can be turned lightly by hand).

    1. Using a feeler gauge, check the valve clearance between the cam base circle and the roller surface of the No. 1 valve rocker arm sub-assembly.
      GTY392907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard valve clearance (cold)

      0.10 to 0.15 mm (0.00394 to 0.00591 in.) for intake

      0.20 to 0.24 mm (0.00787 to 0.00945 in.) for exhaust

      HINT:

      • Set the intake camshaft RH and the exhaust camshaft RH to the zero-lift position.
      • If the clearance is not as specified, take notes of the value in order to adjust the valve clearance later on.
  25. ADJUST VALVE CLEARANCE (for Bank 1)
    1. Remove the camshaft housing sub-assembly RH.
    2. Remove the No. 1 valve rocker arm sub-assemblies.
    3. Remove the valve adjusting shims.
    4. Using a micrometer, measure the thickness of the valve adjusting shims.
      GTY724190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Calculate the thickness of the valve adjusting shim so that the valve clearance comes within the specified values.

      Intake side

      A = B + (C - 0.13 mm (0.00512 in.) x 1.69

      Exhaust side

      A = B + (C - 0.22 mm (0.00866 in.) x 1.87

      A

      Required valve adjusting shim thickness

      B

      Removed valve adjusting shim thickness

      C

      Measured valve clearance

    6. Apply engine oil to the inner face of the valve adjusting shims and install them to the valves.
      NOTE:

      Check if the shims can be rotated smoothly on the valves.

    7. Install the No. 1 valve rocker arm sub-assemblies.
    8. Install the camshaft housing sub-assembly RH.
    9. Check that the No. 1 valve rocker arm sub-assemblies are correctly installed.
  26. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY RH
    1. Apply a light layer of engine oil to 2 new spark plug tube gaskets and install them to the spark plug tubes as shown in the illustration.
      GTY388871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Spark plug tube edge
    2. Install a new cylinder head cover gasket to the cylinder head cover sub-assembly RH.
    3. Apply seal packing to the mating surface of cylinder head cover sub-assembly RH as shown in the illustration.
      GTY704207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Seal packing

      Three Bond 1217G, 1217H or equivalent

      Area Application Length
      A 10.0 mm (0.394 in.) or more
      B 68.0 mm (2.677 in.) or more
      C 70.7 mm (2.784 in.) or more
      TEXT IN ILLUSTRATION

      *a Arch starting point
      *b 2, 0 to 4.0 mm (0.079 to 0.158 in.)
    4. Tighten the 8 bolts in the order shown in the illustration and install the cylinder head cover sub-assembly RH.
      GTY728945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

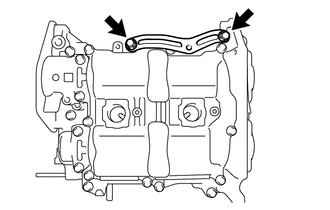

  27. INSTALL INJECTOR DRIVER BRACKET
    1. Install the injector driver bracket with the 2 bolts.
      GTY694552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

  28. INSTALL SPARK PLUG
    1. Using a 14 mm spark plug wrench, install the 4 spark plugs.

      Torque: 17 N*m (173 kgf*cm, 13 ft.*lbf)

  29. INSTALL CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY LH

    See step  14

  30. INSTALL CAMSHAFT TIMING INTAKE GEAR ASSEMBLY LH

    See step  15

  31. INSTALL CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY RH

    See step  16

  32. INSTALL CAMSHAFT TIMING INTAKE GEAR ASSEMBLY RH

    See step  17

  33. INSTALL CRANKSHAFT TIMING GEAR OR SPROCKET
    1. Install the crankshaft timing gear or sprocket.

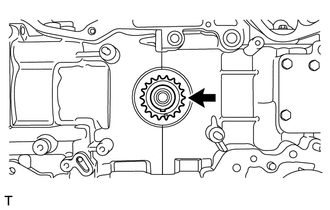

      GTY707376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The crankshaft timing gear or sprocket should be installed as it was before.

  34. INSTALL CHAIN SUB-ASSEMBLY (for Bank 2)
    NOTE:

    Do not allow any foreign matter to adhere or to enter into the component parts during installation.

    HINT:

    Apply engine oil to all component parts of the chain sub-assembly.

    1. Move the link plate in the direction of the arrow in the illustration to press in the plunger.

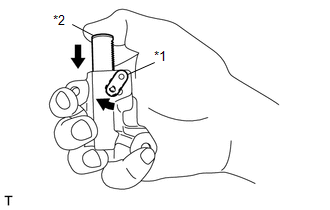

      GTY687849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Link Plate
      *2 Plunger
    2. Insert an approximately 1 mm (0.0394 in.) diameter wire or the like into the chain tensioner assembly through the stopper pin hole, and hold the plunger.

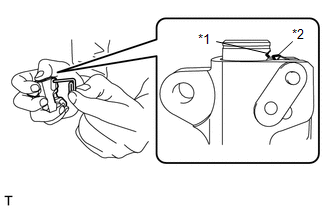

      GTY694961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 First notch of the plunger rack
      *2 Stopper Tooth

      HINT:

      If the stopper pin hole on the link plate and the stopper pin hole on the chain tensioner assembly are not aligned, check that the first notch of the plunger rack is engaged with the stopper tooth. If not engaged, retract the plunger a little so that the first notch of the plunger rack is engaged with the stopper tooth.

    3. Temporarily install the crankshaft pulley spacer and crankshaft pulley.

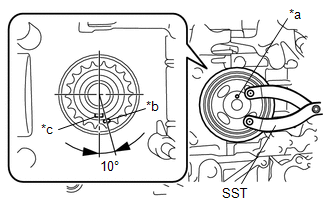

    4. Using SST, set the crankshaft pulley pin hole at the position shown in the illustration.
      • SST: 09960-10010
        1. 09962-01000
        2. 09963-01000
      GTY717381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Crankshaft Pulley Pin Hole
      *b Alignment Mark
      *c Crankshaft Timing Gear key
      NOTE:

      Make sure to perform this operation to prevent the valves and pistons from contacting each other.

      HINT:

      At this time, the alignment mark on the crankshaft timing gear or sprocket and the crankshaft timing gear key are at the positions shown in the illustration.

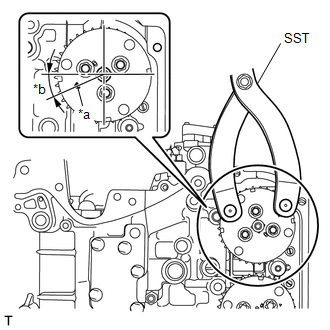

    5. Using SST, turn the camshaft timing intake gear assembly LH and align the alignment mark as shown in the illustration.
      GTY732294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09960-10010
        1. 09962-01000
        2. 09963-00700
      TEXT IN ILLUSTRATION

      *a Alignment Mark
      *b 25° to 30°
      NOTE:

      Do not turn the exhaust camshaft LH. If the exhaust camshaft LH is turned, valve heads may come into contact with each other, causing the valve stems to bend.

    6. Using SST, turn the crankshaft about 200 degrees counterclockwise until the crankshaft pulley pin hole is aligned at the position shown in the illustration.

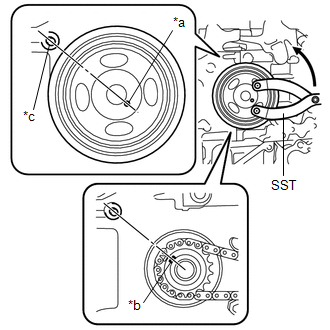

      GTY738928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09960-10010
        1. 09962-01000
        2. 09963-01000
      TEXT IN ILLUSTRATION

      *a Crankshaft Pulley Pin Holey
      *b Crankshaft Timing Gear key
      *c Cylinder Block Guide Pin
      NOTE:

      Never turn the crankshaft clockwise because the valves may come into contact with the piston. Turning the crankshaft clockwise is only allowed when adjusting the key position precisely.

      HINT:

      At this time, the crankshaft timing gear key is at the position shown in the illustration.

    7. Remove the crankshaft pulley and crankshaft pulley spacer.

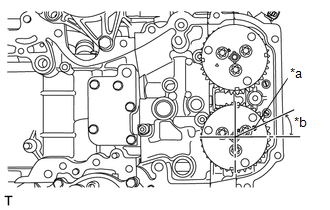

    8. Align the alignment mark on the camshaft timing exhaust gear assembly LH as shown in the illustration.
      GTY728152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Alignment Mark
      *b 25° to 30°
      NOTE:

      To avoid damaging the valves, do not turn the camshaft timing exhaust gear assembly LH more than the zero-lift range (The range where camshaft timing exhaust gear assembly LH can be turned lightly by hand).

    9. Install the chain sub-assembly in the following order.

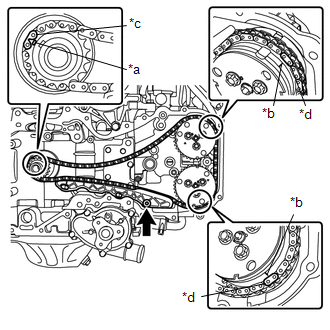

      GTY731658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Alignment Mark (Oval)
      *b Alignment Mark (Engraved Line)
      *c Mark plate (Grayish Blue)
      *d Mark plate (Pink)
      1. Align the mark plate (grayish blue) on the chain sub-assembly with the alignment mark (oval) on the crankshaft timing gear or sprocket.
      2. Align the mark plate (pink) on the chain sub-assembly with the alignment mark (engraved line) on the camshaft timing exhaust gear assembly LH.
      3. Align the mark plate (pink) on the chain sub-assembly with the alignment mark (engraved line) on the camshaft timing intake gear assembly LH.
    10. Using a 5 mm hexagon socket wrench, install the No. 1 chain vibration damper with the bolt.

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

      HINT:

      Apply engine oil to the bolt before install it.

    11. Install a new O-ring to the cylinder block (for bank 2).

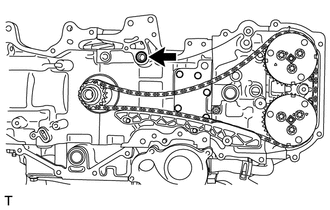

      GTY735518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. Install the chain tensioner slipper.

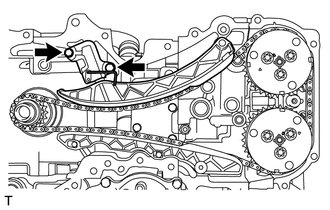

      GTY707486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    13. Install the No. 2 chain tensioner assembly with the 2 bolts.

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

    14. Check that the chain is correctly installed.

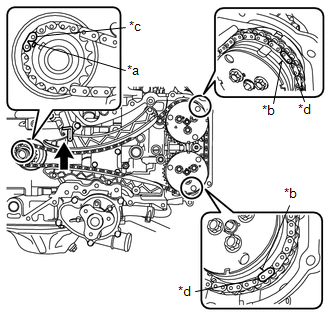

      GTY696817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Alignment Mark (Oval)
      *b Alignment Mark (Engraved Line)
      *c Mark plate (Grayish Blue)
      *d Mark plate (Pink)
      1. The mark plate (grayish blue) on the chain sub-assembly is aligned with the alignment mark (oval) on the crankshaft timing gear or sprocket.
      2. The mark plate (pink) on the chain sub-assembly is aligned with the alignment mark (engraved line) on the camshaft timing intake gear assembly LH.
      3. The mark plate (pink) on the chain sub-assembly is aligned with the alignment mark (engraved line) on the camshaft timing exhaust gear assembly LH.
    15. Pull out the wire or the like from the No. 2 chain tensioner assembly.
    16. Temporarily install the crankshaft pulley spacer and crankshaft pulley.
    17. Using SST, turn the crankshaft clockwise to make sure that there are no abnormal conditions.
      • SST: 09960-10010
        1. 09962-01000
        2. 09963-01000
      NOTE:

      Be sure to perform this confirmation.

  35. INSTALL CHAIN SUB-ASSEMBLY (for Bank 1)
    NOTE:

    Do not allow any foreign matter to adhere or to enter into the component parts during installation.

    HINT:

    Apply engine oil to all component parts of the chain sub-assembly.

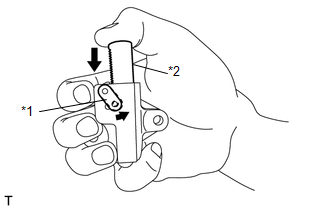

    1. Move the link plate in the direction of the arrow in the illustration to press in the plunger.
      GTY708551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Link Plate
      *2 Plunger

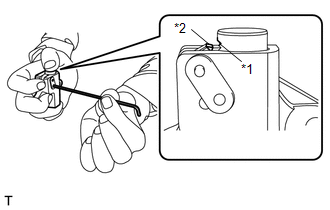

    2. Insert a 2.5 mm (0.098 in.) diameter hexagon wrench into the No. 1 chain tensioner assembly through the stopper pin hole, and hold the plunger.
      GTY704187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 First notch of the plunger rack
      *2 Stopper Tooth

      HINT:

      If the stopper pin hole on the link plate and the stopper pin hole on the chain tensioner assembly are not aligned, check that the first notch of the plunger rack is engaged with the stopper tooth. If not engaged, retract the plunger a little so that the first notch of the plunger rack is engaged with the stopper tooth.

    3. Using SST, turn the crankshaft pulley until the alignment marks on the camshaft timing intake gear assembly LH and the camshaft timing exhaust gear assembly LH, and the crankshaft pulley pin hole are aligned at the positions shown in the illustration.
      • SST: 09960-10010
        1. 09962-01000
        2. 09963-01000

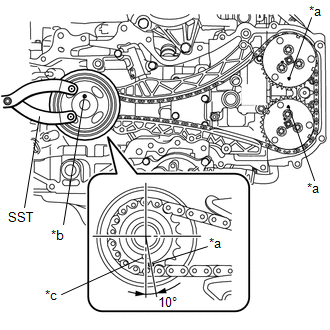

      GTY736726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Alignment Mark
      *b Crankshaft Pulley Pin Hole
      *c Crankshaft Timing Gear Key

      HINT:

      At this time, the alignment mark on the crankshaft timing gear or sprocket and the crankshaft timing gear key are at the positions shown in the illustration.

    4. Remove the crankshaft pulley and crankshaft pulley spacer.

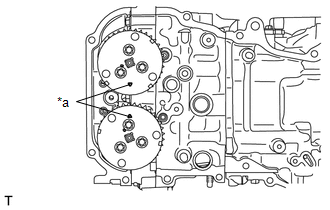

    5. Align the alignment marks of the camshaft timing intake gear assembly RH and camshaft timing exhaust gear assembly RH as shown in the illustration.
      GTY737359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Alignment Mark
      NOTE:

      To avoid damaging the valves, do not turn the camshaft timing intake gear assembly RH and camshaft timing exhaust gear assembly RH more than the zero-lift range (The range where the camshafts can be turned lightly by hand).

    6. Install the chain sub-assembly in the following order.

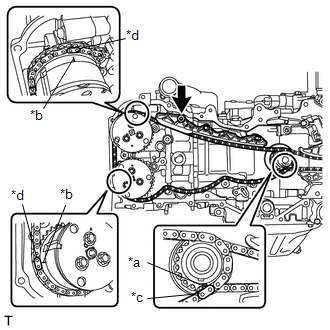

      GTY722285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Alignment Mark (Oval)
      *b Alignment Mark (Engraved Line)
      *c Mark plate (Grayish Blue)
      *d Mark plate (Pink)
      1. Align the mark plate (grayish blue) on the chain sub-assembly with the alignment mark (oval) on the crankshaft timing gear or sprocket.
      2. Align the mark plate (pink) on the chain sub-assembly with the alignment mark (engraved line) on the camshaft timing intake gear assembly RH.
      3. Align the mark plate (pink) on the chain sub-assembly with the alignment mark (engraved line) on the camshaft timing exhaust gear assembly RH.
    7. Using a 5 mm hexagon socket wrench, install the No. 1 chain vibration damper with the bolt.

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

      HINT:

      Apply engine oil to the bolt before install it.

    8. Install the chain tensioner slipper.

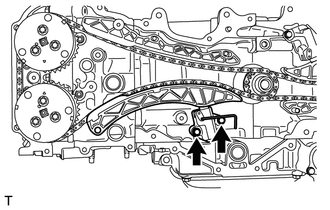

      GTY735521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Install the No. 1 chain tensioner assembly with the 2 bolts.

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

    10. Check that the chain is correctly installed.

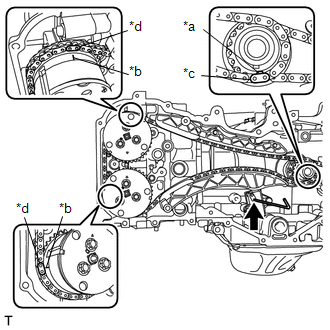

      GTY740040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Alignment Mark (Oval)
      *b Alignment Mark (Engraved Line)
      *c Mark plate (Grayish Blue)
      *d Mark plate (Pink)
      1. The mark plate (grayish blue) on the chain sub-assembly is aligned with the alignment mark (oval) on the crankshaft timing gear or sprocket.
      2. The mark plate (pink) on the chain sub-assembly is aligned with the alignment mark (engraved line) on the camshaft timing intake gear assembly RH.
      3. The mark plate (pink) on the chain sub-assembly is aligned with the alignment mark (engraved line) on the camshaft timing exhaust gear assembly RH.
    11. Pull out the hexagon wrench from the No. 1 chain tensioner assembly.
    12. Temporarily install the crankshaft pulley spacer and crankshaft pulley.
    13. Using SST, turn the crankshaft clockwise to make sure that there are no abnormal conditions.
      • SST: 09960-10010
        1. 09962-01000
        2. 09963-01000
      NOTE:

      Be sure to perform this confirmation.

    14. Remove the crankshaft pulley and crankshaft pulley spacer.
  36. INSTALL TIMING CHAIN OR BELT COVER SUB-ASSEMBLY
    1. Apply a light layer of engine oil to 4 new O-rings and attach them to the engine.
    2. Clean and degrease the contact surface.
    3. If there are gaps at positions shown in the illustration, fill up with seal packing.

      Seal packing

      Three Bond 1217G, 1217H or equivalent

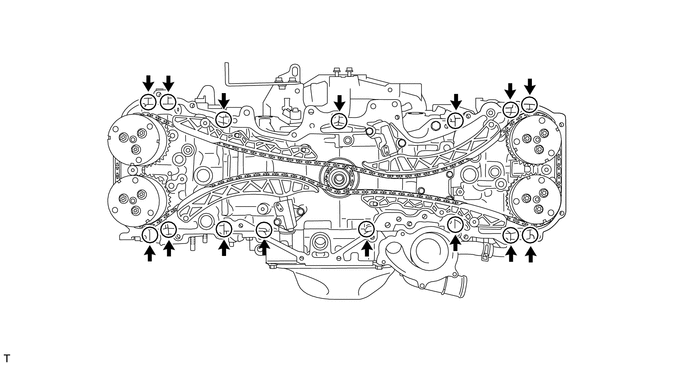

      GTY390632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Apply seal packing in a continuous line as shown in the illustration.

      Seal packing

      Three Bond 1217G, 1217H or equivalent

      GTY719301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Area A *b Boss (5 locations)
      *c Area B *d Other than ranges A and B
      *e 3.5 to 4.5 mm (0.138 to 0.177 in.) *f 2.0 mm (0.079 in.)
      *g 12 mm (0.472 in.) *h 2.5 mm (0.098 in.)
      *i 0.5 mm (0.0197 in.) - -
      NOTE:
      • Clean and degrease the contact surface.
      • Install the chain cover within 5 minutes and tighten the bolts within 15 minutes of applying seal packing.
      • Do not add engine oil within 30 minutes of installation.
      • Do not start the engine within 30 minutes of installation.
    5. Temporarily install the timing chain or belt cover sub-assembly with the 32 bolts.
    6. Securely tighten the 32 bolts in the order as shown in the illustration.

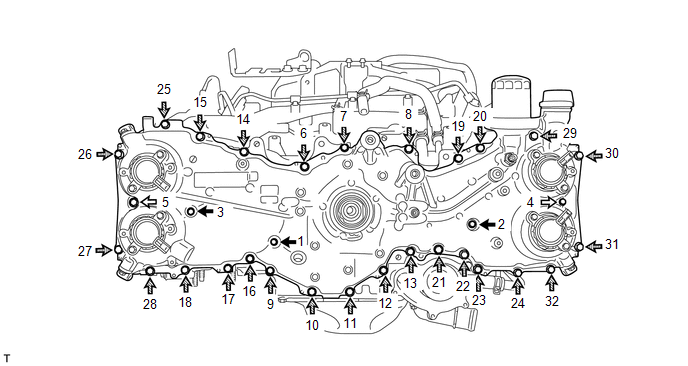

      GTY727901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Bolt A Bolt B
      Bolt C Bolt D

      Bolt A and B

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      Bolt C and D

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

      Bolt Length

      Item Length Item Length
      Bolt A 20 mm (0.787 in.) Bolt B 50 mm (1.969 in.)
      Bolt C 25 mm (0.984 in.) Bolt D 60 mm (2.362 in.)
  37. INSTALL TIMING CHAIN COVER OIL SEAL
    1. Apply engine oil to a new oil seal lip.

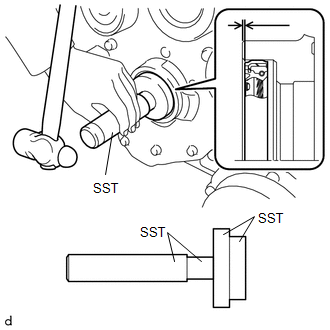

      GTY739517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Keep the lip free from foreign matter.
      • Do not apply engine oil to the dust seal section and the outer periphery.
    2. Using SST and a hammer, tap in the new oil seal until its surface is flush with the timing chain or belt cover sub-assembly edge.
      • SST: 09950-60010
        1. 09951-00460
        2. 09951-00610
        3. 09952-06010
      • SST: 09950-70010
        1. 09951-07100
      NOTE:
      • Do not tap the oil seal at an angle.
      • Do not deform the oil seal.

      HINT:

      Alternatively, the tapping depth of the timing chain cover oil seal can be 0 to -1.0 mm (0 to -0.0394 in.) from the timing chain cover end surface.

  38. INSTALL CRANKSHAFT PULLEY
    1. Install the crankshaft pulley spacer.
    2. Install a new O-ring to the crankshaft pulley spacer.

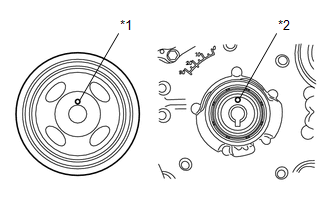

    3. Install the crankshaft pulley while aligning the knock hole of the pulley with the knock pin on the crankshaft pulley spacer.
      GTY718421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Knock Hole
      *2 Knock Pin
    4. Apply engine oil to threads and seat sections of the crankshaft pulley set bolt.
    5. Install SST to the crankshaft pulley.
      • SST: 09213-80010
        1. 90179-10016
        2. 09213-08010
        3. 09213-08110

      HINT:

      Position the projections on SST in the direction as shown in the illustration to prevent SST from separating from the crankshaft pulley.

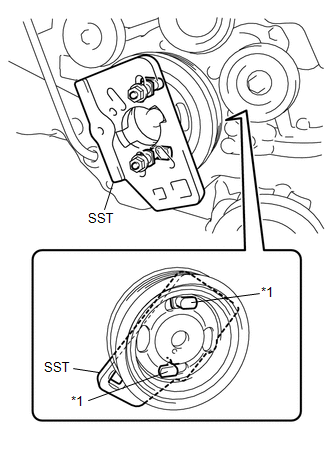

      GTY707354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Claw
    6. Using SST, hold the crankshaft pulley and tighten the crankshaft pulley set bolt.
      • SST: 09213-80010
        1. 90179-10016
        2. 09213-08010
        3. 09213-08110

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

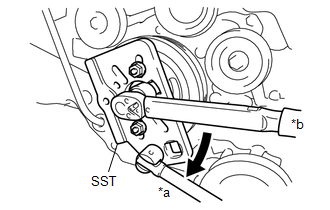

      GTY734443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Hold
      *b Turn
    7. Using a marker, draw the reference line (A) on the crankshaft pulley set bolt and also the reference line (B) on the crank pulley according to the line engraved around the crankshaft pulley set bolt head as shown in the illustration.

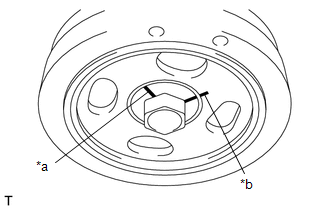

      GTY710946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Reference Line A
      *b Reference Line B

      HINT:

      There are carved lines on the crankshaft pulley set bolt head every 90°.

    8. Using SST, hold the crankshaft pulley, and tighten the crankshaft pulley set bolt by 90° until the reference lines A and B are aligned.
      • SST: 09213-80010
        1. 90179-10016
        2. 09213-08010
        3. 09213-08110

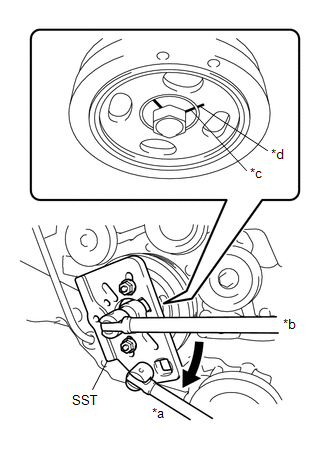

      GTY720160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Hold
      *b Turn
      *c Reference Line A
      *d Reference Line B
  39. INSTALL THERMOSTAT
    1. Attach a new gasket to the thermostat.
  40. INSTALL WATER OUTLET
    1. Install the thermostat and water outlet with the 2 bolts.

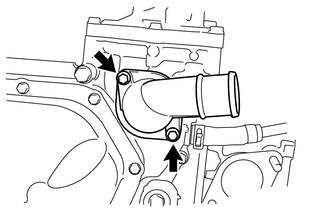

      GTY727643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

  41. INSTALL ENGINE WATER PUMP ASSEMBLY
    1. Install a new gasket and the water pump assembly with the 5 bolts.

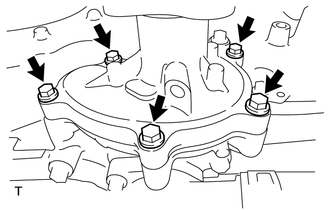

      GTY707840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

  42. INSTALL WATER PUMP PULLEY
    1. Temporarily install the water pump pulley with the 3 bolts.
    2. Using SST, hold the water pump pulley.

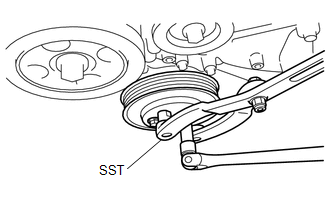

      GTY732984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09960-10010
        1. 09962-01000
        2. 09963-00700
    3. Securely tighten the 3 bolts.
      NOTE:

      Be careful not to let SST slip during the work.

      Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)

  43. INSTALL NO. 1 IDLER PULLEY SUB-ASSEMBLY
    1. Install the idler pulley cover and No. 1 idler pulley sub-assembly with the bolt.

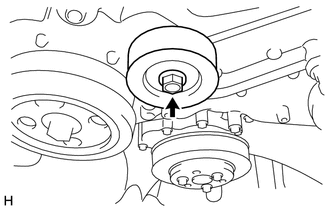

      GTY724508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 36 N*m (367 kgf*cm, 27 ft.*lbf)

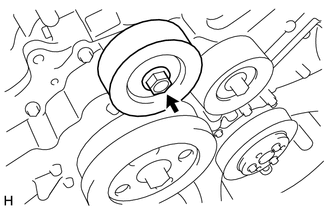

  44. INSTALL NO. 1 IDLER PULLEY SUB-ASSEMBLY
    1. Install the idler pulley cover and No. 1 idler pulley sub-assembly with the bolt.
      GTY724505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 36 N*m (367 kgf*cm, 27 ft.*lbf)

  45. INSTALL PCV VALVE SUB-ASSEMBLY
    1. Apply adhesive to 2 or 3 threads of the PCV valve sub-assembly.

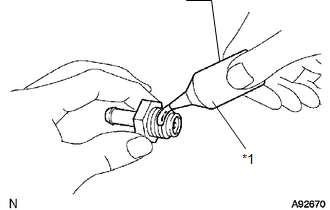

      GTY687155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324, 1215 or equivalent

      TEXT IN ILLUSTRATION

      *1 Adhesive
    2. Using a 19 mm deep socket wrench, install the PCV valve sub-assembly.

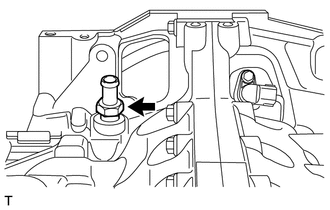

      GTY691602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

  46. INSTALL WATER INLET PIPE
    1. Attach 2 new O-rings to the cylinder block.

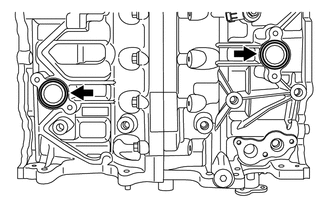

      GTY729999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

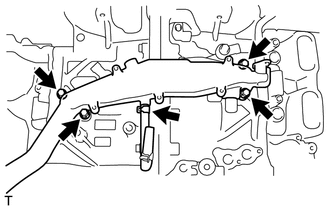

    2. Install the water inlet pipe with the 4 bolts.
      GTY707364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

    3. Connect the No. 3 water by-pass hose with the clamp.
  47. INSTALL REAR CYLINDER HEAD PLATE (for Manual Transmission)

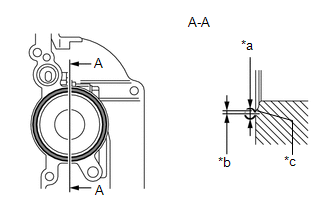

    1. Apply seal packing in a continuous line as shown in the illustration.

      Seal packing

      Three Bond 1217G, 1217H or equivalent

      GTY688653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a 2, 0 to 4.0 mm (0.079 to 0.158 in.)
      *b Within 1.0 mm (0.0394 in.)
      *c Chamfer edge
      NOTE:
      • Clean and degrease the contact surface.
      • Install the rear cylinder head plate within 5 minutes of applying seal packing.

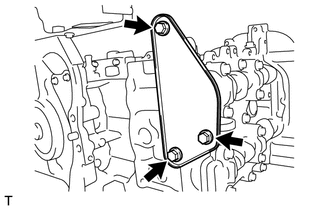

    2. Install the rear cylinder head plate with the 3 bolts.
      GTY389305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

  48. INSTALL VACUUM PUMP ASSEMBLY (for Automatic Transmission)

    Refer to PROCEDURE - Step 1

  49. INSTALL PCV HOSE CONNECTOR
    1. Connect the No. 2 water by-pass hose to the PCV hose connector and water inlet pipe with the clips.

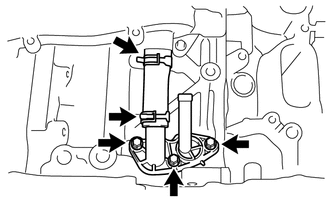

      GTY730003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the PCV hose connector with the 3 bolts.

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

  50. INSTALL ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Clean and degrease the threads of the engine oil pressure switch assembly.
    2. Apply adhesive 1324 to the threads of the engine oil pressure switch assembly.

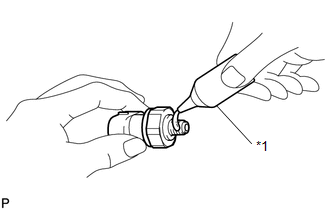

      GTY715014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

      TEXT IN ILLUSTRATION

      *1 Adhesive 1324
      NOTE:

      Keep the oil hole free from adhesive.

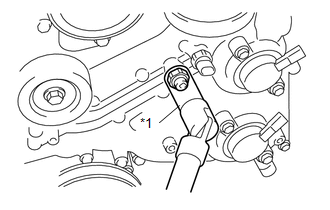

    3. Using a 24 mm deep socket wrench, install the engine oil pressure switch assembly.
      GTY724719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 24 mm Deep Socket Wrench

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

      NOTE:

      Do not start the engine for at least 1 hour after installation.

  51. INSTALL TEMPERATURE SENSOR
    1. Attach a new gasket to the temperature sensor.
    2. Using a 19 mm deep socket wrench, install the temperature sensor.

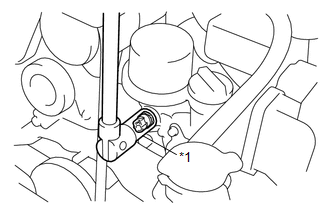

      GTY720356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 19 mm Deep Socket Wrench

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

  52. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE
    1. Install the back-up ring to the camshaft timing oil control valve (for exhaust side of bank 2).

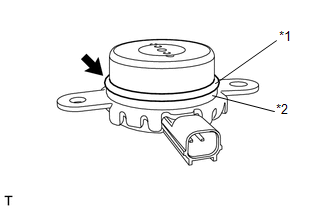

      GTY731897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 O-ring
      *2 Back-up ring
    2. Install a new O-ring to the camshaft timing oil control valve (for exhaust side of bank 2).
    3. Apply a light coat of engine oil to the O-ring.
    4. Install the camshaft timing oil control valve (for exhaust side of bank 2) with the 2 bolts.

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

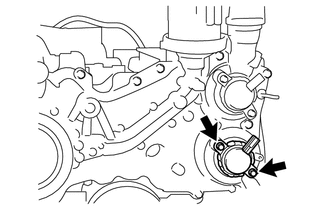

      GTY740490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the back-up ring to the camshaft timing oil control valve (for intake side of bank 2).
    6. Install a new O-ring to the camshaft timing oil control valve (for intake side of bank 2).
    7. Apply a light coat of engine oil to the O-ring.
    8. Install the camshaft timing oil control valve (for intake side of bank 2) with the 2 bolts.

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

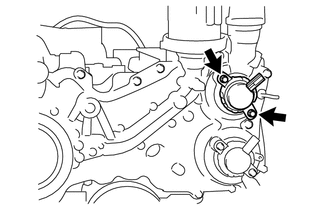

      GTY730006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

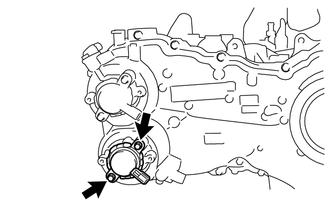

    9. Install the back-up ring to the camshaft timing oil control valve (for exhaust side of bank 1).
    10. Install a new O-ring to the camshaft timing oil control valve (for exhaust side of bank 1).
    11. Apply a light coat of engine oil to the O-ring.
    12. Install the camshaft timing oil control valve (for exhaust side of bank 1) with the 2 bolts.

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

      GTY730007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    13. Install the back-up ring to the camshaft timing oil control valve (for intake side of bank 1).
    14. Install a new O-ring to the camshaft timing oil control valve (for intake side of bank 1).
    15. Apply a light coat of engine oil to the O-ring.
    16. Install the camshaft timing oil control valve (for intake side of bank 1) with the 2 bolts.

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

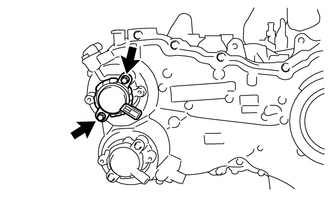

      GTY730011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. INSTALL VVT SENSOR
    1. Install a new O-ring to the VVT sensor (for exhaust side of bank 2).
    2. Apply a light coat of engine oil to the O-ring.
    3. Install the VVT sensor (for exhaust side of bank 2) with the bolt.

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

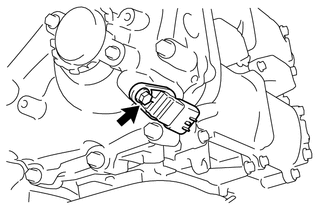

      GTY730012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install a new O-ring to the VVT sensor (for intake side of bank 2).
    5. Apply a light coat of engine oil to the O-ring.
    6. Install the VVT sensor (for intake side of bank 2) with the bolt.

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

      GTY730013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

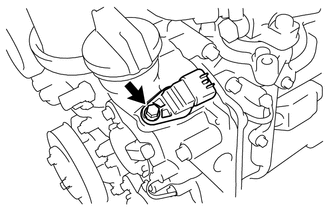

    7. Install a new O-ring to the VVT sensor (for exhaust side of bank 1).
    8. Apply a light coat of engine oil to the O-ring.
    9. Install the VVT sensor (for exhaust side of bank 1) with the bolt.

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

      GTY740492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

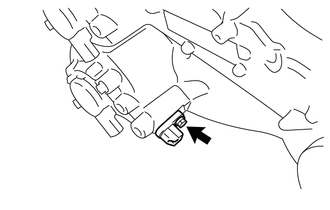

    10. Install a new O-ring to the VVT sensor (for intake side of bank 1).
    11. Apply a light coat of engine oil to the O-ring.
    12. Install the VVT sensor (for intake side of bank 1) with the bolt.

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

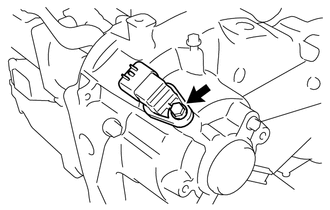

      GTY740491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. INSTALL CRANK POSITION SENSOR
    1. Install the crank position sensor with the bolt.

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

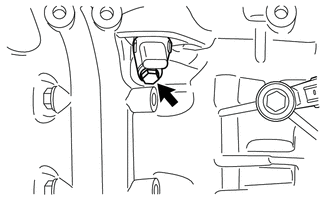

      GTY728400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  55. INSTALL KNOCK CONTROL SENSOR
    1. Install the 2 knock control sensors onto the cylinder block with the 2 bolts as shown in the illustration.

      Torque: 24 N*m (245 kgf*cm, 18 ft.*lbf)

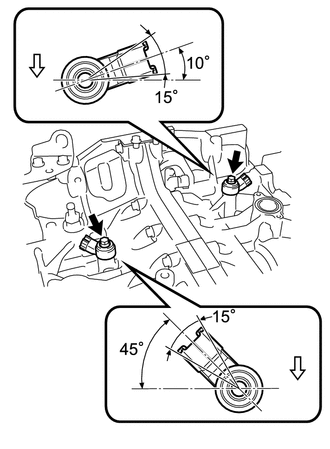

      GTY735128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Engine front
  56. INSTALL E.F.I. WATER TEMPERATURE SENSOR
    1. Using a 19 mm union nut wrench, install a new gasket and the E.F.I. water temperature sensor.

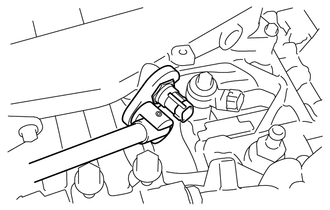

      GTY730015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

      NOTE:

      Use the formula to calculate special torque values for situations where a union nut wrench is combined with a torque wrench (Refer to PRECAUTION [06/2016 - ] ).

  57. INSTALL OIL FILTER UNION
    1. Using a 24 mm deep socket wrench, install the oil filter union.

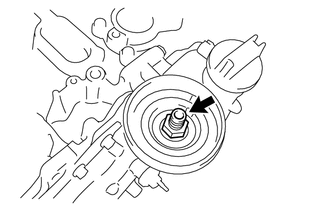

      GTY727644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 45 N*m (459 kgf*cm, 33 ft.*lbf)

  58. INSTALL OIL FILTER SUB-ASSEMBLY
    1. Apply engine oil to the installation surface of the oil filter sub-assembly.
    2. Using SST, install the oil filter sub-assembly.

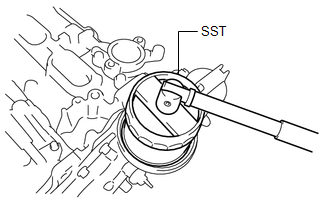

      GTY712935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09228-22020

      Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)

  59. INSTALL OIL FILLER CAP ASSEMBLY
    1. Install the oil filler cap assembly.
scientia non olet · About LEMON Manuals
