Disassembly [06/2016 - ]: Procedure

  1. REMOVE OIL FILLER CAP ASSEMBLY
    1. Remove the oil filler cap assembly.
  2. REMOVE OIL FILTER SUB-ASSEMBLY
    1. Using SST, remove the oil filter sub-assembly.
      GTY712935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09228-22020
  3. REMOVE OIL FILTER UNION
    1. Using a 24 mm deep socket wrench, remove the oil filter union.
      GTY727644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE E.F.I. ENGINE COOLANT TEMPERATURE SENSOR
    1. Using a 19 mm union nut wrench, remove the E.F.I. engine coolant temperature sensor.
      GTY730015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

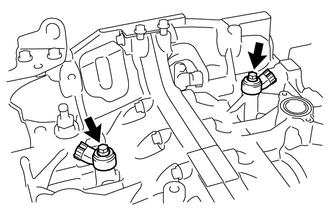

  5. REMOVE KNOCK CONTROL SENSOR
    1. Remove the 2 bolts and 2 knock control sensors.
      GTY388196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CRANK POSITION SENSOR
    1. Remove the bolt and crank position sensor.
      GTY728400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE VVT SENSOR
    1. Remove the bolt and VVT sensor (for intake side of bank 1).
      GTY740491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the VVT sensor.
    3. Remove the bolt and VVT sensor (for exhaust side of bank 1).
      GTY740492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the O-ring from the VVT sensor.
    5. Remove the bolt and VVT sensor (for intake side of bank 2).
      GTY730013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the O-ring from the VVT sensor.
    7. Remove the bolt and VVT sensor (for exhaust side of bank 2).
      GTY730012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the O-ring from the VVT sensor.
  8. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE
    1. Remove the 2 bolts and camshaft timing oil control valve (for intake side of bank 1).
      GTY730011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the camshaft timing oil control valve.
      GTY731897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the back-up ring from the camshaft timing oil control valve.
      TEXT IN ILLUSTRATION

      *1 O-ring
      *2 Back-up Ring
    4. Remove the 2 bolts and camshaft timing oil control valve (for exhaust side of bank 1).
      GTY730007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the O-ring from the camshaft timing oil control valve.
    6. Remove the back-up ring from the camshaft timing oil control valve.
    7. Remove the 2 bolts and camshaft timing oil control valve (for intake side of bank 2).
      GTY730006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the O-ring from the camshaft timing oil control valve.
    9. Remove the back-up ring from the camshaft timing oil control valve.
    10. Remove the 2 bolts and camshaft timing oil control valve (for exhaust side of bank 2).
      GTY740490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Remove the O-ring from the camshaft timing oil control valve.
    12. Remove the back-up ring from the camshaft timing oil control valve.
  9. REMOVE TEMPERATURE SENSOR
    1. Using a 19 mm deep socket wrench, remove the temperature sensor.
      GTY720356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Use a cloth or the like to prevent engine oil from splashing.

      TEXT IN ILLUSTRATION

      *1 19 mm Deep Socket Wrench
  10. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Using a 24 mm deep socket wrench, remove the engine oil pressure switch assembly.
      GTY724719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Use a cloth or the like to prevent engine oil from splashing.

      TEXT IN ILLUSTRATION

      *1 24 mm deep socket wrench
  11. REMOVE PCV HOSE CONNECTOR
    1. Remove the 3 bolts and PCV hose connector.
      GTY730003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the 2 clips and remove the No. 2 water by-pass hose from the PCV hose connector.
  12. REMOVE VACUUM PUMP ASSEMBLY (for Automatic Transmission)

    Refer to PROCEDURE - Step 3

  13. REMOVE REAR CYLINDER HEAD PLATE (for Manual Transmission)
    1. Remove the 3 bolts and rear cylinder head plate.

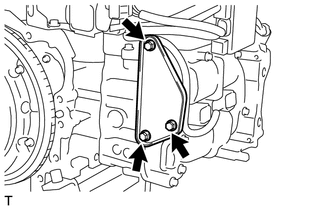

      GTY387961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE WATER INLET PIPE
    1. Disconnect the No. 3 water by-pass hose.
      GTY707364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and water inlet pipe.
    3. Remove the 2 O-rings from the cylinder block.
      GTY729999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE PCV VALVE SUB-ASSEMBLY
    1. Using a 19 mm deep socket wrench, remove the PCV valve sub-assembly.
      GTY691602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 1 IDLER PULLEY SUB-ASSEMBLY
    1. Remove the bolt, No. 1 idler pulley sub-assembly and idler pulley cover.
      GTY724505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE NO. 1 IDLER PULLEY SUB-ASSEMBLY
    1. Remove the bolt, No. 1 idler pulley sub-assembly and idler pulley cover.
      GTY724508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

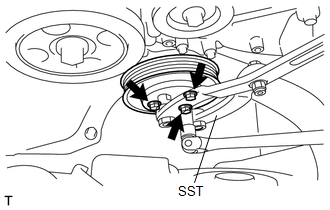

  18. REMOVE WATER PUMP PULLEY
    1. Using SST, hold the water pump pulley.
      GTY693083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09960-10010
        1. 09962-01000
        2. 09963-00700
    2. Remove the 3 bolts and water pump pulley.
      NOTE:

      Be careful not to let SST slip during the work.

  19. REMOVE ENGINE WATER PUMP ASSEMBLY
    1. Remove the 5 bolts, engine water pump assembly and gasket.
      GTY707840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE WATER OUTLET
    1. Remove the 2 bolts and water outlet.
      GTY727643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE THERMOSTAT
    1. Remove the thermostat.
    2. Remove the gasket from the thermostat.
      NOTE:

      Be careful not to let SST slip during the work.

  22. REMOVE CRANKSHAFT PULLEY
    1. Install SST to the crankshaft pulley.
      • SST: 09213-80010
        1. 90179-10016
        2. 09213-08010
        3. 09213-08110

      HINT:

      Position the projections on SST in the direction as shown in the illustration to prevent SST from separating from the crankshaft pulley.

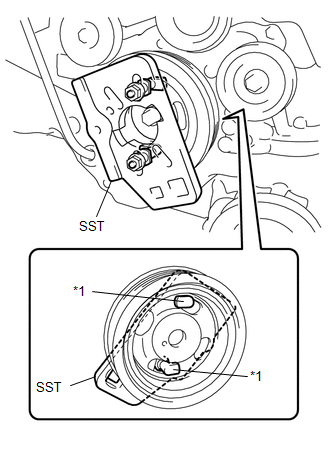

      GTY732830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Claw
    2. Using SST, hold the crankshaft pulley and loosen the crankshaft pulley set bolt.
      • SST: 09213-80010
        1. 90179-10016
        2. 09213-08010
        3. 09213-08110

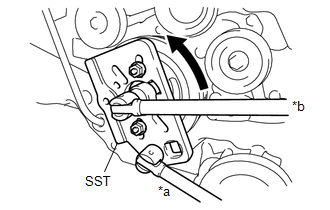

      GTY689677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Hold
      *b Turn
    3. Remove the crankshaft pulley.
    4. Remove the O-ring and crankshaft pulley spacer.

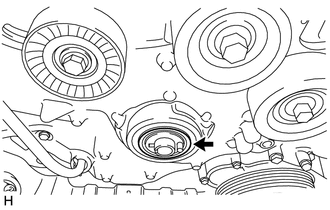

      GTY724580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE TIMING CHAIN OR BELT COVER OIL SEAL
    1. Using a screwdriver with its tip wrapped in protective tape, pry out the timing chain or belt cover oil seal.

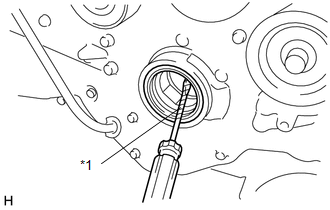

      GTY737446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
      NOTE:

      After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.

      HINT:

      Tape the screwdriver tip before use.

  24. REMOVE TIMING CHAIN OR BELT COVER SUB-ASSEMBLY
    1. Remove the 32 bolts.

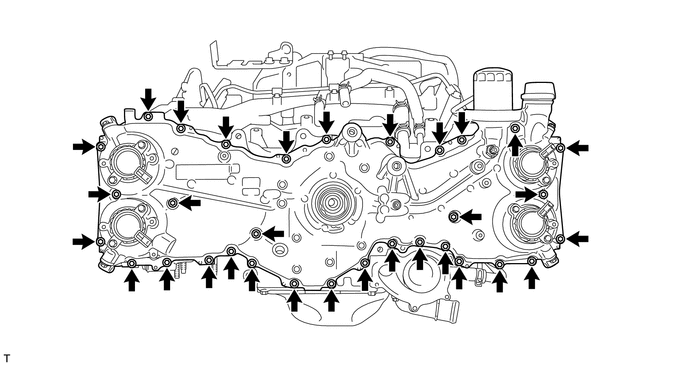

      GTY390629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver with its tip wrapped in protective tape, remove the timing chain or belt cover sub-assembly by prying between the timing chain or belt cover sub-assembly and cylinder head or cylinder block.

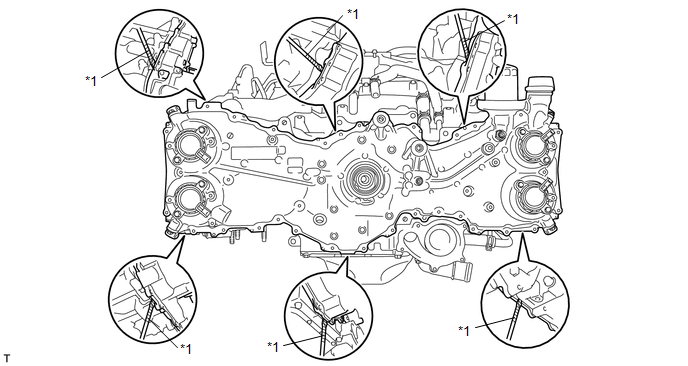

      GTY721032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape - -
      NOTE:

      Be careful not to damage the contact surfaces of the cylinder head, cylinder block or chain cover.

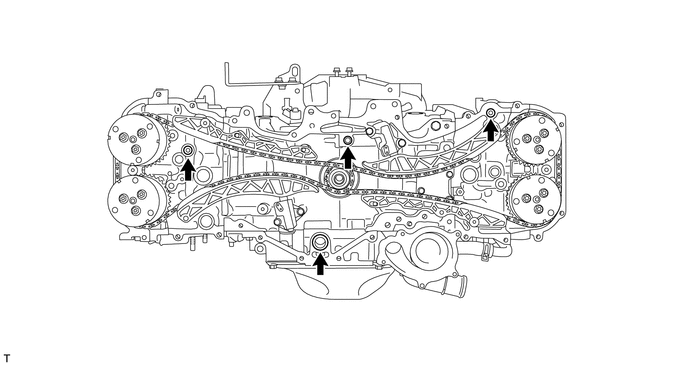

    3. Remove the 4 O-rings.
      GTY390631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. MAKE PAINT MARKS

    HINT:

    If the alignment marks are difficult to identify during the work, mark the alignment marks with paint at the positions shown in the illustration, for easier recognition.

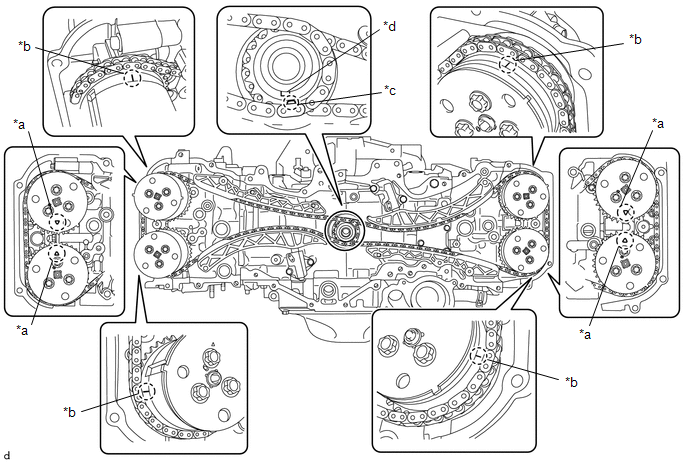

    GTY732717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Triangular Mark *b Engraved Line
    *c Oval Mark *d Crankshaft Timing Gear key
  26. REMOVE CHAIN SUB-ASSEMBLY (for Bank 1)
    WARNING:

    Do not remove the chain sub-assembly from bank 2 at the same time as the chain sub-assembly is being removed from bank 1. Otherwise, the camshaft on bank 2 may turn suddenly, which is dangerous.

    1. Temporarily install the crankshaft pulley spacer and crankshaft pulley.

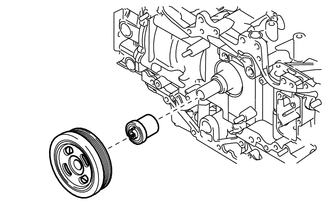

      GTY726024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, turn the crankshaft pulley clockwise until the alignment marks on the camshaft timing intake gear assembly RH and the camshaft timing exhaust gear assembly RH, and the crankshaft pulley pin hole are aligned at the positions shown in the illustration.
      • SST: 09960-10010
        1. 09962-01000
        2. 09963-01000

      HINT:

      At this time, the alignment mark on the crankshaft timing gear or sprocket and the crankshaft timing gear key are at the positions shown in the illustration.

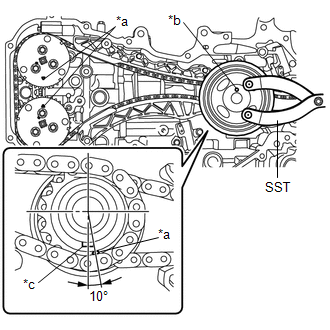

      GTY723252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Alignment Mark
      *b Crankshaft Pulley Pin Hole
      *c Crankshaft Timing Gear key
    3. Remove the crankshaft pulley and crankshaft pulley spacer.
    4. Push down the chain tensioner slipper and retain the plunger by inserting a 2.5 mm (0.098 in.) diameter hexagonal wrench into the No. 1 chain tensioner assembly through the stopper plate.

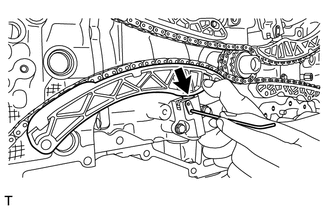

      GTY707499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 bolts and No. 1 chain tensioner assembly.
      GTY735521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the chain tensioner slipper.
    7. Using a 5 mm hexagonal wrench, remove the bolt and No. 1 chain vibration damper.

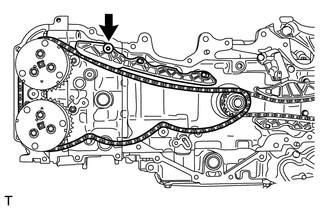

      GTY735520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the chain sub- assembly (for bank 1).
      NOTE:
      • With the chain sub- assembly (for bank 1) removed, the valve heads may contact each other if the camshafts are turned, causing the valve stems to bend.
      • To avoid this, do not turn the intake camshaft RH and the exhaust camshaft RH more than zero-lift range (The range where camshafts can be turned lightly by hand).

      HINT:

      Arrange the removed parts in the correct order.

  27. REMOVE CHAIN SUB-ASSEMBLY (for Bank 2)
    1. Temporarily install the crankshaft pulley spacer and crankshaft pulley.
    2. Using SST, turn the crankshaft pulley clockwise until the alignment marks on the camshaft timing intake gear assembly LH and the camshaft timing exhaust gear assembly LH, and the crankshaft pulley pin hole are aligned at the positions shown in the illustration.
      • SST: 09960-10010
        1. 09962-01000
        2. 09963-01000

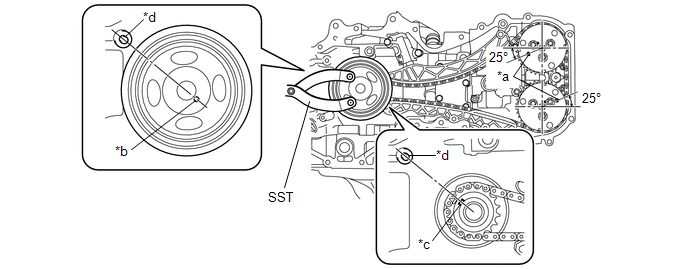

      GTY728352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Alignment Mark *b Crankshaft Pulley Pin Hole
      *c Crankshaft Timing Gear key *d Cylinder Block Guide Pin

      HINT:

      At this time, the crankshaft timing gear key is at the position shown in the illustration.

    3. Remove the crankshaft pulley and crankshaft pulley spacer.
    4. Push the chain tensioner slipper and retain the plunger by inserting an approximately 1 mm (0.039 in.) diameter wire into the No. 2 chain tensioner assembly through the stopper plate.

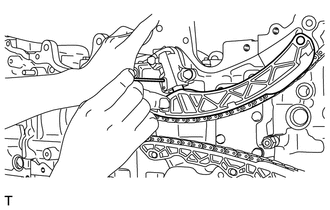

      GTY735522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 bolts and No. 2 chain tensioner assembly.
      GTY707486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the chain tensioner slipper.
    7. Remove the O-ring from the cylinder block.
      GTY735518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Using a 5 mm socket hexagon wrench, remove the bolt and No. 1 chain vibration damper.

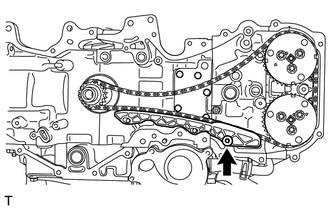

      GTY707487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. While releasing the tension of chain sub-assembly using SST, remove the chain sub-assembly.
      • SST: 09960-10010
        1. 09962-01000
        2. 09963-00700

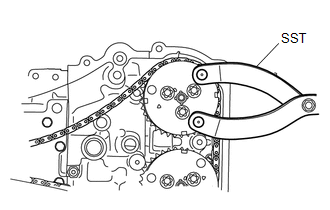

      GTY706814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WARNING:

      Make sure to use SST. Never carry out the work using only your hands.

      NOTE:
      • With the chain sub-assembly (for bank 2) removed, the valve heads may contact each other if the camshafts are turned, causing the valve stems to bend. To avoid this, do not turn the exhaust camshaft LH more than zero-lift rang (The range where the camshaft can be turned lightly by hand).
      • At this time, No. 1 and No. 4 pistons are located near TDC. If the intake camshaft is turned, the valves may come into contact with the piston, causing the valve stems to bend. To avoid this, do not turn the intake camshaft LH.

      HINT:

      Arrange the removed parts in the correct order.

  28. ROTATE CRANK SHAFT AND CAMSHAFT

    See step  29

  29. REMOVE CRANKSHAFT TIMING GEAR OR SPROCKET
    1. Remove the crankshaft timing gear or sprocket.
      GTY707376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Make sure the front-back direction and make a mark for installation if necessary.

  30. REMOVE CAMSHAFT TIMING INTAKE GEAR ASSEMBLY RH

    See step  31

  31. REMOVE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY RH

    See step  32

  32. REMOVE CAMSHAFT TIMING INTAKE GEAR ASSEMBLY LH

    See step  33

  33. REMOVE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY LH

    See step  34

  34. REMOVE SPARK PLUG
    1. Using a 14 mm spark plug wrench, remove the 4 spark plugs.
  35. REMOVE INJECTOR DRIVER BRACKET
    1. Remove the 2 bolts and injector driver bracket.
      GTY694552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

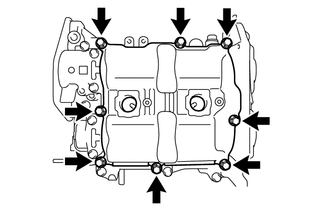

  36. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY RH
    1. Operate the engine stand so that the bank 1 side faces upward.
    2. Remove the 8 bolts.

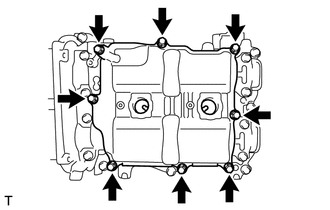

      GTY389926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver with its tip wrapped in protective tape, remove the cylinder head cover sub-assembly RH.
      NOTE:

      Do not damage the camshaft housing sub-assembly RH, cam caps and cylinder head cover sub-assembly RH.

    4. Remove the cylinder head cover gasket.

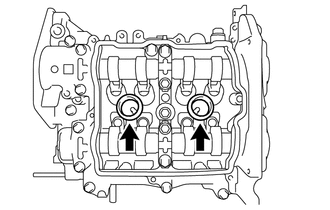

    5. Remove the 2 spark plug tube gaskets.
      GTY389927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When removing the seal packing left on the camshaft housing sub-assembly RH using a scraper, use special care not to damage the camshafts.

  37. REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY RH
    NOTE:

    Do not remove the intake and exhaust camshafts first as it may cause a deformation of the cylinder head sub-assembly.

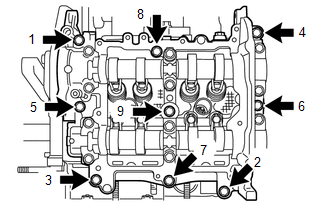

    1. Loosen the 9 bolts in the order shown in the illustration and remove them.
      GTY731499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver with its tip wrapped in protective tape, remove the camshaft housing sub-assembly RH.
      NOTE:

      Do not damage the cylinder head sub-assembly RH and camshaft housing sub-assembly RH.

    3. Remove the 2 O-rings and 8 No. 1 valve rocker arm sub-assemblies from the cylinder head sub-assembly.
      GTY691534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Arrange the removed parts in the correct order.

    4. Remove the 8 valve adjusting shims and 8 roller rocker arm pivots from the cylinder head sub-assembly.
      GTY691536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Arrange the removed parts in the correct order.

  38. REMOVE CYLINDER HEAD SUB-ASSEMBLY RH

    See step  2

  39. REMOVE CYLINDER HEAD GASKET

    See step  3

  40. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY LH
    1. Operate the engine stand so that the bank 2 side faces upward.
    2. Remove the 8 bolts.
      GTY389951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver with its tip wrapped in protective tape, remove the cylinder head cover sub-assembly LH.
      NOTE:

      Do not damage the camshaft housing sub-assembly LH, cam caps and cylinder head cover sub-assembly LH.

    4. Remove the cylinder head cover gasket.

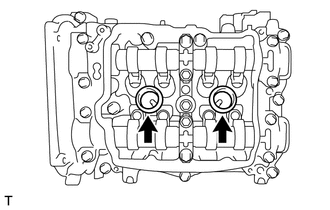

    5. Remove the 2 spark plug tube gaskets.
      GTY389952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When removing the seal packing left on the camshaft housing sub-assembly LH using a scraper, use special care not to damage the camshafts.

  41. REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY LH
    NOTE:

    Do not remove the intake and exhaust camshafts first as it may cause a deformation of the camshaft housing sub-assembly LH.

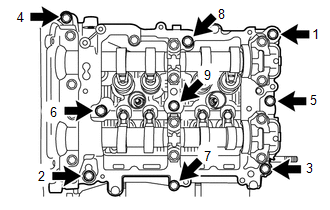

    1. Loosen the 9 bolts in the order shown in the illustration and remove them.
      GTY703164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver with its tip wrapped in protective tape, remove the camshaft housing sub-assembly LH.
      NOTE:

      Do not damage the cylinder head sub-assembly LH and camshaft housing sub-assembly LH.

    3. Remove the 2 O-rings and 8 No. 1 valve rocker arm sub-assemblies from the cylinder head sub-assembly LH.
      GTY691524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Arrange the removed parts in the correct order.

    4. Remove the 8 valve adjusting shims and 8 roller rocker arm pivots from the cylinder head sub-assembly LH.
      GTY732006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Arrange the removed parts in the correct order.

  42. REMOVE CYLINDER HEAD SUB-ASSEMBLY LH

    See step  5

  43. REMOVE NO. 2 CYLINDER HEAD GASKET

    See step  6

  44. REMOVE NO. 2 ENGINE HANGER
    GTY735491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts and No. 2 engine hanger from the cylinder block (for bank 1).
  45. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

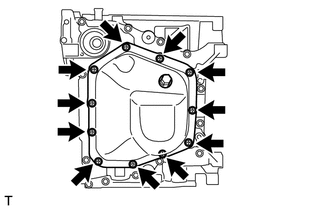

    1. Remove the drain plug and gasket.
    2. Remove the 11 bolts.
      GTY389359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using an oil pan seal cutter, remove the No. 2 oil pan sub-assembly.
      GTY145991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the contact surface and flange part of the No. 2 oil pan sub-assembly.

    4. Remove the 2 seal rings from the No. 2 oil pan sub-assembly.
      GTY707348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE OIL STRAINER SUB-ASSEMBLY
    1. Remove the 2 bolts and oil strainer sub-assembly.
      GTY691603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring.
  47. REMOVE OIL PAN SUB-ASSEMBLY

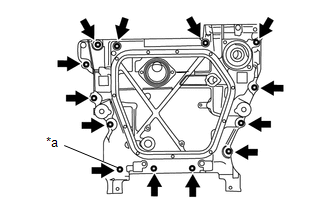

    1. Remove the 13 bolts.
      GTY740183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Use a TORX Socket Wrench T45
    2. Using a screwdriver with its tip wrapped in protective tape, remove the oil pan sub-assembly.
      NOTE:

      Do not damage the cylinder block and oil pan sub-assembly.

    3. Remove the 3 O-rings from the cylinder block.
      GTY732041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 4 bolts and baffle plate from the oil pan sub-assembly.
      GTY707339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

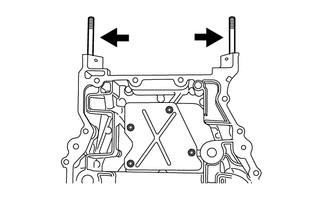

    5. Remove the 2 stud bolts from the oil pan sub-assembly.
      GTY389940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE CAMSHAFT BEARING CAP (for Bank 1)

    See step  44

  49. REMOVE CAMSHAFT (for Bank 1)

    See step  45

  50. REMOVE OIL CONTROL VALVE FILTER (for Bank 1)

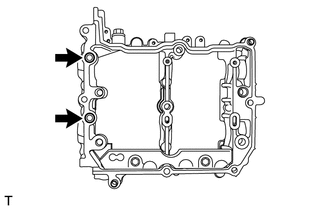

    1. Remove the 2 oil control valve filters from the camshaft housing sub-assembly RH.
      GTY389345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. REMOVE OIL SPACER RH
    1. Remove the 2 bolts and oil spacer RH.
      GTY707344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE CAMSHAFT OIL FEED PIPE SUB-ASSEMBLY (for Automatic Transmission)
    1. Remove the 2 union bolts, the bolt, camshaft oil feed pipe sub-assembly and 2 gaskets from the camshaft housing sub-assembly RH.
      GTY691612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. REMOVE HOLE PLUG (for Manual Transmission)
    1. Remove the hole plug and gasket from the camshaft housing sub-assembly RH.
      GTY732026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. REMOVE CAMSHAFT BEARING CAP (for Bank 2)

    See step  46

  55. REMOVE CAMSHAFT (for Bank 2)

    See step  47

  56. REMOVE OIL CONTROL VALVE FILTER (for Bank 2)

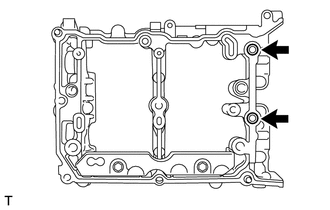

    1. Remove the 2 oil control valve filters from the camshaft housing sub-assembly LH.
      GTY389367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. REMOVE OIL SPACER LH
    1. Remove the 2 bolts and oil spacer LH.
      GTY707346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
