Installation [06/2016 - ]: Procedure

  1. INSTALL INJECTOR DRIVER
    NOTE:
    • Be careful not to drop or strike the injector driver.
    • The injector driver is grounded at the bolt and the nut. To ensure that it is grounded, clean all oil and foreign matter from the installation areas of the injector driver and engine before installing the injector driver.
    1. Install the injector driver with the 3 bolts.

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

    2. Connect the 4 connectors to the injector driver. Move the lock levers in the direction indicated by the arrow to lock the 3 connectors.

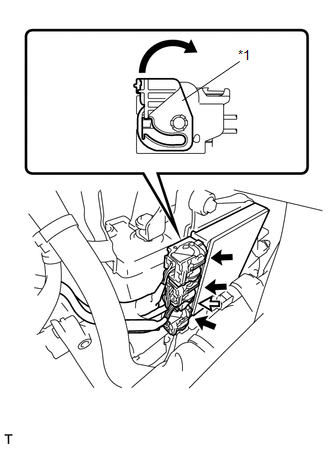

      GTY389700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Lock Lever
      Lock with Connector
      Normal Connector
  2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 3
