Reassembly [06/2016 - ]: Procedure

INSTALL IC REGULATOR

Install the IC Regulator with the 3 bolts.

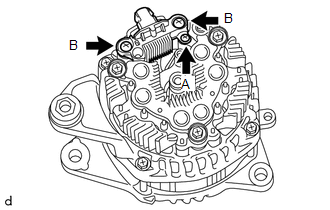

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Bolt A

Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

Bolt B

Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

INSTALL BRUSH ASSEMBLY
1. Install the brush assembly with the 2 bolts.
  Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)
INSTALL REAR COVER
1. Install the rear cover.
INSTALL TERMINAL B
1. Install the terminal B with the nut.
  Torque: 8.9 N*m (91 kgf*cm, 79 in.*lbf)
2. Install the cover.
