Disassembly [06/2016 - ]: Procedure

  1. REMOVE TERMINAL B

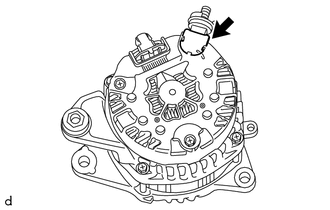

    1. Remove the cover.
      GTY712359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

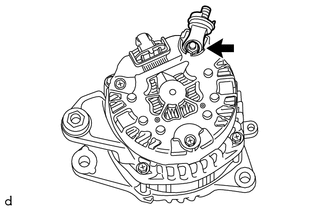

    2. Remove the nut and the terminal B.
      GTY712360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR COVER

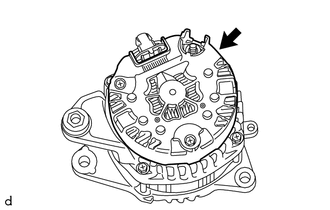

    1. Remove the rear cover.
      GTY712357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE BRUSH ASSEMBLY

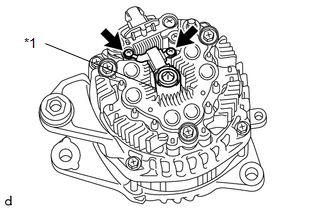

    1. Remove the 2 bolts and brush assembly.
      GTY692055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Socket wrench

      HINT:

      To avoid damage to the slip ring, set a socket wrench or the like with appropriate size between the brush and slip ring.

  4. REMOVE IC REGULATOR

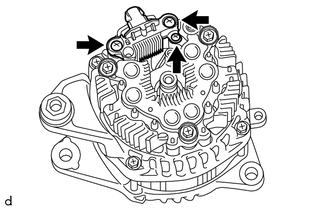

    1. Remove the 3 bolts and IC Regulator.
      GTY712355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
