Components [06/2016 - ]

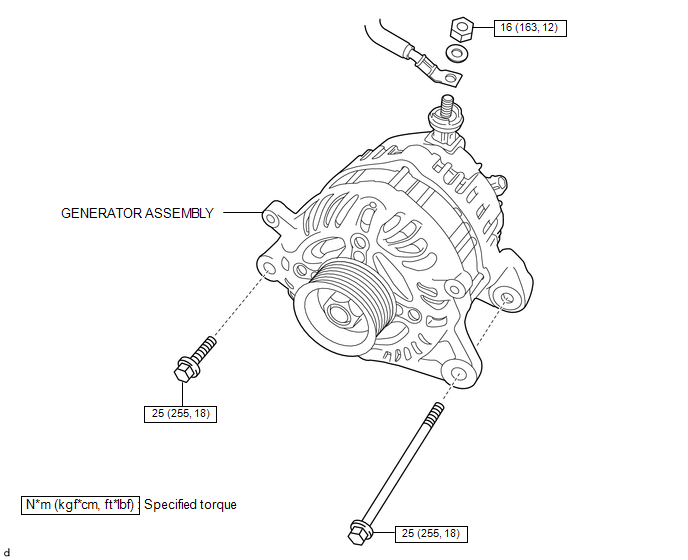

Fig 1: Generator Replacement Components With Torque Specifications (1 Of 2)
GTY733899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

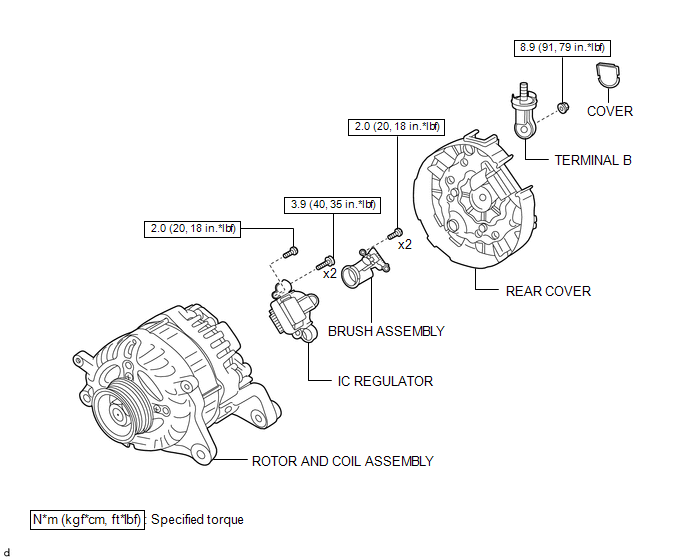

Fig 2: Generator Replacement Components With Torque Specifications (2 Of 2)
GTY705269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
