System Diagrams

Fig 1: Theft Deterrent (1 Of 8)
G12192100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

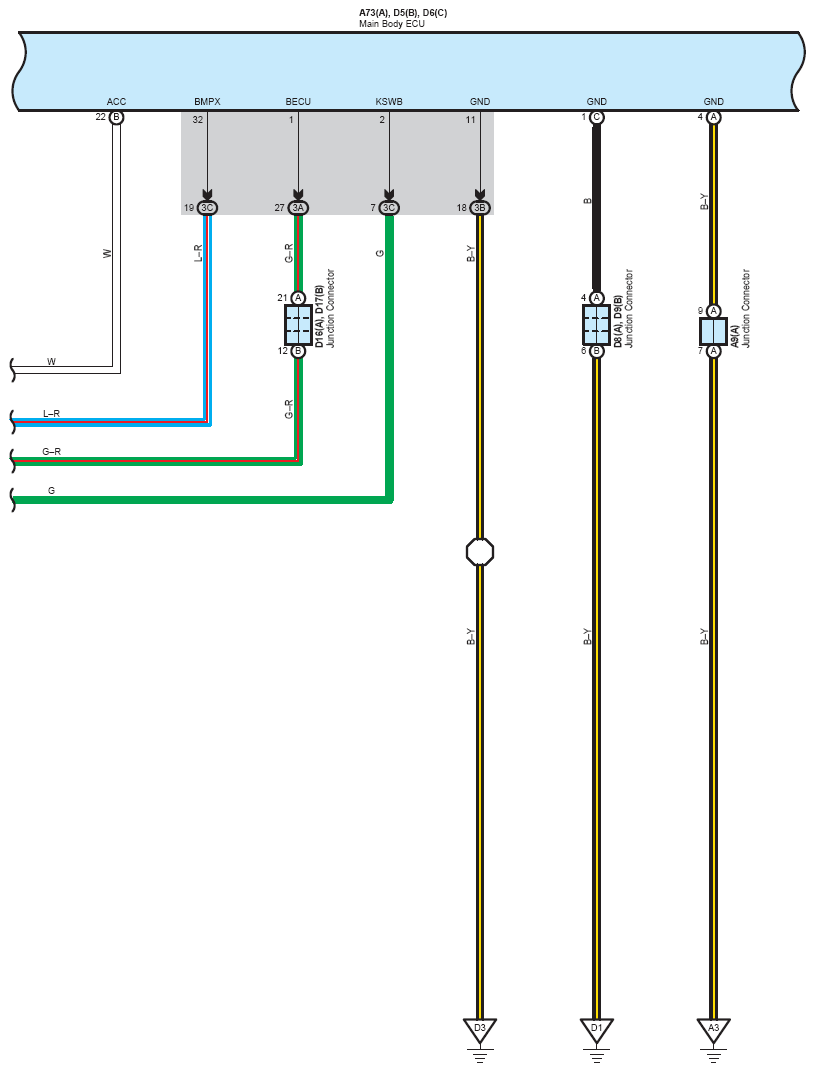

Fig 2: Theft Deterrent (2 Of 8)
G12192101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Theft Deterrent (3 Of 8)
G12192102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

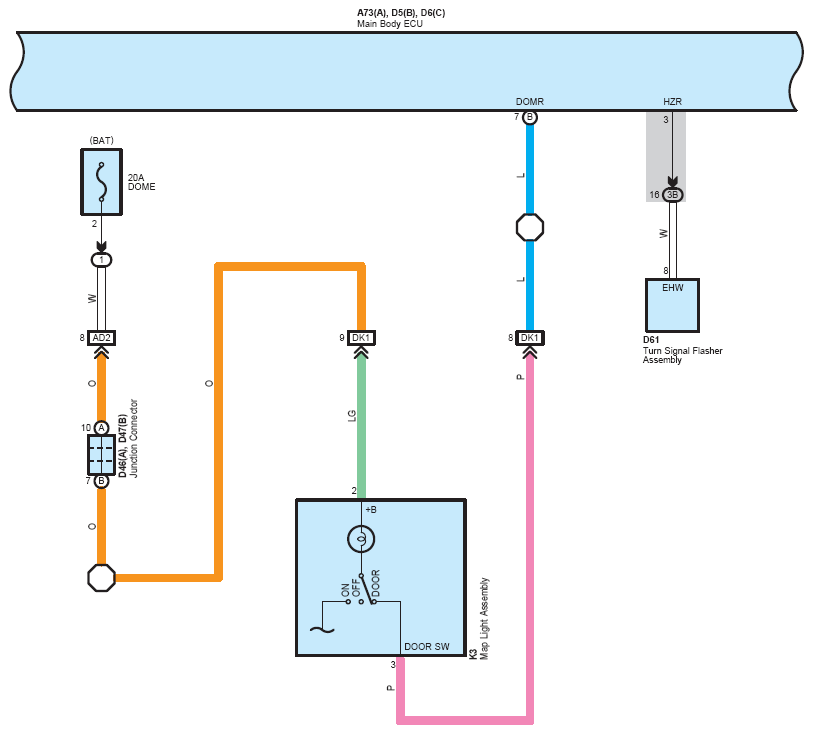

Fig 4: Theft Deterrent (4 Of 8)
G12192103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

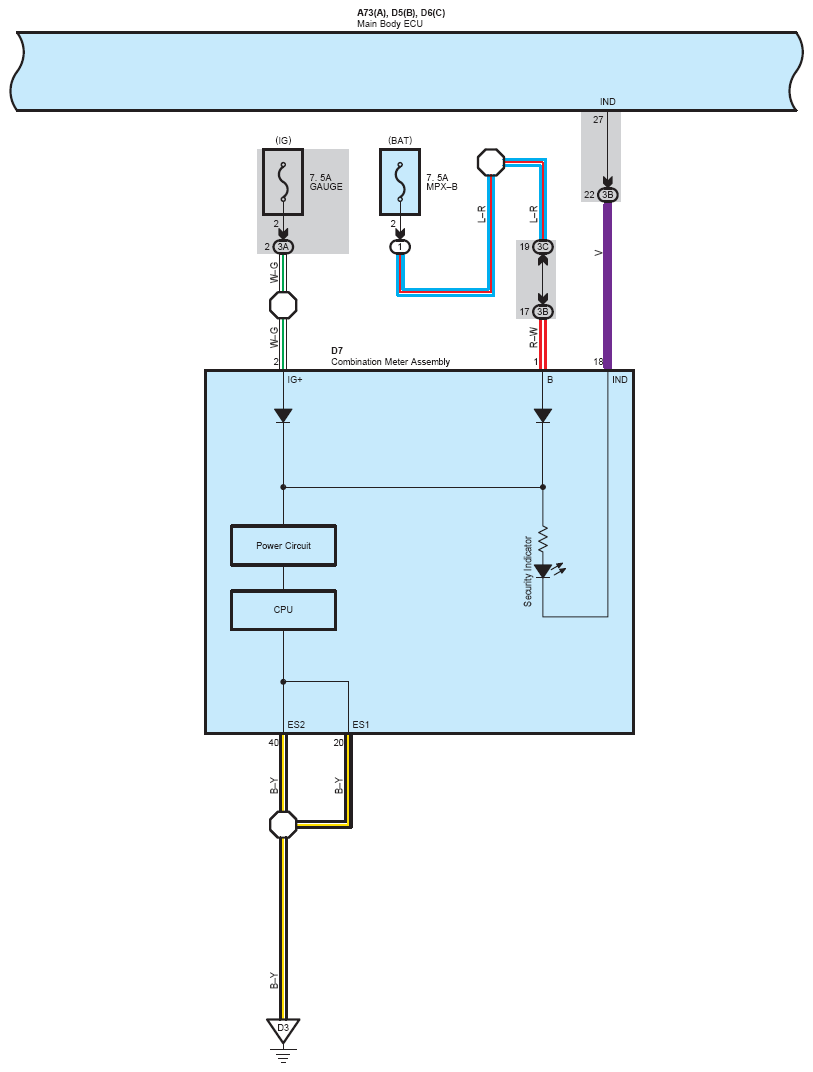

Fig 5: Theft Deterrent (5 Of 8)
G12192104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

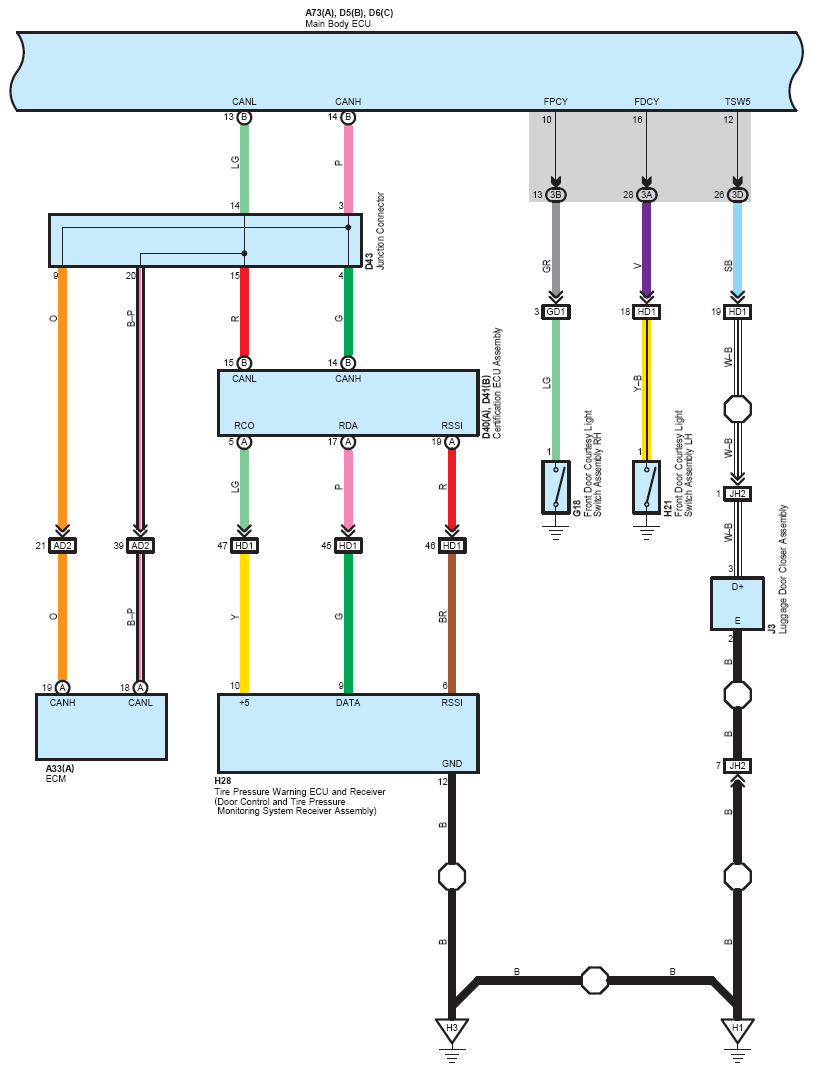

Fig 6: Theft Deterrent (6 Of 8)
G12192105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

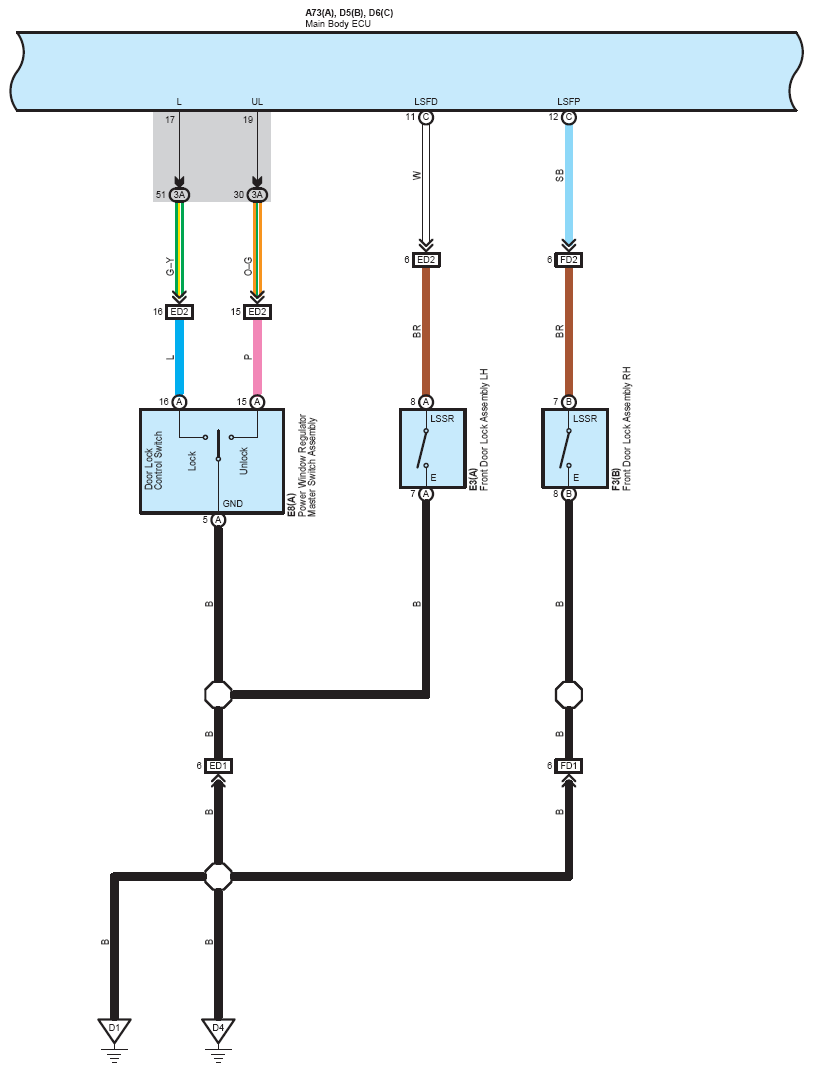

Fig 7: Theft Deterrent (7 Of 8)
G12192106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 8: Theft Deterrent (8 Of 8)
G12192107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
