Starting (W/O Smart Key System): Connectors

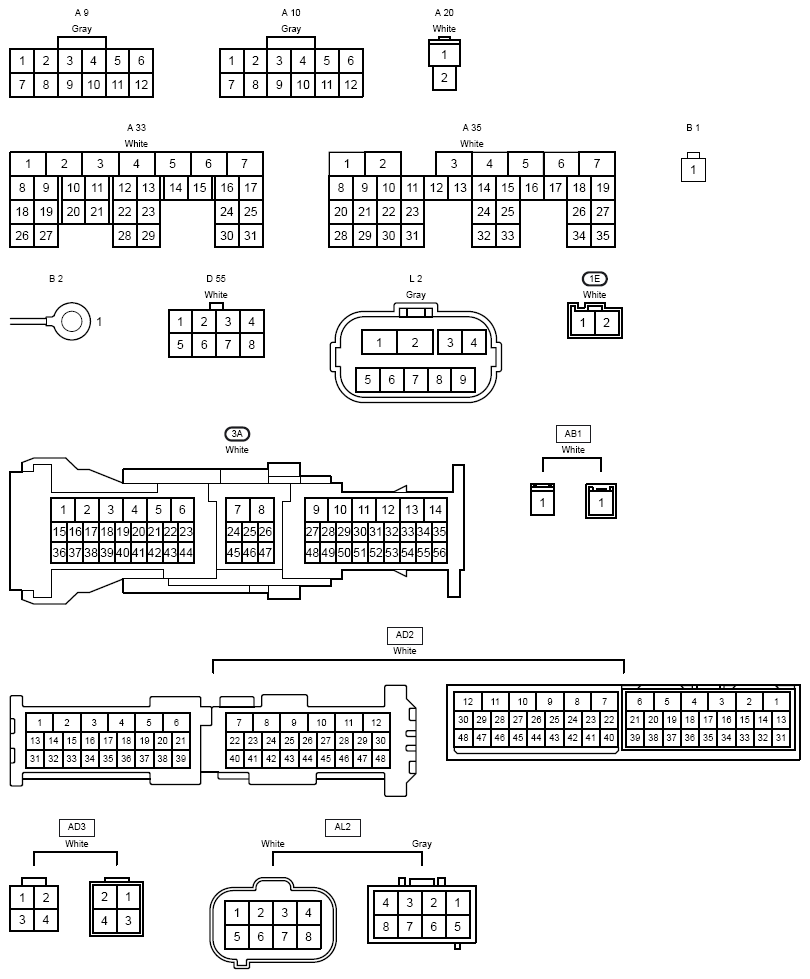

Fig 1: Connectors

G12192099

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
