OEM System Circuits: SRS: Connectors

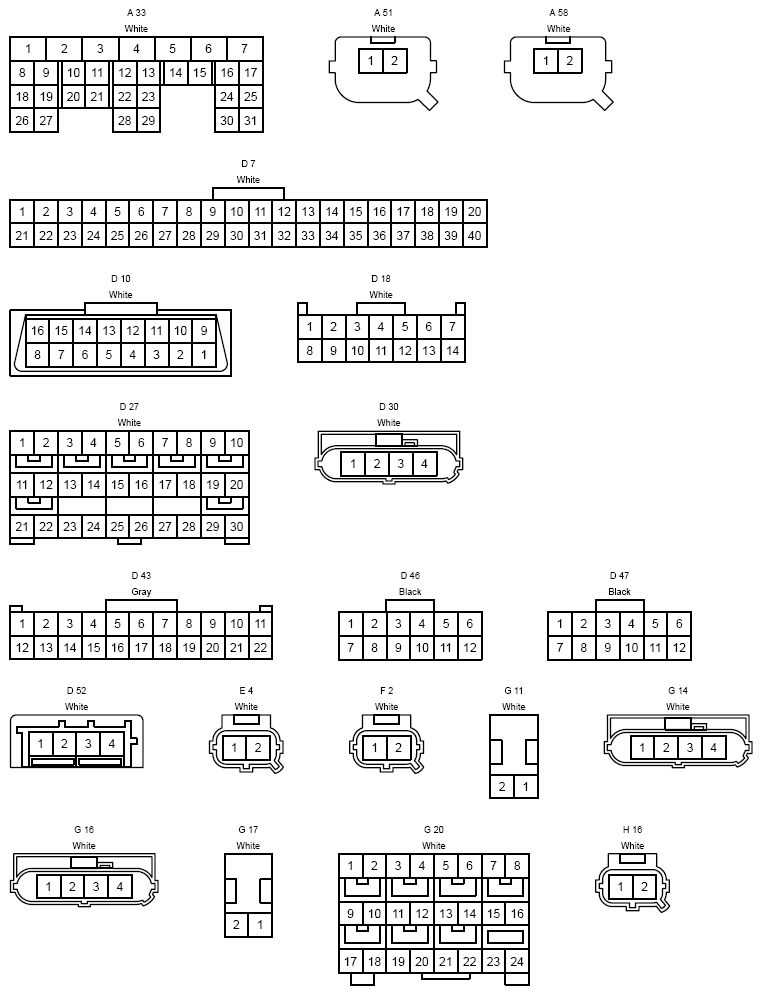

Fig 1: Connectors (1 Of 3)
G12192094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

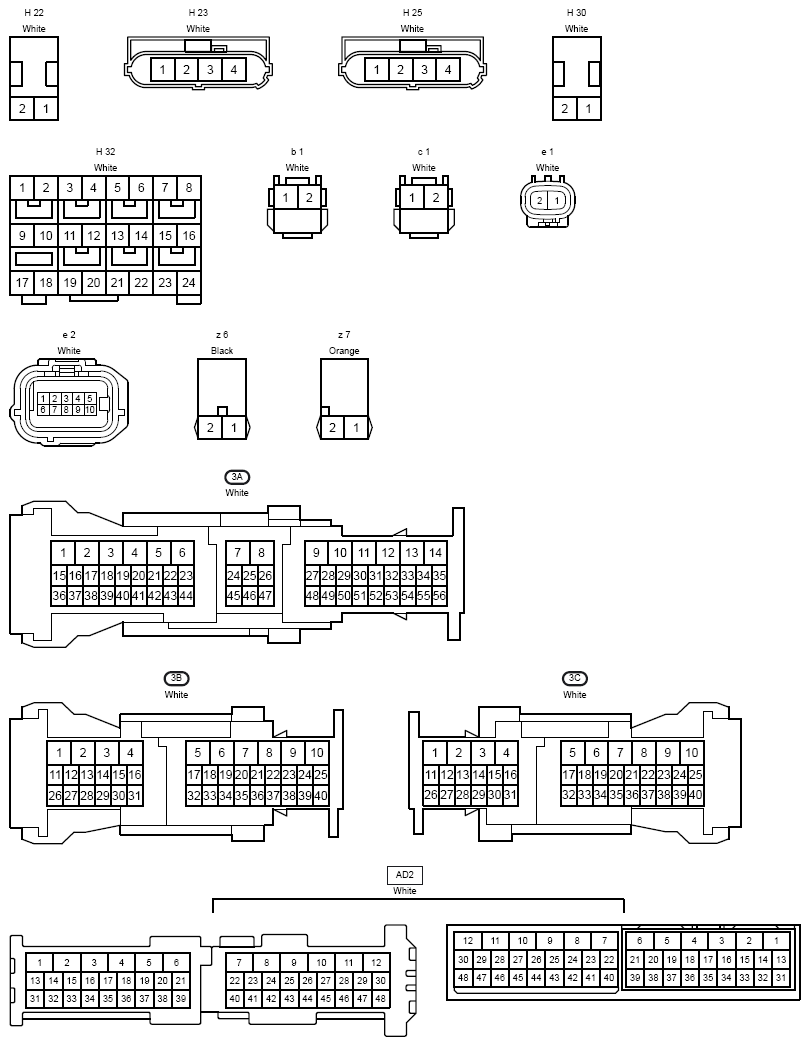

Fig 2: Connectors (2 Of 3)
G12192095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Connectors (3 Of 3)
G12192096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
