System Diagrams

Fig 1: Key Reminder, Light Reminder (1 Of 4)
G12192031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

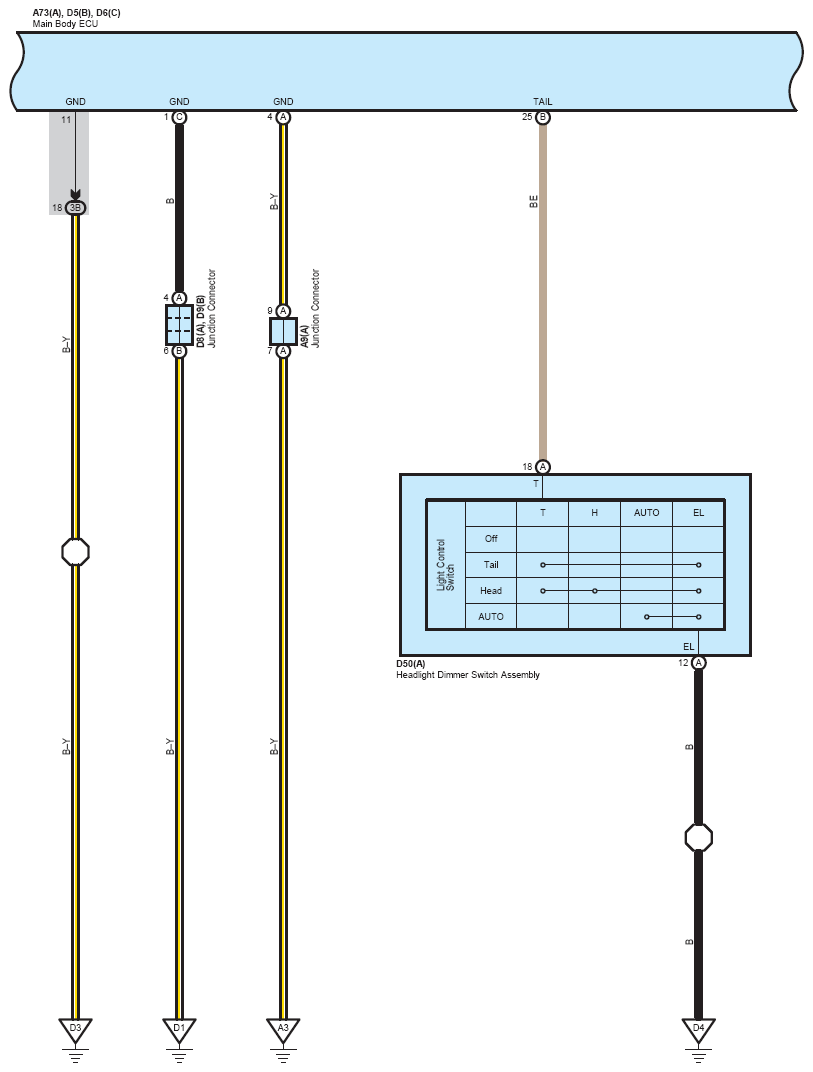

Fig 2: Key Reminder, Light Reminder (2 Of 4)
G12192032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

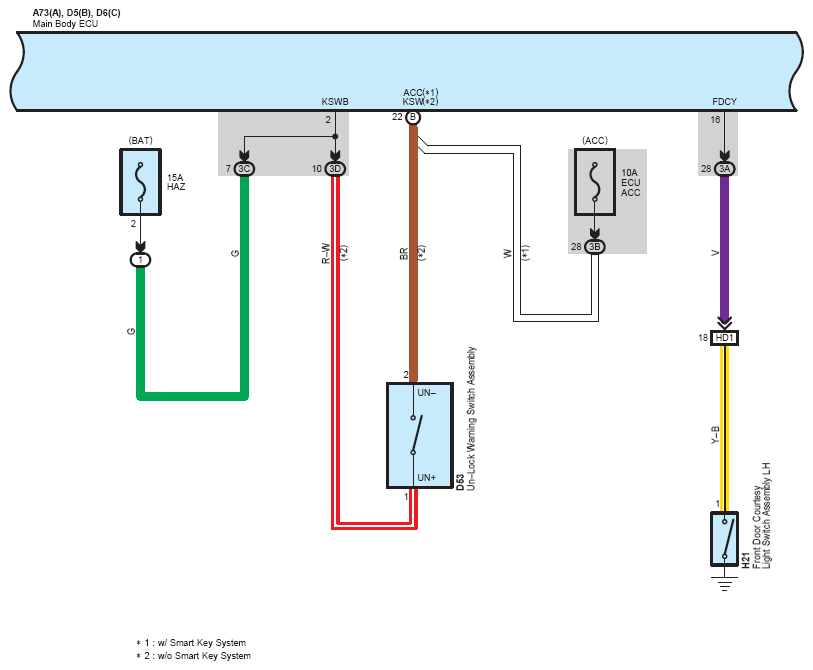

Fig 3: Key Reminder, Light Reminder (3 Of 4)
G12192033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

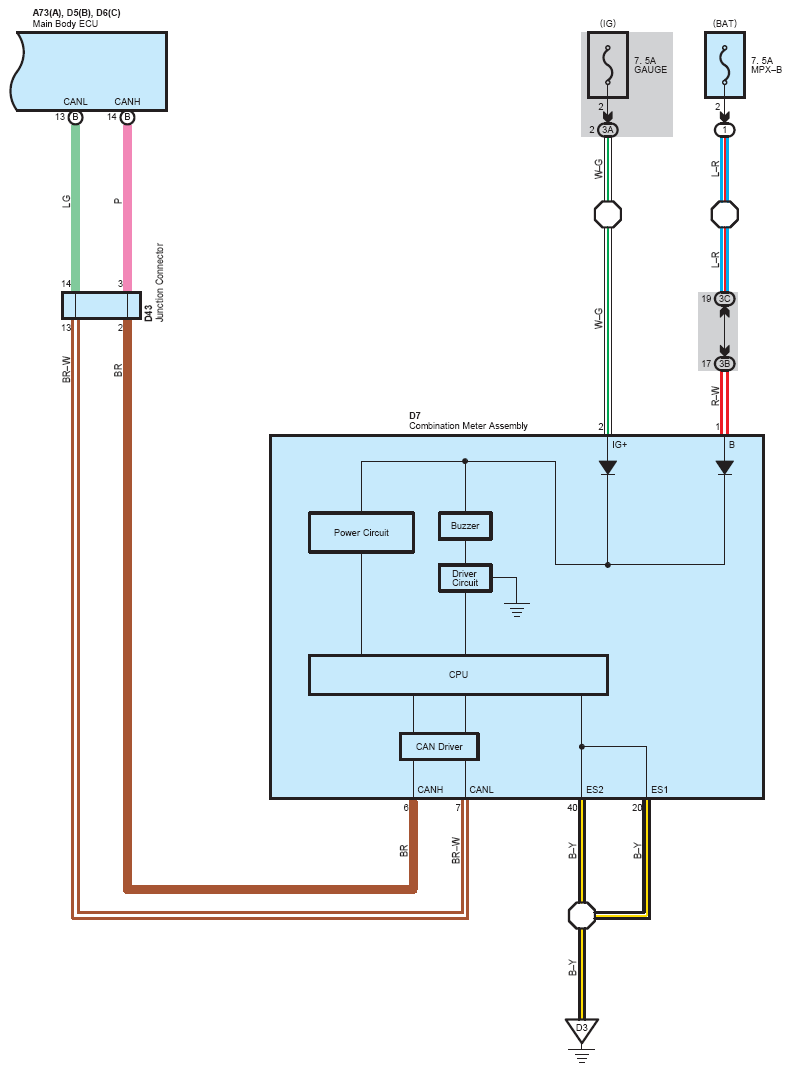

Fig 4: Key Reminder, Light Reminder (4 Of 4)
G12192034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
