System Diagrams

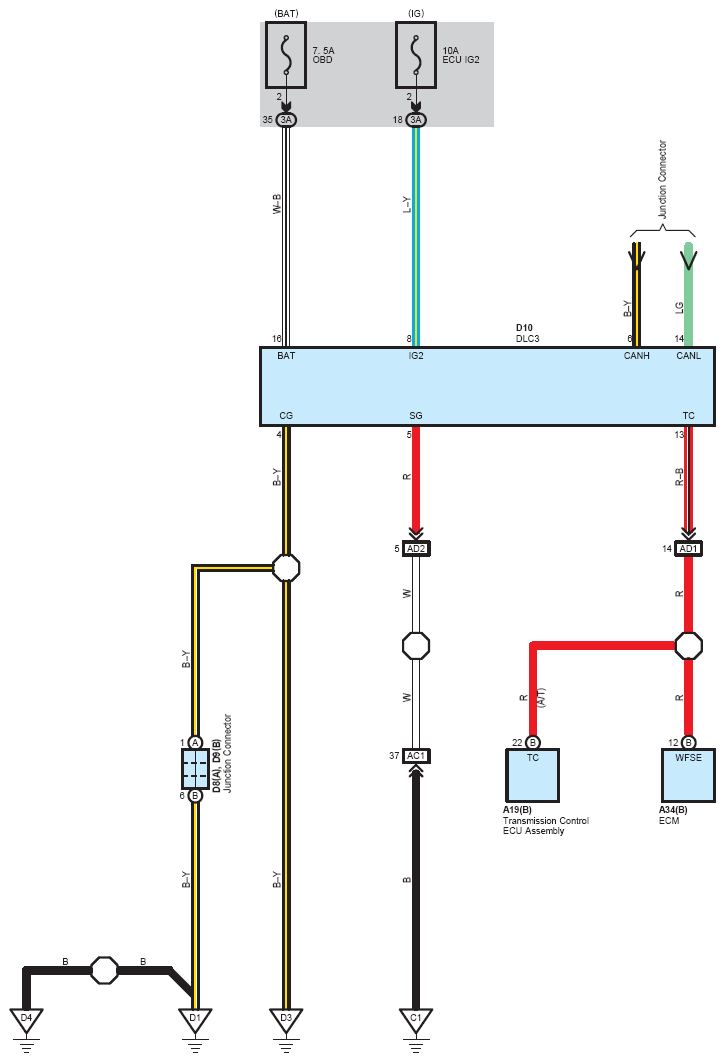

Fig 1: Data Link Connector 3

G12191885

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
