Components [06/2016 - 03/2017]

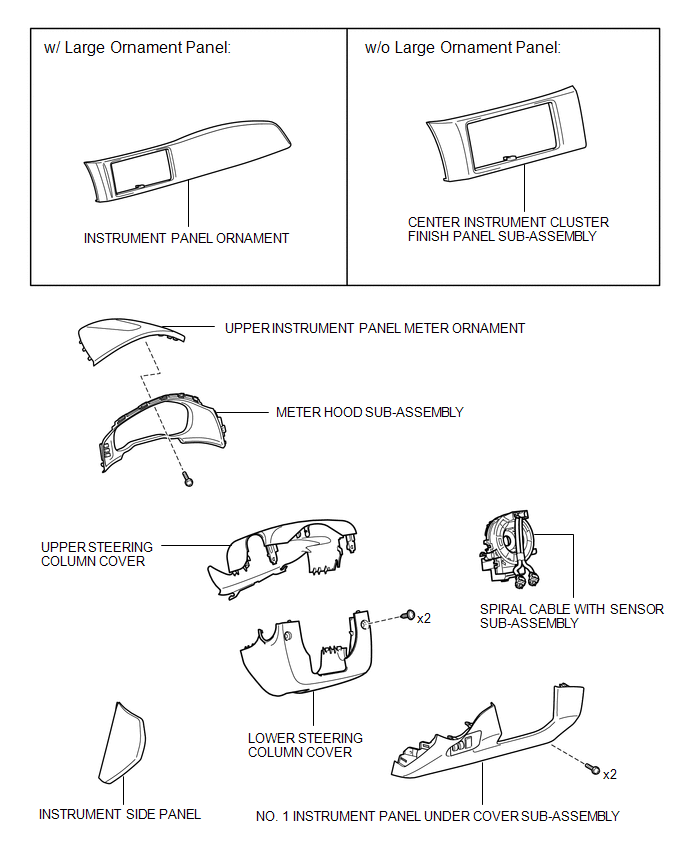

Fig 1: Steering Angle Sensor Replacement Components (1 Of 2)
GTY716503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Steering Angle Sensor Replacement Components (2 Of 2)
GTY471825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
