System Diagrams

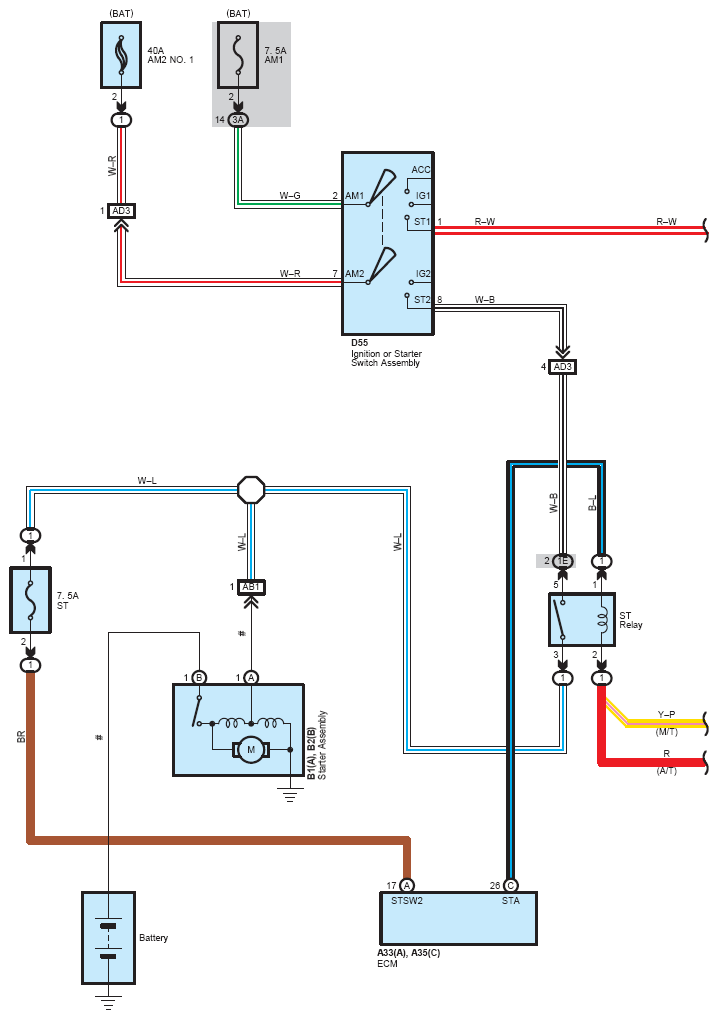

Fig 1: Starting (W/O Smart Key System) (1 Of 2)
G12192097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Starting (W/O Smart Key System) (2 Of 2)
G12192098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
