Removal [03/2017 - ]: Procedure

  1. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 12

  2. REMOVE INSTRUMENT PANEL ORNAMENT

    Refer to PROCEDURE - Step 4

  3. REMOVE METER HOOD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13

  4. REMOVE UPPER INSTRUMENT PANEL METER ORNAMENT

    Refer to PROCEDURE - Step 14

  5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  6. REMOVE STEERING COLUMN COVER SUPPORT (w/ Smart Key System)
    GTY389459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 4 claws and remove the steering column cover support.
  7. REMOVE LOWER STEERING COLUMN COVER

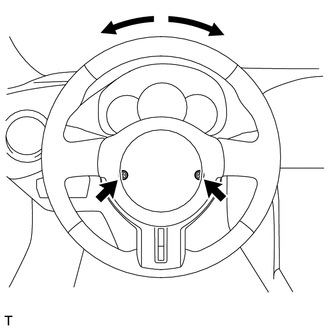

    1. While turning the steering wheel assembly to the right and left, remove the 2 screws.
      GTY471659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

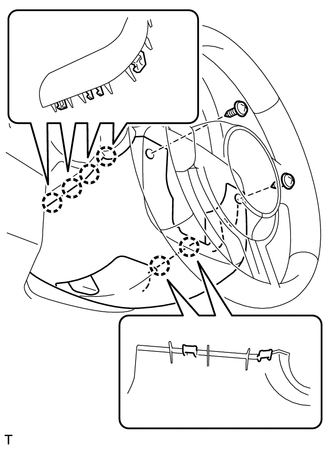

    2. Disengage the 6 claws and remove the lower steering column cover.
      GTY471934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE UPPER STEERING COLUMN COVER

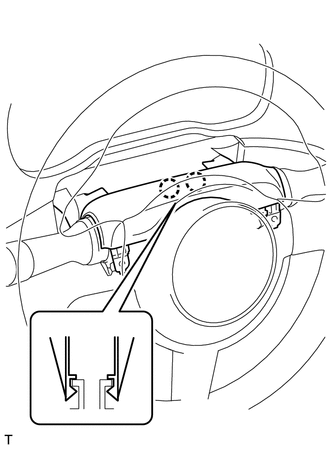

    1. Disengage the 2 claws and remove the upper steering column cover.
      GTY471745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY
    GTY471562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

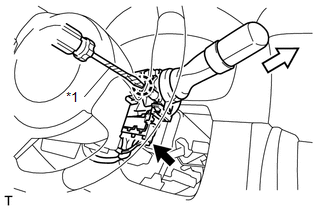

    1. Disconnect each connector.
    2. Using a screwdriver, disengage the claw and remove the windshield wiper switch assembly, as shown in the illustration.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
      NOTE:

      Do not press the claw too hard, as it may get damaged.

      HINT:

      Tape the screwdriver tip before use.
