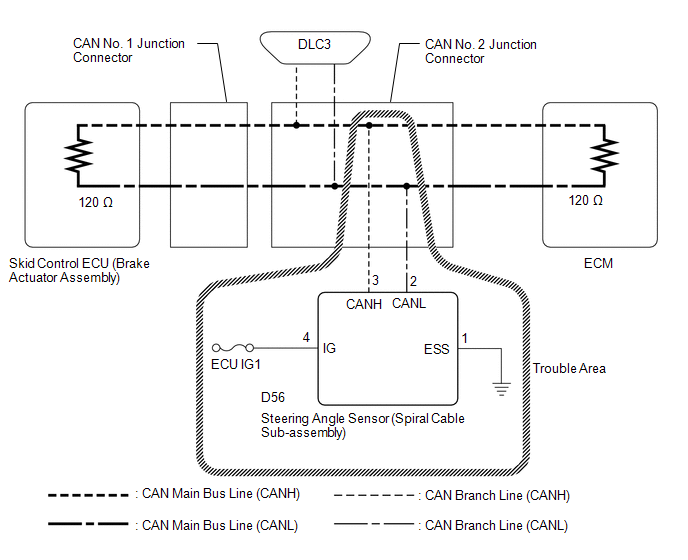

Steering Angle Sensor Communication Stop Mode [06/2016 - ]: Wiring Diagram

GTY711595

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
