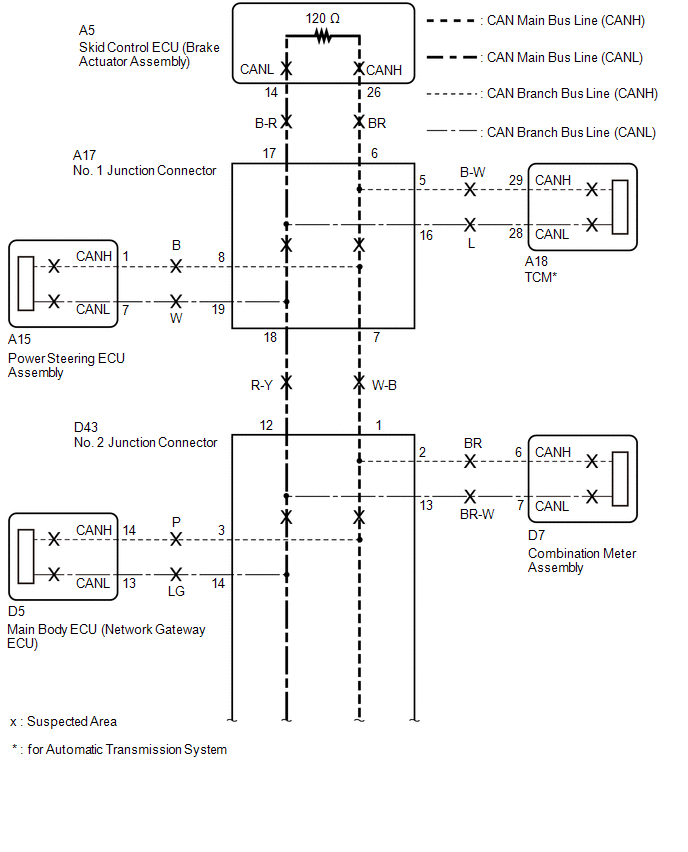

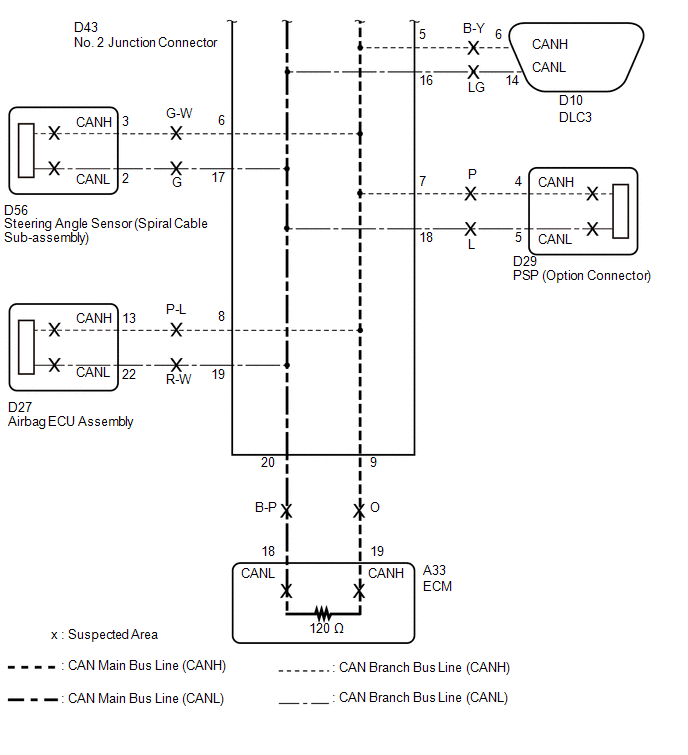

Check CAN Bus Lines for Short Circuit [06/2016 - 03/2017]: Wiring Diagram

GTY702449

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY707583

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
