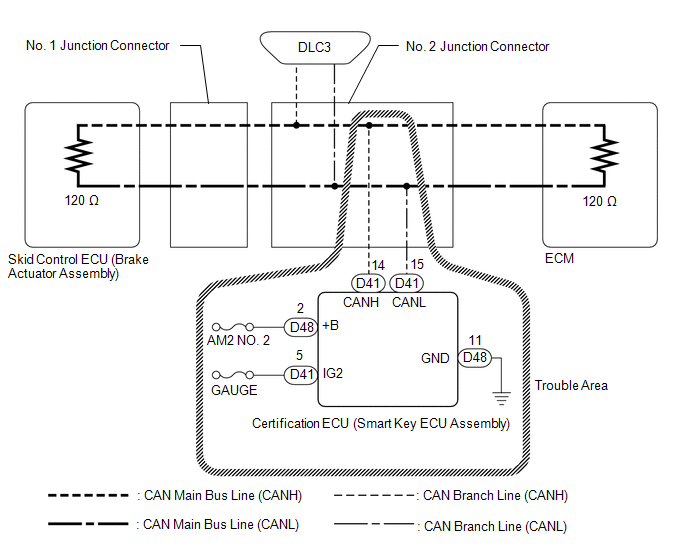

Certification ECU Communication Stop Mode [03/2017 - ]: Wiring Diagram

GTY722096

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
