Replacement [03/2017 - 12/2017]: Procedure
- REMOVE TRANSMITTER BATTERY NOTE:
Take extra care when handling these precision electronic components.
- Push the release hook knob and extract the mechanical key.TEXT IN ILLUSTRATION
*1 Release Hook Knob *2 Mechanical Key - Insert a precision screwdriver with its tip wrapped in protective tape and pry apart the transmitter housing cover.TEXT IN ILLUSTRATION

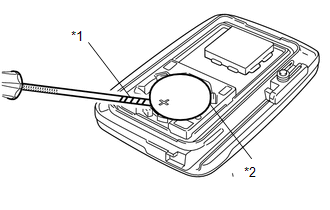

*1 Protective Tape *2 Transmitter Housing Cover - Insert a precision screwdriver with its tip wrapped in protective tape into the gap and gently remove the transmitter battery (lithium battery: CR1632).TEXT IN ILLUSTRATION
*1 Protective Tape *2 Transmitter Battery NOTE:- When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the electrical key transmitter from being damaged.
- Do not push the terminals with your finger.
- Do not forcibly pry up the transmitter battery. The terminals may be damaged.
- Do not touch the transmitter battery with wet hands. Water may cause rust.
- Do not touch or move any components inside the transmitter. It may interfere with proper operation.
- Push the release hook knob and extract the mechanical key.
- INSTALL TRANSMITTER BATTERY
- Install a new transmitter battery (lithium battery: CR1632) with the positive (+) side facing upward, as shown in the illustration.TEXT IN ILLUSTRATION
*1 Transmitter Battery NOTE:- When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the electrical key transmitter from being damaged.
- Do not bend the transmitter battery electrode during insertion.
- Keep the transmitter cover interior free of dust and oil.
- Install the transmitter housing cover by pressing down on it as shown in the illustration.TEXT IN ILLUSTRATION
*1 Transmitter Housing Cover - Insert the mechanical key into the transmitter.TEXT IN ILLUSTRATION
*1 Mechanical Key - Press one of the transmitter switches and check that the LED illuminates.
OK
Transmitter LED illuminates when switch is pressed.
- Install a new transmitter battery (lithium battery: CR1632) with the positive (+) side facing upward, as shown in the illustration.
