System Diagrams

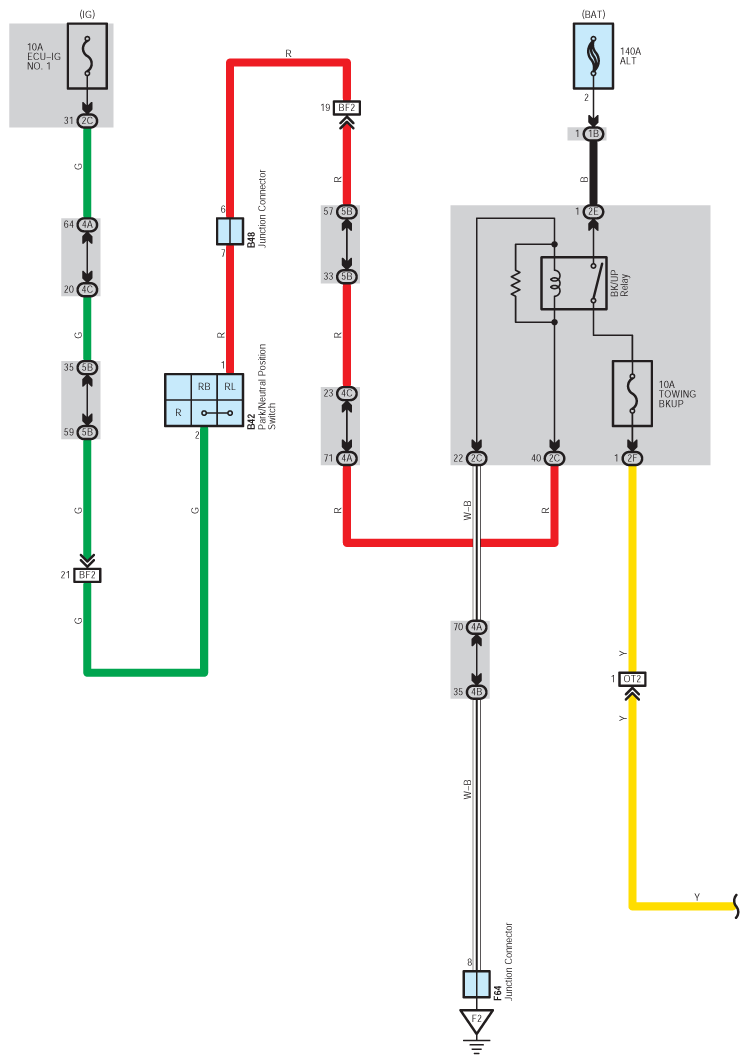

Fig 1: Trailer Towing (1 Of 7)
G12198723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

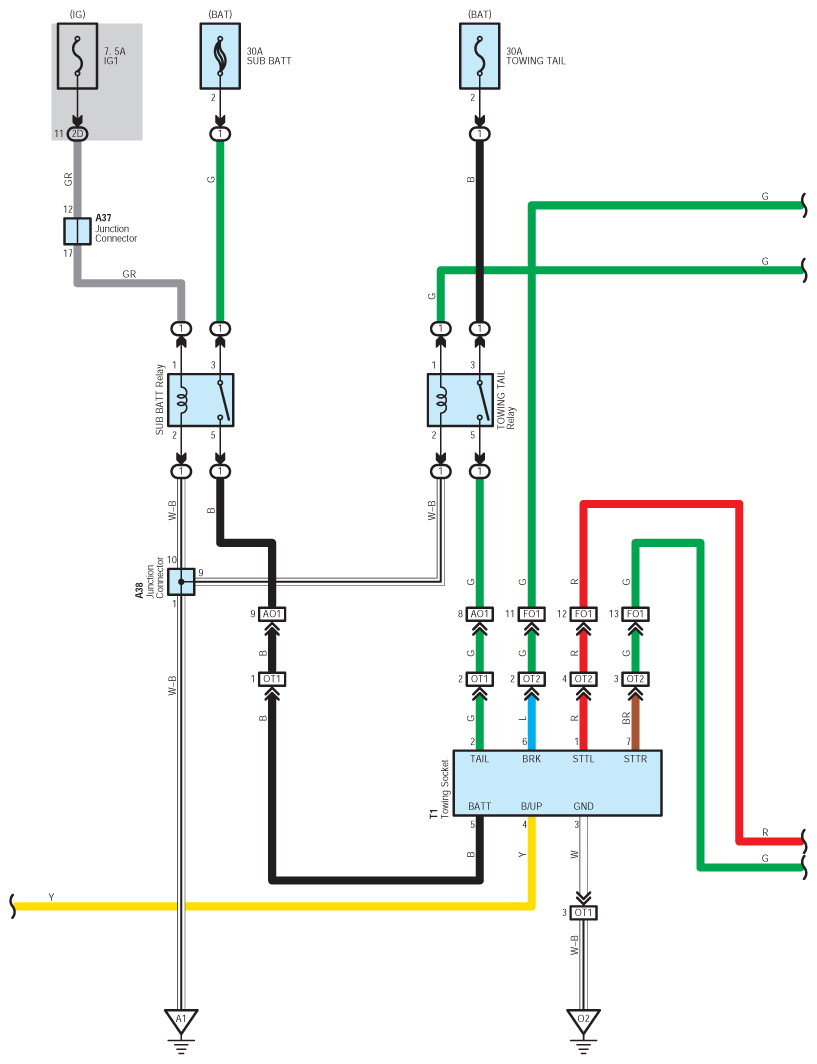

Fig 2: Trailer Towing (2 Of 7)
G12198724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

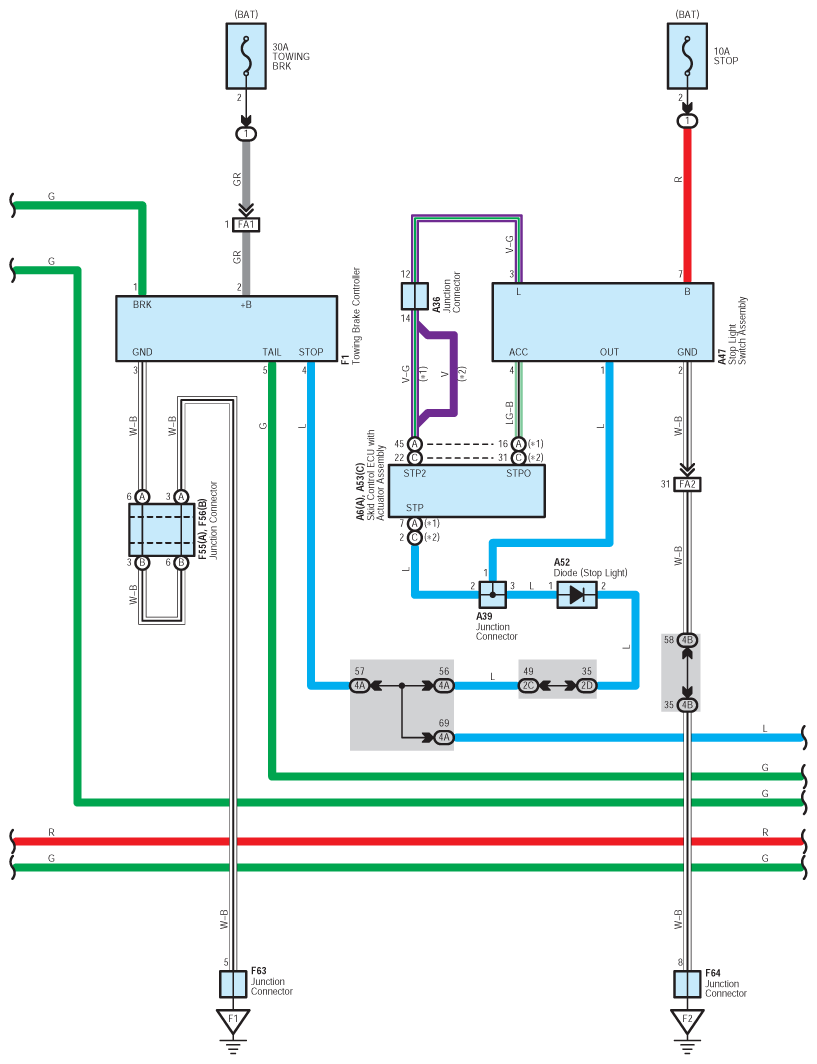

Fig 3: Trailer Towing (3 Of 7)
G12198725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Trailer Towing (4 Of 7)
G12198726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

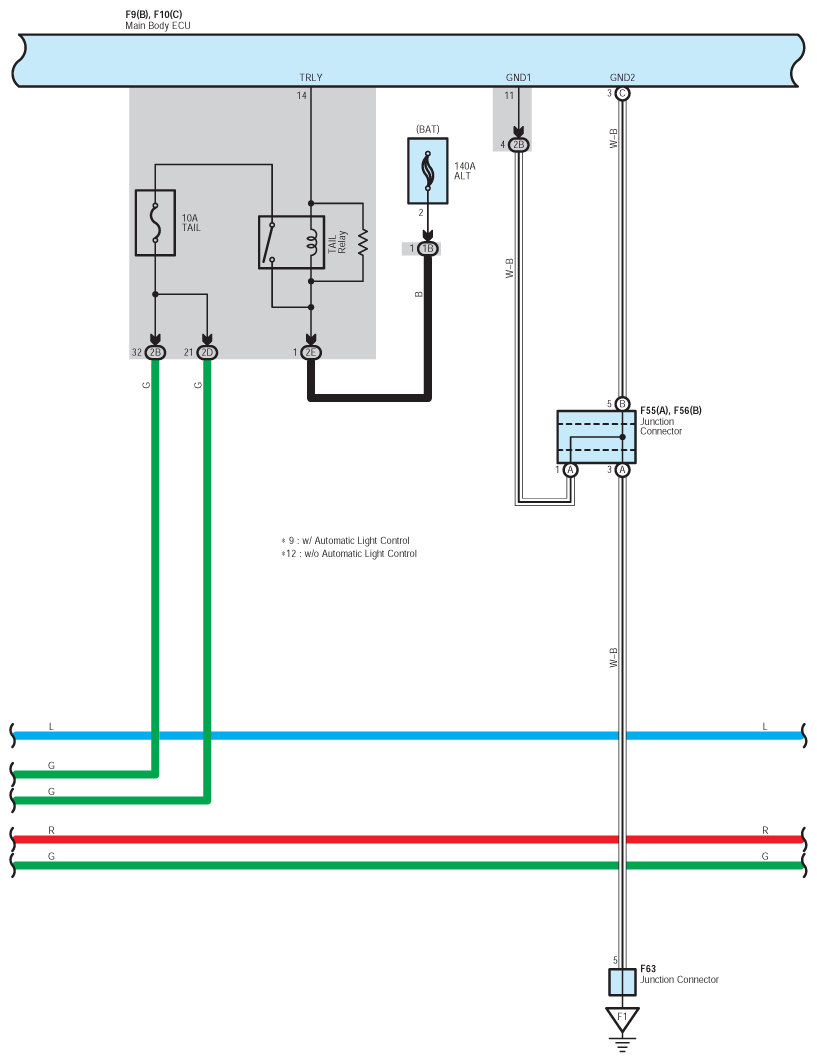

Fig 5: Trailer Towing (5 Of 7)
G12198727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

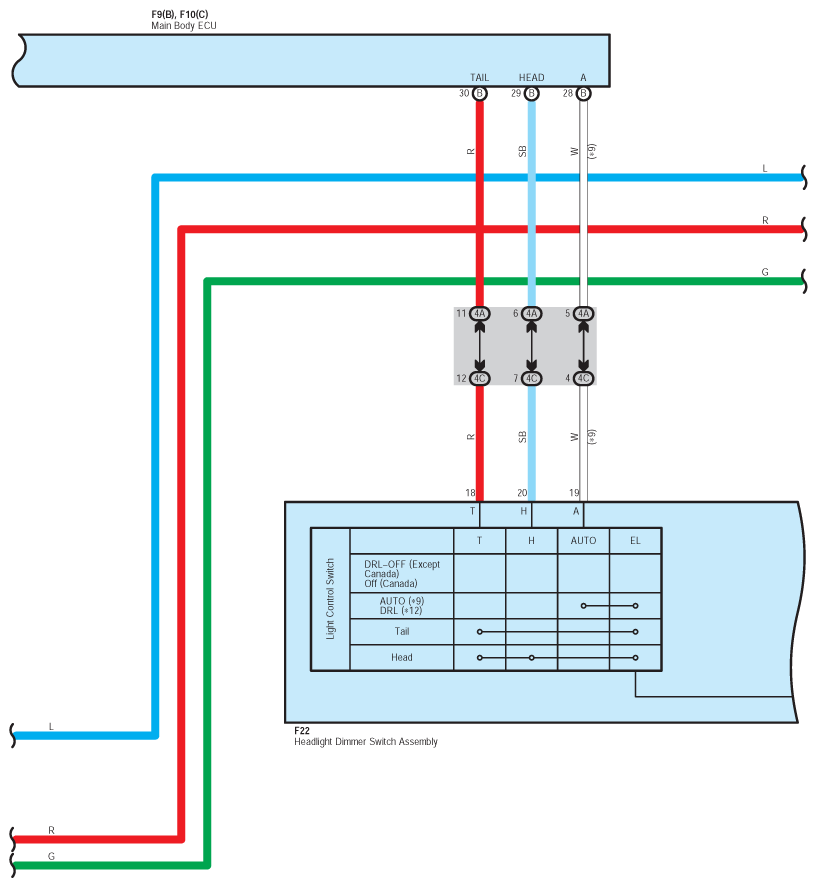

Fig 6: Trailer Towing (6 Of 7)
G12198728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

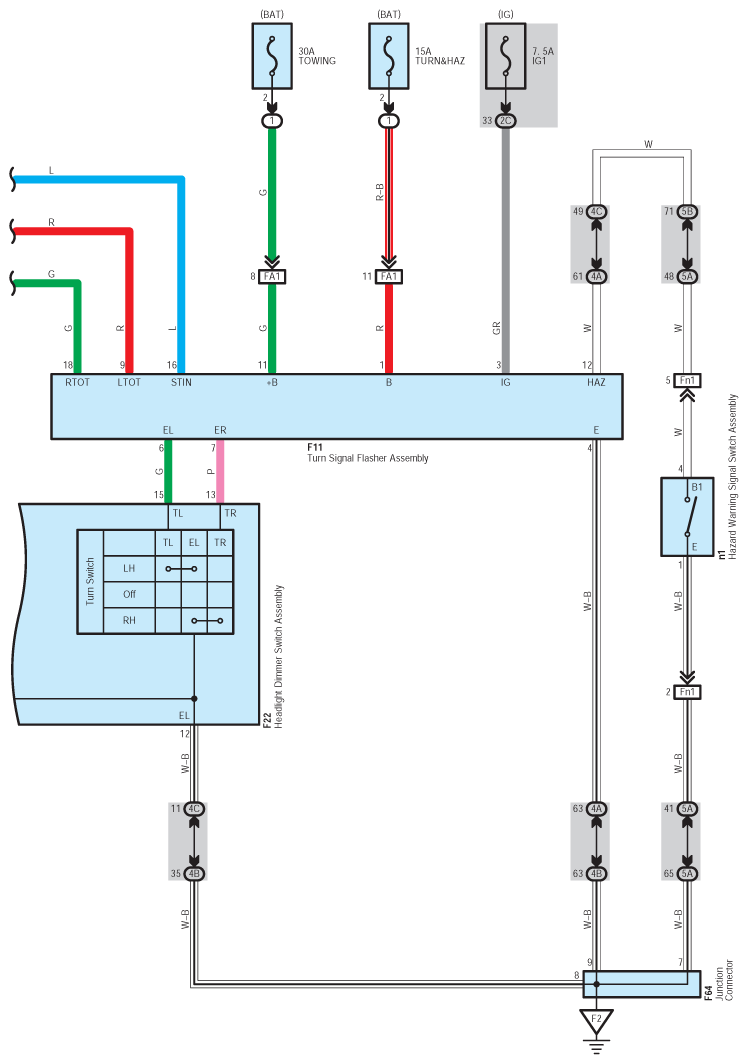

Fig 7: Trailer Towing (7 Of 7)
G12198729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
