System Diagrams

Fig 1: Theft Deterrent (1 Of 11)

G12198675

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

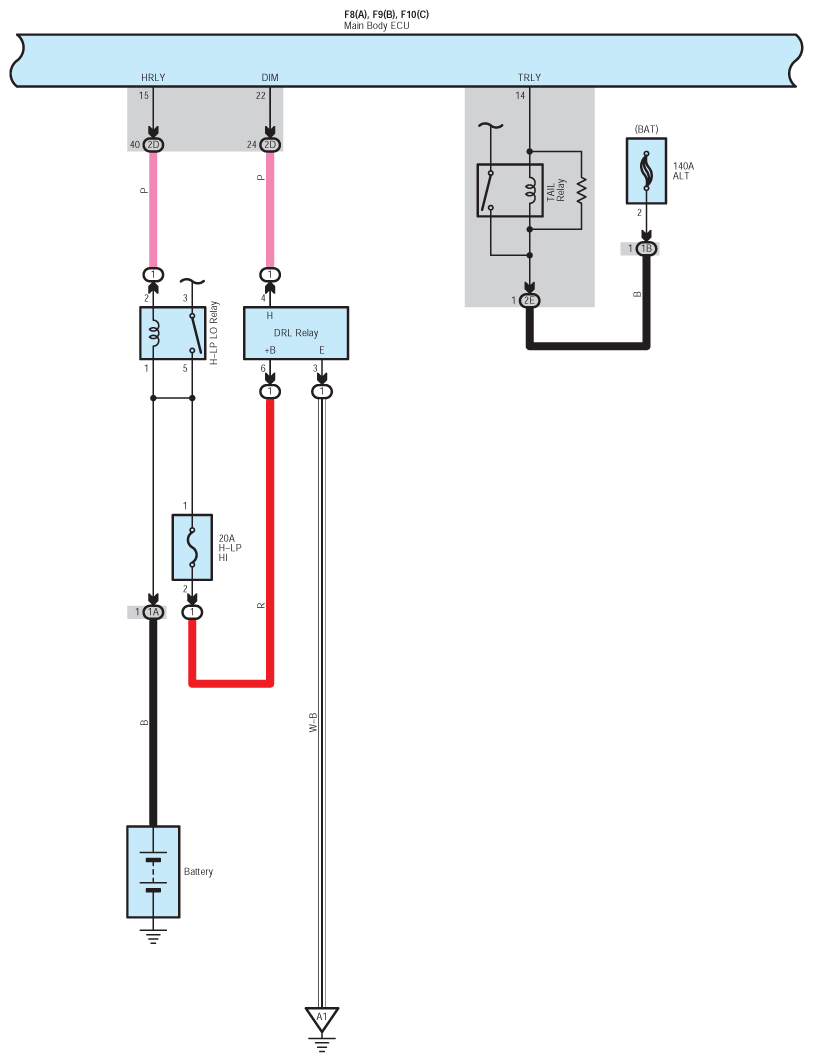

Fig 2: Theft Deterrent (2 Of 11)

G12198676

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

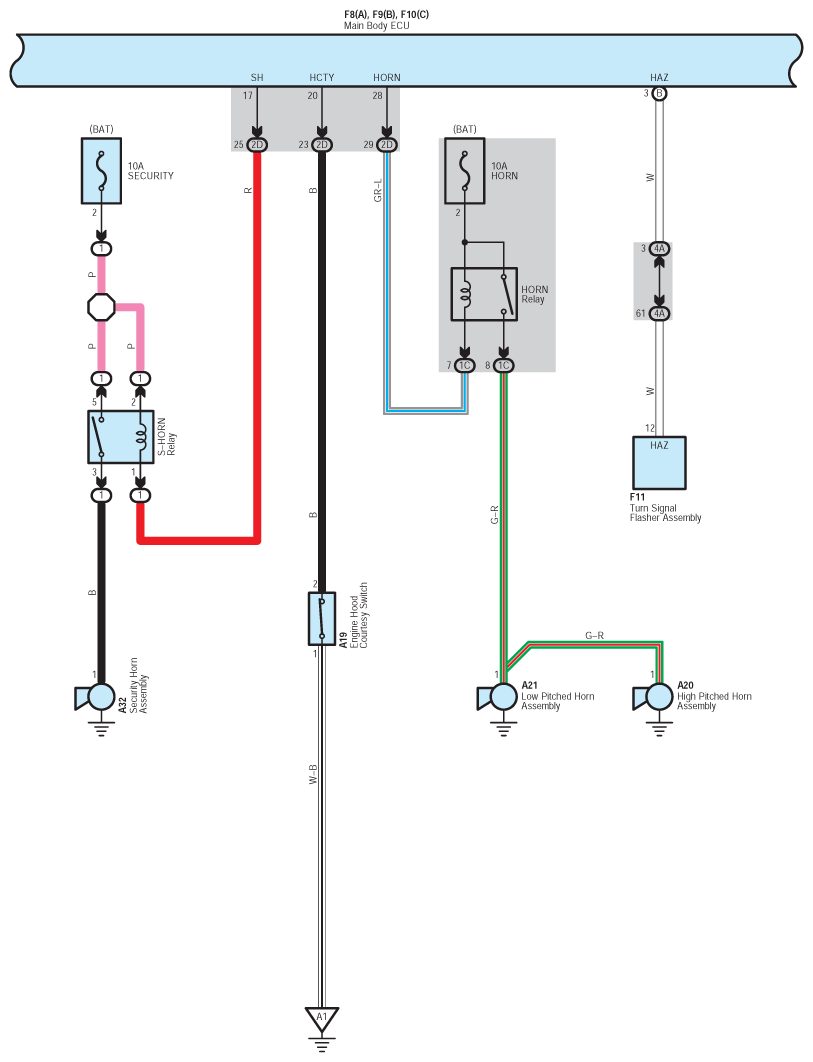

Fig 3: Theft Deterrent (3 Of 11)

G12198677

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

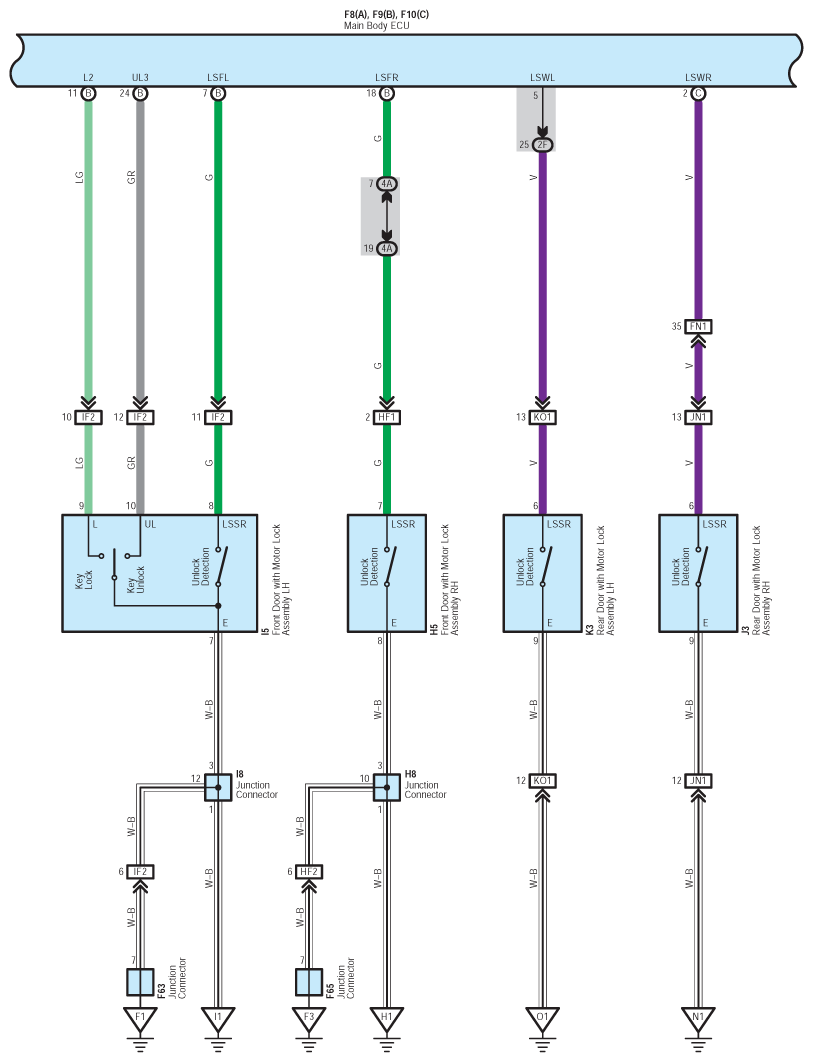

Fig 4: Theft Deterrent (4 Of 11)

G12198678

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

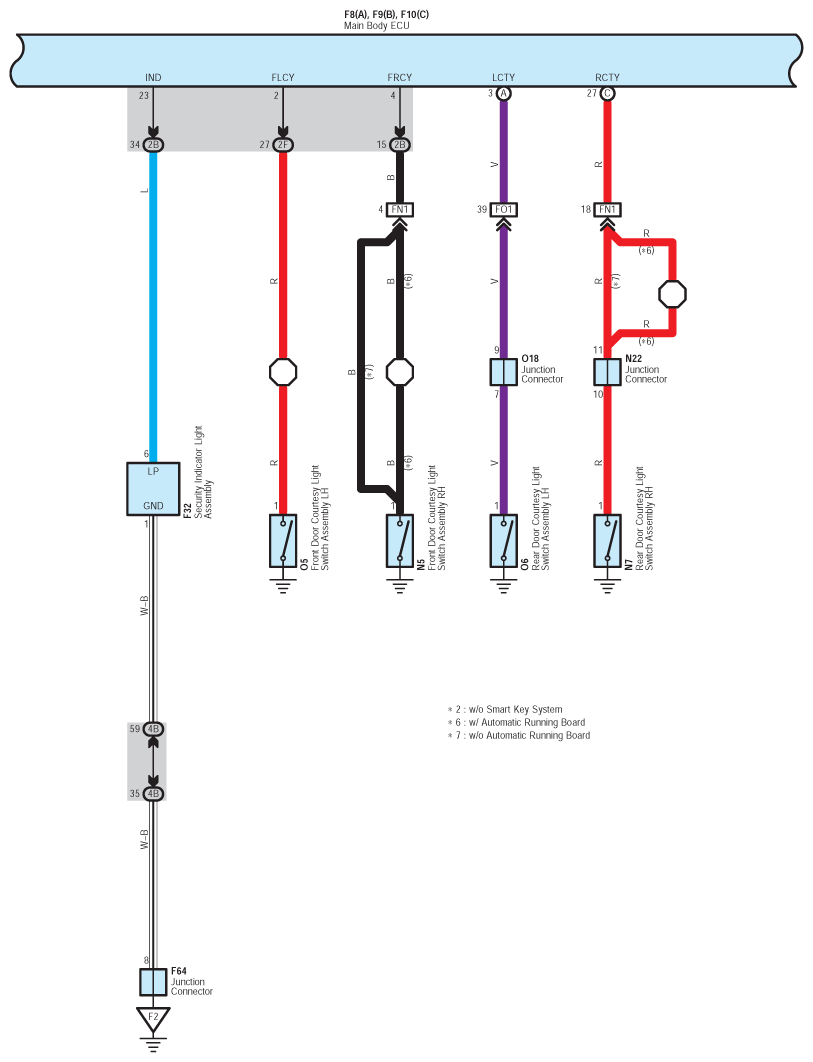

Fig 5: Theft Deterrent (5 Of 11)

G12198679

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

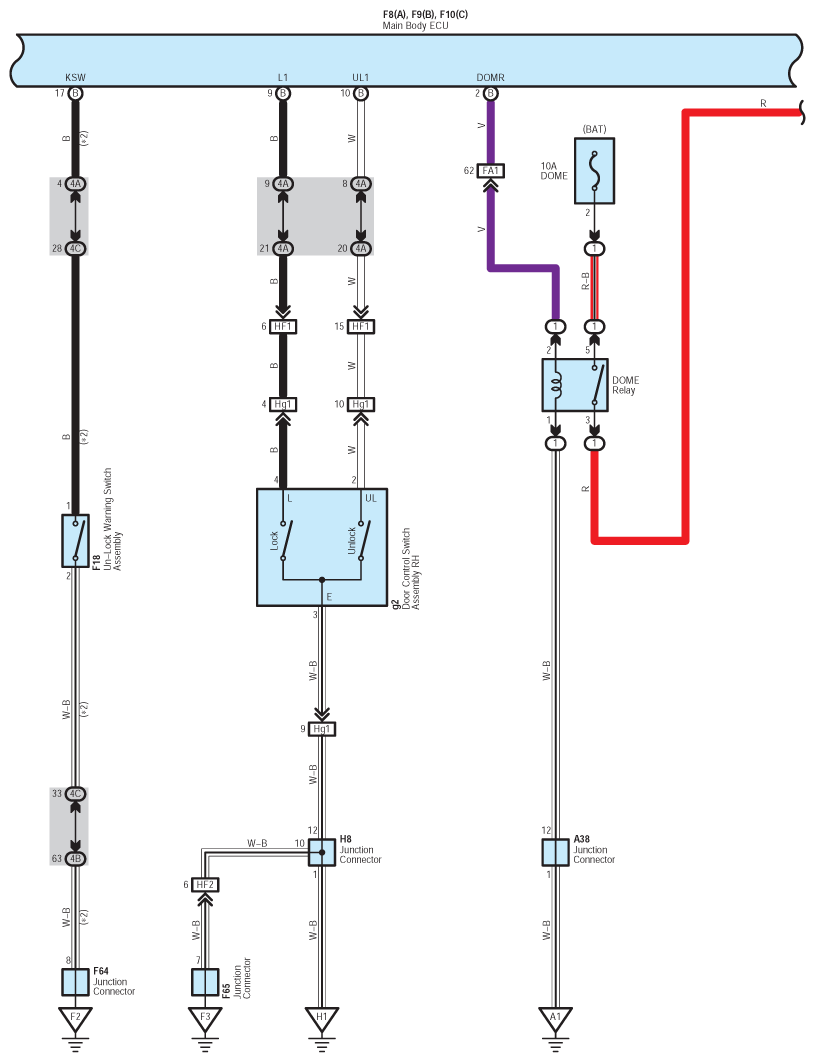

Fig 6: Theft Deterrent (6 Of 11)

G12198680

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

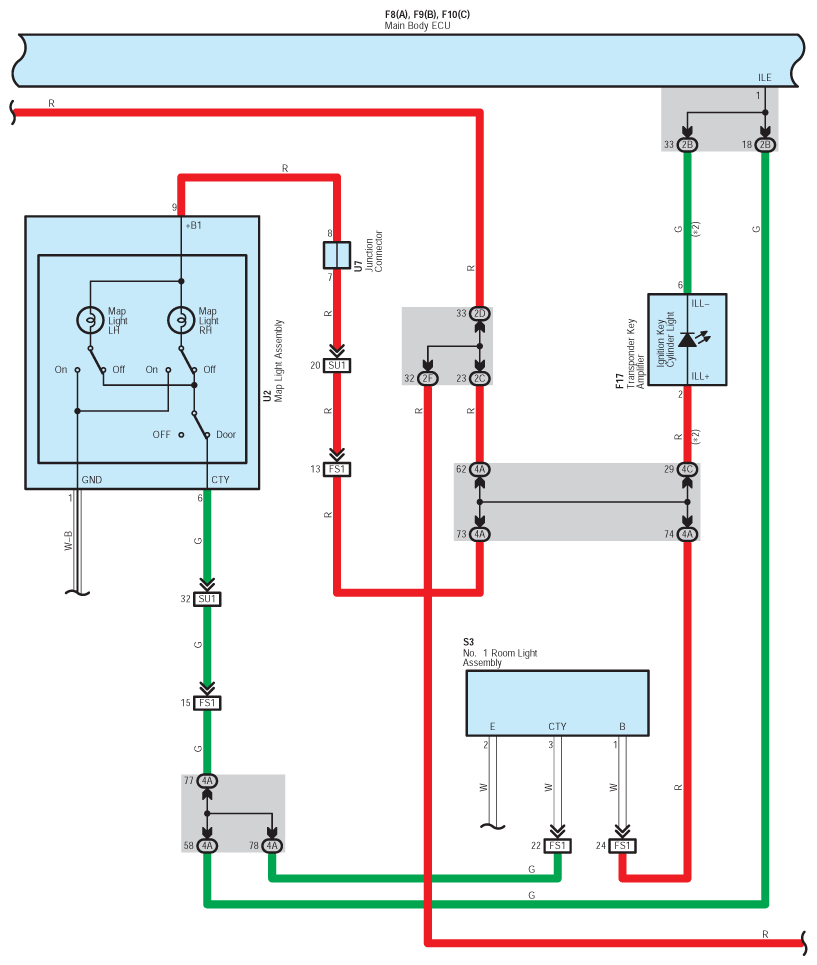

Fig 7: Theft Deterrent (7 Of 11)

G12198681

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

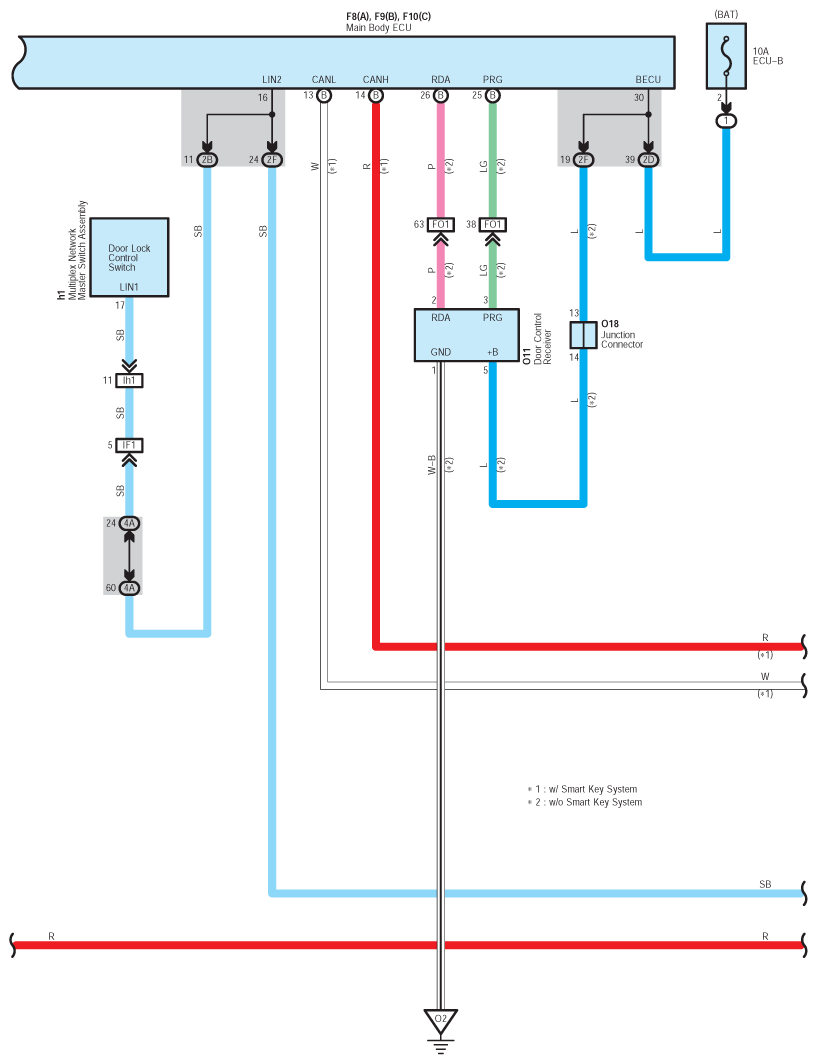

Fig 8: Theft Deterrent (8 Of 11)

G12198682

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

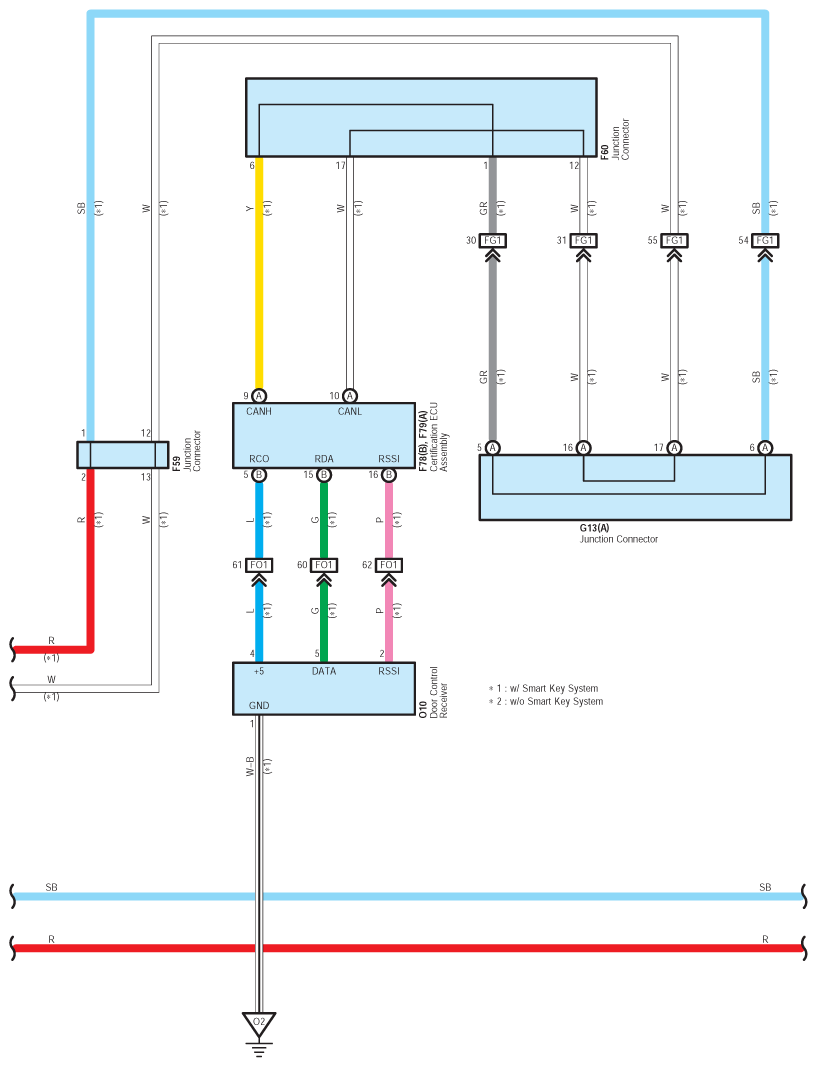

Fig 9: Theft Deterrent (9 Of 11)

G12198683

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

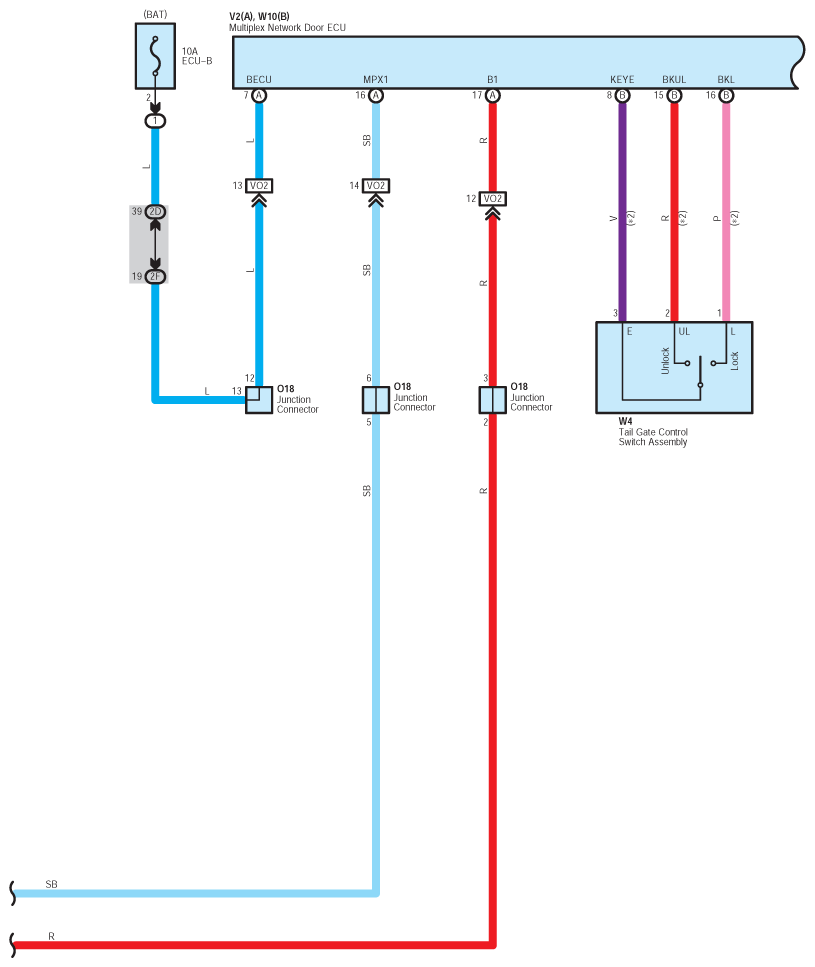

Fig 10: Theft Deterrent (10 Of 11)

G12198684

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

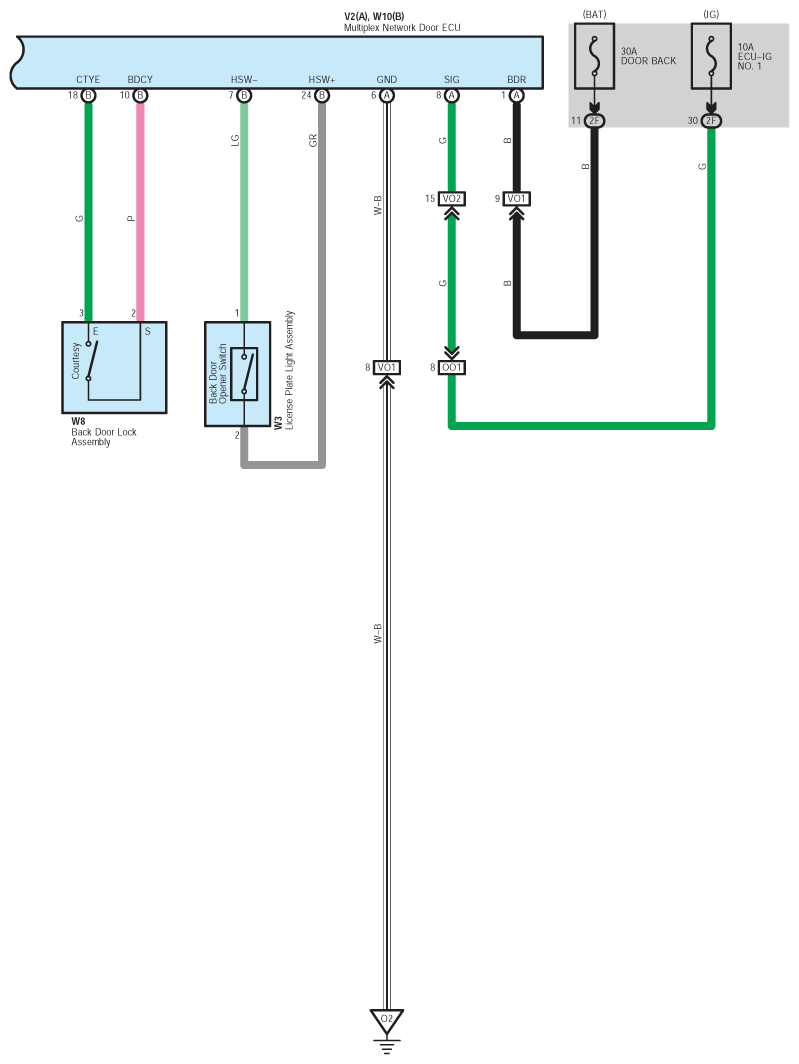

Fig 11: Theft Deterrent (11 Of 11)

G12198685

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
