Stop Light: Connectors

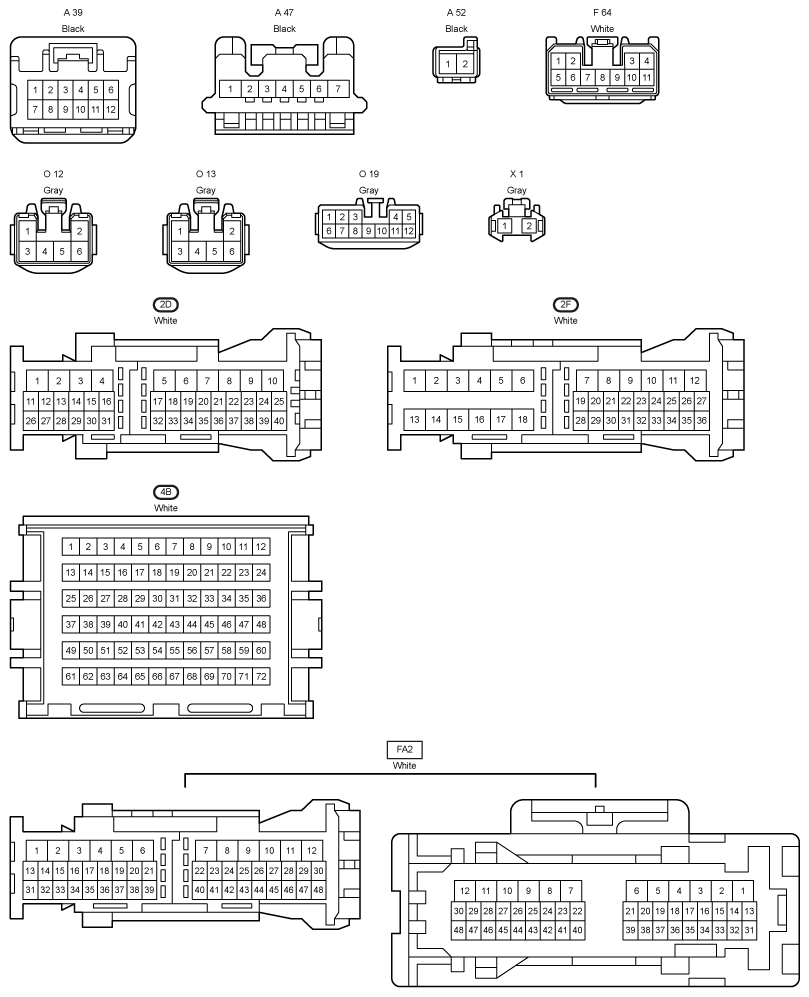

Fig 1: Connectors (1 Of 2)
G12198644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Connectors (2 Of 2)
G12198645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
