System Diagrams

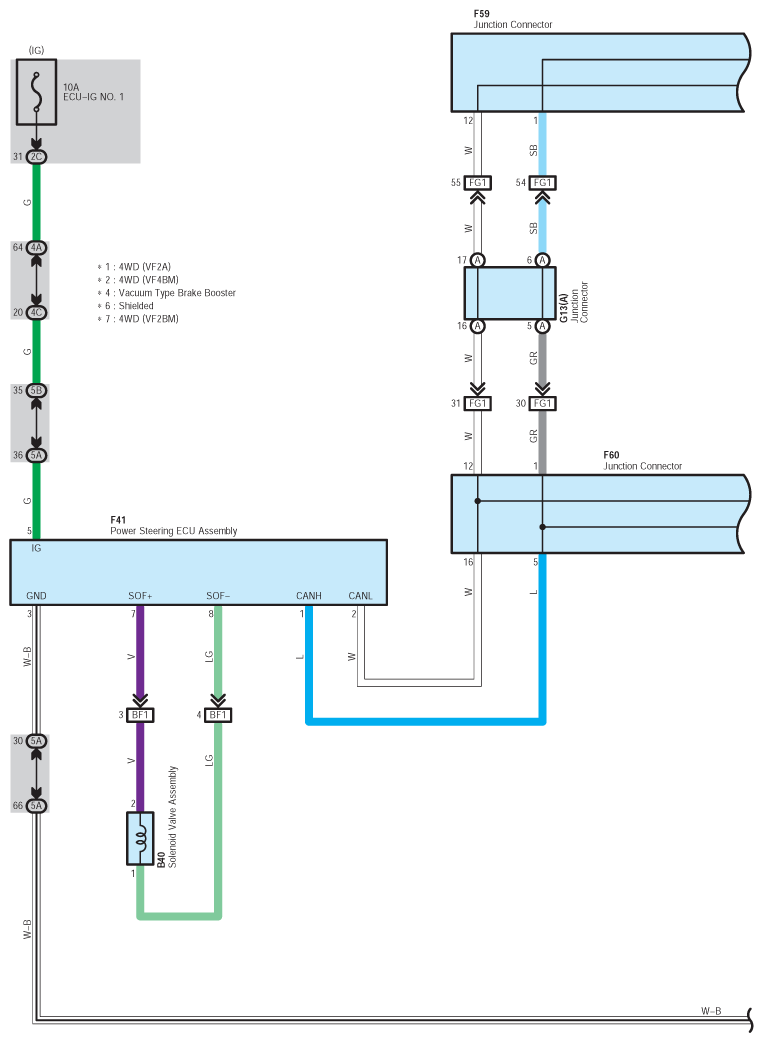

Fig 1: Power Steering (1 Of 5)
G12198533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

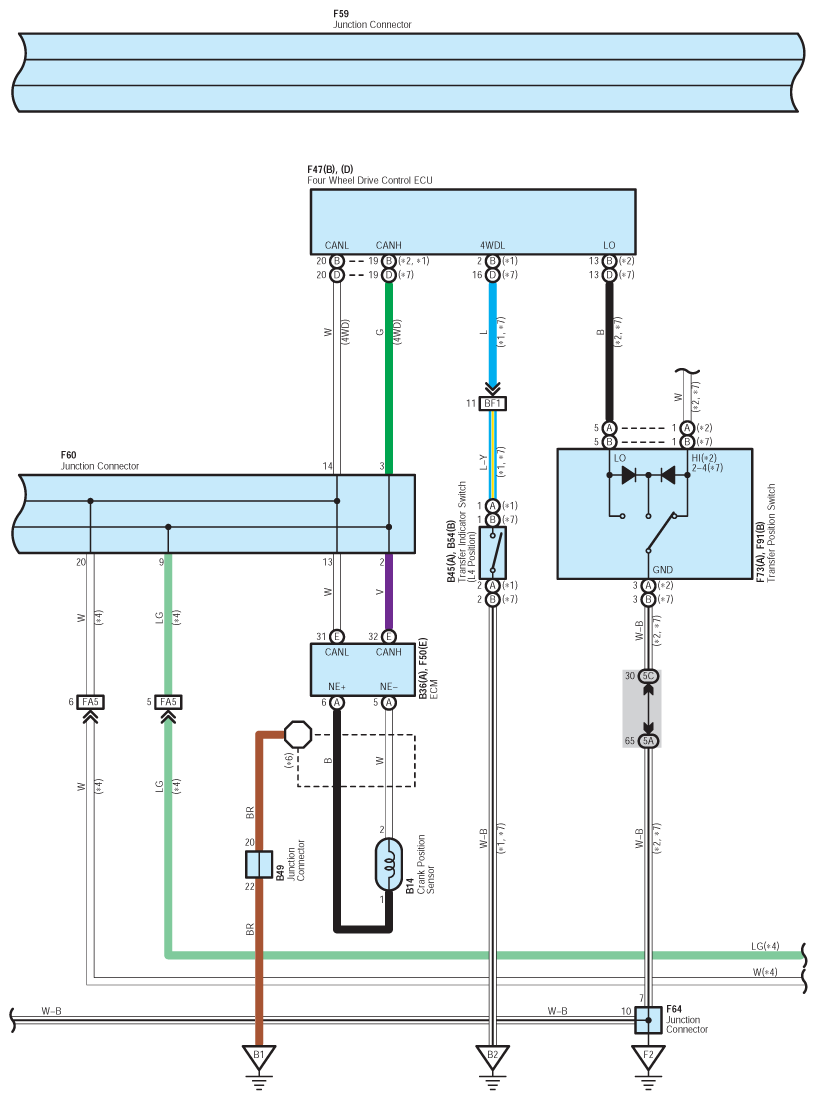

Fig 2: Power Steering (2 Of 5)
G12198534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

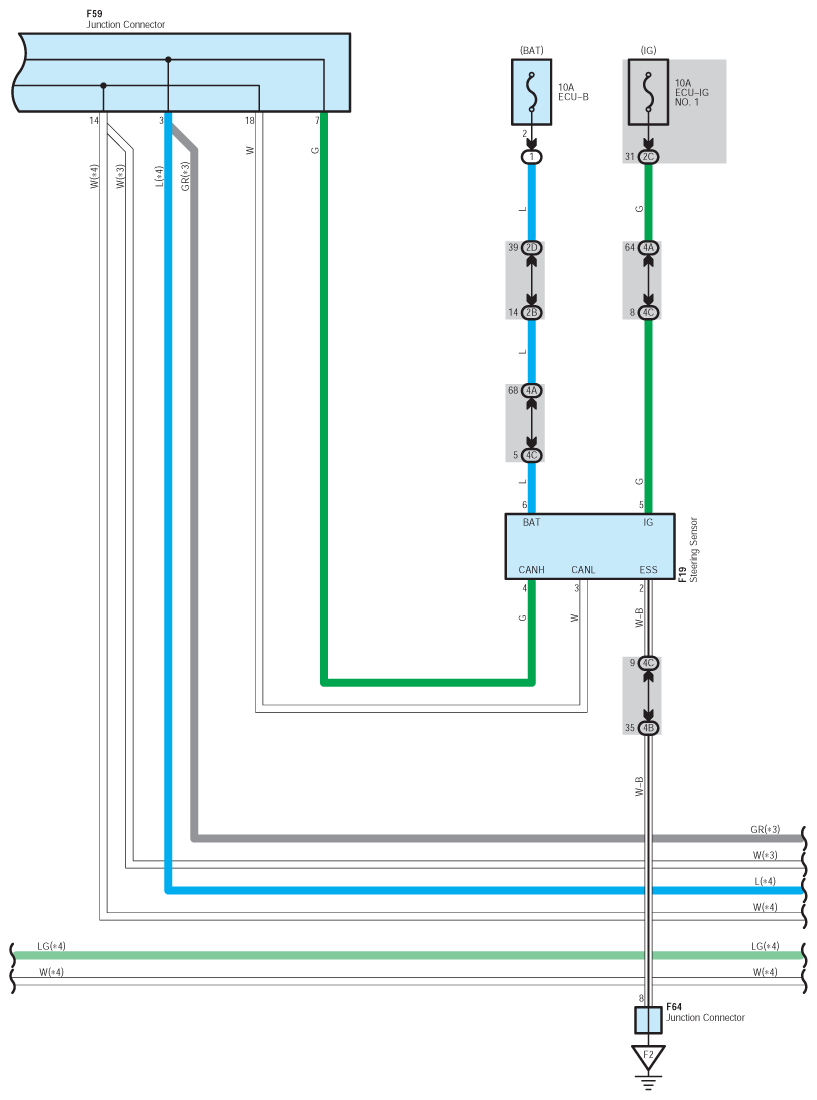

Fig 3: Power Steering (3 Of 5)
G12198535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

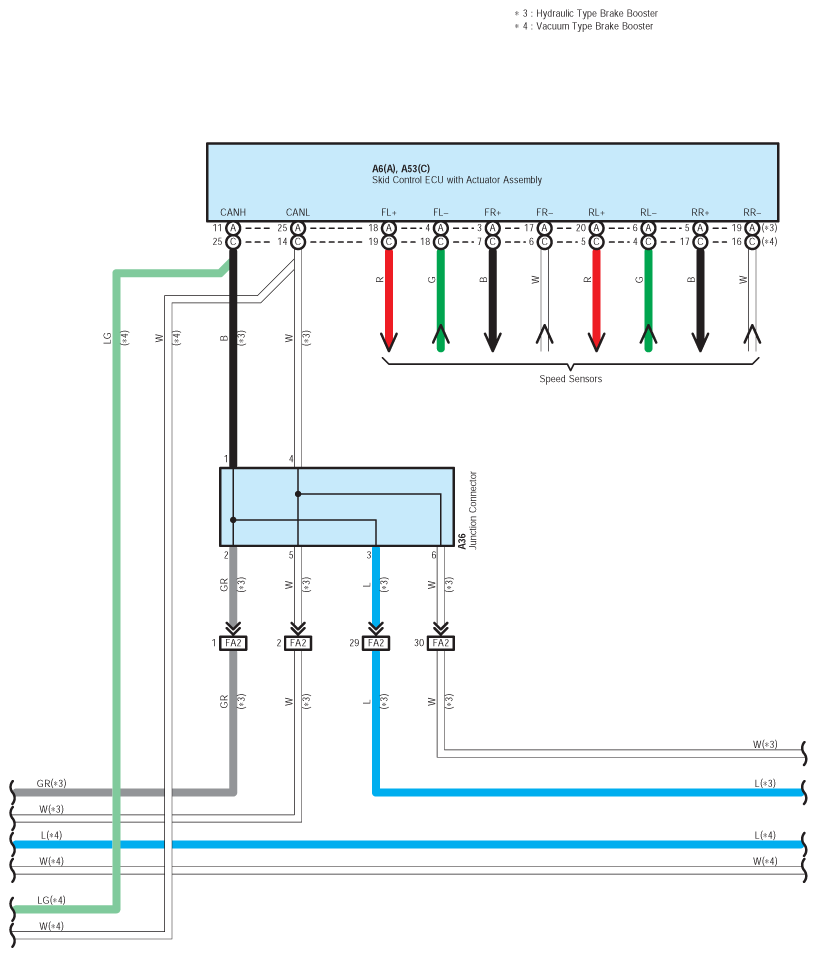

Fig 4: Power Steering (4 Of 5)
G12198536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

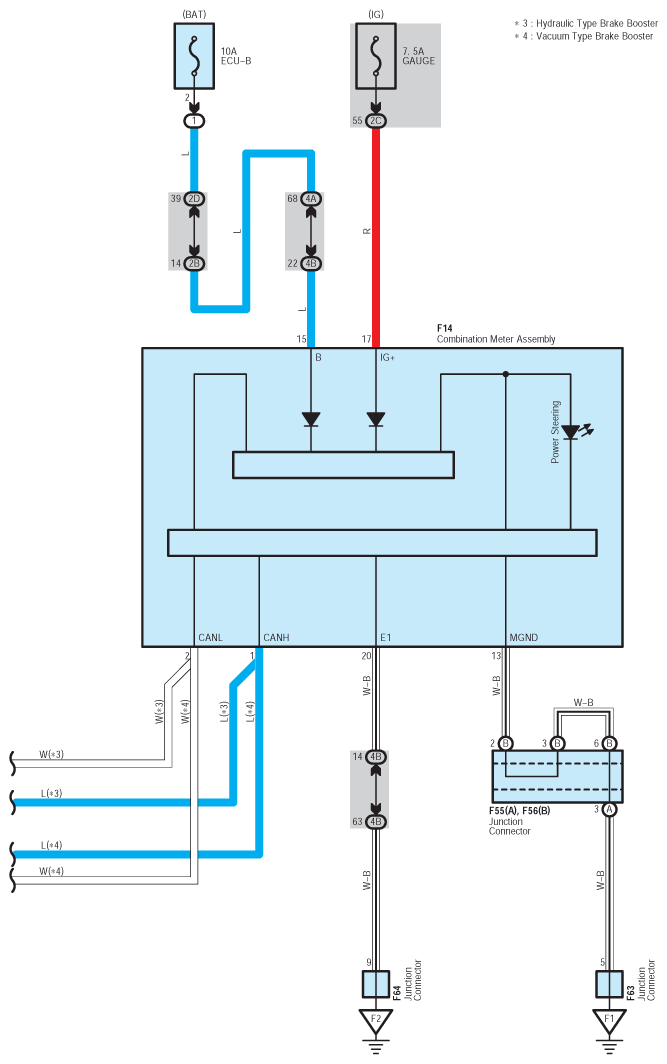

Fig 5: Power Steering (5 Of 5)
G12198537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
