Data Link Connector 3: Connectors

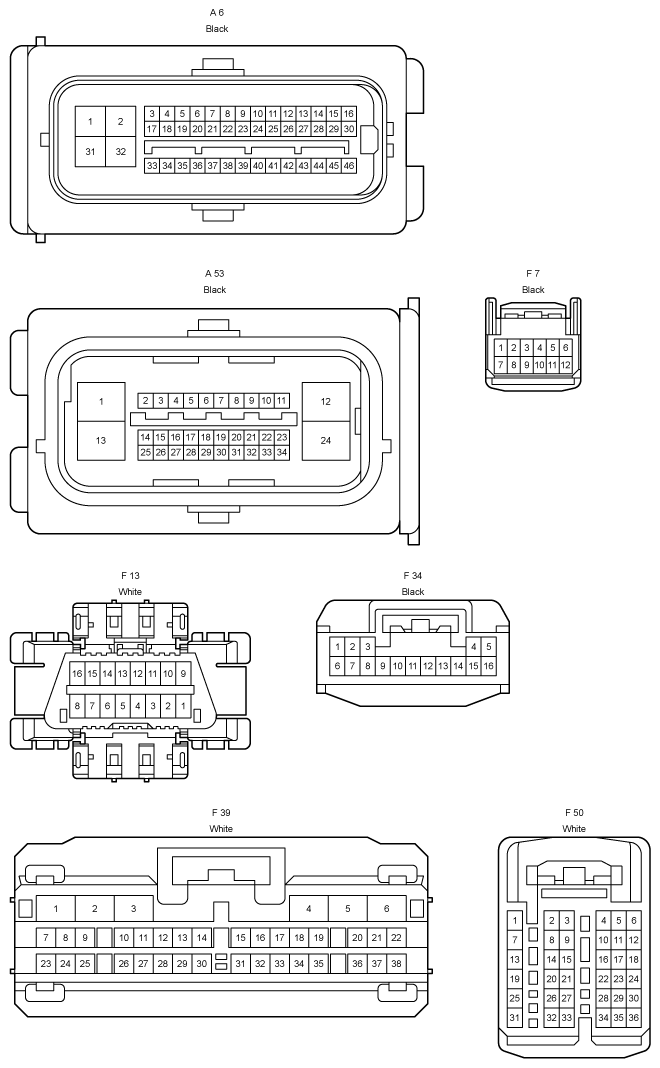

Fig 1: Connectors (1 Of 4)
G12198372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

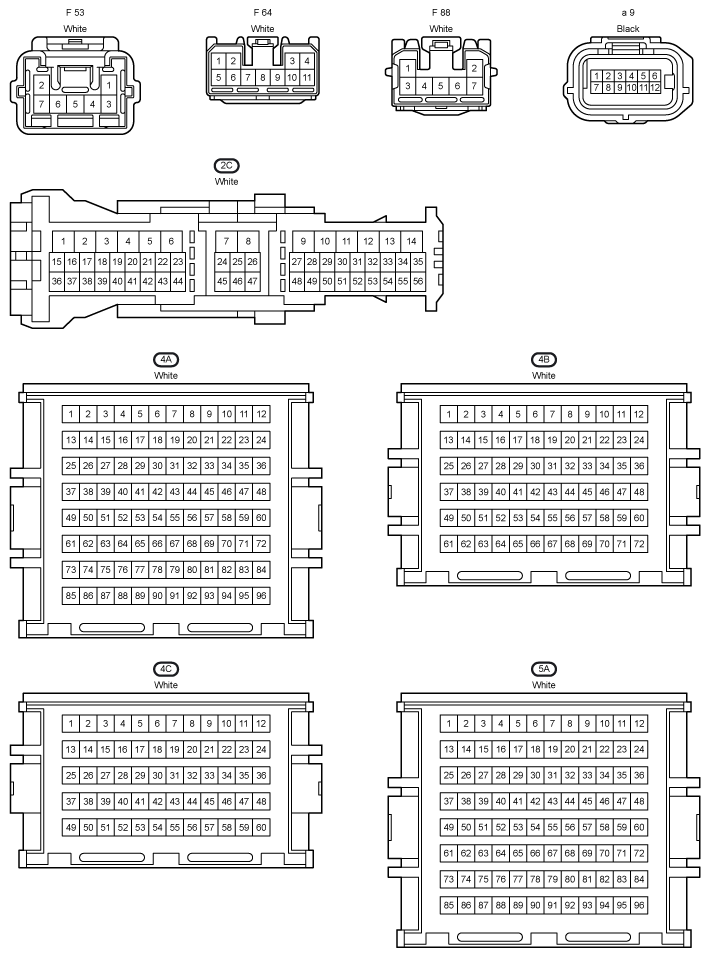

Fig 2: Connectors (2 Of 4)
G12198373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

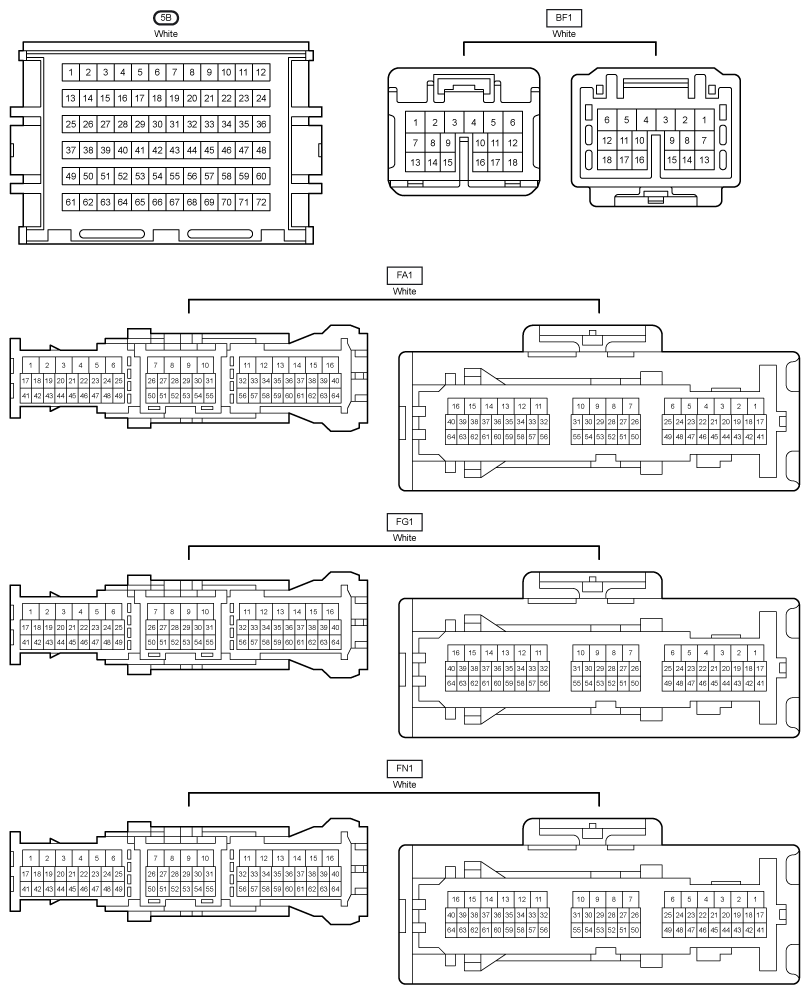

Fig 3: Connectors (3 Of 4)
G12198374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Connectors (4 Of 4)
G12198375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
