Home >> Toyota >> 2016 >> Sienna SE >> Repair and Diagnosis >> Steering >> Steering Column >> Steering Column (Service Information) >> Steering Column Assembly >> Components [12/2015 - ]

Components [12/2015 - ]

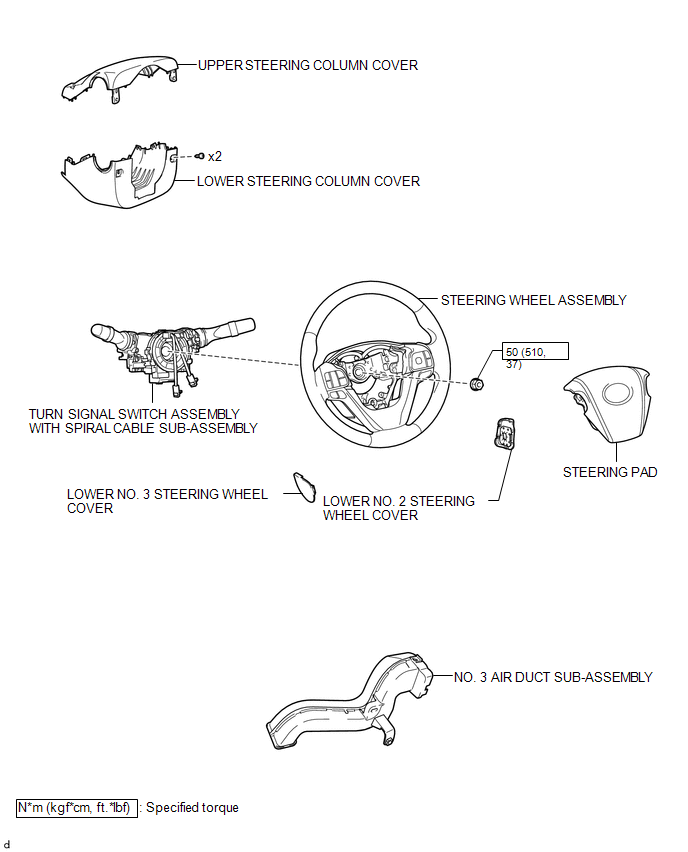

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 Of 3)
GTY474110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

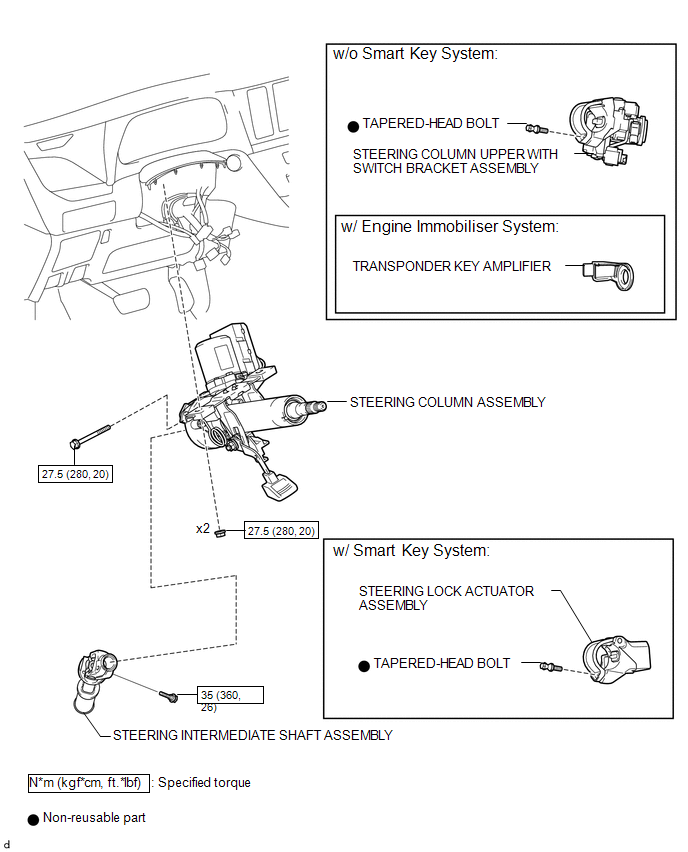

Fig 2: Steering Column Assembly Replacement Components With Torque Specifications (2 Of 3)
GTY735456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Steering Column Assembly Replacement Components With Torque Specifications (W/O Smart Key System) (3 Of 3)
GTY304212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
