Removal [12/2015 - 08/2016]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    (Refer to REMOVAL [12/2015 - 08/2016] )

  2. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 1)

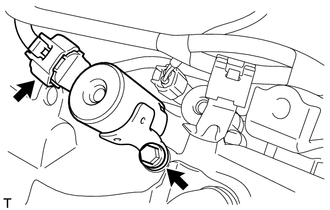

    1. Disconnect the oil control valve connector.
      GTY301071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.
  3. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 2)

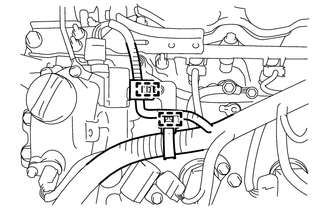

    1. Disengage the 2 clamps.
      GTY301066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

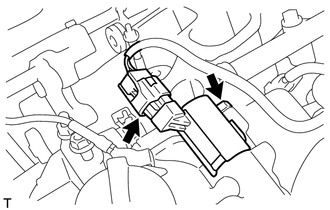

    2. Disconnect the oil control valve connector.
      GTY301070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and oil control valve.
    4. Remove the O-ring from the oil control valve.
  4. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 1)

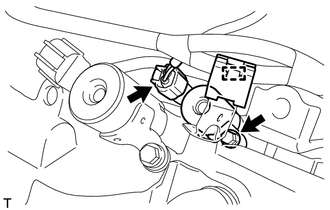

    1. Disengage the wire harness clamp.
      GTY294972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the oil control valve connector.
    3. Remove the bolt and oil control valve.
    4. Remove the O-ring from the oil control valve.
  5. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 2)

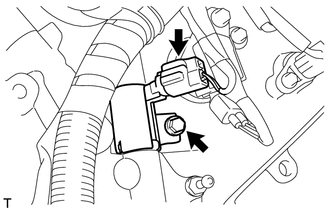

    1. Disconnect the oil control valve connector.
      GTY294974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.
