System Diagrams

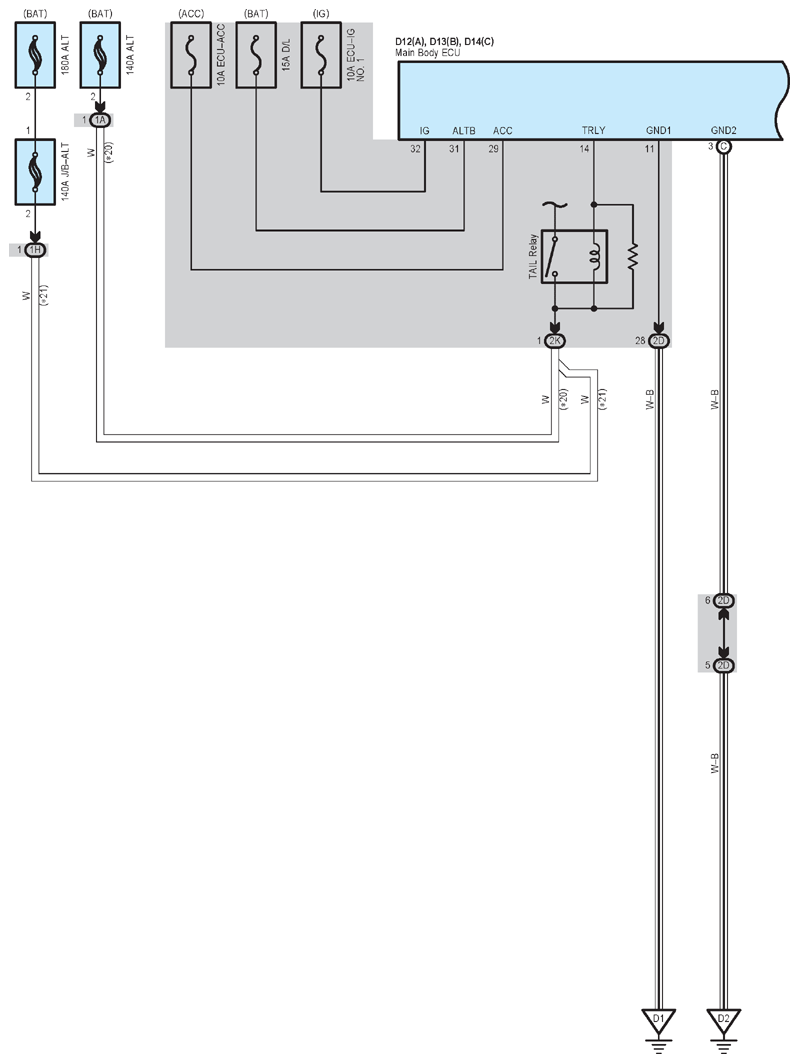

Fig 1: Theft Deterrent (1 Of 12)

G12221845

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

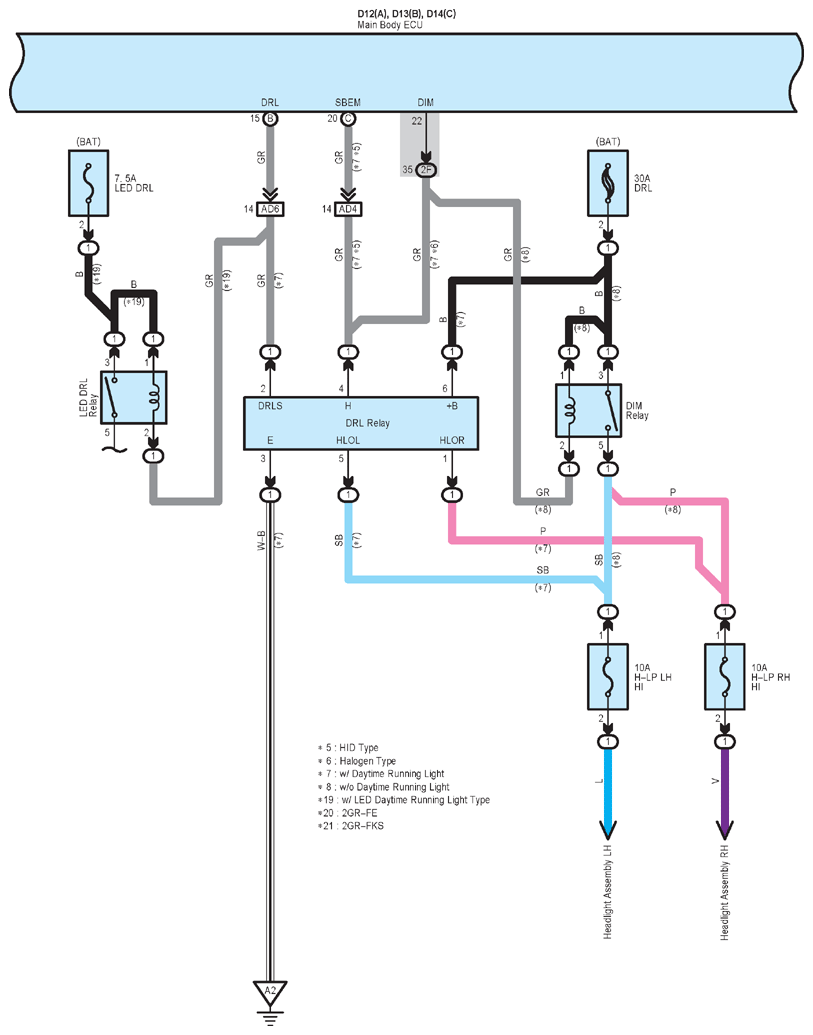

Fig 2: Theft Deterrent (2 Of 12)

G12221846

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

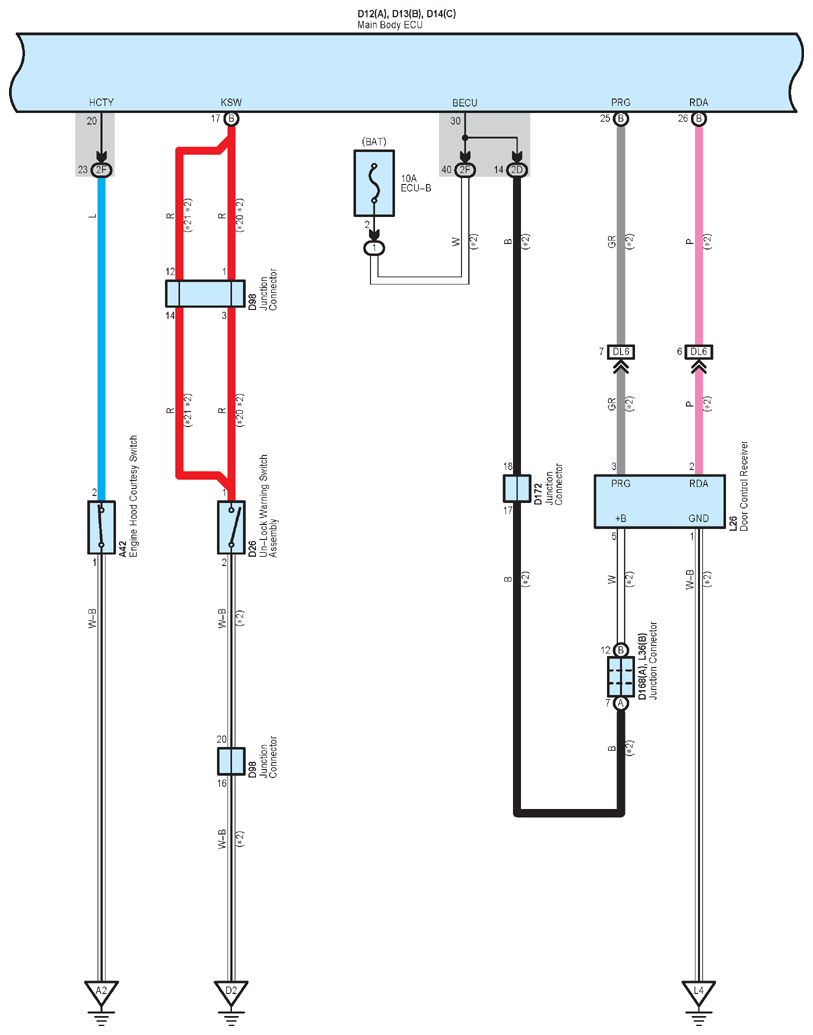

Fig 3: Theft Deterrent (3 Of 12)

G12221847

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

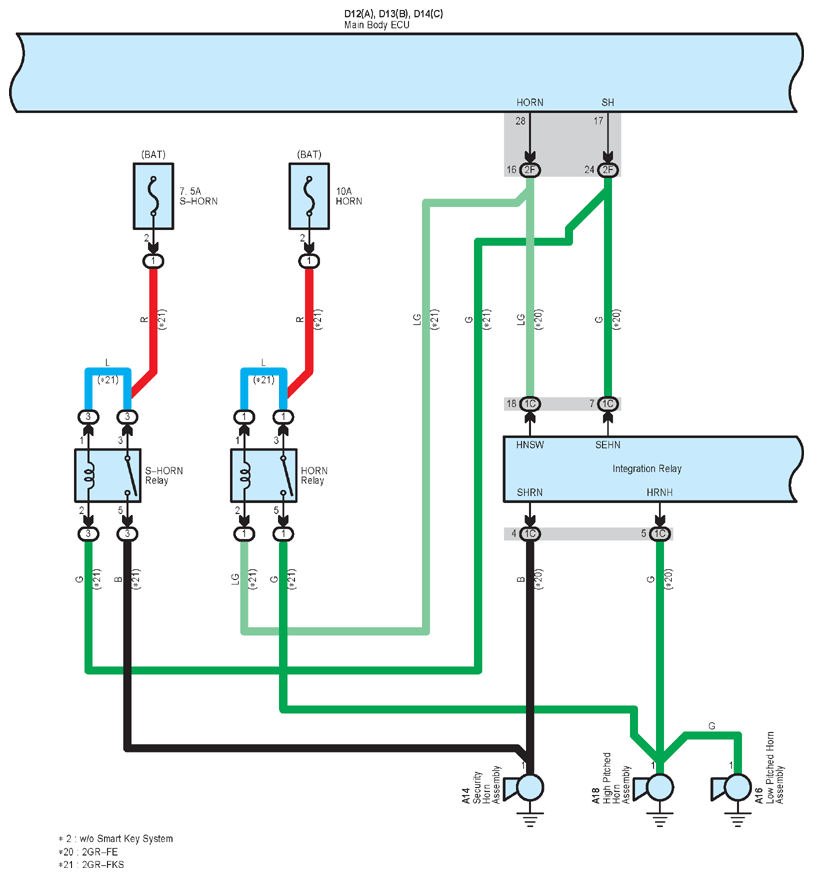

Fig 4: Theft Deterrent (4 Of 12)

G12221848

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

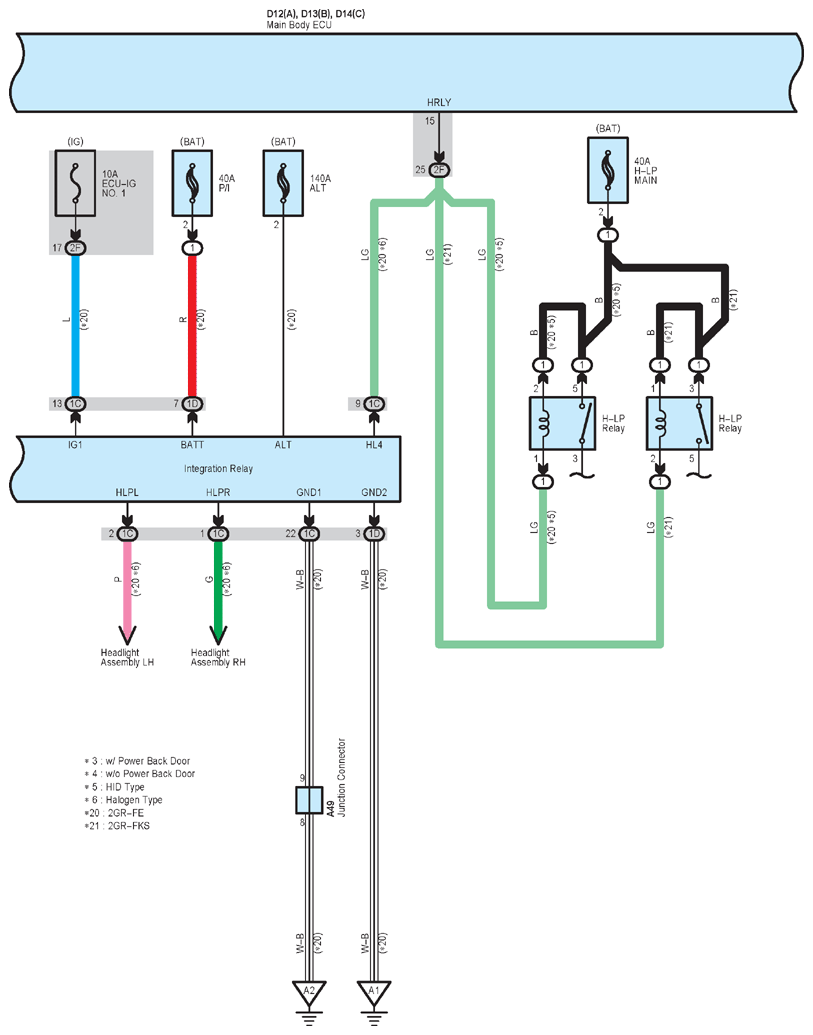

Fig 5: Theft Deterrent (5 Of 12)

G12221849

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

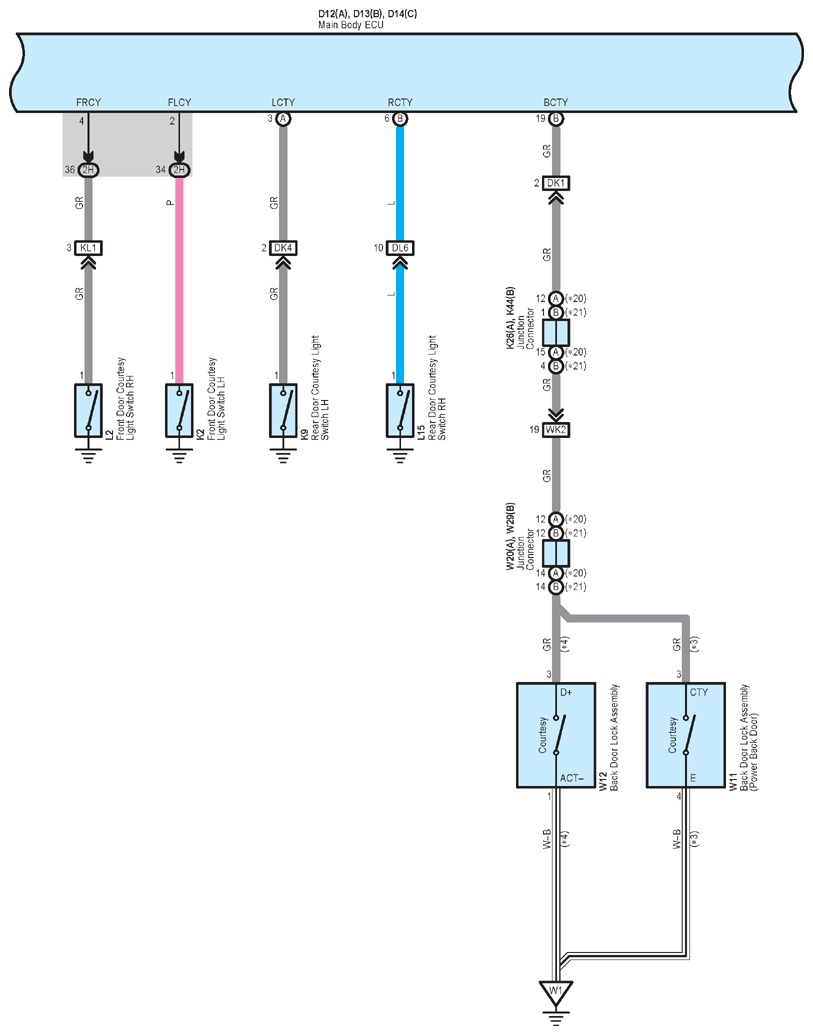

Fig 6: Theft Deterrent (6 Of 12)

G12221850

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

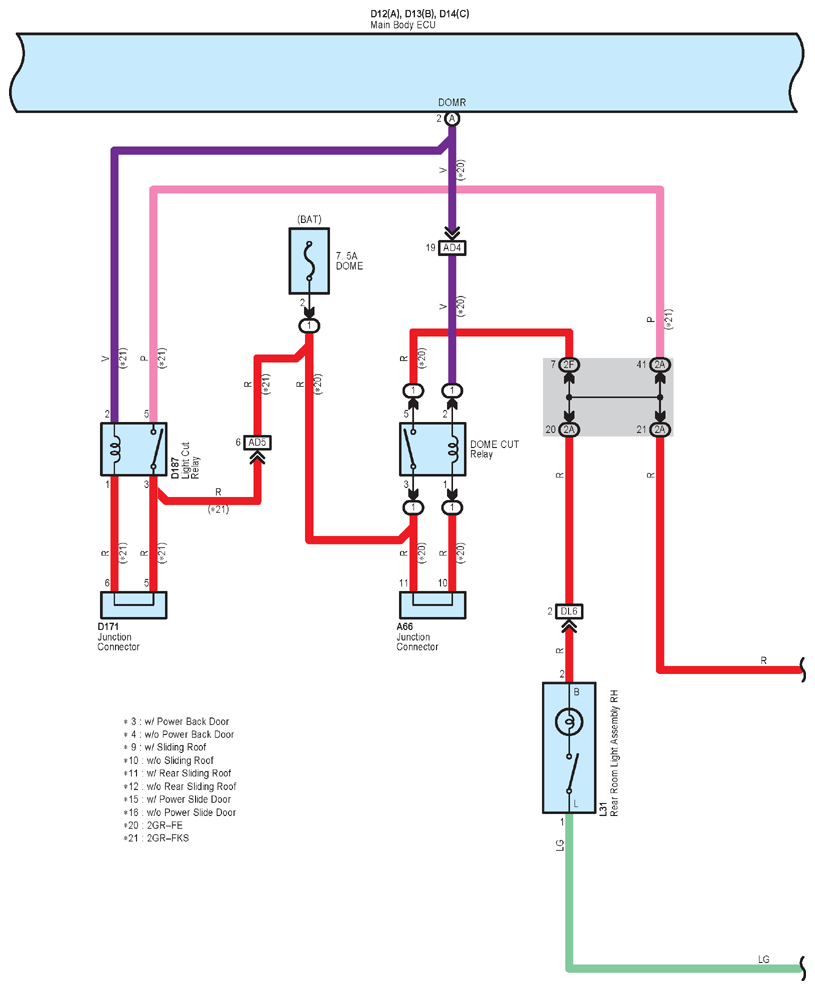

Fig 7: Theft Deterrent (7 Of 12)

G12221851

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

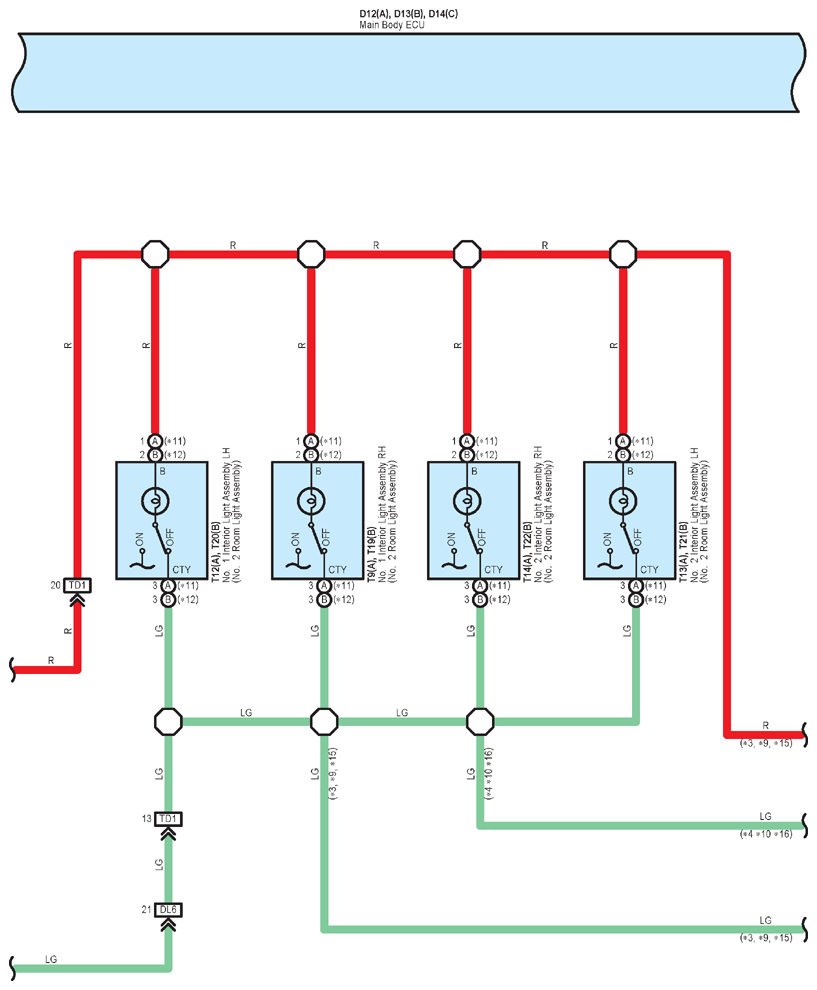

Fig 8: Theft Deterrent (8 Of 12)

G12221852

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

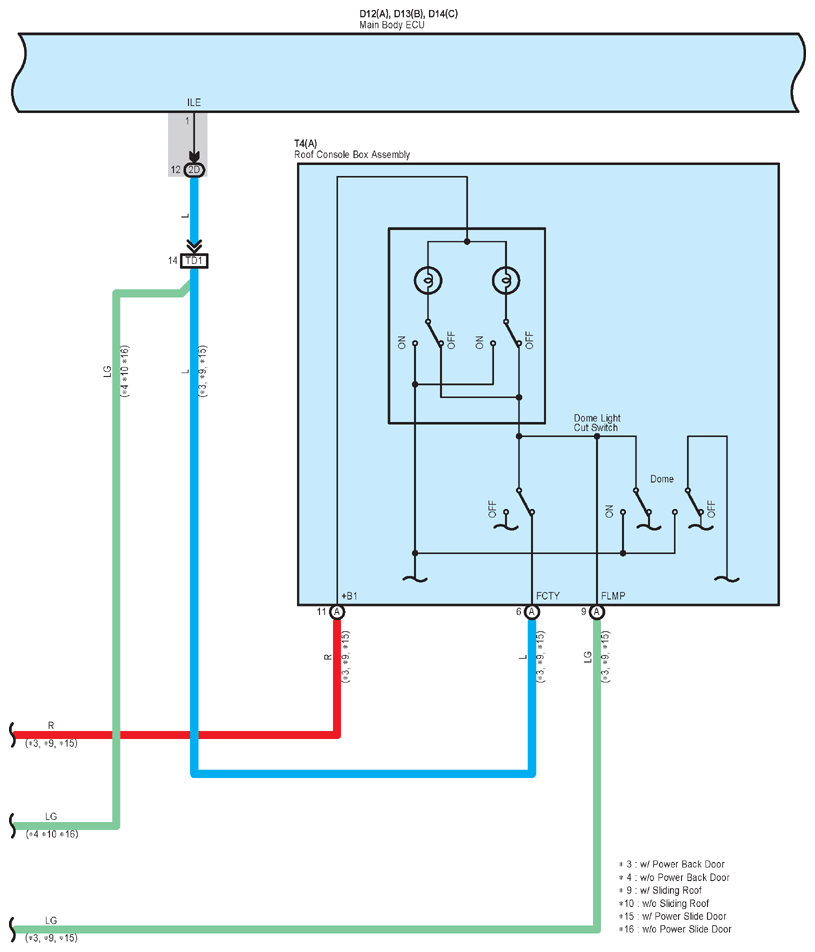

Fig 9: Theft Deterrent (9 Of 12)

G12221853

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

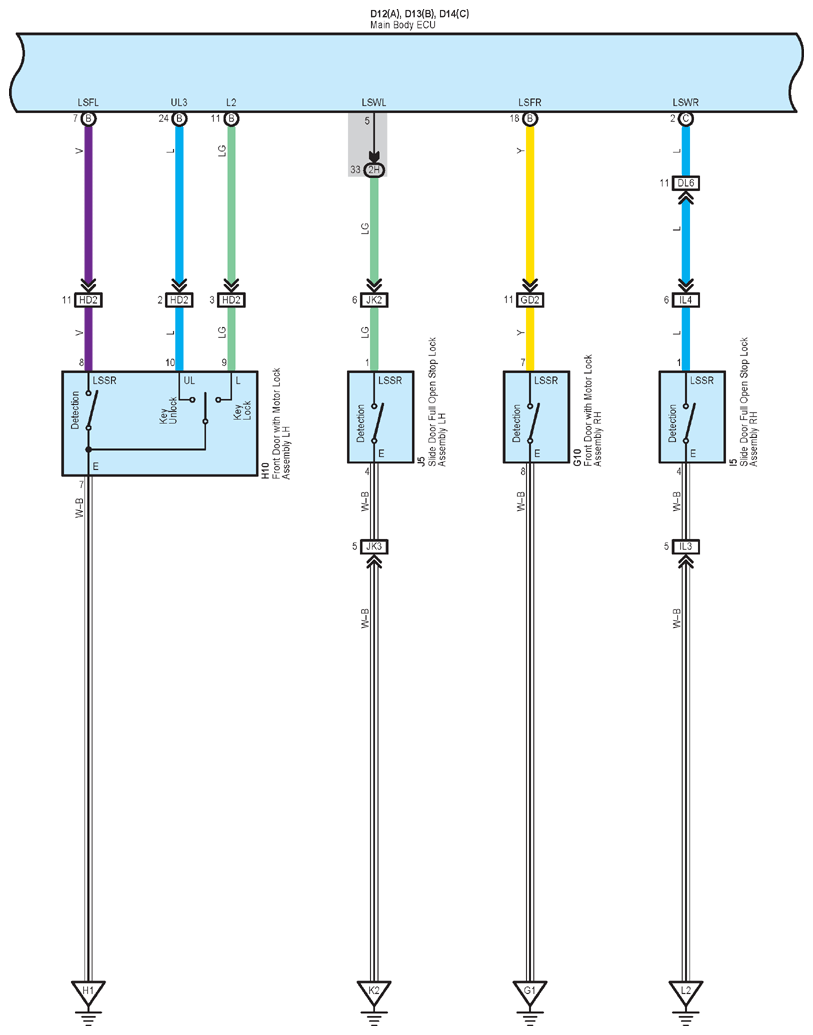

Fig 10: Theft Deterrent (10 Of 12)

G12221854

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

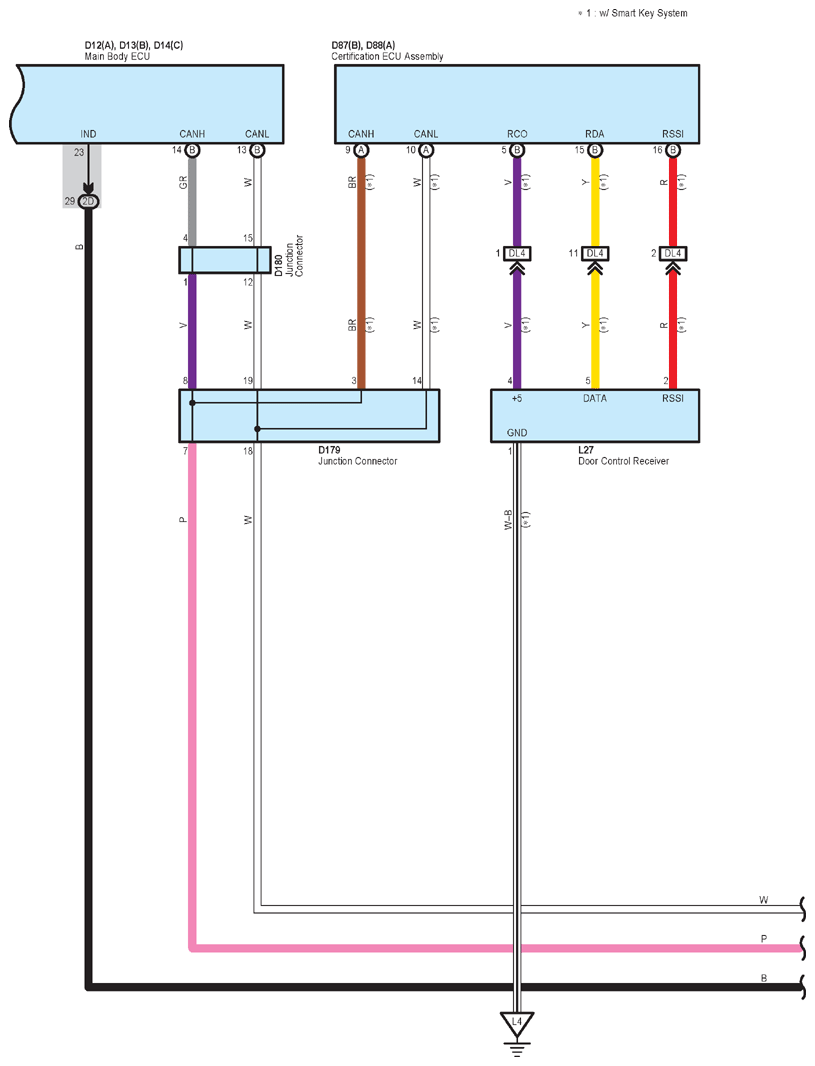

Fig 11: Theft Deterrent (11 Of 12)

G12221855

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

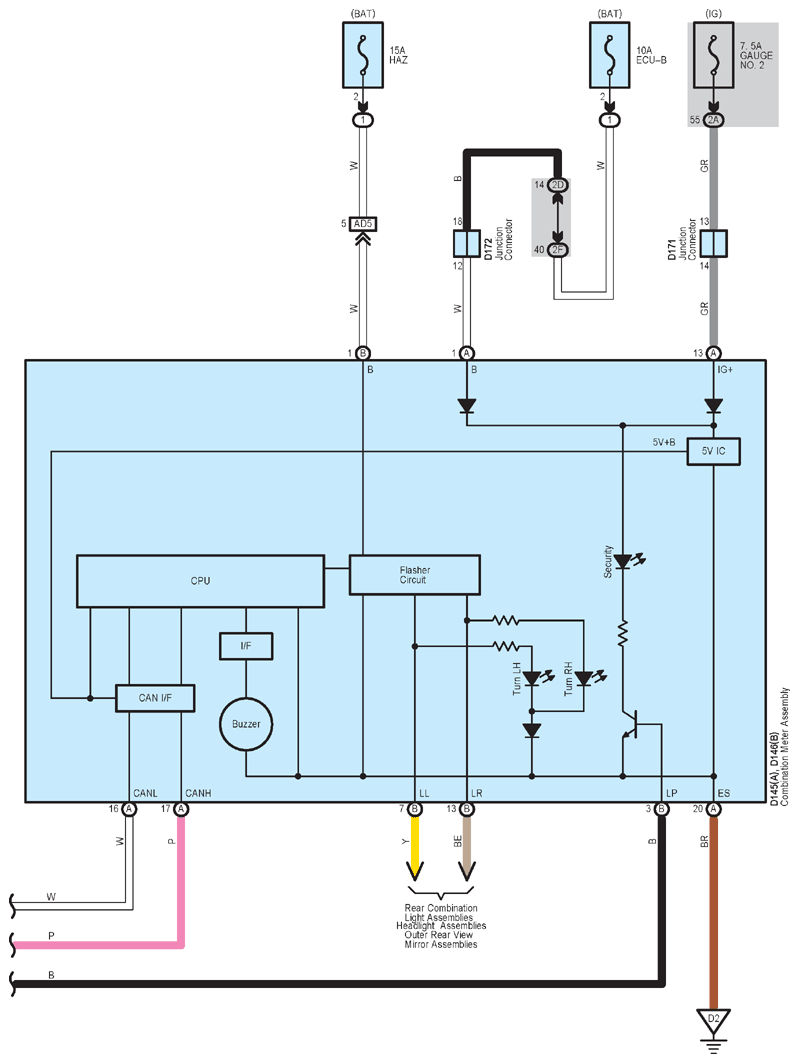

Fig 12: Theft Deterrent (12 Of 12)

G12221856

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
