System Diagrams

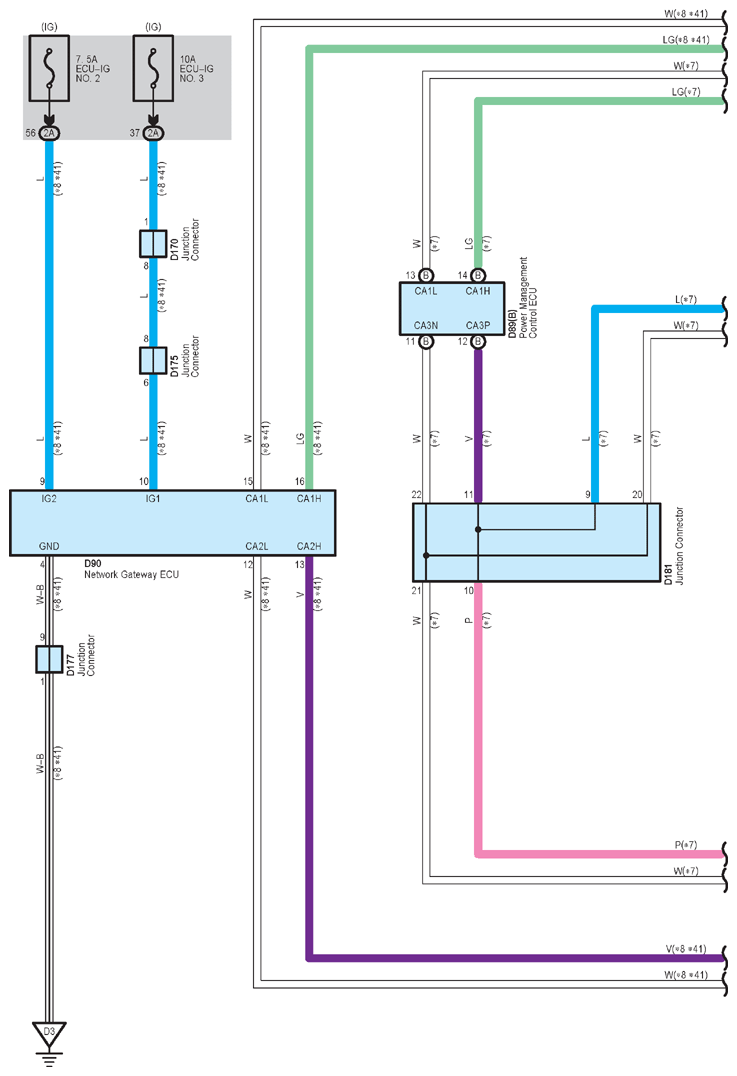

Fig 1: Multiplex Communication System (CAN, 2GR-FKS) (1 Of 5)
G12221630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

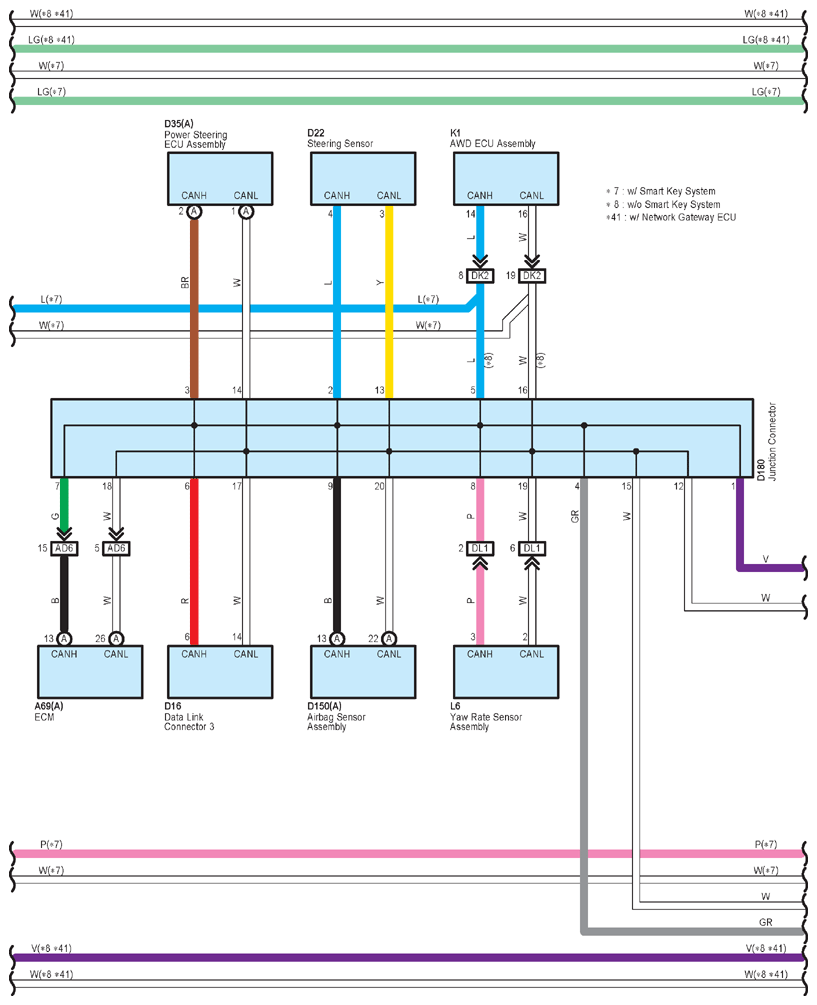

Fig 2: Multiplex Communication System (CAN, 2GR-FKS) (2 Of 5)
G12221631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

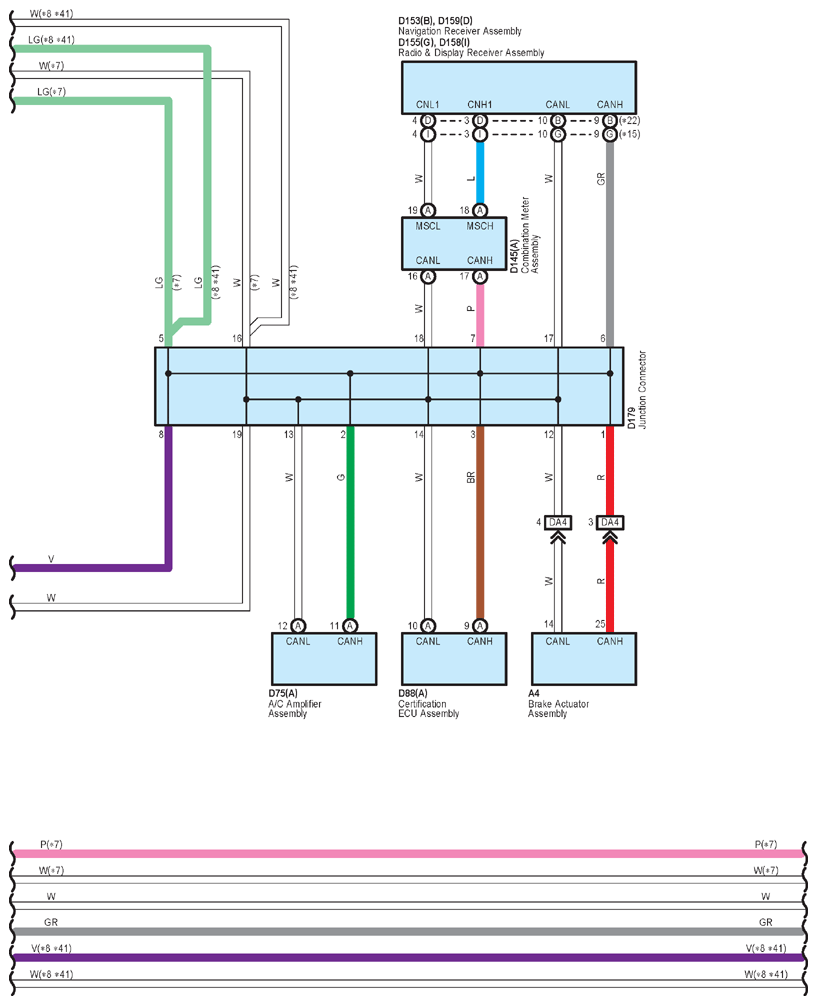

Fig 3: Multiplex Communication System (CAN, 2GR-FKS) (3 Of 5)
G12221632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

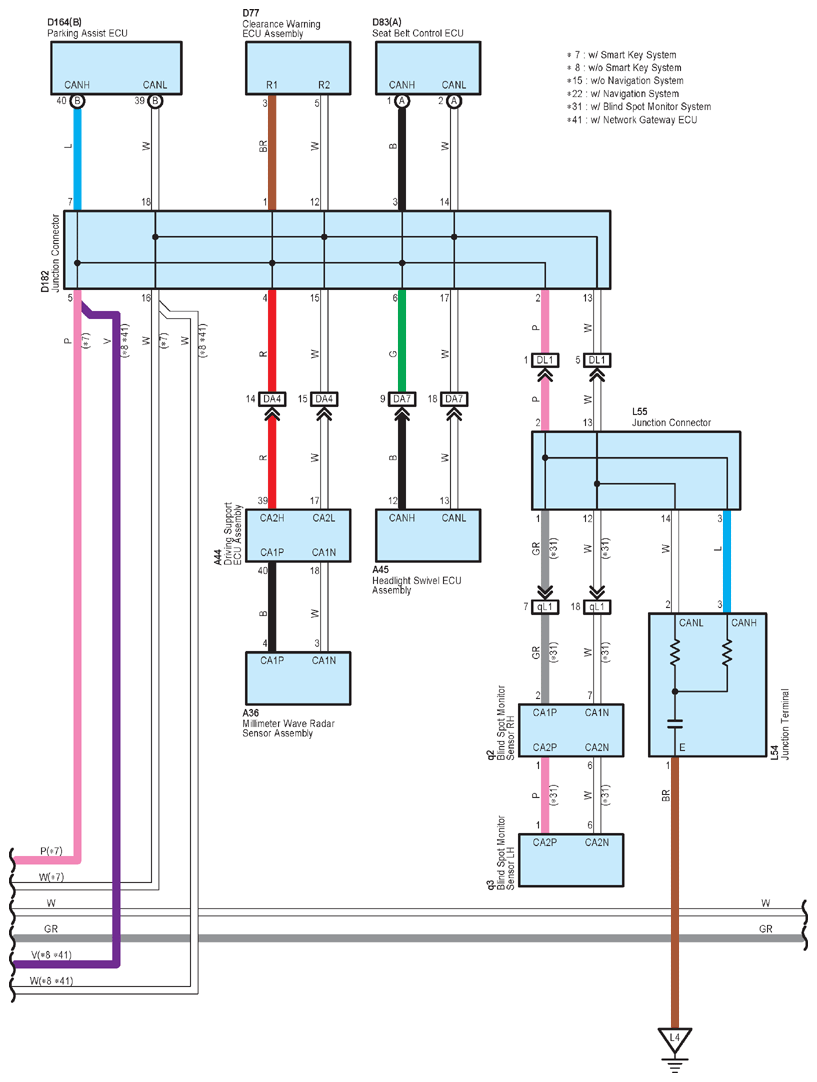

Fig 4: Multiplex Communication System (CAN, 2GR-FKS) (4 Of 5)
G12221633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

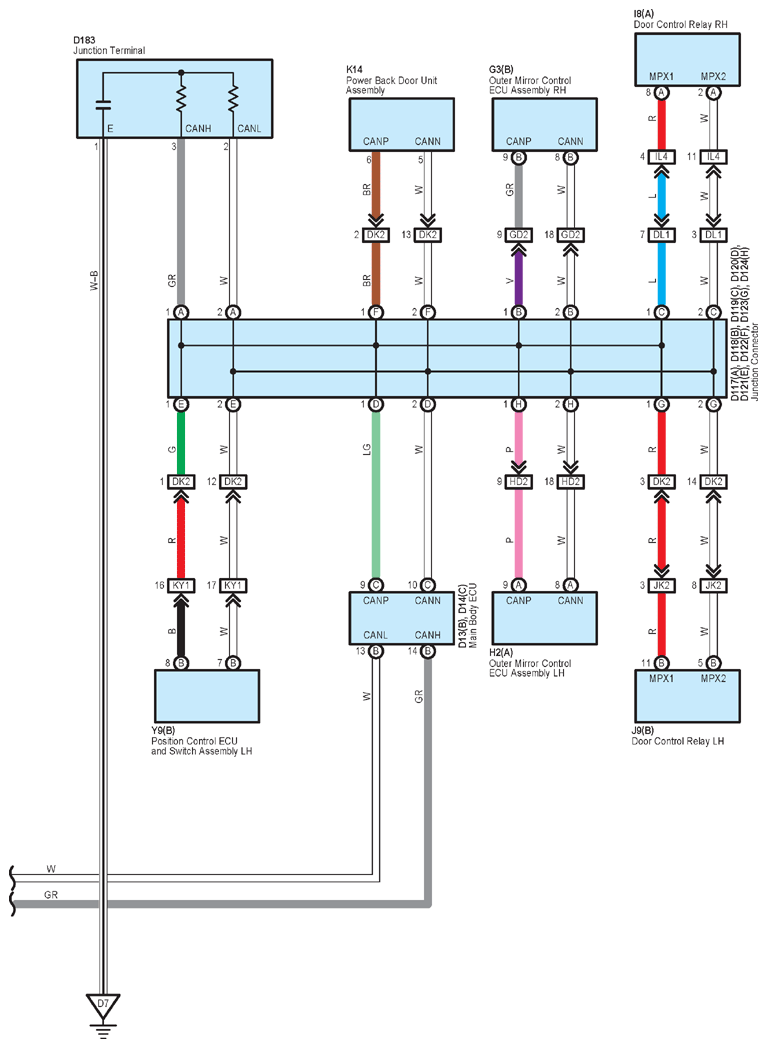

Fig 5: Multiplex Communication System (CAN, 2GR-FKS) (5 Of 5)
G12221634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
