System Diagrams

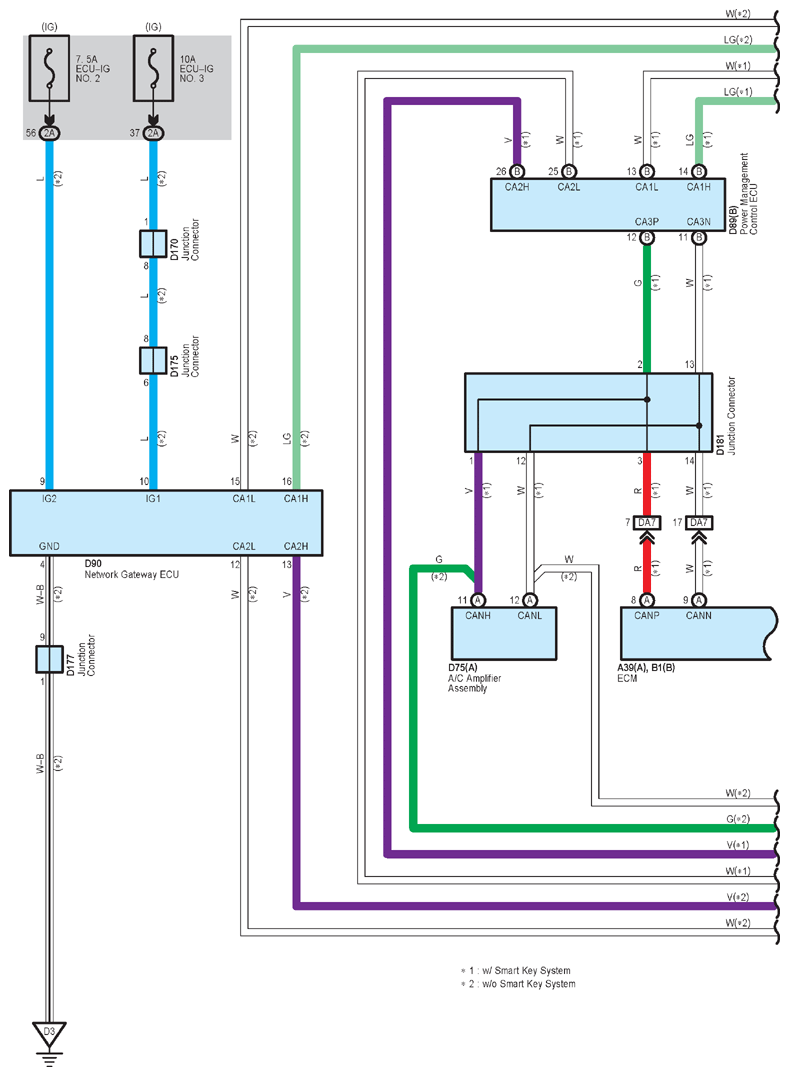

Fig 1: Multiplex Communication System (CAN, 2GR-FE) (1 Of 6)
G12221618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

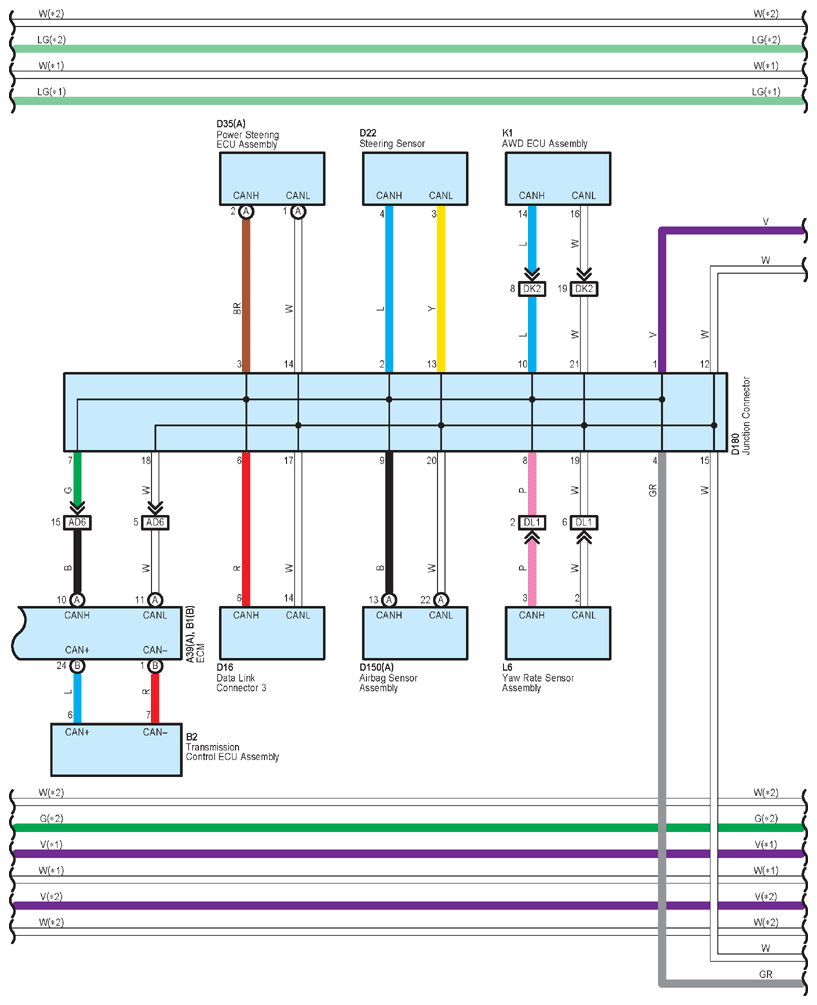

Fig 2: Multiplex Communication System (CAN, 2GR-FE) (2 Of 6)
G12221619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

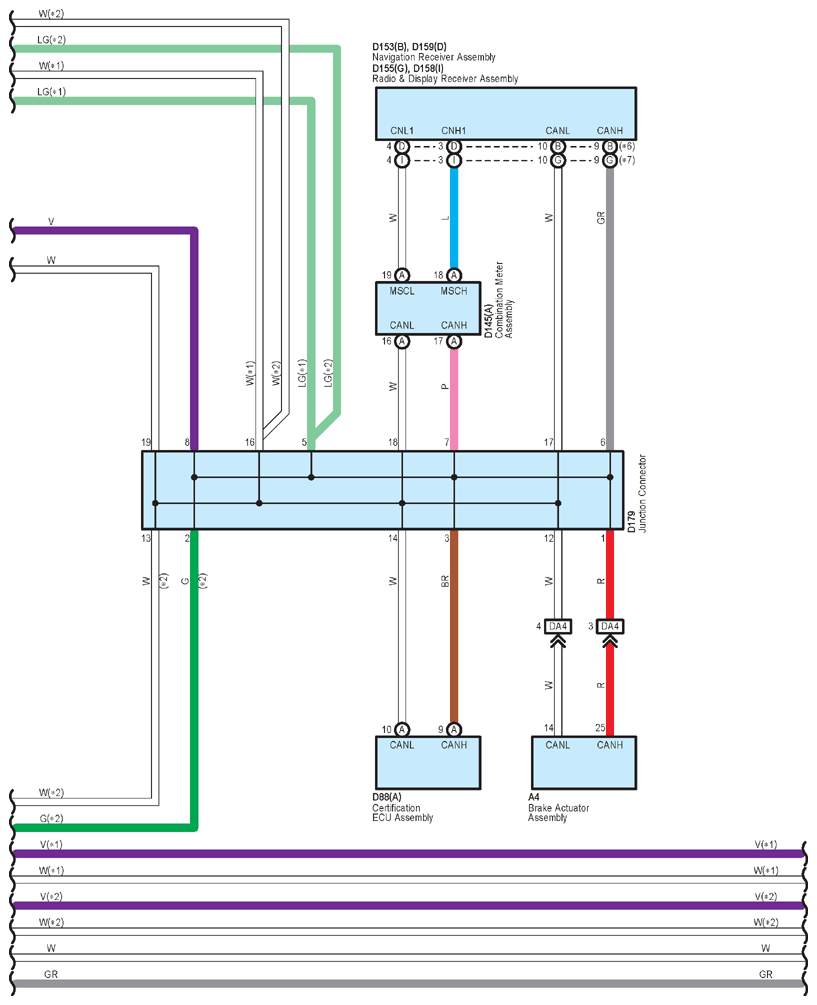

Fig 3: Multiplex Communication System (CAN, 2GR-FE) (3 Of 6)
G12221620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

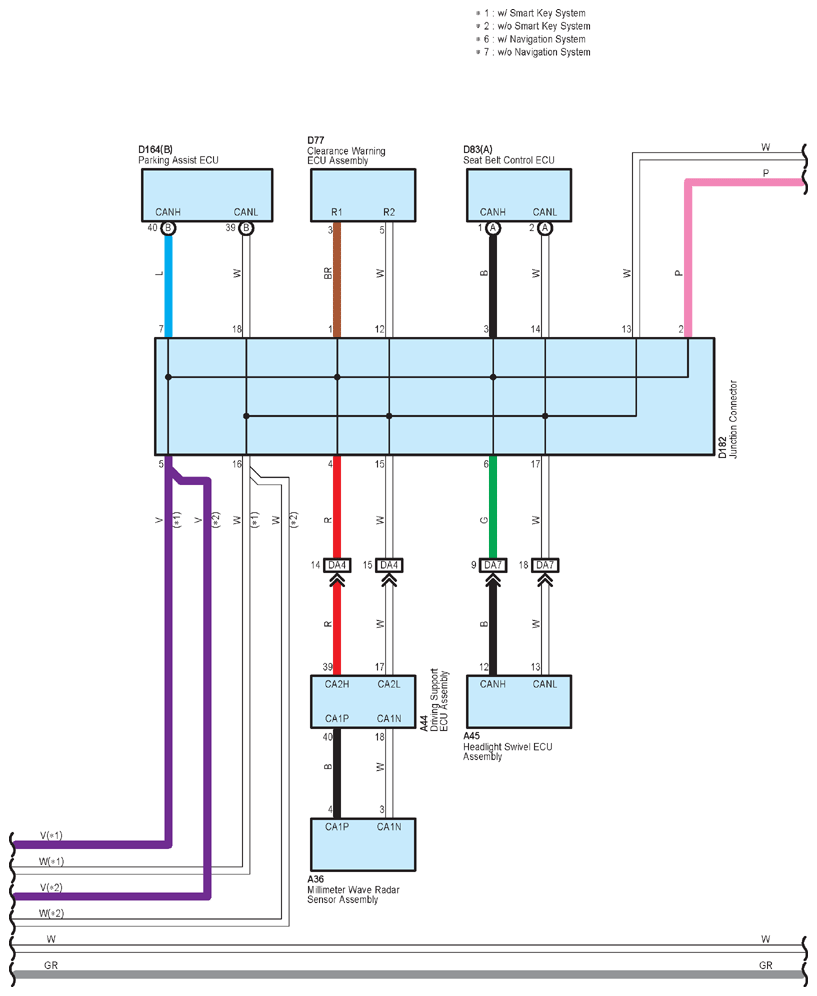

Fig 4: Multiplex Communication System (CAN, 2GR-FE) (4 Of 6)
G12221621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

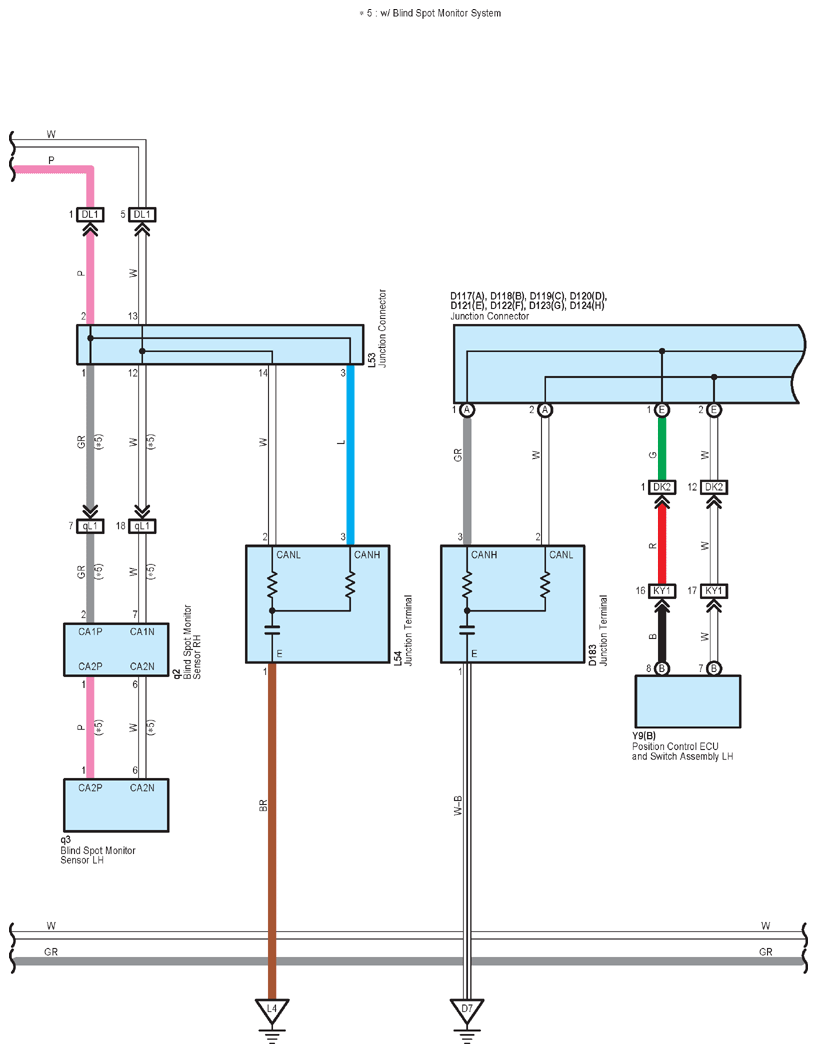

Fig 5: Multiplex Communication System (CAN, 2GR-FE) (5 Of 6)
G12221622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

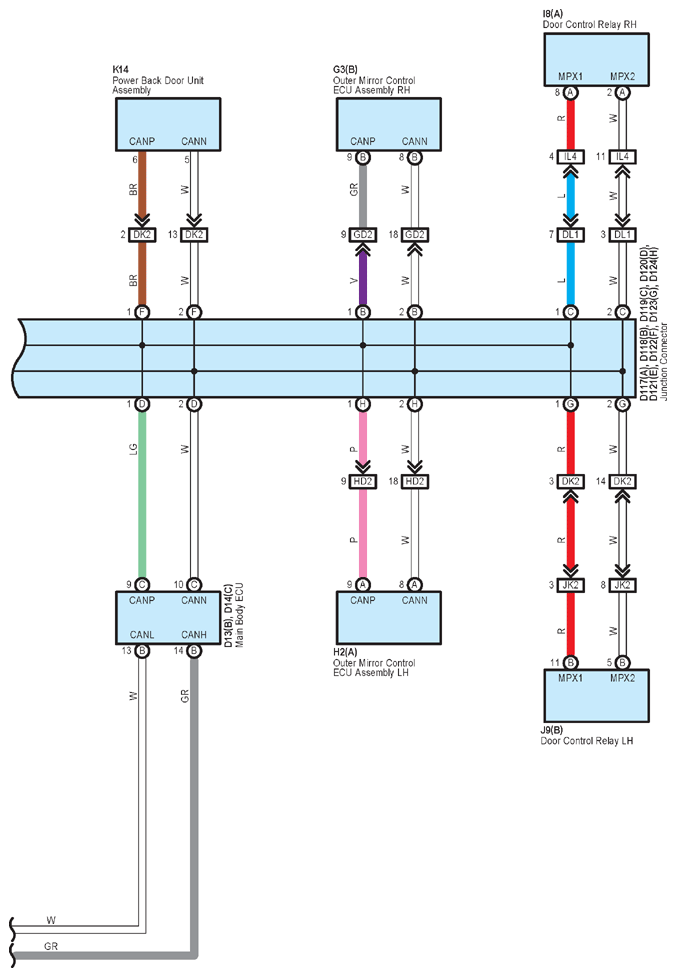

Fig 6: Multiplex Communication System (CAN, 2GR-FE) (6 Of 6)
G12221623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
