System Diagrams

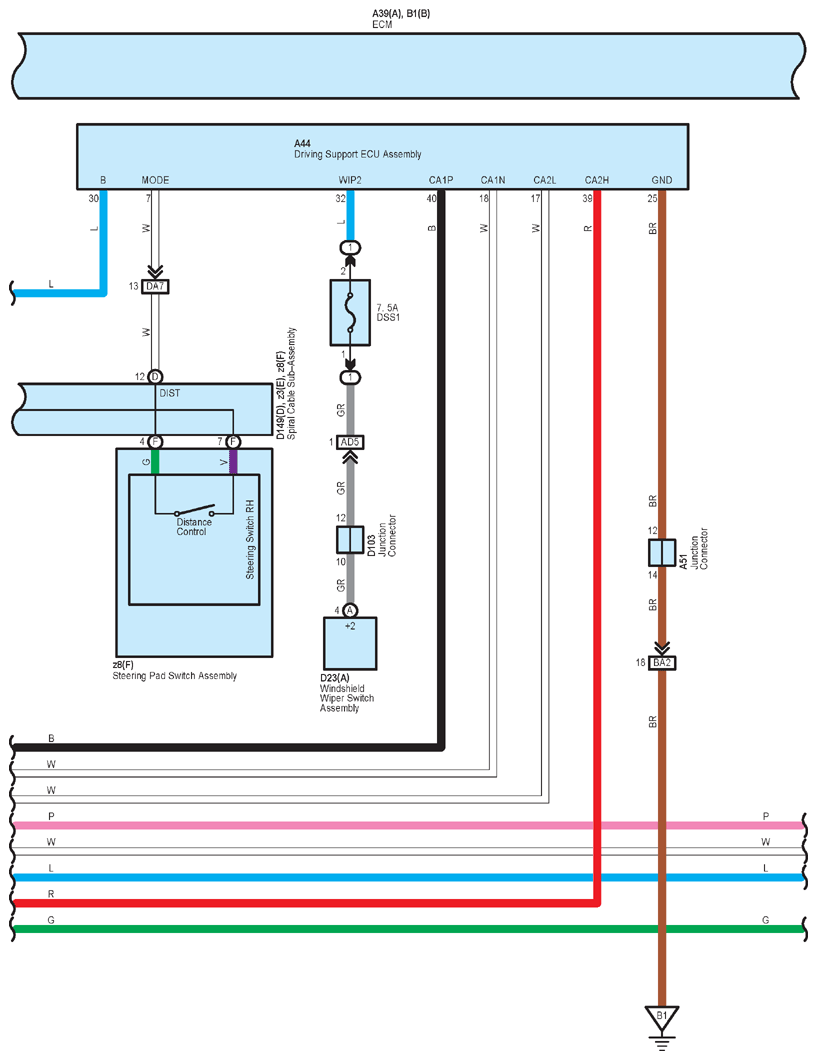

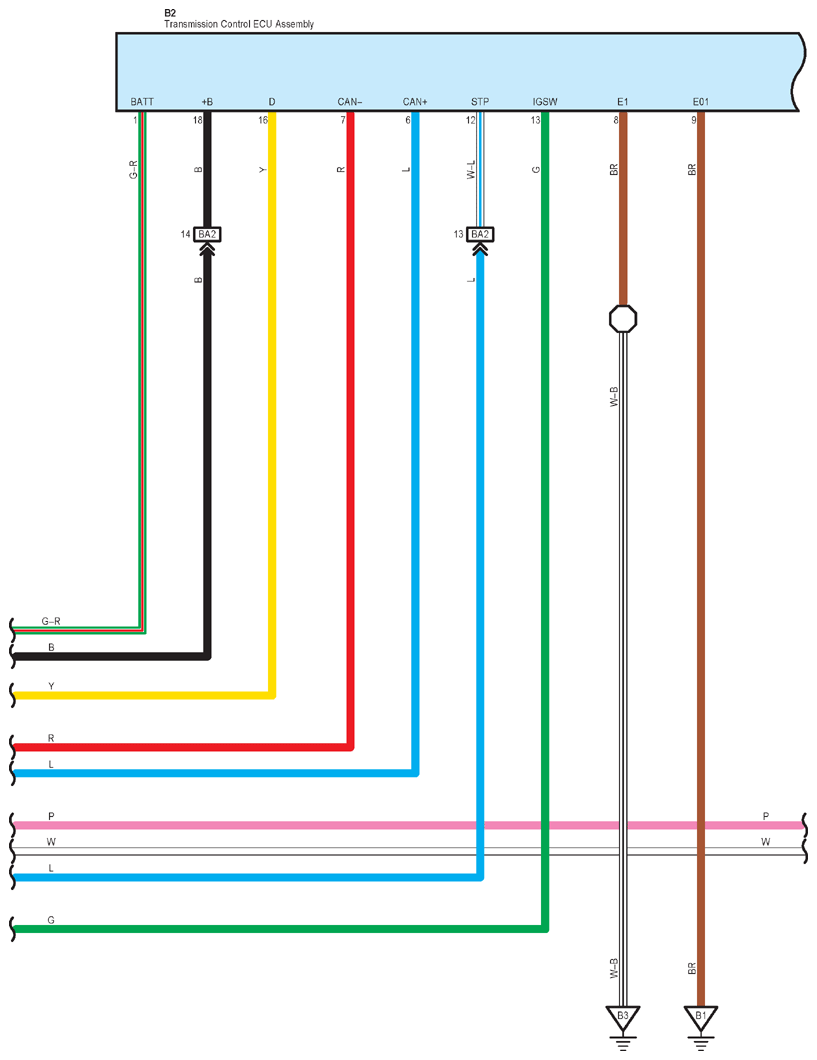

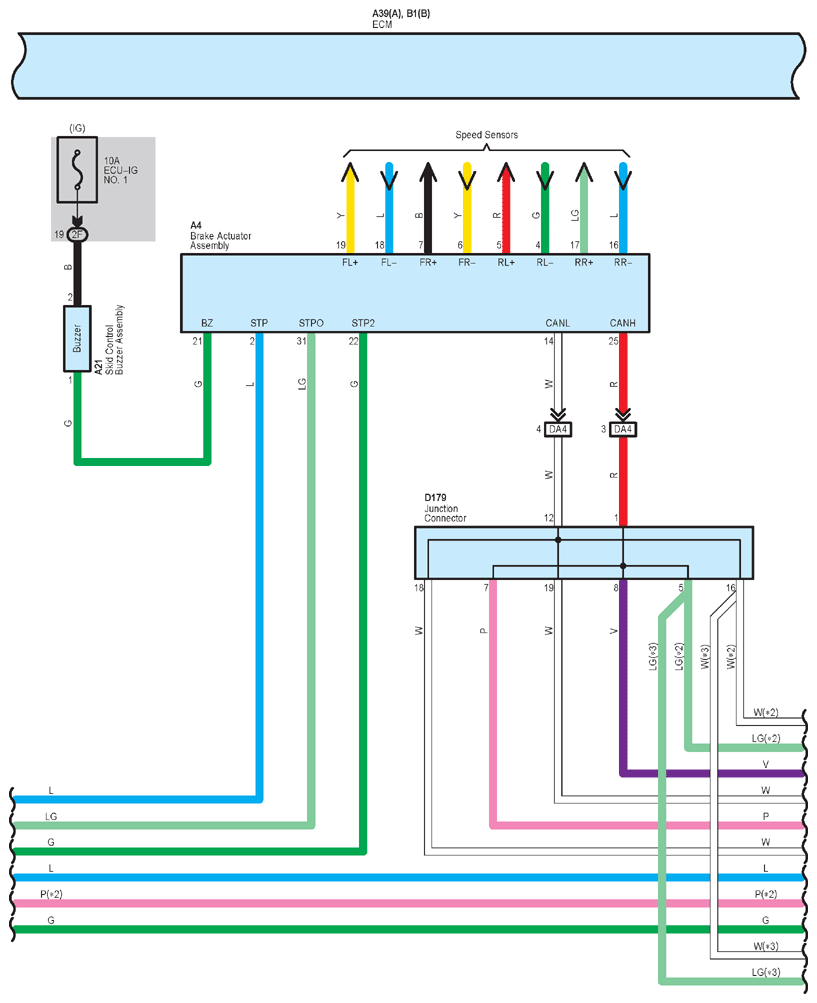

Fig 1: Dynamic Radar Cruise Control (2GR-FE) (4 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

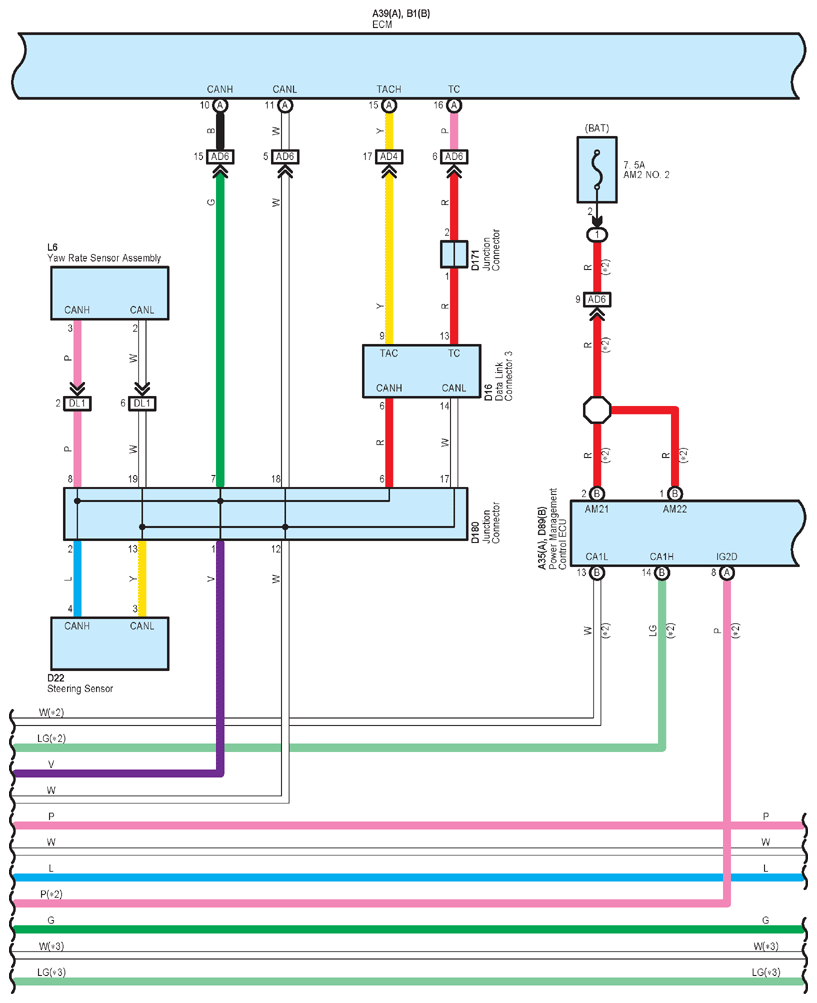

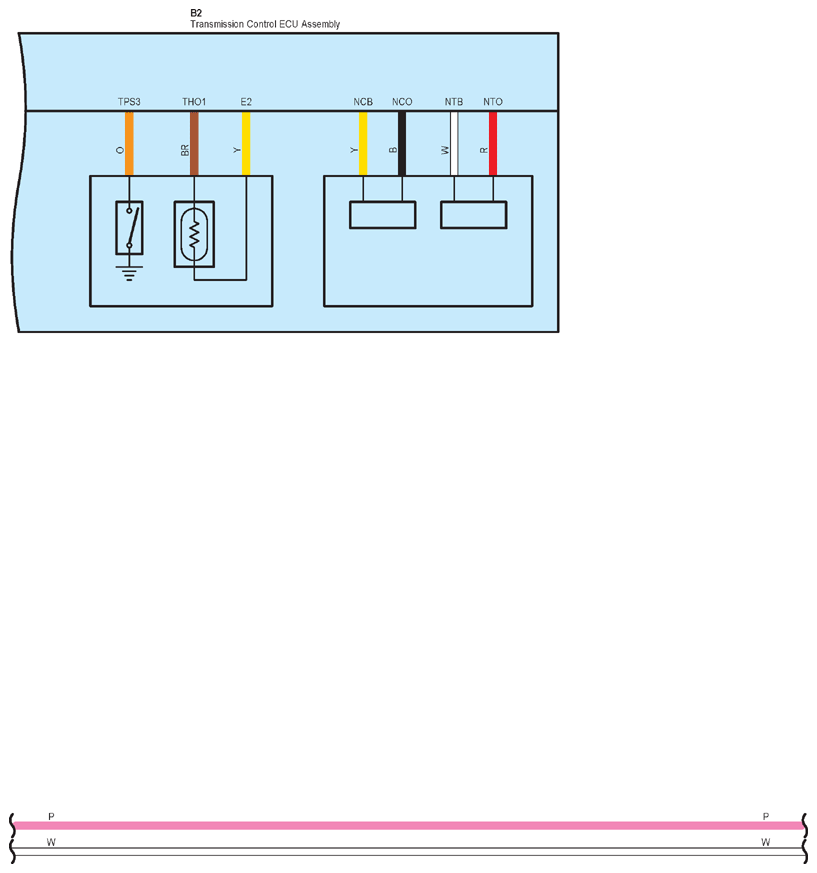

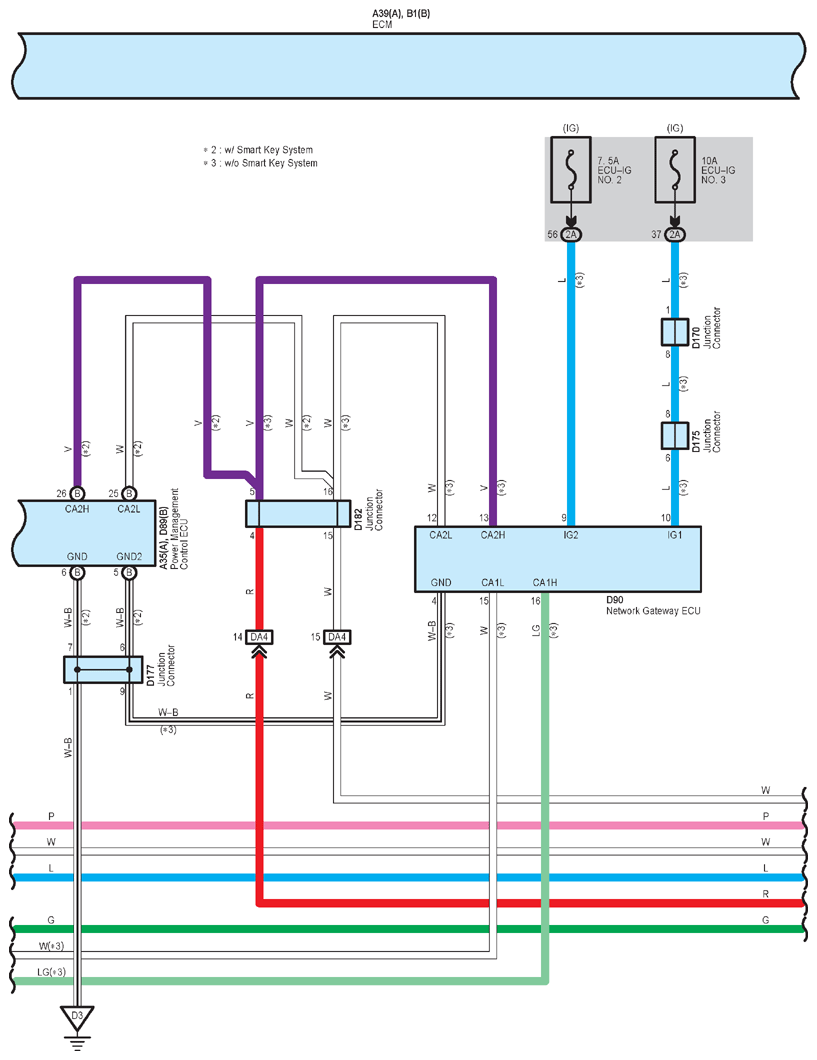

Fig 2: Dynamic Radar Cruise Control (2GR-FE) (5 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

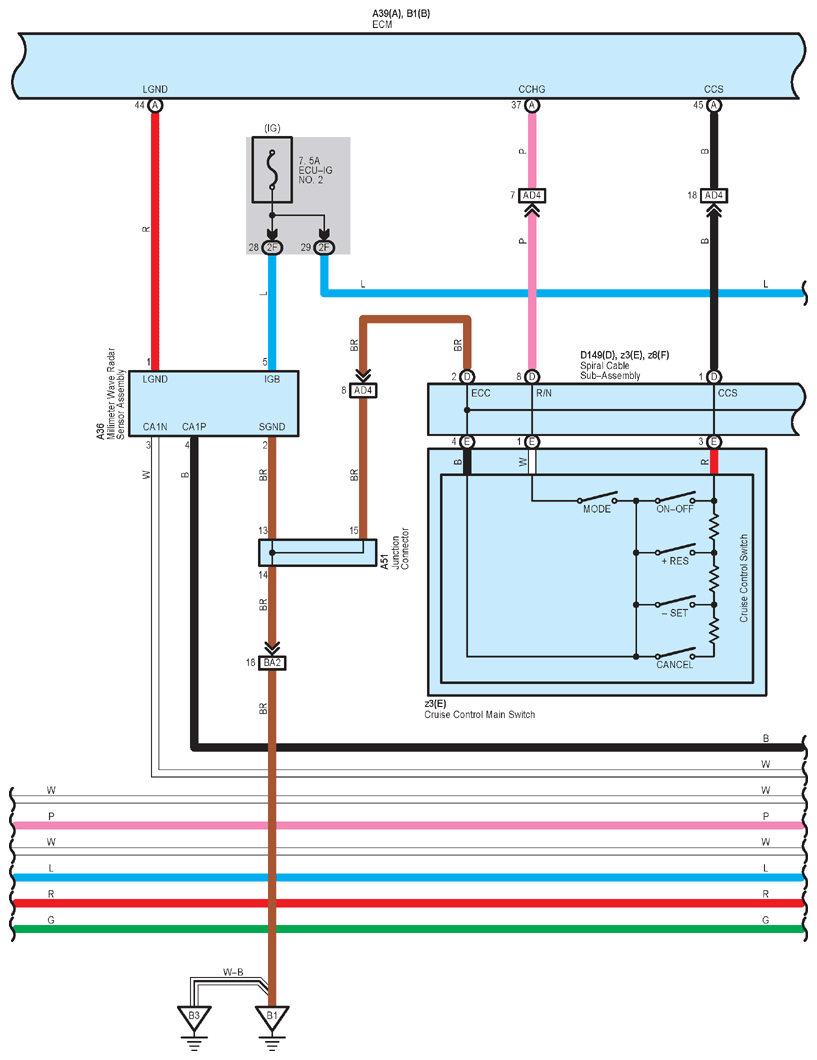

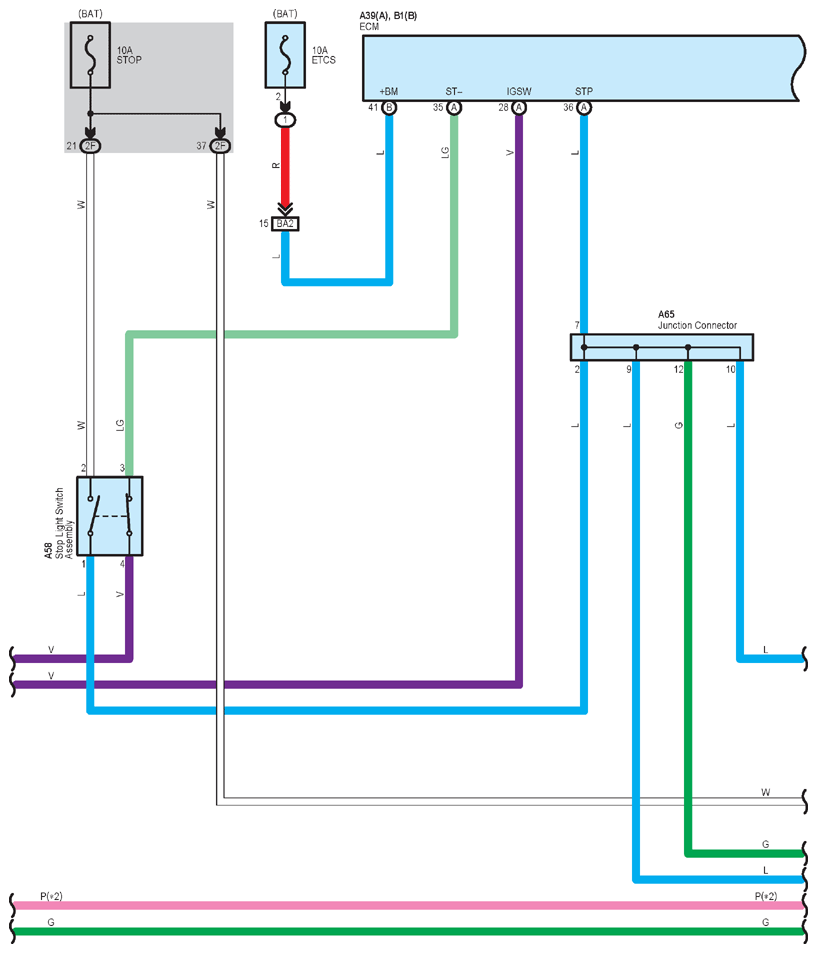

Fig 3: Dynamic Radar Cruise Control (2GR-FE) (6 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

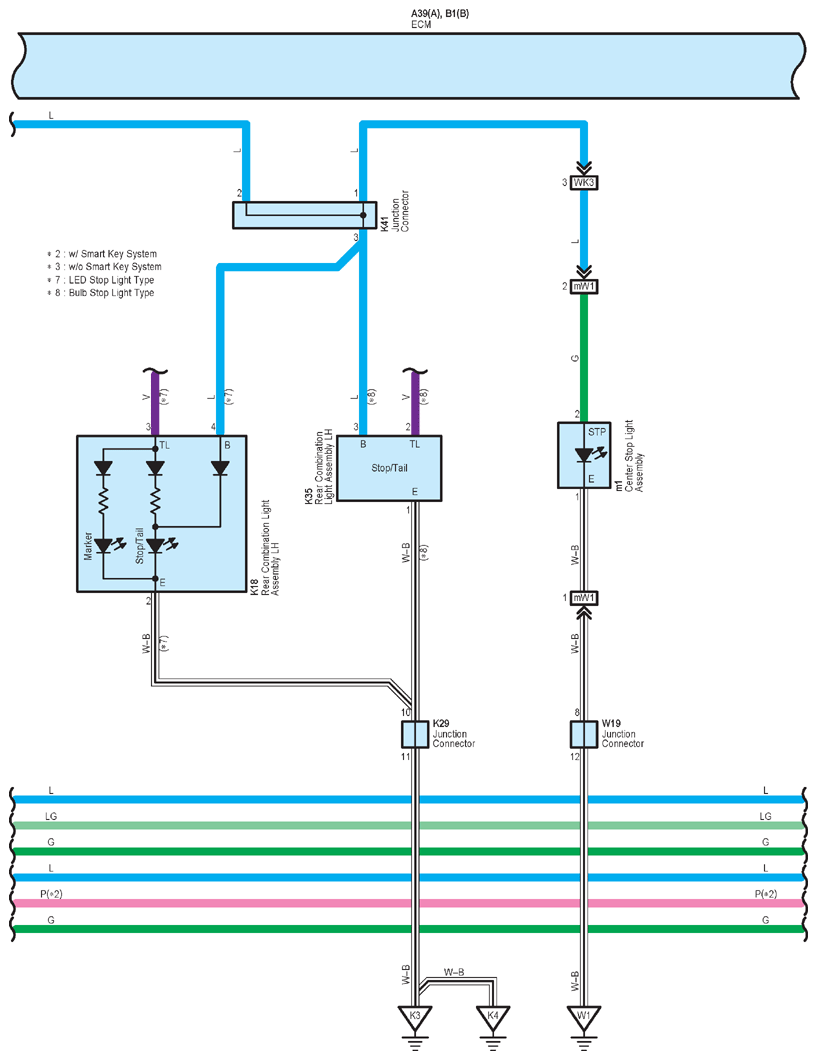

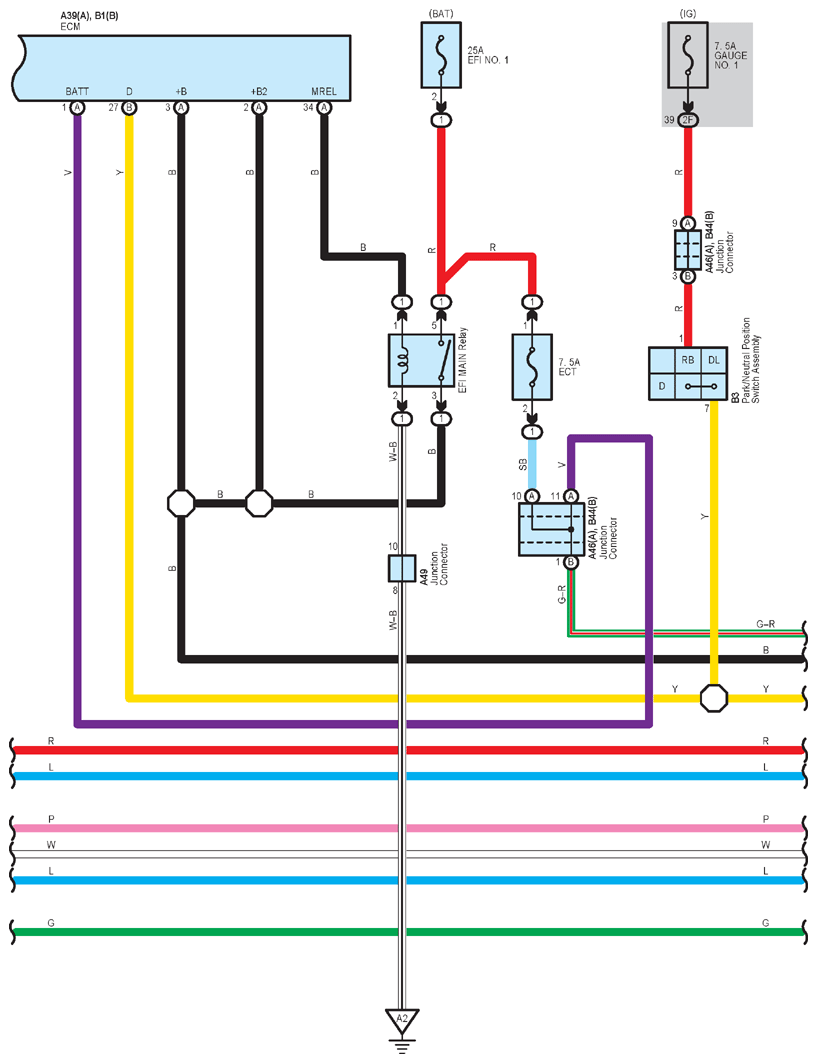

Fig 4: Dynamic Radar Cruise Control (2GR-FE) (7 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

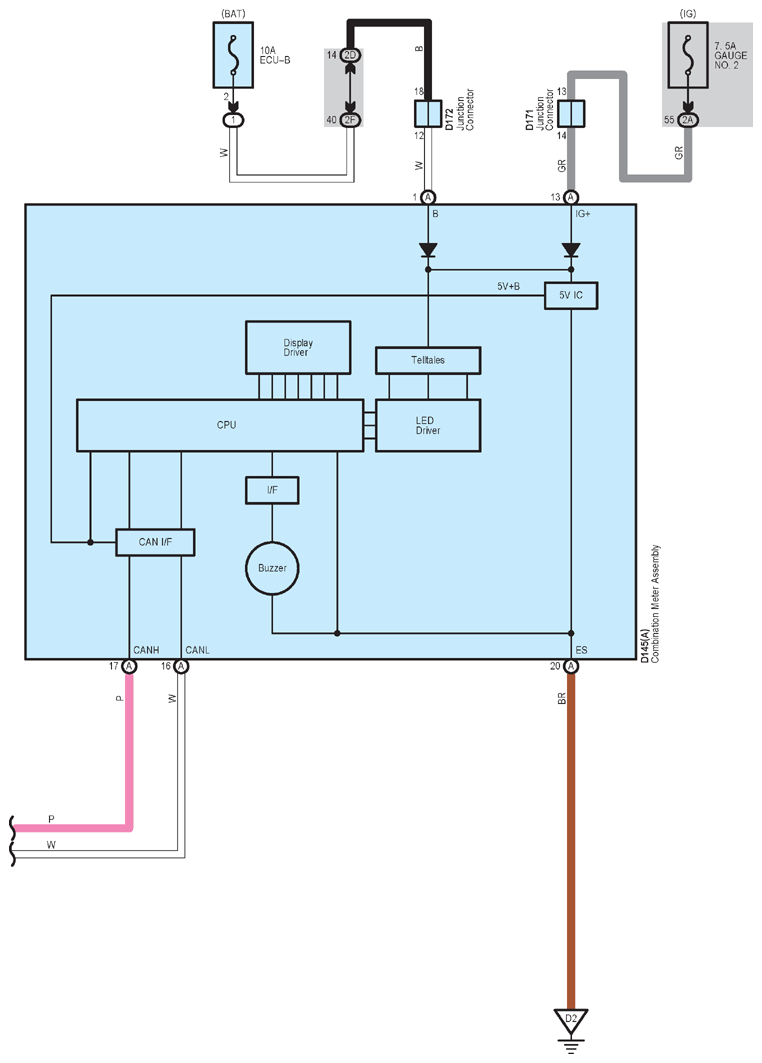

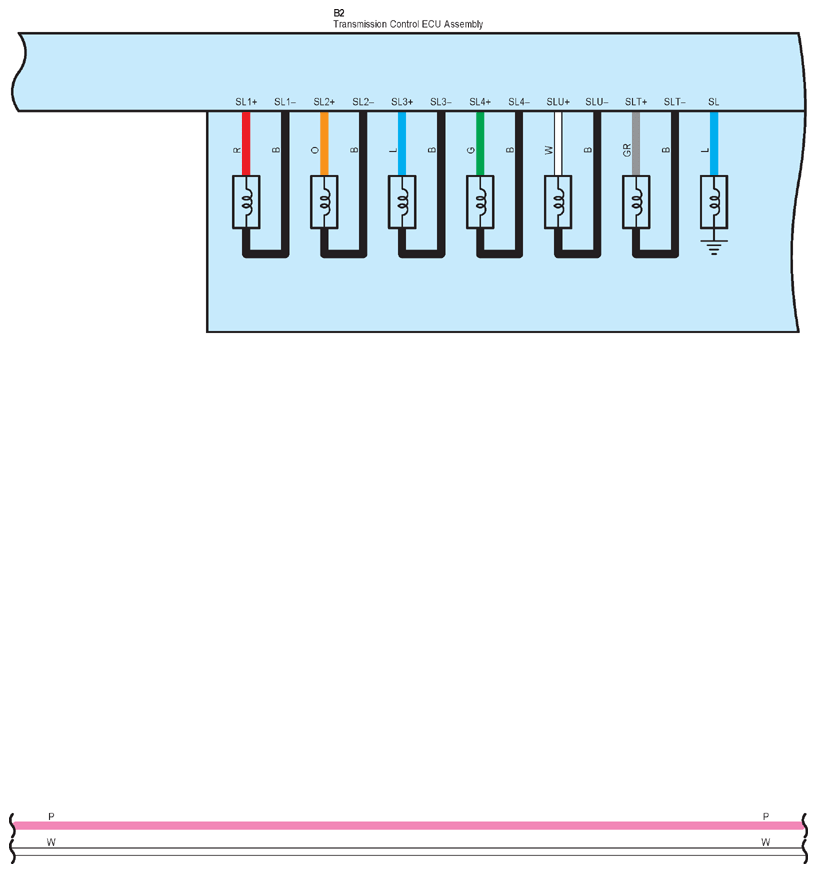

Fig 5: Dynamic Radar Cruise Control (2GR-FE) (8 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

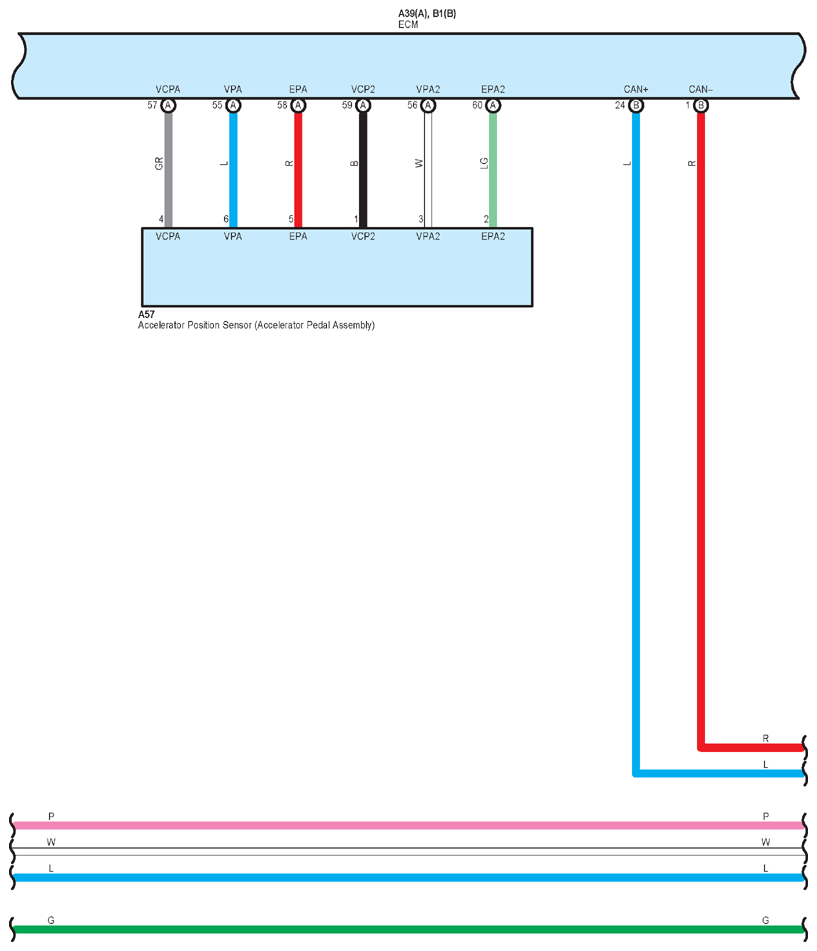

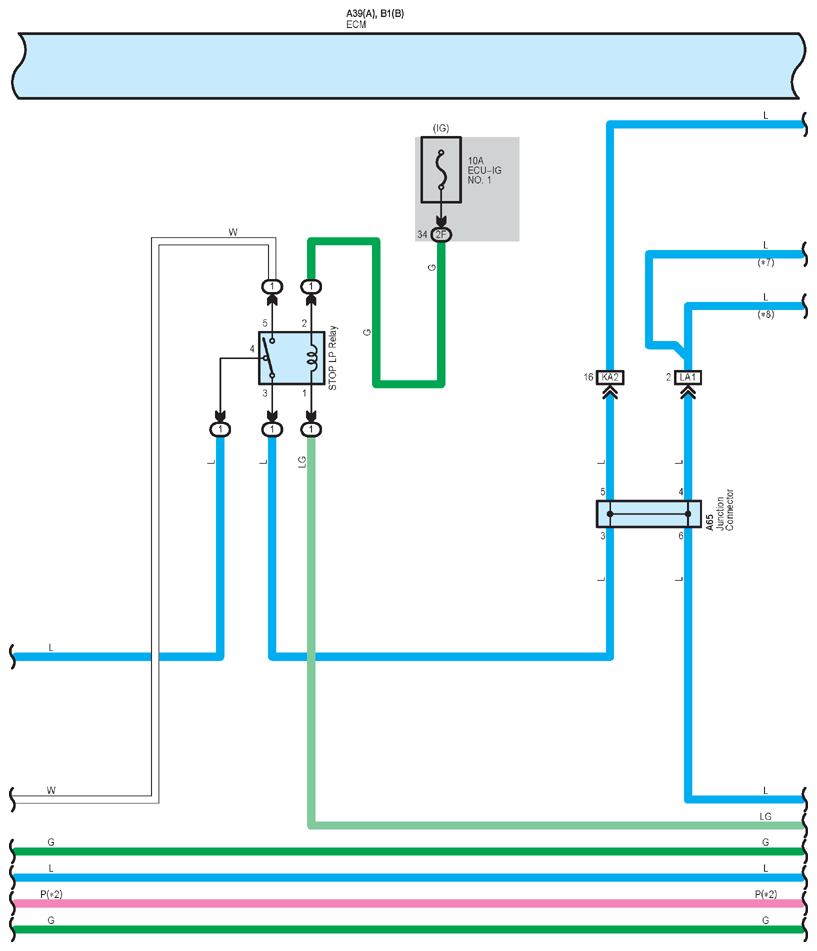

Fig 6: Dynamic Radar Cruise Control (2GR-FE) (9 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

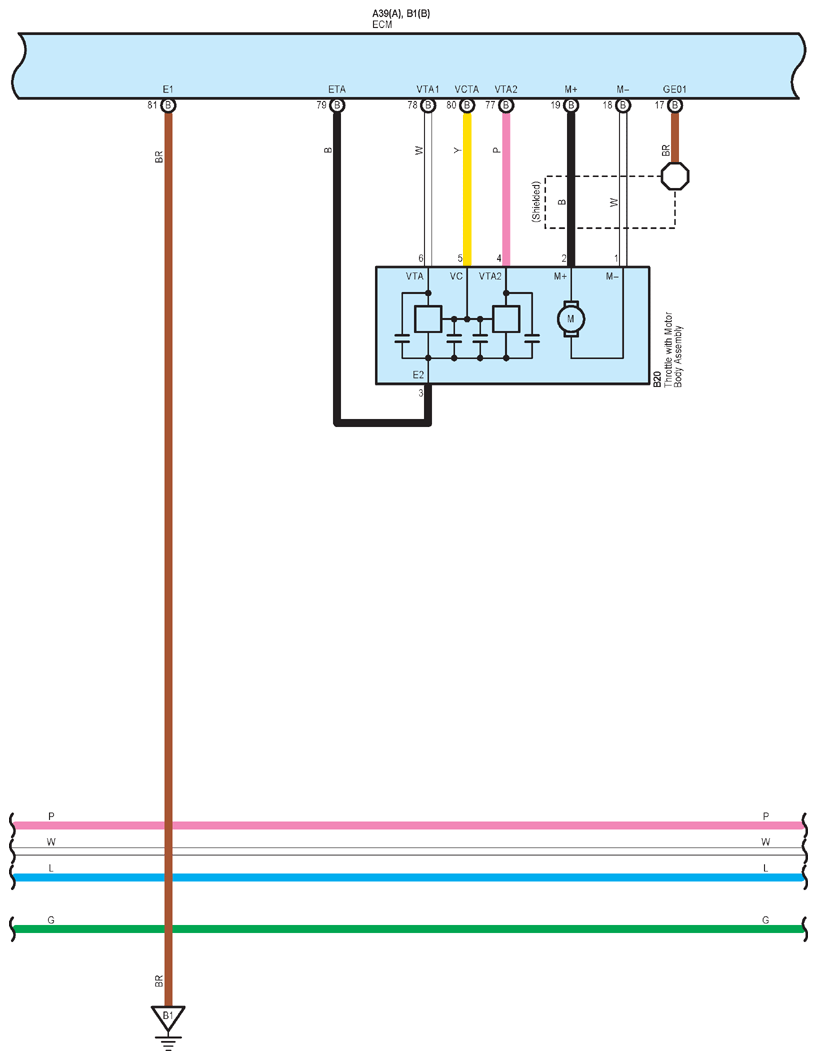

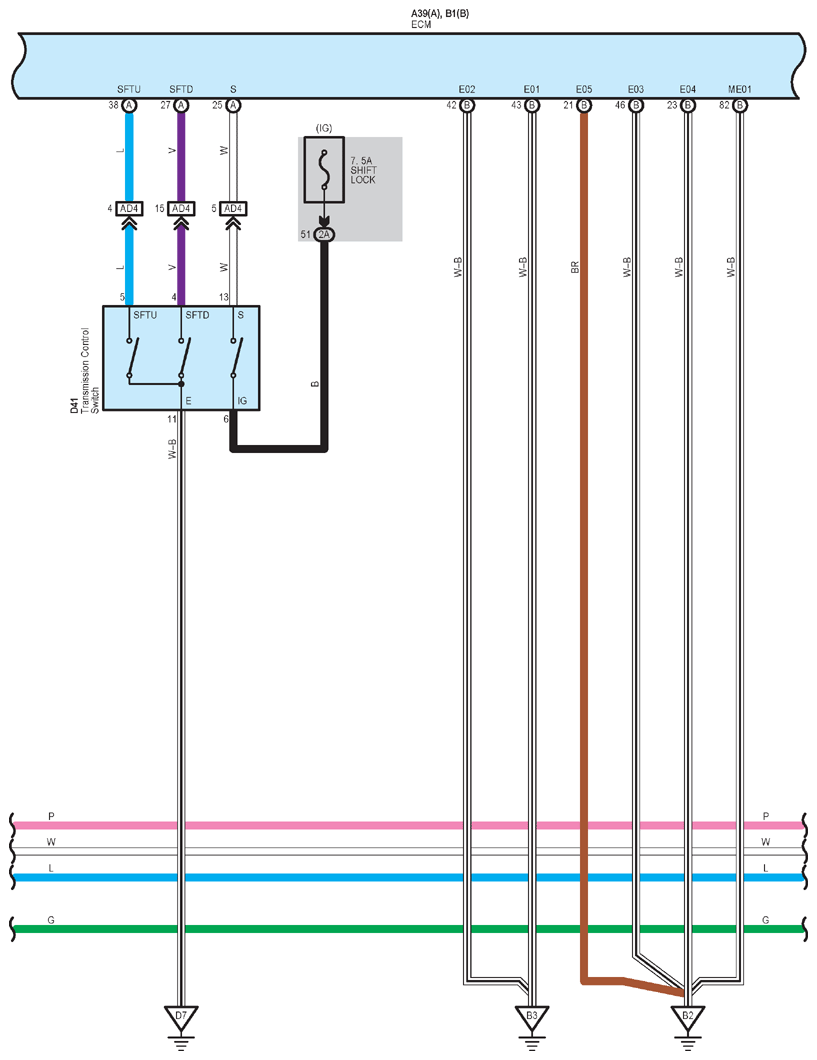

Fig 7: Dynamic Radar Cruise Control (2GR-FE) (10 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

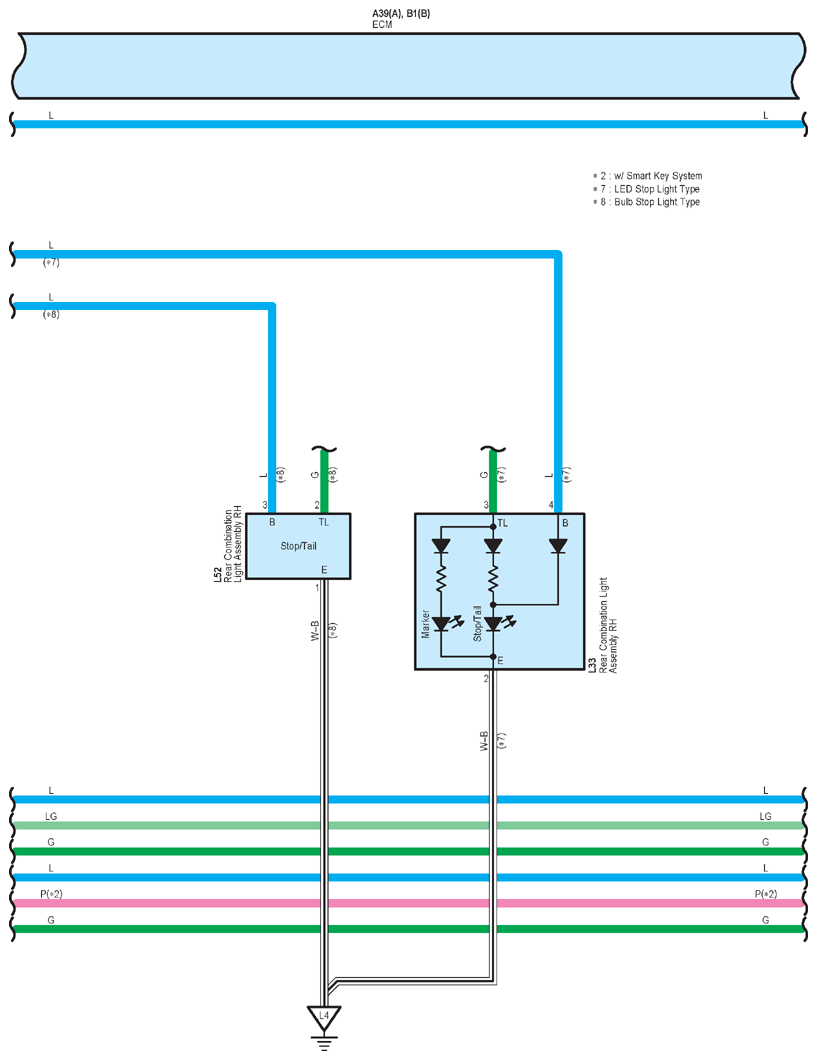

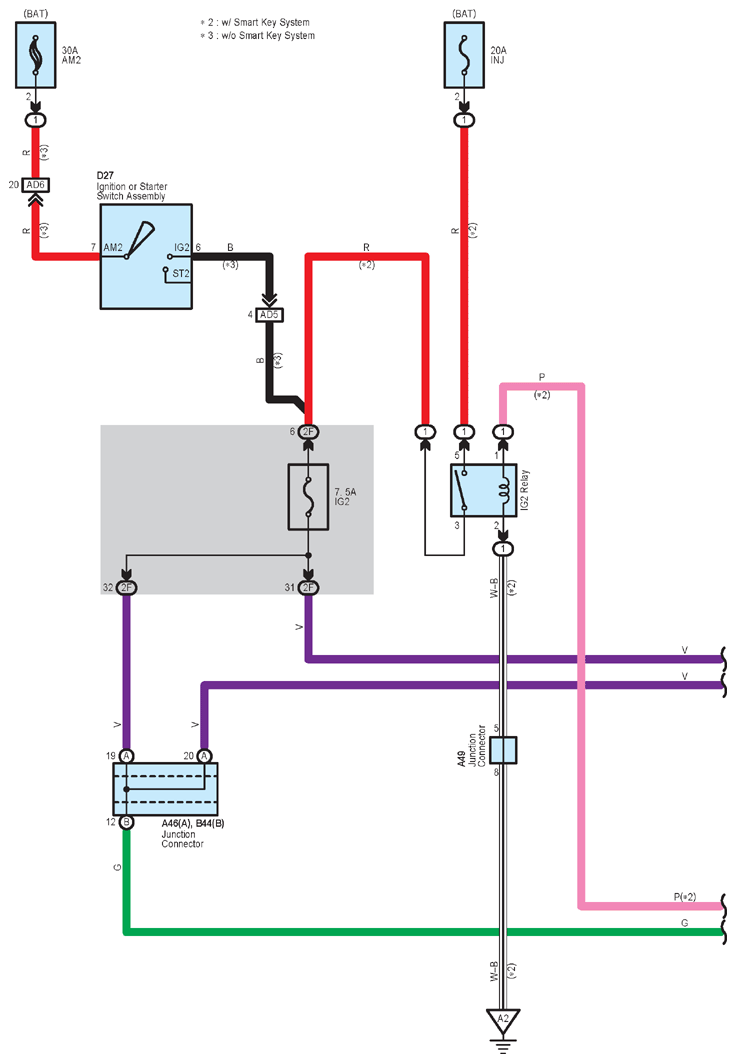

Fig 8: Dynamic Radar Cruise Control (2GR-FE) (11 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Dynamic Radar Cruise Control (2GR-FE) (12 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Dynamic Radar Cruise Control (2GR-FE) (13 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Dynamic Radar Cruise Control (2GR-FE) (14 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Dynamic Radar Cruise Control (2GR-FE) (15 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Dynamic Radar Cruise Control (2GR-FE) (16 Of 21)

Fig 14: Dynamic Radar Cruise Control (2GR-FE) (17 Of 21)

Fig 15: Dynamic Radar Cruise Control (2GR-FE) (18 Of 21)

Fig 16: Dynamic Radar Cruise Control (2GR-FE) (19 Of 21)

Fig 17: Dynamic Radar Cruise Control (2GR-FE) (20 Of 21)

Fig 18: Dynamic Radar Cruise Control (2GR-FE) (21 Of 21)
