System Diagrams — 2016 Toyota Sienna SE Service Manual ~ LEMON Manuals

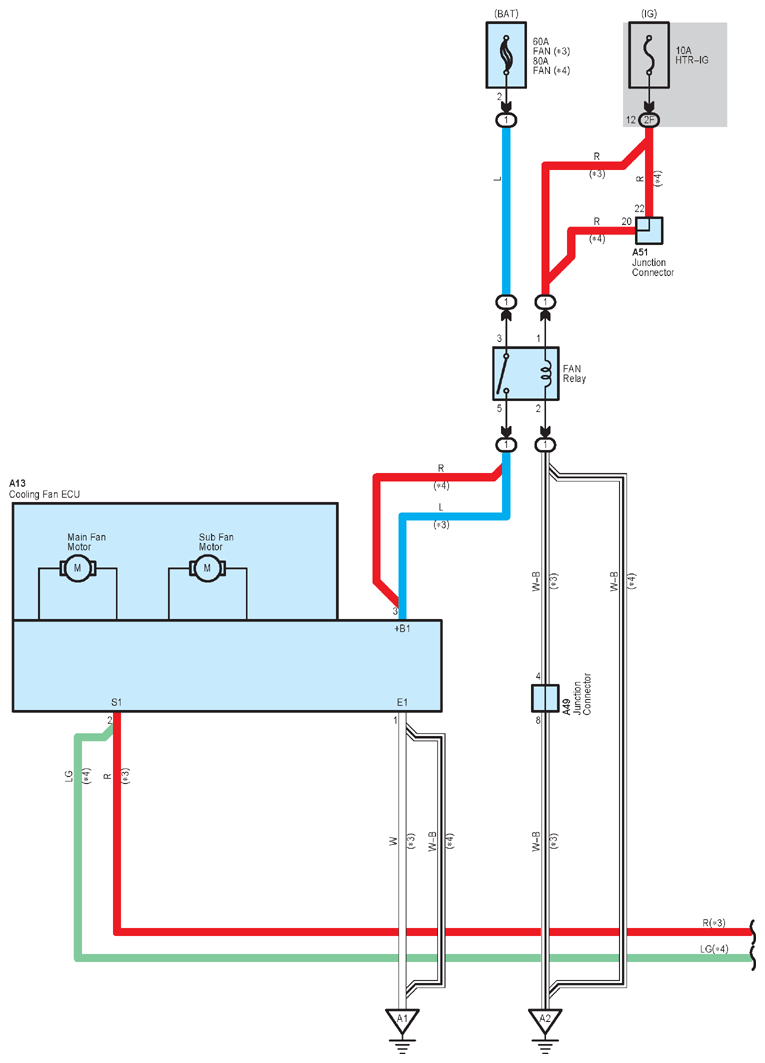

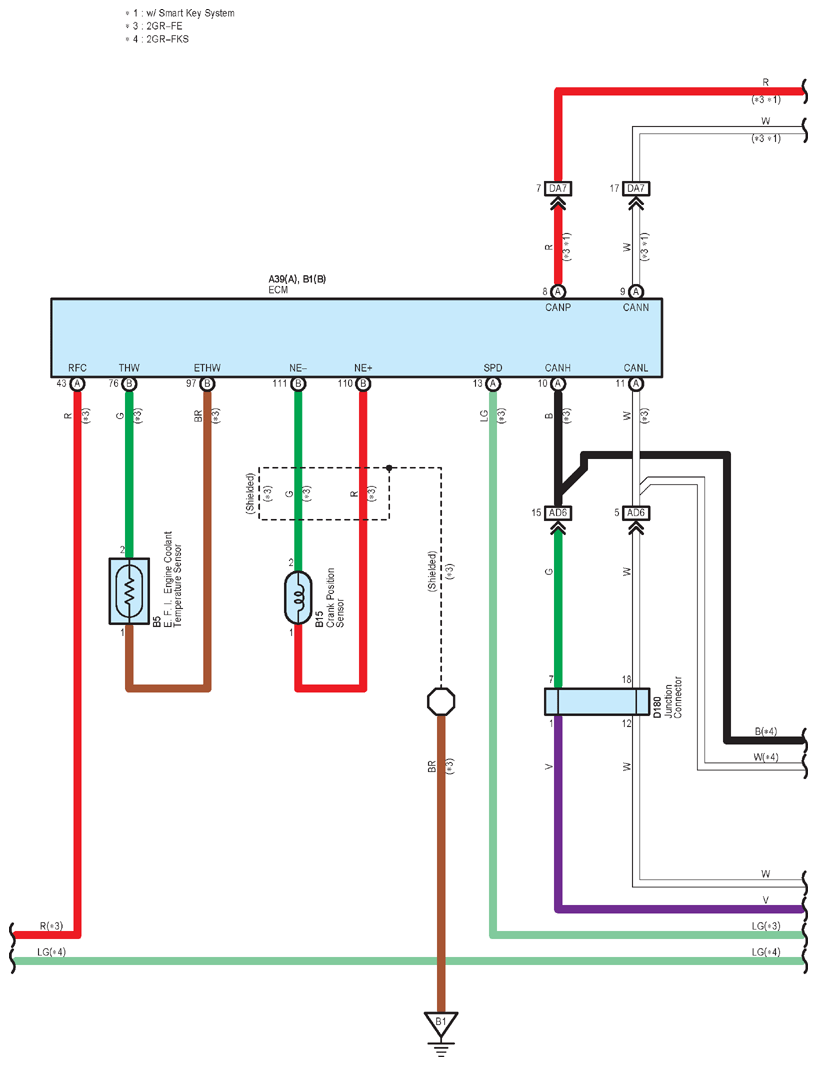

Fig 1: Cooling Fan (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

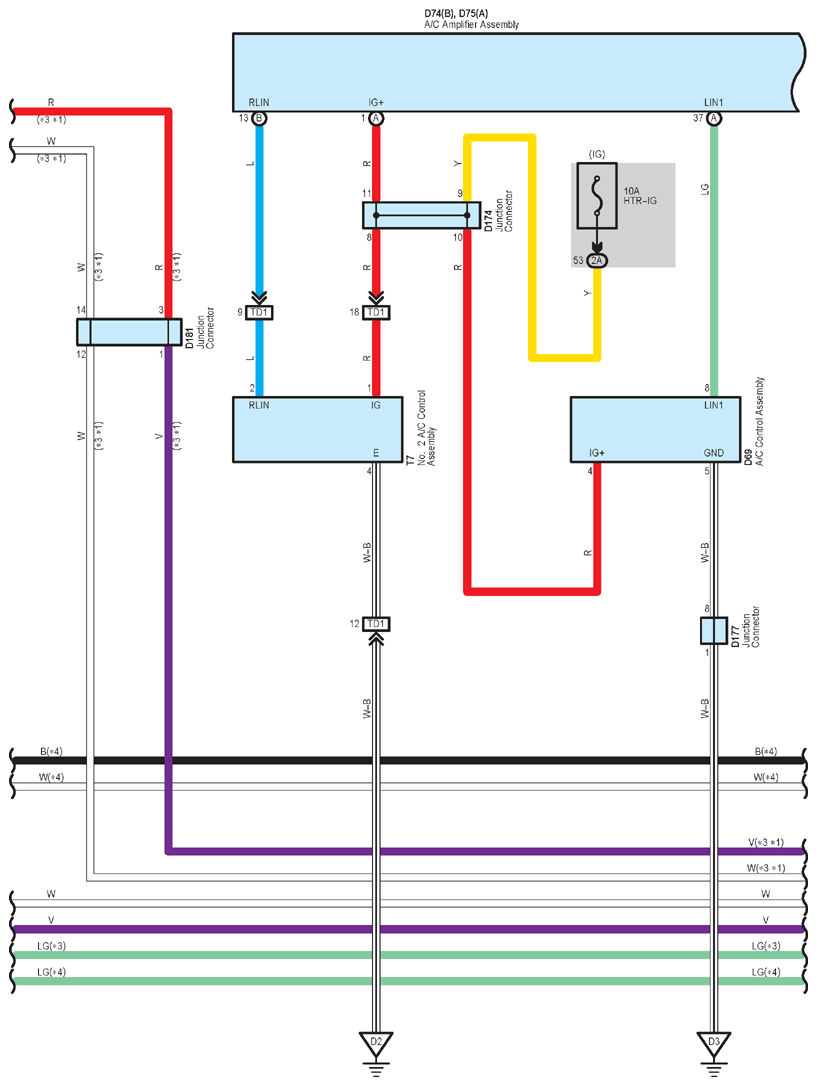

Fig 2: Cooling Fan (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

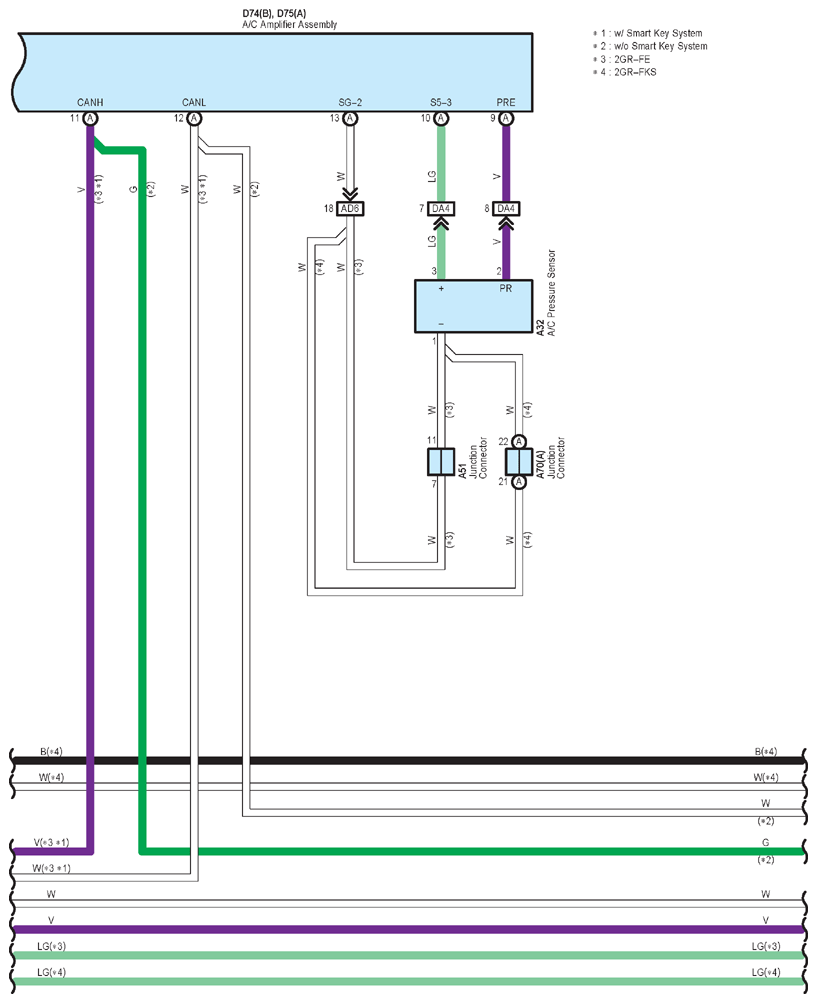

Fig 3: Cooling Fan (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

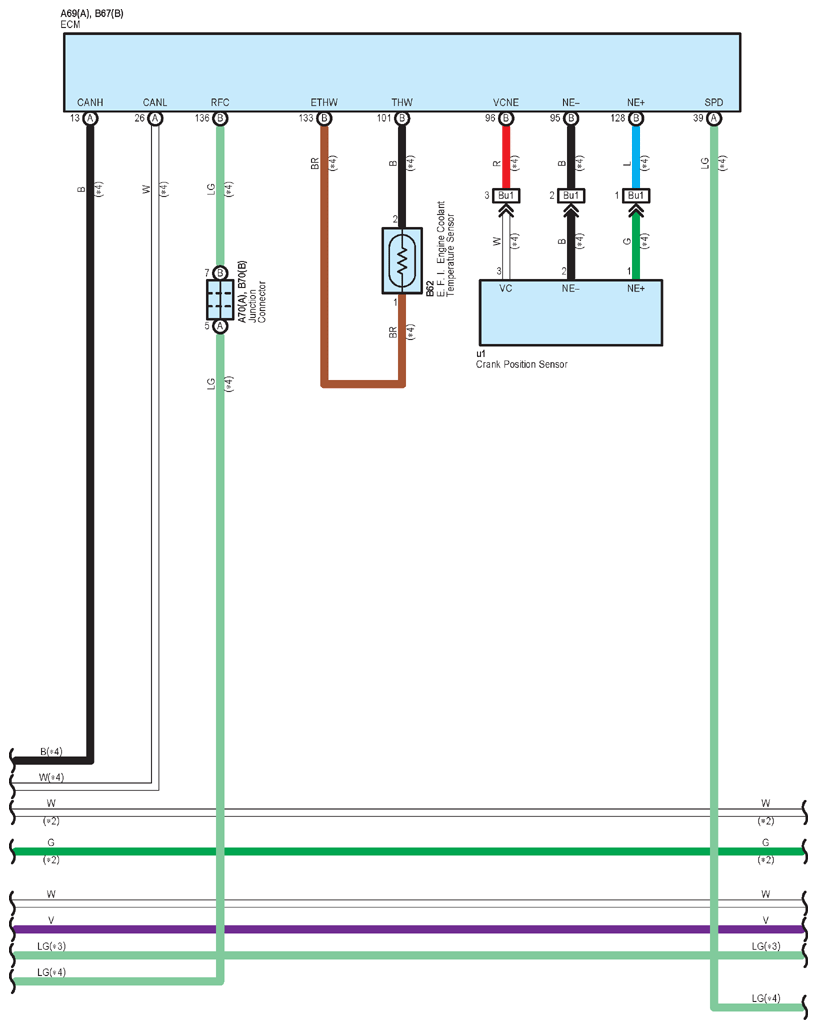

Fig 4: Cooling Fan (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

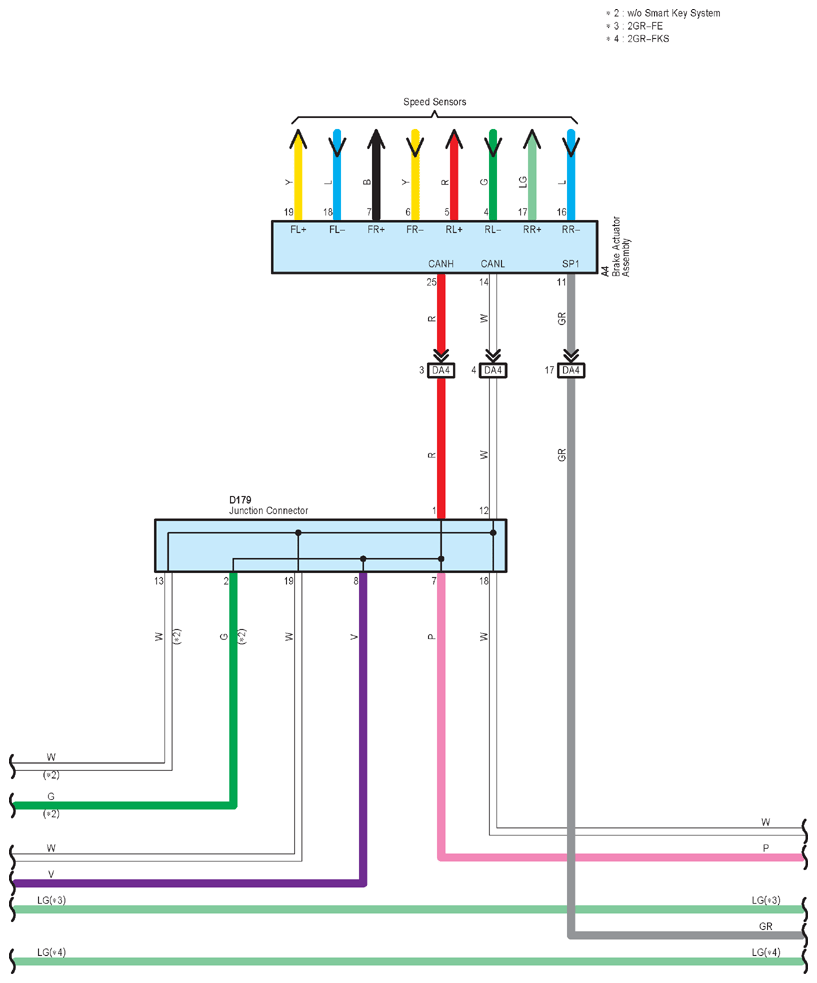

Fig 5: Cooling Fan (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

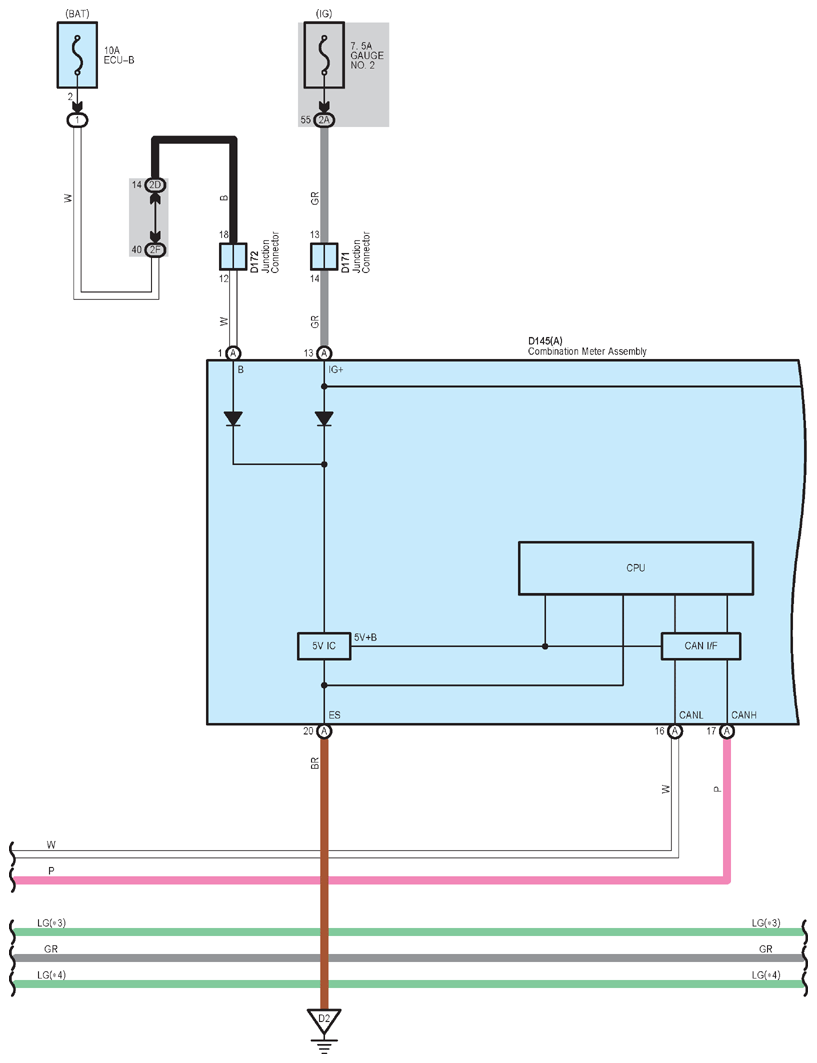

Fig 6: Cooling Fan (6 Of 8)

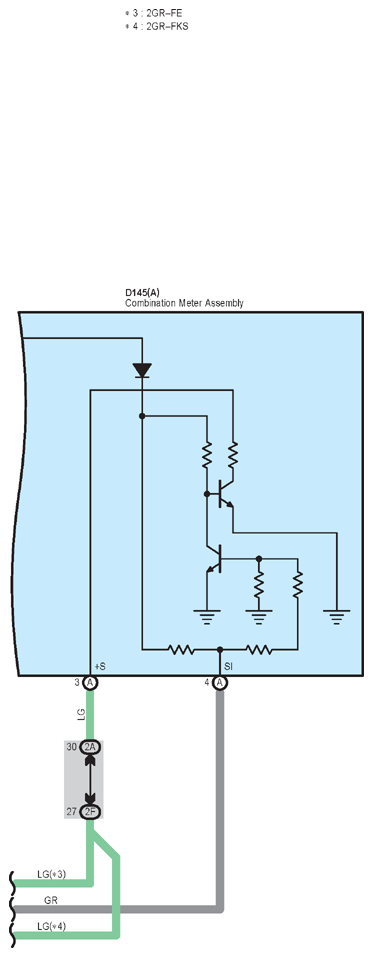

Fig 7: Cooling Fan (7 Of 8)

Fig 8: Cooling Fan (8 Of 8)
