System Diagrams — 2016 Toyota Sienna SE Service Manual ~ LEMON Manuals

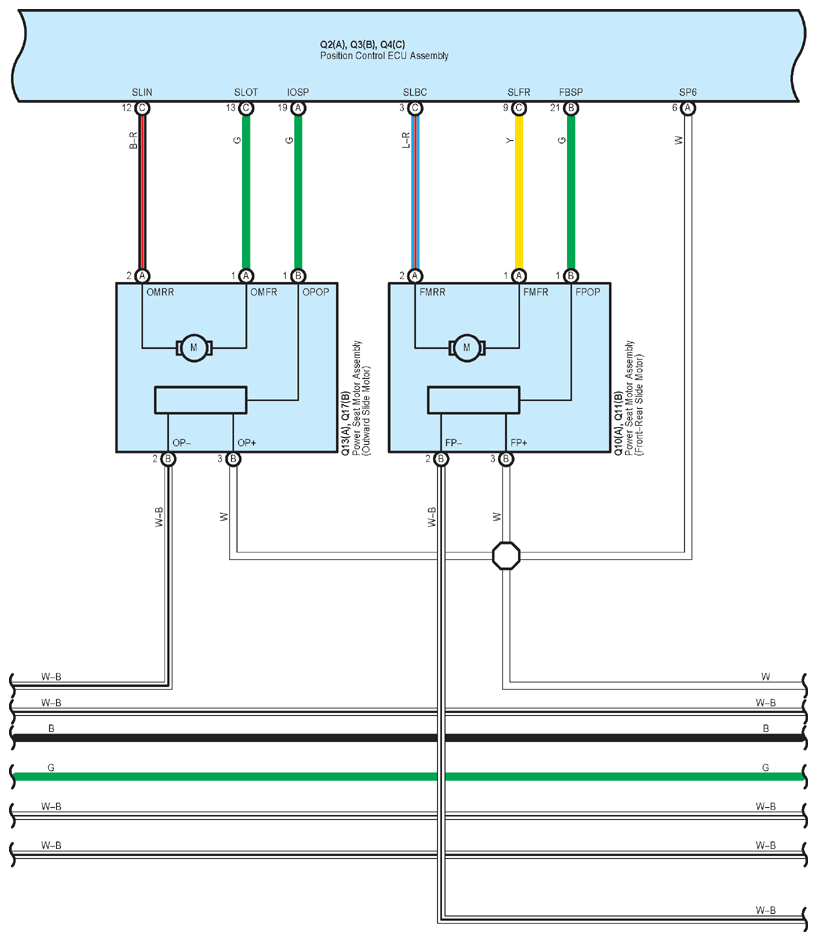

Fig 1: Auto Access Seat (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

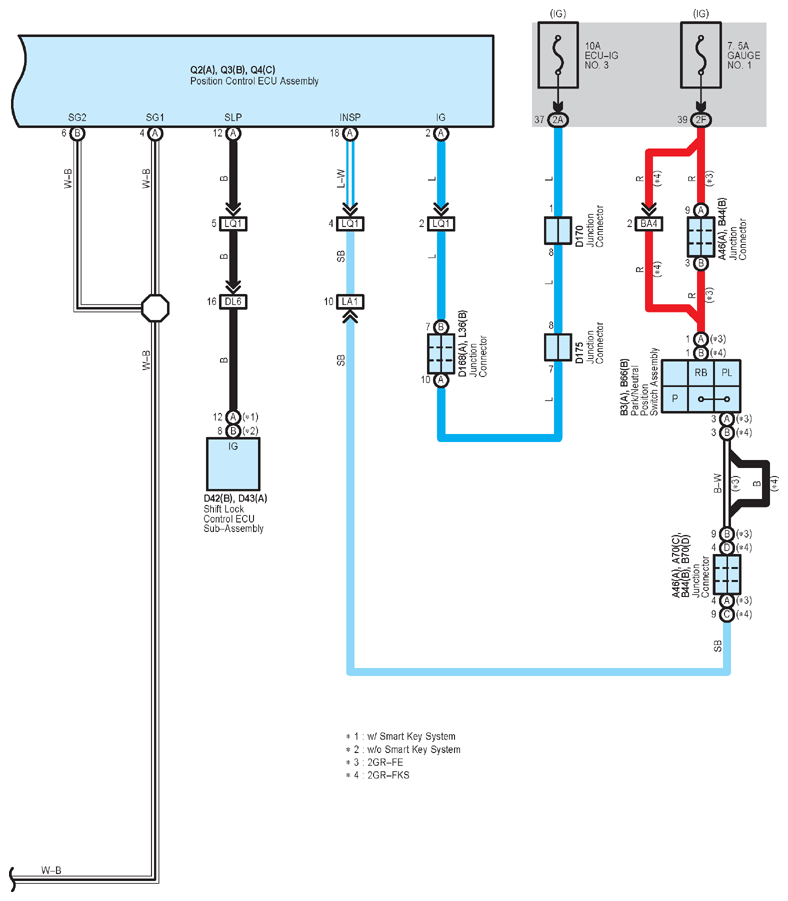

Fig 2: Auto Access Seat (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

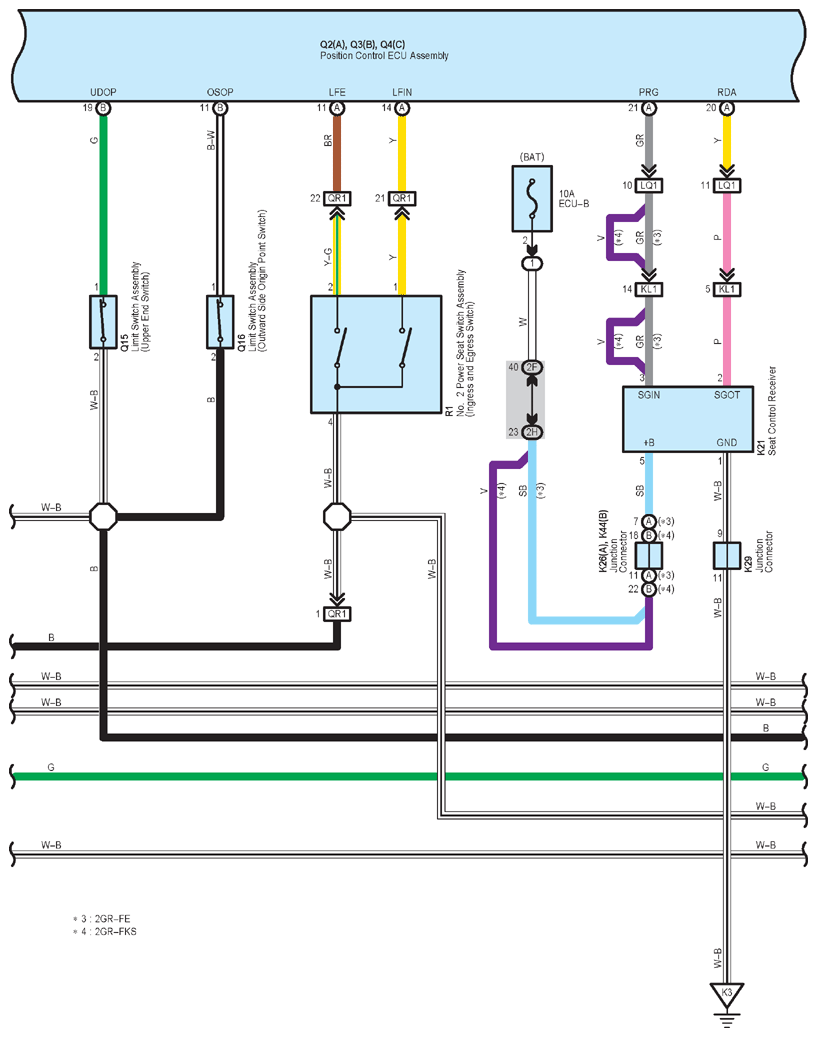

Fig 3: Auto Access Seat (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

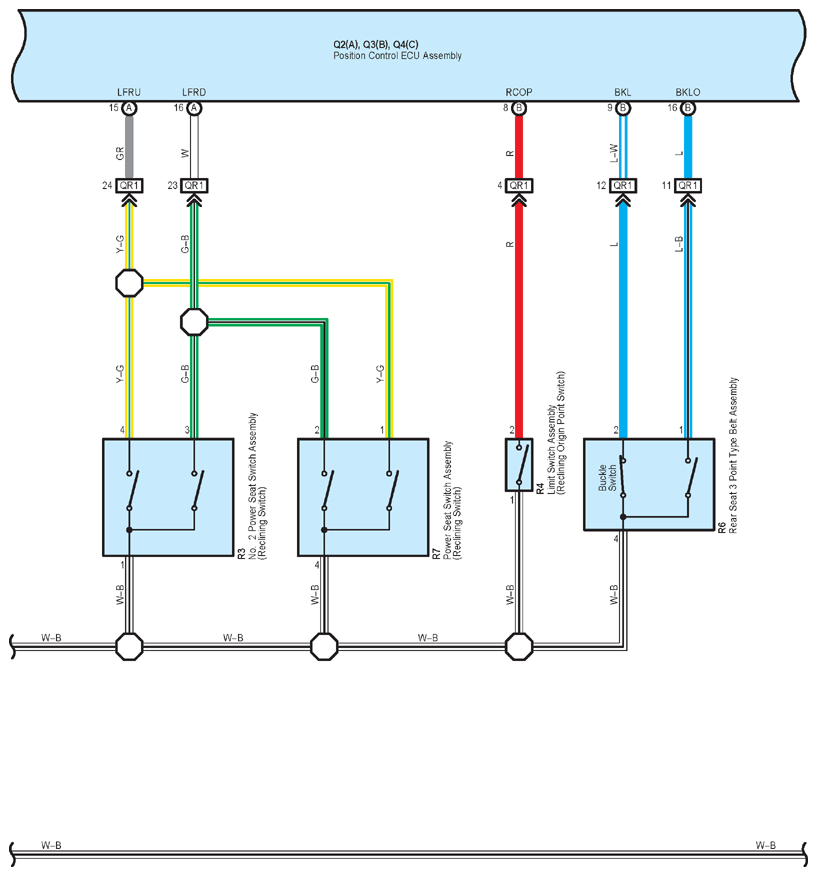

Fig 4: Auto Access Seat (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

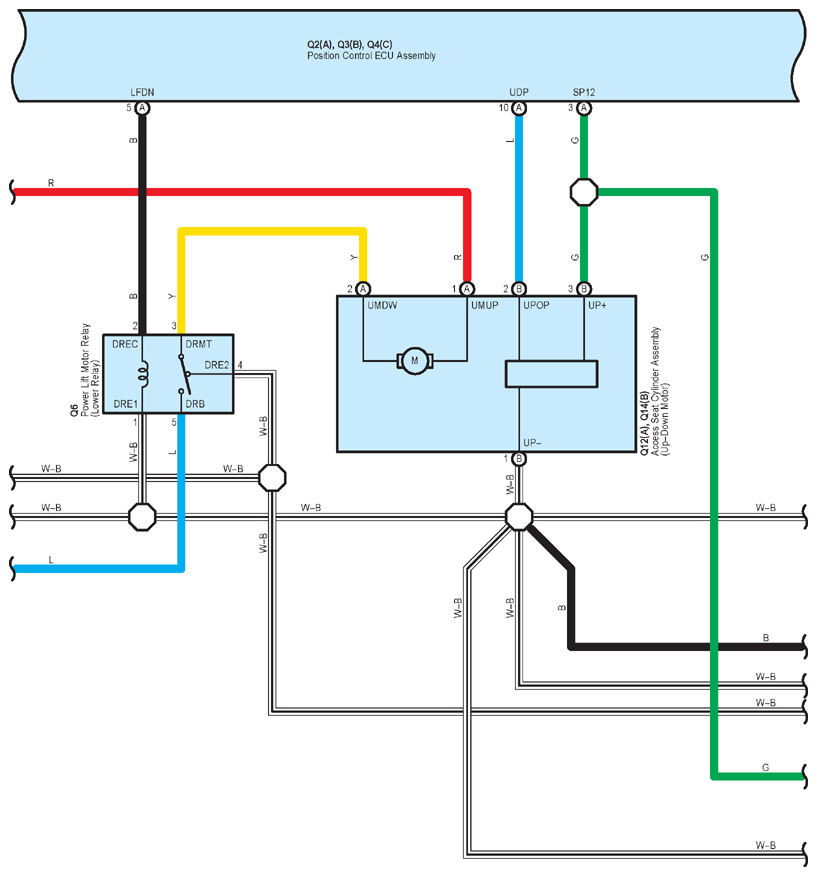

Fig 5: Auto Access Seat (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

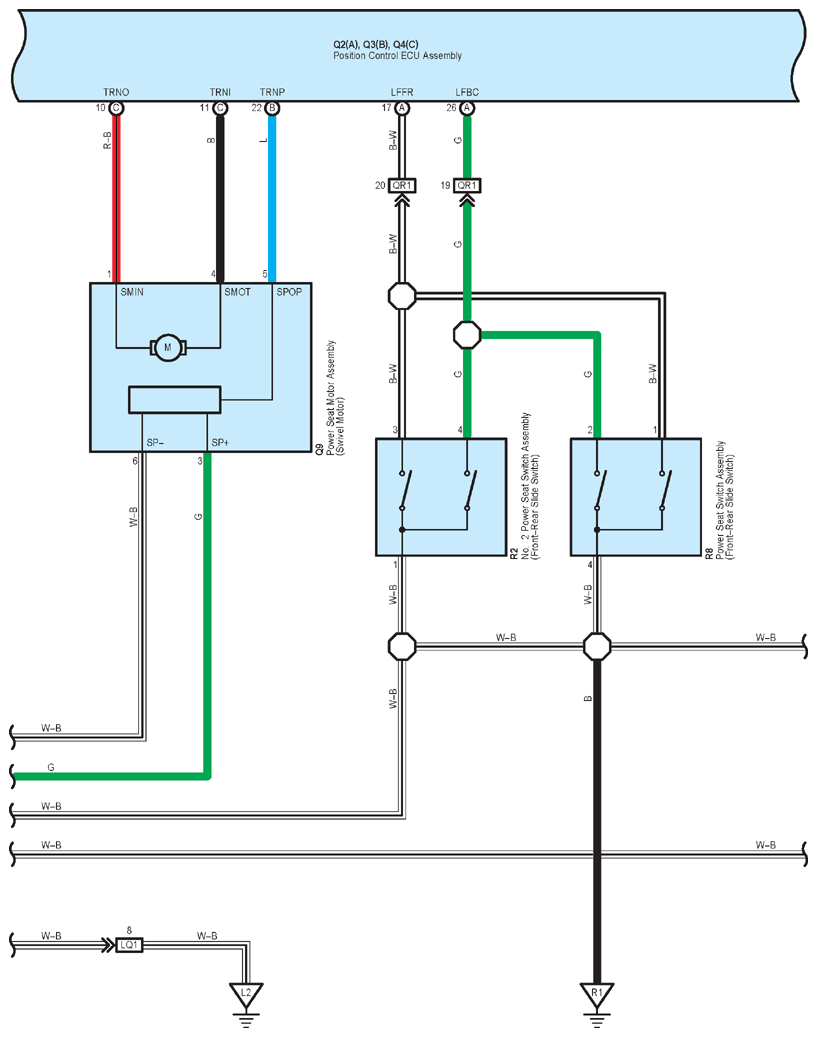

Fig 6: Auto Access Seat (6 Of 8)

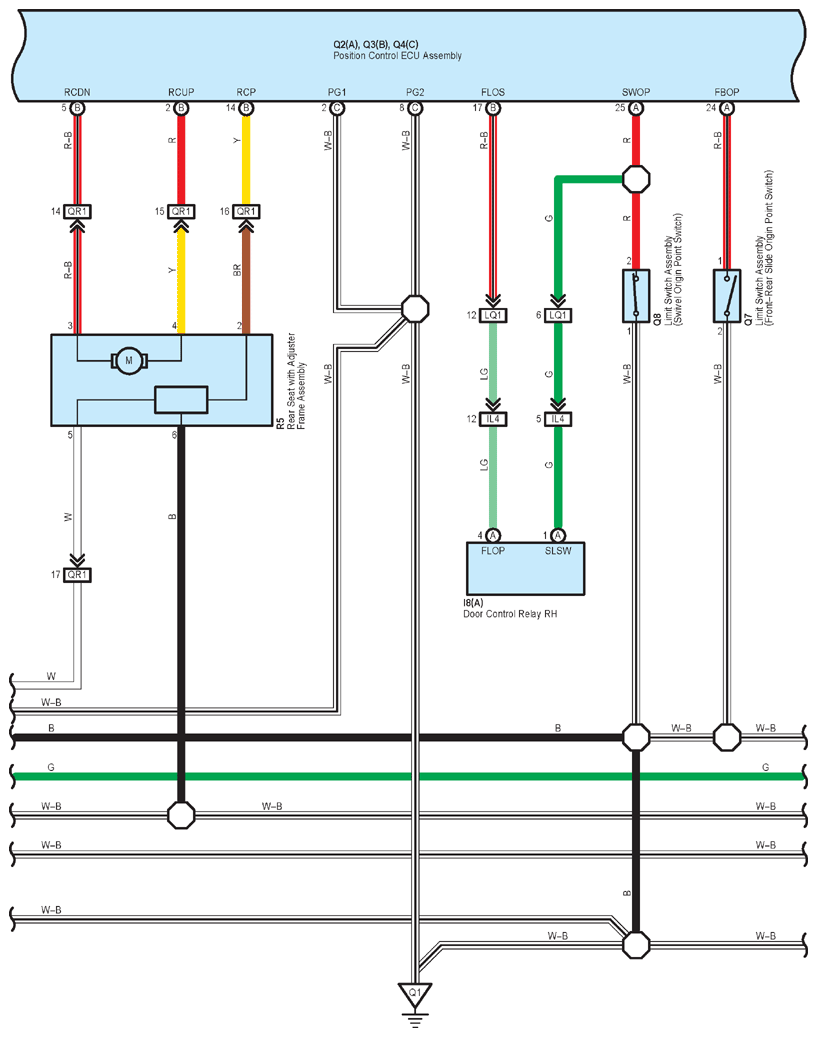

Fig 7: Auto Access Seat (7 Of 8)

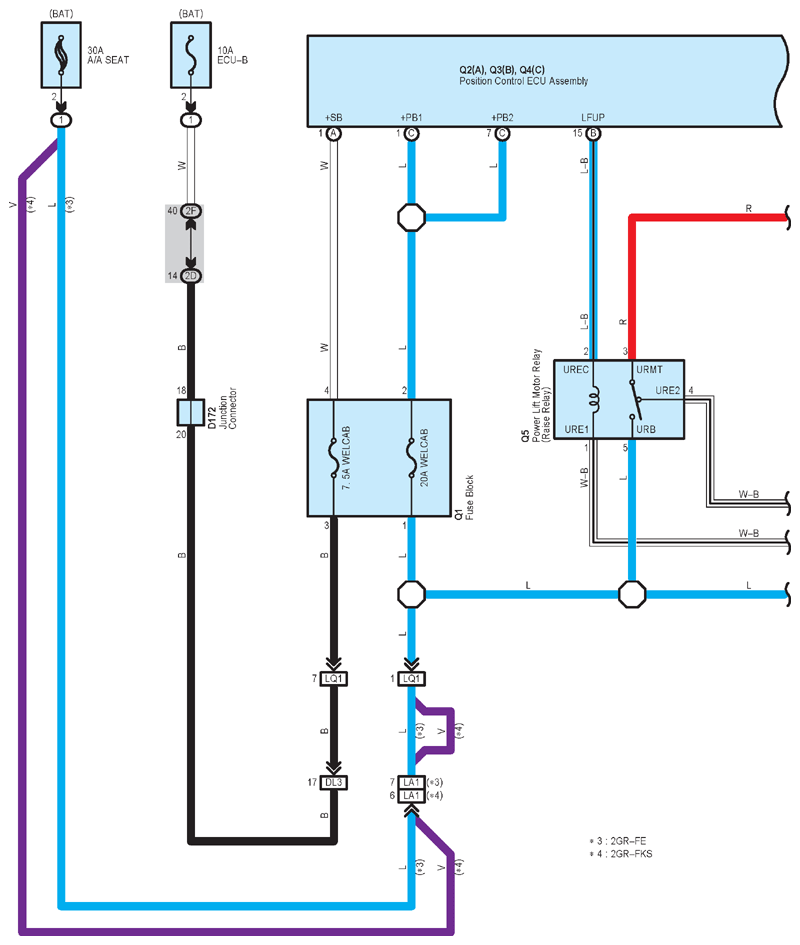

Fig 8: Auto Access Seat (8 Of 8)
