System Diagrams

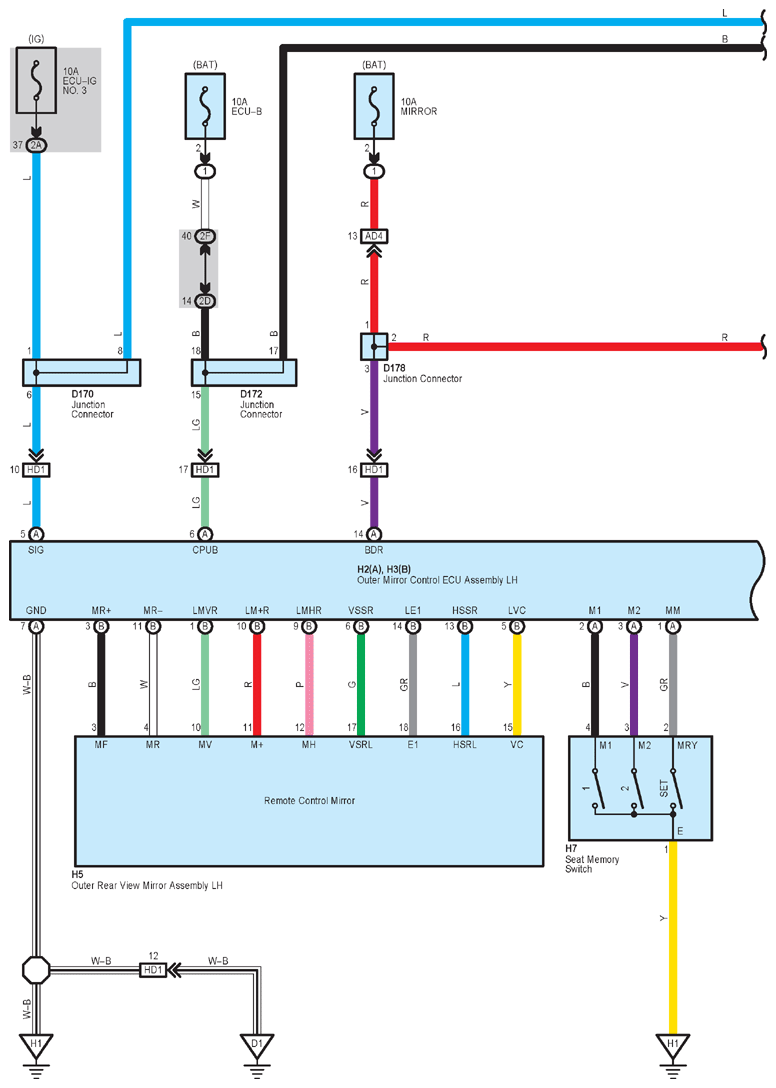

Fig 1: Remote Control Mirror (W/Seat Position Memory) (1 Of 5)
G12221752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

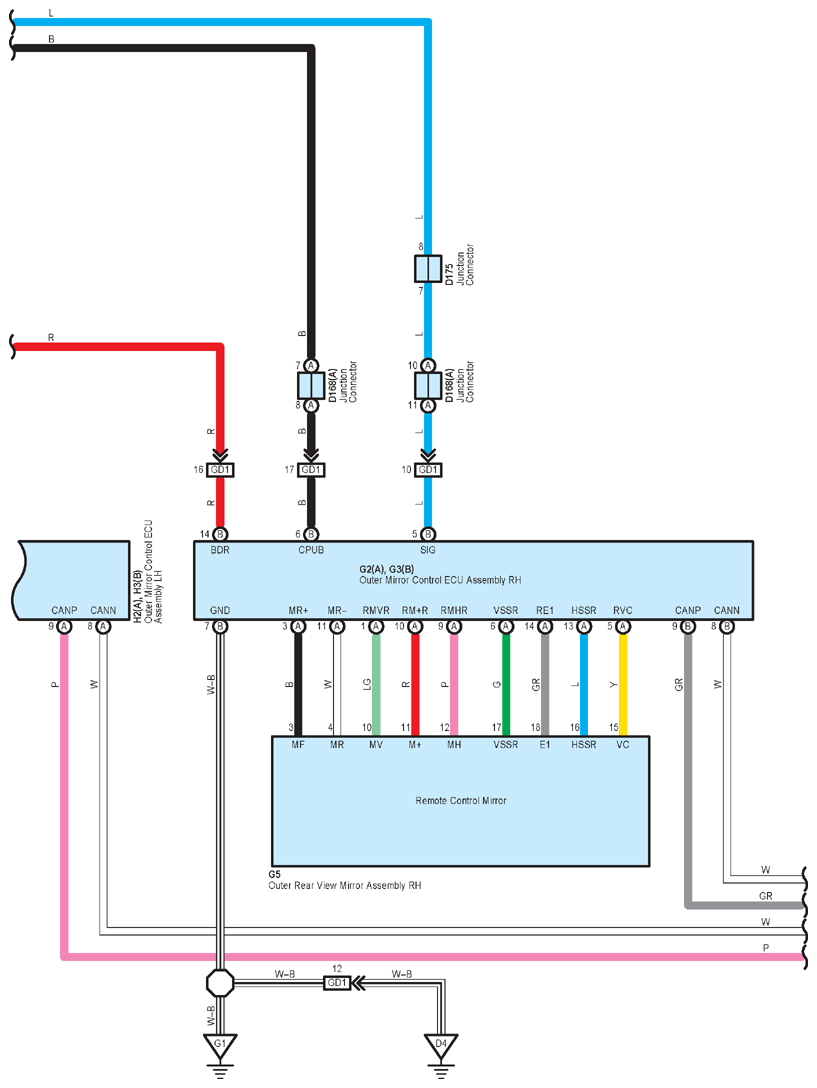

Fig 2: Remote Control Mirror (W/Seat Position Memory) (2 Of 5)
G12221753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

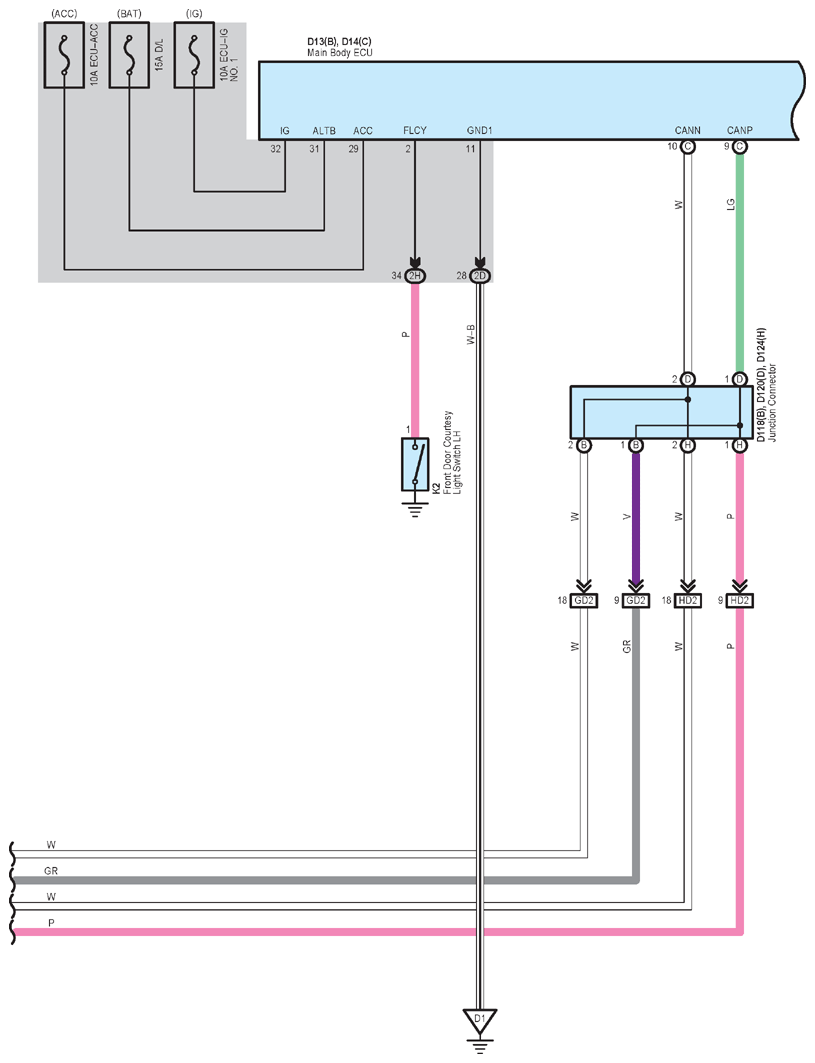

Fig 3: Remote Control Mirror (W/Seat Position Memory) (3 Of 5)
G12221754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

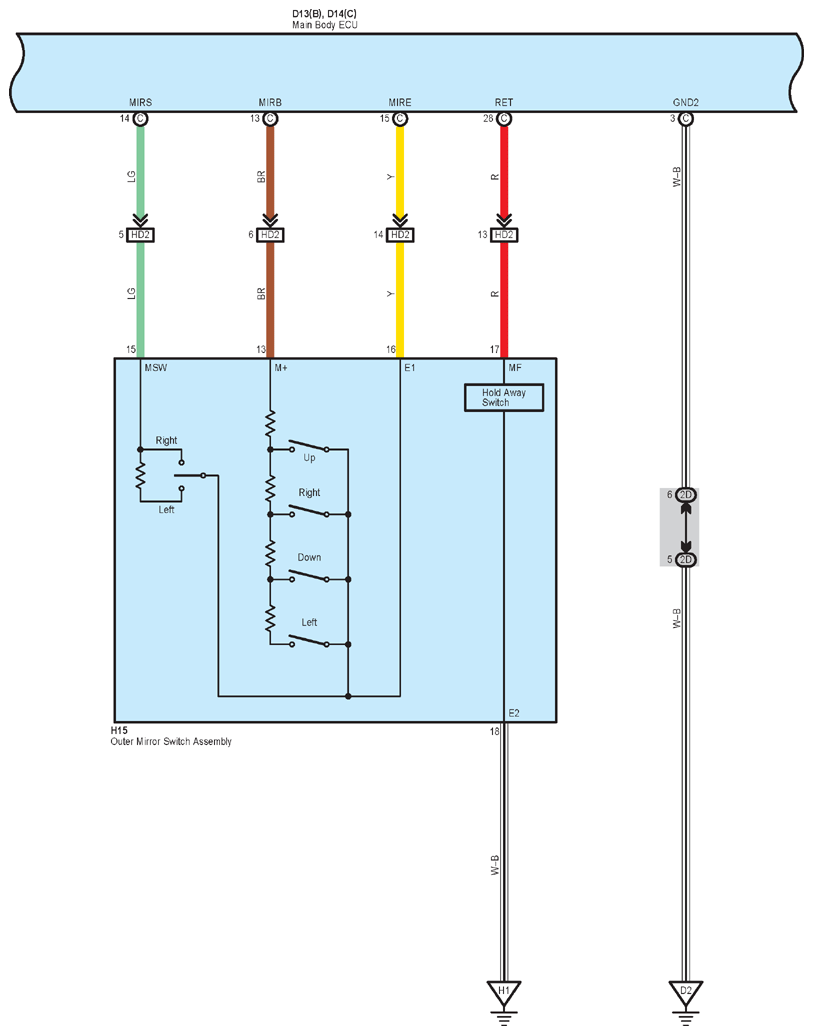

Fig 4: Remote Control Mirror (W/Seat Position Memory) (4 Of 5)
G12221755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Remote Control Mirror (W/Seat Position Memory) (5 Of 5)
G12221756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
