System Diagrams

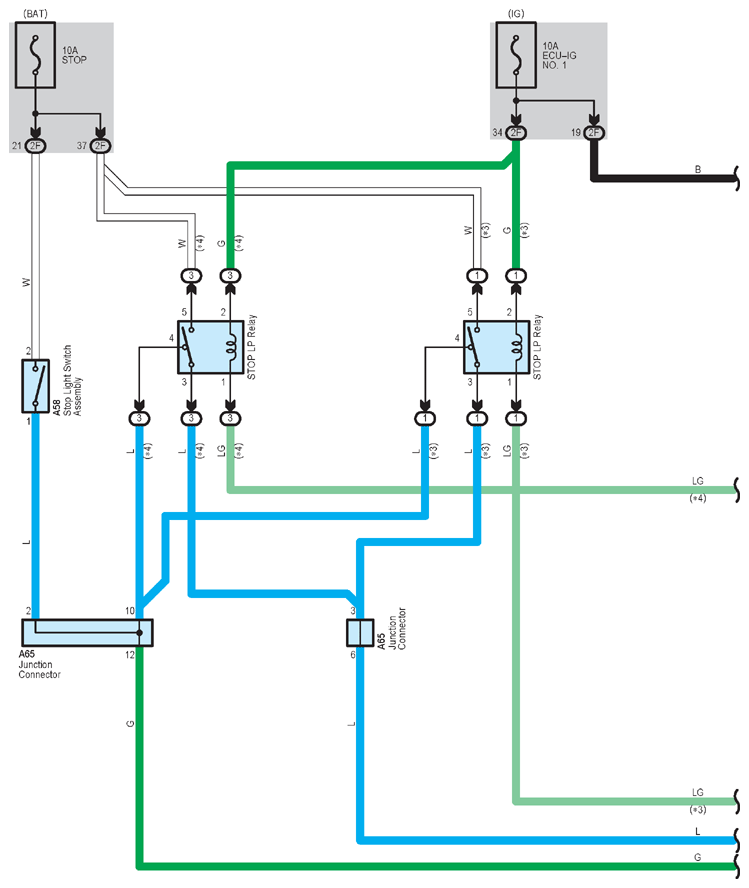

Fig 1: Pre-Collision System (1 Of 8)
G12221662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

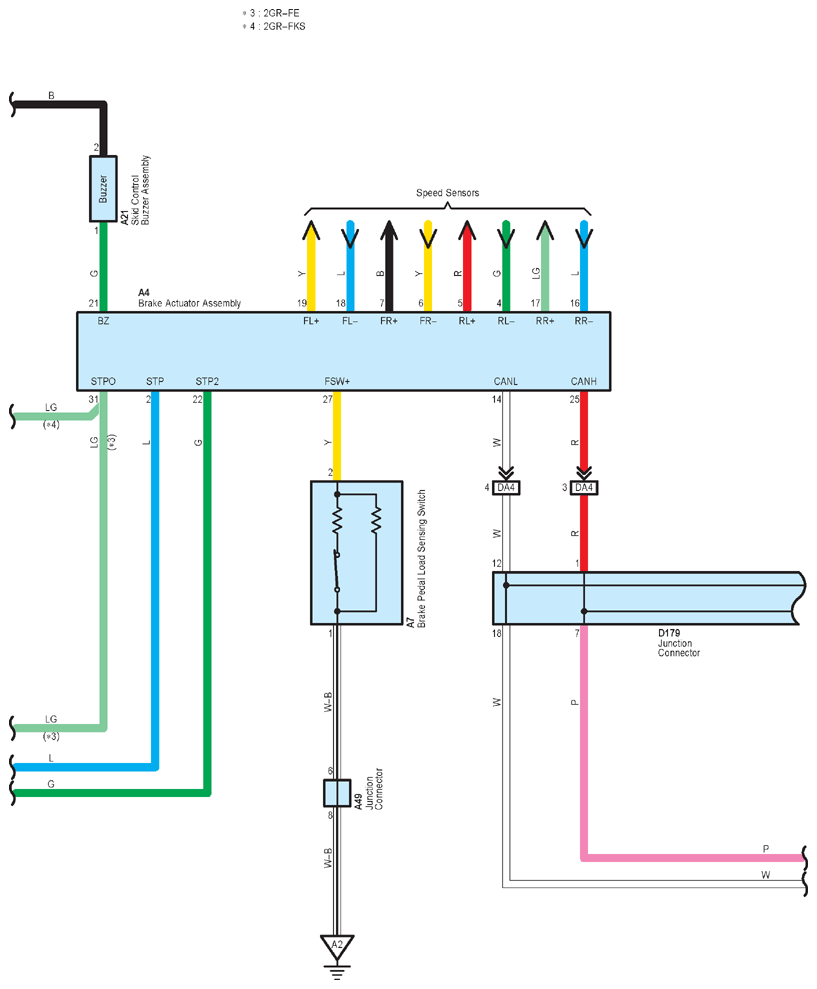

Fig 2: Pre-Collision System (2 Of 8)
G12221663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

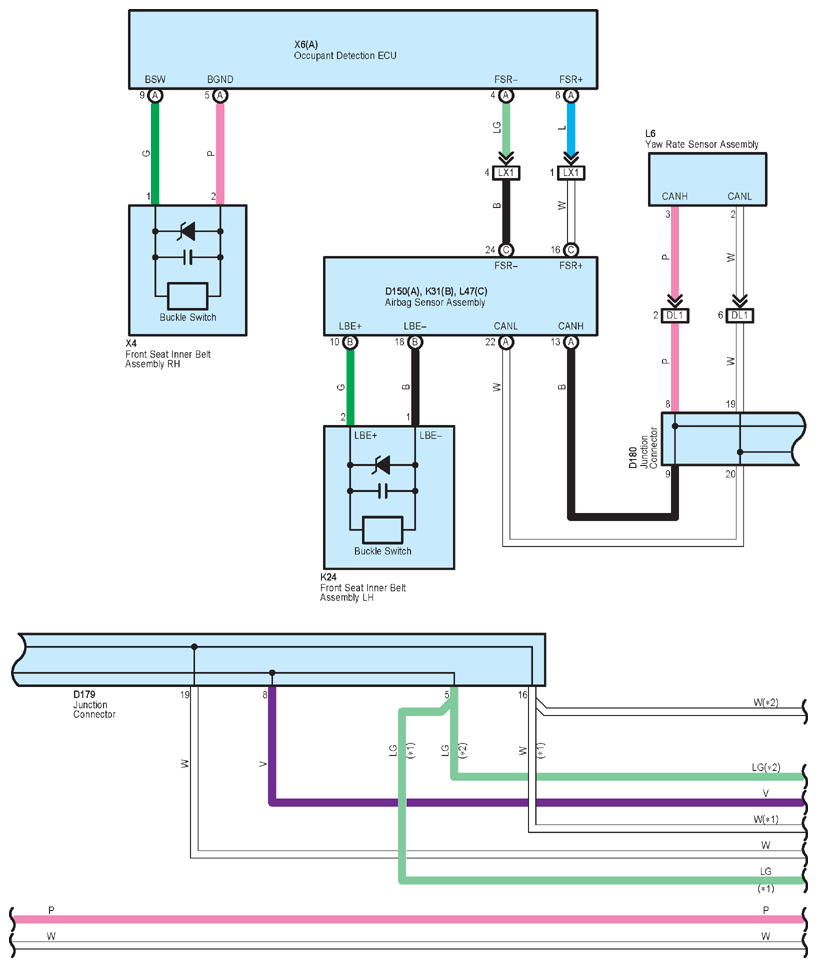

Fig 3: Pre-Collision System (3 Of 8)
G12221664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

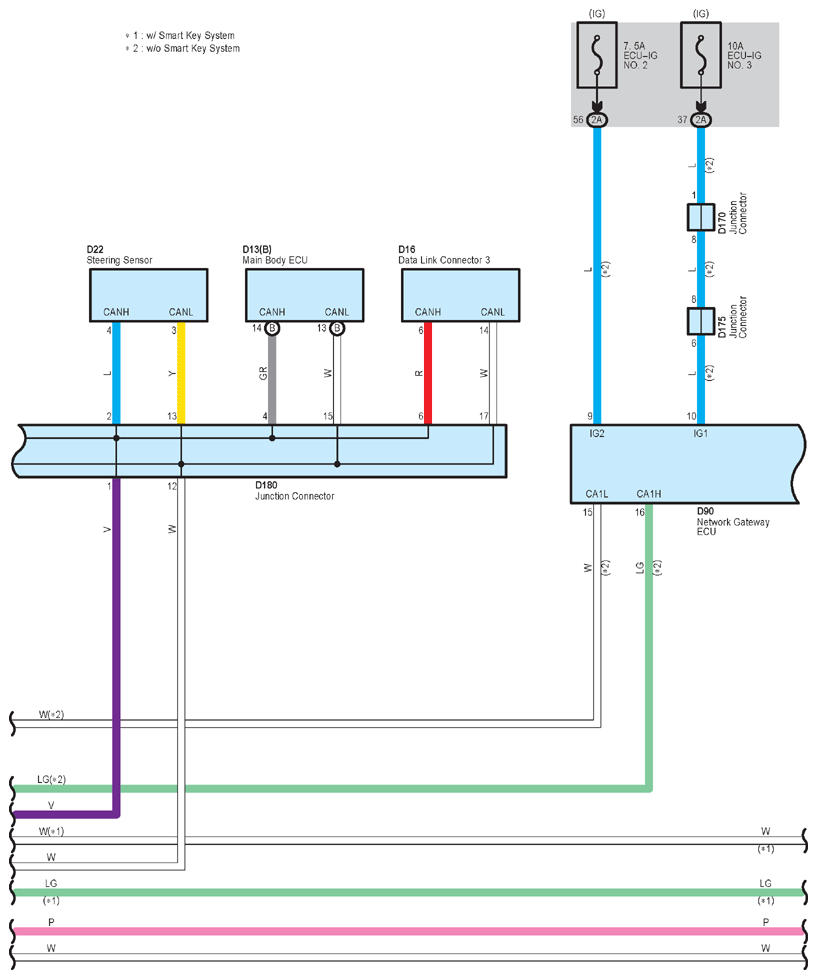

Fig 4: Pre-Collision System (4 Of 8)
G12221665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

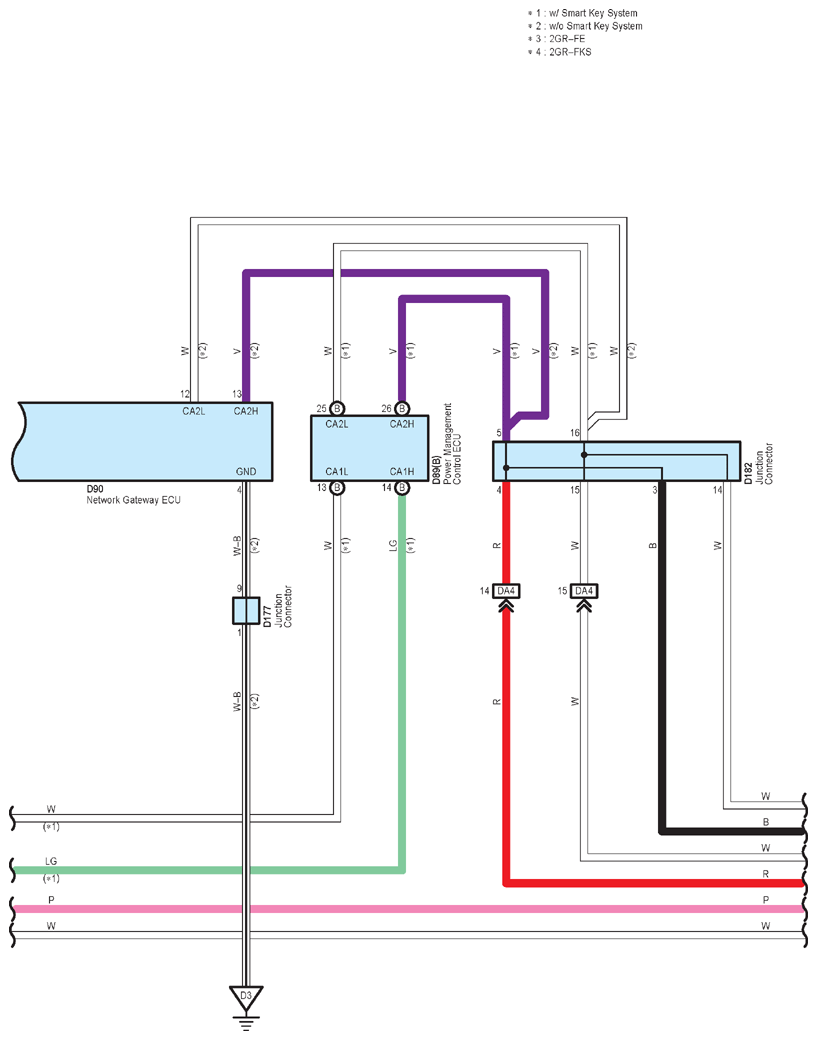

Fig 5: Pre-Collision System (5 Of 8)
G12221666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

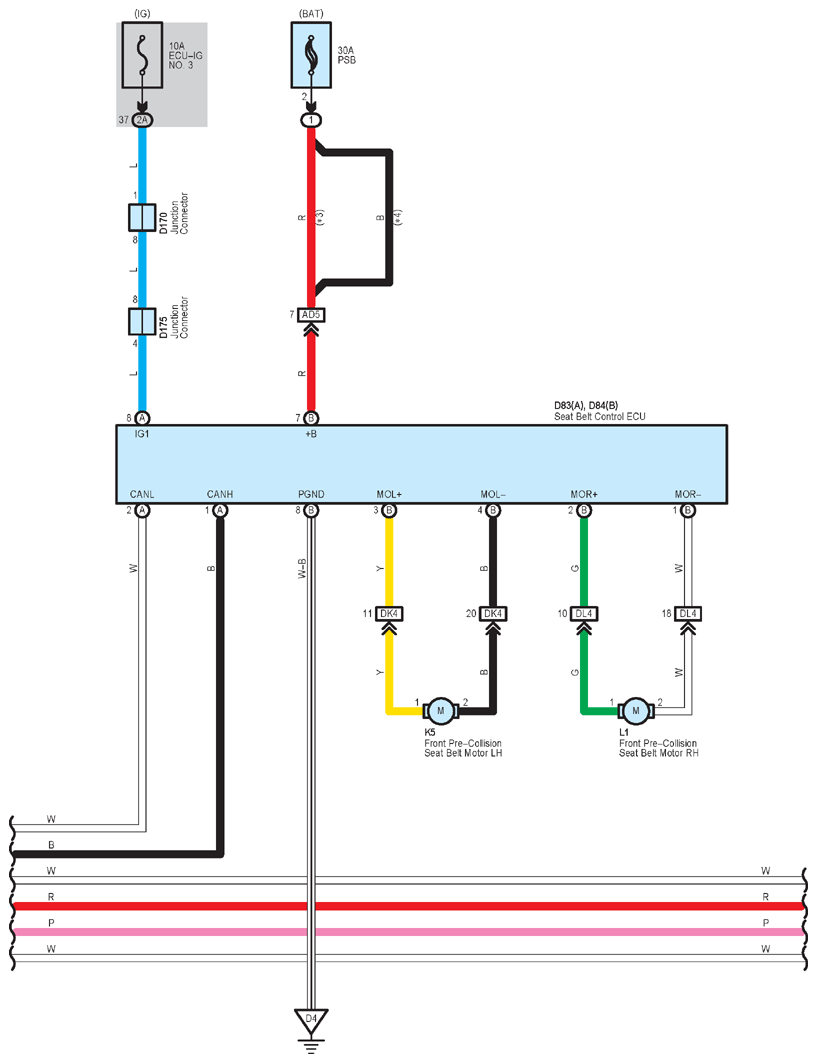

Fig 6: Pre-Collision System (6 Of 8)
G12221667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

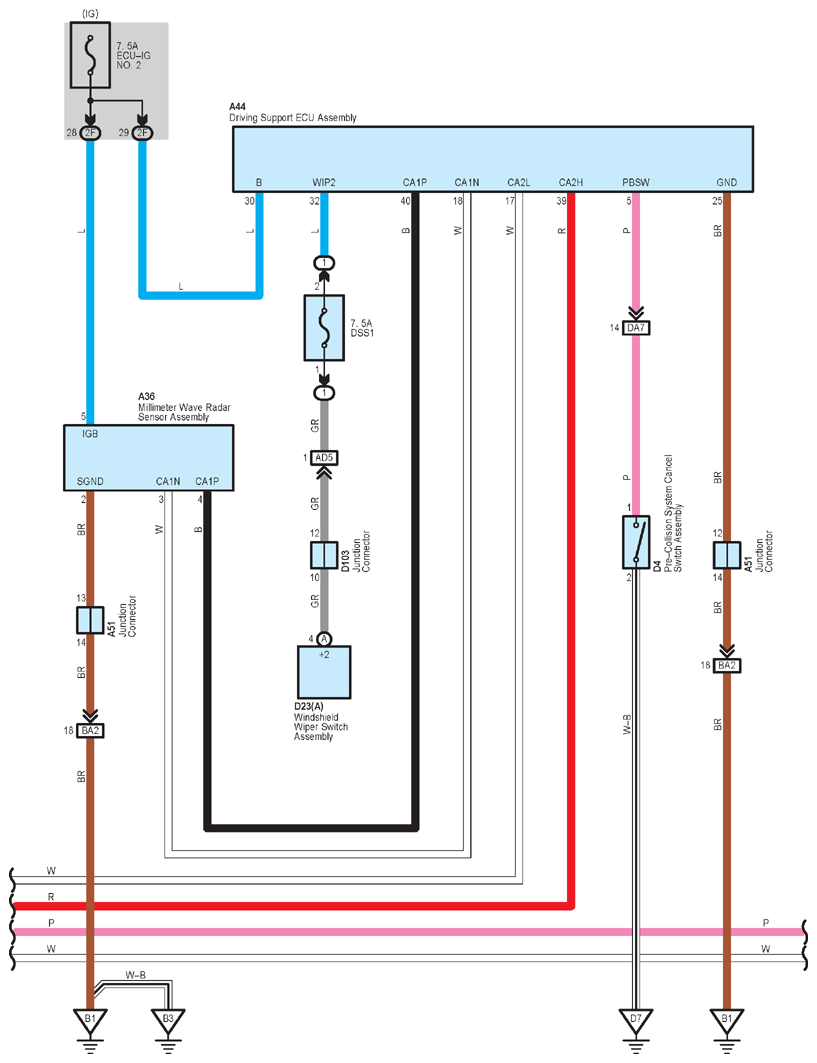

Fig 7: Pre-Collision System (7 Of 8)
G12221668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

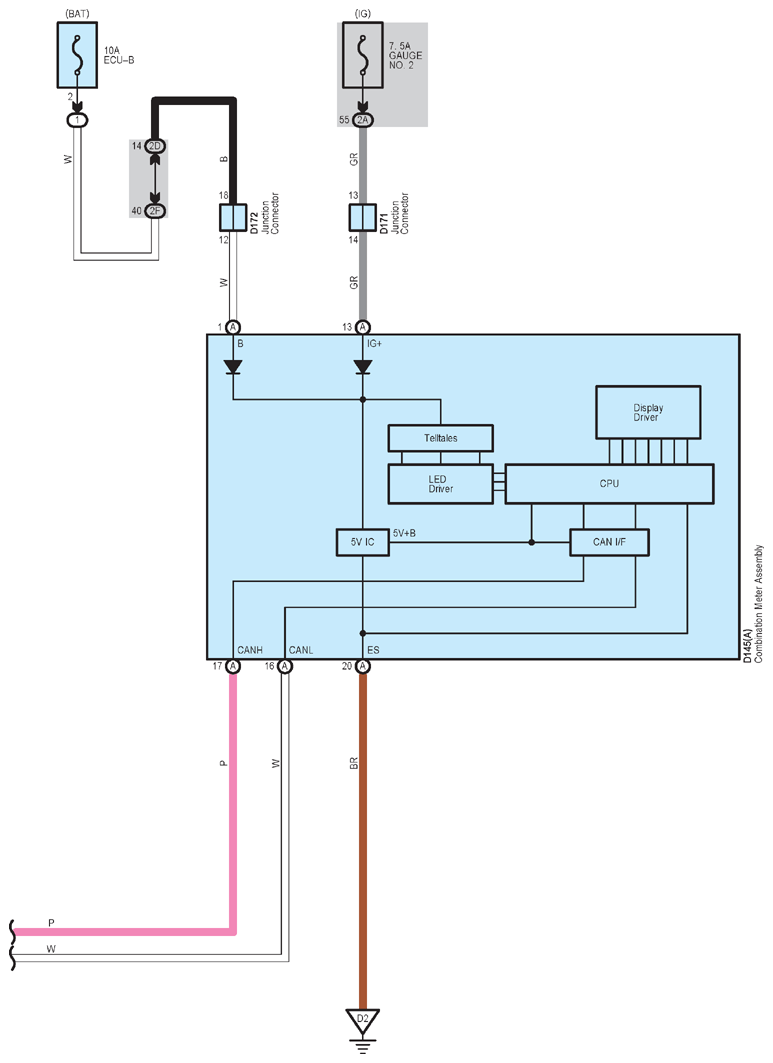

Fig 8: Pre-Collision System (8 Of 8)
G12221669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
